1-46 — DEF TANK AND PIPING (#165060) — 146 parça

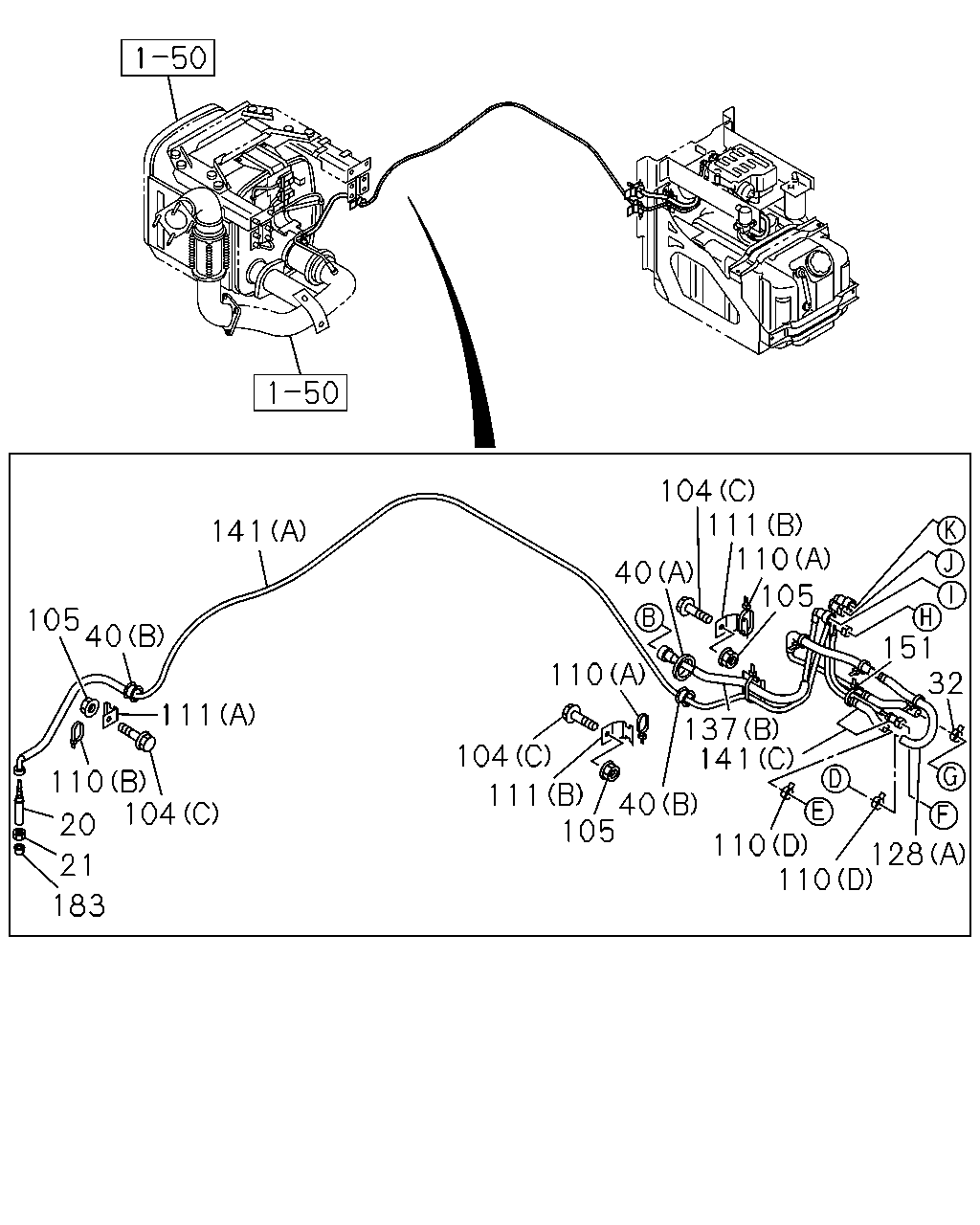

çizim 488135
183 21 20 110 111 40 105 141 104 40 111 110 105 110 151 32 137 104 111 40 105 110 110 128 141 104
BalonParca AdiParca NoAdetTipApplied Date
20 INJECTOR ASM; DEF DCM 8-98221-258-0 01 1 1508-
21 NUT; INJECTOR ASM,DEF DCM 8-98221-270-0 01 1 1508-
32 CLAMP; DEF SPLY HOSE
ID=16 		8-97329-628-0 02 1 1508-
40 GROMMET
(A) ID=39 OD=45 T=19 		1-09332-077-0 01 1 1508-
40 GROMMET
(B) ID=24 OD=30 T=22 		1-09332-126-0 02 1 1508-
40 GROMMET
(C) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1508-
104 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1508-
104 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1508-
104 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 04 1 1508-
105 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 1508-
110 CLIP; TUBE ASM
(A) L=350 		1-09707-183-0 12 1 1508-
110 CLIP; TUBE ASM
(E) ID=13 L=20 		0-95235-235-0 01 1 1508-
110 CLIP; TUBE ASM
(C) ID=13X2 L=16 		0-95325-225-0 02 1 1508-
110 CLIP; TUBE ASM
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1508-
110 CLIP; TUBE ASM
(D) ID=16 		8-97329-628-0 02 1 1508-
110 CLIP; TUBE ASM
(B) L=251 		8-97619-917-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(C) 		8-98320-718-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(A) 		8-97634-806-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(B) 		8-97645-073-0 02 1 1508-
111 BRACKET; CLIP,TUBE ASM
(D) 		8-98295-001-0 01 1 1508-
128 TUBE ASM; DEF TANK HTR DLVY
(B) 		8-98323-145-0 01 1 1508-
128 TUBE ASM; DEF TANK HTR DLVY
(A) 		8-98309-896-0 01 1 1508-
137 TUBE ASM; DEF TANK HTR RTN
(B) 		8-98323-147-0 01 1 1508-
137 TUBE ASM; DEF TANK HTR RTN
(A) 		8-98294-815-1 01 1 1508-
141 TUBE ASM; DEF DCM
(A) 		8-98309-916-0 01 1 1508-
141 TUBE ASM; DEF DCM
(F) 		8-98321-021-0 01 1 1508-
141 TUBE ASM; DEF DCM
(E) 		8-98321-025-0 01 1 1508-
141 TUBE ASM; DEF DCM
(B) 		8-98321-061-0 01 1 1508-
141 TUBE ASM; DEF DCM
(G) 		8-98321-228-0 01 1 1508-
141 TUBE ASM; DEF DCM
(D) 		8-98294-819-0 01 1 1508-
141 TUBE ASM; DEF DCM
(C) 		8-98317-116-0 01 1 1508-
151 CLIP; COVER
L=350 		1-09707-183-0 01 1 1508-
183 SPACER 8-98221-271-0 01 1 1508-

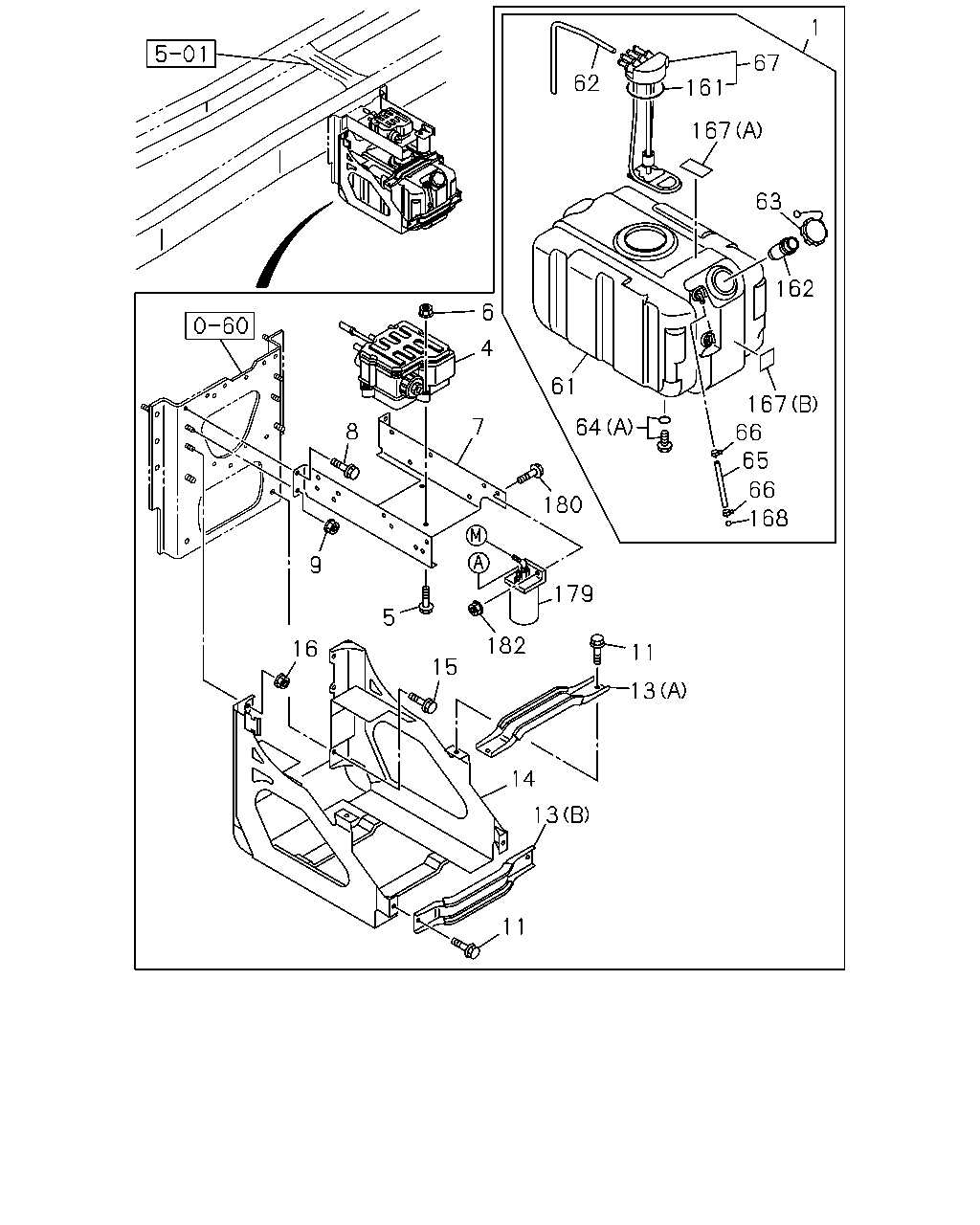

çizim 488139
11 13 14 15 16 9 8 5 182 13 179 11 180 7 4 6 61 167 64 66 168 66 65 162 63 167 161 67 1 62
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; DEF 8-98295-877-1 01 1 1508-
4 PUMP ASM; DEF,DCM SPLY 8-98221-257-0 01 1 1508-
5 BOLT; PUMP ASM,DEF DCM SPLY
M8X45 FLANGE 		0-28050-845-0 03 1 1508-
6 NUT; DEF DCM SPLY
M8 FLANGE 		0-91180-108-0 03 1 1508-
7 BRACKET; DEF DCM SPLY 8-98295-876-1 01 1 1508-
8 BOLT; BRKT,DEF DCM SPLY
M10X30 FLANGE 		0-28051-030-0 02 1 1508-
9 NUT; BRKT,DEF DCM SPLY
M10 FLANGE 		0-91180-210-0 02 1 1508-
11 BOLT; DEF TANK
M10X25 FLANGE 		0-28051-025-0 04 1 1508-
13 RETAINER; DEF TANK
(A) 		8-98295-878-1 01 1 1508-
13 RETAINER; DEF TANK
(B) 		8-98295-879-0 01 1 1508-
14 BRACKET ASM; DEF TANK 8-98295-880-2 01 1 1508-
15 BOLT; BRKT,DEF TANK
M14X35 FLANGE 		0-28851-435-0 02 1 1508-
16 NUT; BRKT,DEF TANK
M14 FLANGE 		0-91180-214-0 04 1 1508-
61 BODY ASM; DEF TANK 8-98296-972-1 01 1 1508-
62 HOSE; VENT,DEF TANK 8-98296-533-0 01 1 1508-
63 CAP ASM; FILLER,DEF TANK 8-98147-581-1 01 1 1508-
64 PLUG; DRAIN,DEF TANK
(A) 		8-98120-263-0 01 1 1508-
64 PLUG; DRAIN,DEF TANK
(B) 		8-98307-371-0 01 1 1508-
65 HOSE; WATER LEVEL 8-98120-264-1 01 1 1508-
66 CLAMP; WATER LEVEL HOSE 8-98120-265-1 02 1 1508-
67 SENSOR ASM; DEF TANK 8-98294-465-0 01 1 1508-
161 GASKET; SENSOR ASM,DEF TANK 8-98170-383-0 01 1 1508-
162 ADAPTER; DEF TANK 8-98131-158-0 01 1 1508-
167 PLATE; CAUTION,DEF
(A) 		8-98231-935-0 01 1 1508-
167 PLATE; CAUTION,DEF
(B) 		8-98296-524-0 01 1 1508-
168 INDICATOR; WATER LEVEL 8-98204-163-0 01 1 1508-
179 SEPARATOR ASM 8-98261-587-1 01 1 1508-
180 BOLT; SEPARATOR ASM
M8X30 FLANGE 		0-28650-830-0 02 1 1508-
182 NUT; SEPARATOR ASM
M8 FLANGE 		0-91180-108-0 02 1 1508-

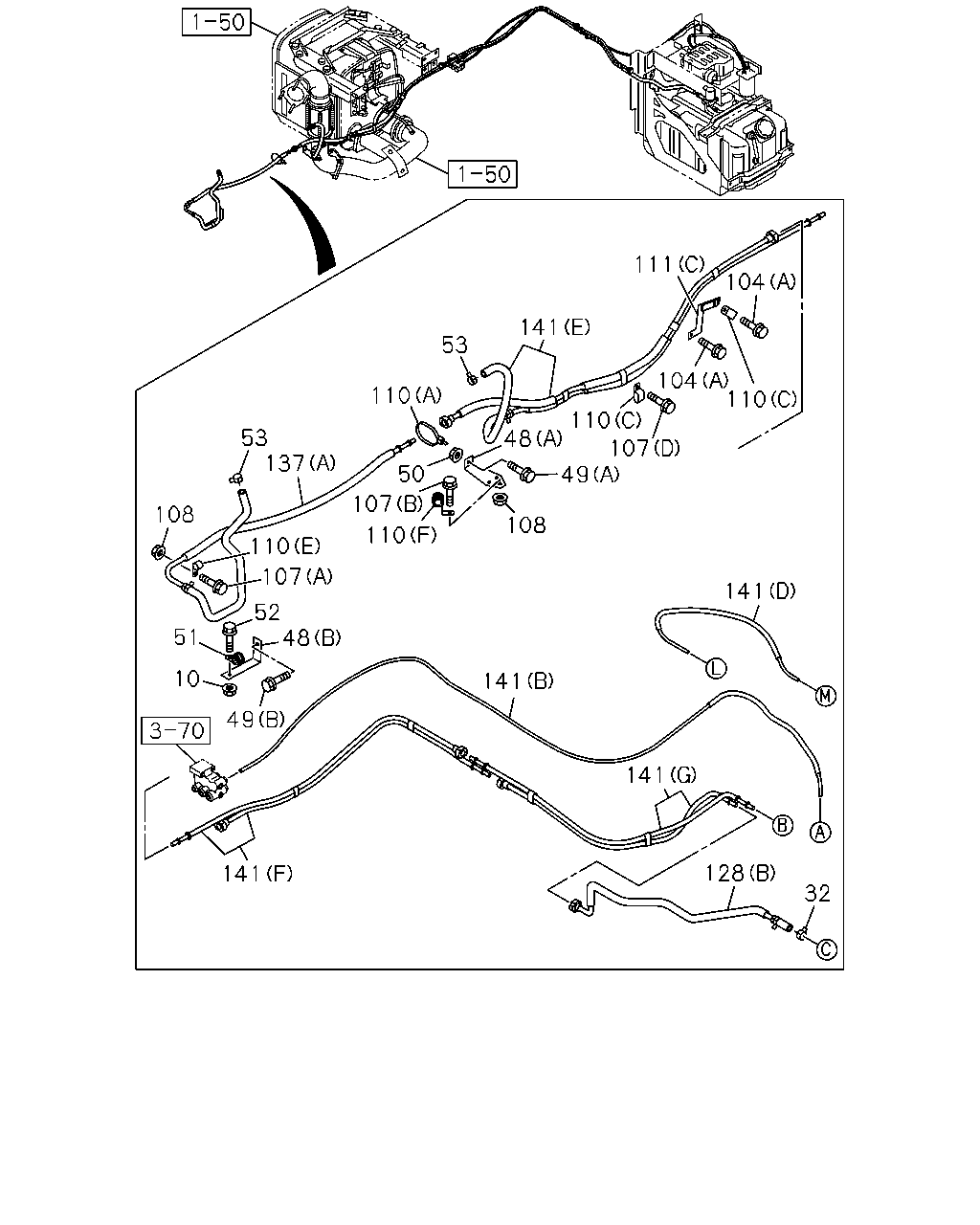

çizim 488146
111 104 141 104 110 110 53 110 48 107 49 50 108 107 110 137 53 108 107 52 48 51 10 49 141 141 141 141 128 32 110
BalonParca AdiParca NoAdetTipApplied Date
10 NUT; DEF DCM MDL COOL DLVY HOSE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1508-
32 CLAMP; DEF SPLY HOSE
ID=16 		8-97329-628-0 02 1 1508-
48 BRACKET; DEF DCM MDL COOL DLVY HOSE CL
(A) 		1-47479-779-0 01 1 1508-
48 BRACKET; DEF DCM MDL COOL DLVY HOSE CL
(B) 		8-97631-637-1 01 1 1508-
49 BOLT; DEF DCM MDL COOL DLVY HOSE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1508-
49 BOLT; DEF DCM MDL COOL DLVY HOSE CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1508-
50 NUT; DEF DCM MDL COOL DLVY HOSE CLIP B
M8 FLANGE 		0-91180-108-0 01 1 1508-
51 CLIP; DEF DCM MDL COOL DLVY HOSE
ID=21 L=24 		8-98019-191-0 01 1 1508-
52 BOLT; DEF DCM MDL COOL DLVY HOSE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1508-
53 CLAMP; DEF DCM MDL COOL DLVY HOSE
ID=18.9 		8-94478-875-0 02 1 1508-
104 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1508-
104 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1508-
104 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 04 1 1508-
107 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 09 1 1508-
107 BOLT; CLIP
(A) M8X25 FLANGE 		0-28050-825-0 01 1 1508-
107 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1508-
107 BOLT; CLIP
(D) M8X25 FLANGE 		0-28650-825-0 02 1 1508-
108 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1508-
110 CLIP; TUBE ASM
(A) L=350 		1-09707-183-0 12 1 1508-
110 CLIP; TUBE ASM
(E) ID=13 L=20 		0-95235-235-0 01 1 1508-
110 CLIP; TUBE ASM
(C) ID=13X2 L=16 		0-95325-225-0 02 1 1508-
110 CLIP; TUBE ASM
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1508-
110 CLIP; TUBE ASM
(D) ID=16 		8-97329-628-0 02 1 1508-
110 CLIP; TUBE ASM
(B) L=251 		8-97619-917-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(C) 		8-98320-718-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(A) 		8-97634-806-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(B) 		8-97645-073-0 02 1 1508-
111 BRACKET; CLIP,TUBE ASM
(D) 		8-98295-001-0 01 1 1508-
128 TUBE ASM; DEF TANK HTR DLVY
(B) 		8-98323-145-0 01 1 1508-
128 TUBE ASM; DEF TANK HTR DLVY
(A) 		8-98309-896-0 01 1 1508-
137 TUBE ASM; DEF TANK HTR RTN
(B) 		8-98323-147-0 01 1 1508-
137 TUBE ASM; DEF TANK HTR RTN
(A) 		8-98294-815-1 01 1 1508-
141 TUBE ASM; DEF DCM
(A) 		8-98309-916-0 01 1 1508-
141 TUBE ASM; DEF DCM
(F) 		8-98321-021-0 01 1 1508-
141 TUBE ASM; DEF DCM
(E) 		8-98321-025-0 01 1 1508-
141 TUBE ASM; DEF DCM
(B) 		8-98321-061-0 01 1 1508-
141 TUBE ASM; DEF DCM
(G) 		8-98321-228-0 01 1 1508-
141 TUBE ASM; DEF DCM
(D) 		8-98294-819-0 01 1 1508-
141 TUBE ASM; DEF DCM
(C) 		8-98317-116-0 01 1 1508-

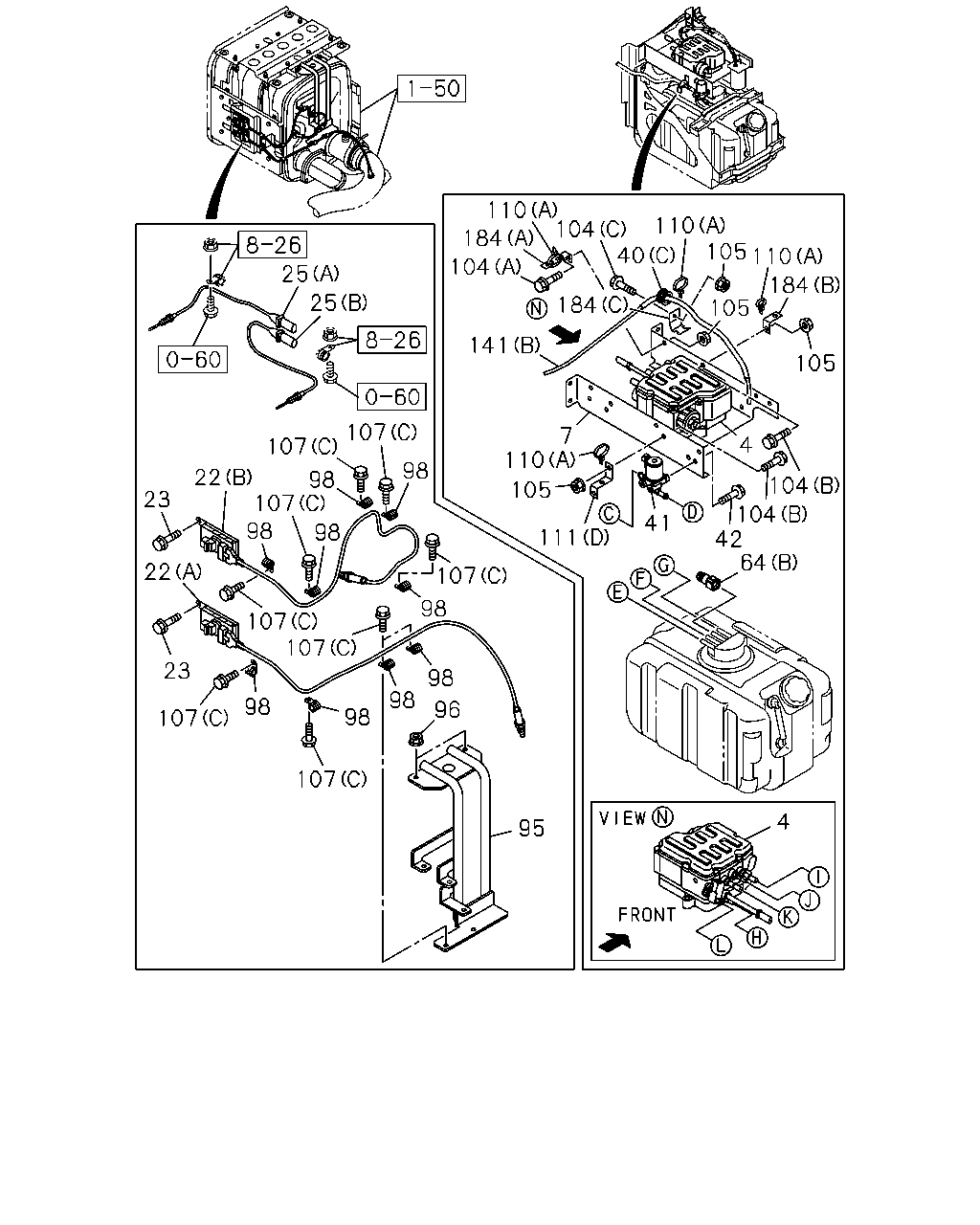

çizim 488747
4 64 42 104 41 111 105 110 7 104 4 105 184 110 105 105 110 40 184 141 104 184 110 104 25 25 107 107 98 107 98 98 96 95 98 98 107 98 107 107 107 23 22 23 22 98 107 98 98
BalonParca AdiParca NoAdetTipApplied Date
4 PUMP ASM; DEF,DCM SPLY 8-98221-257-0 01 1 1508-
7 BRACKET; DEF DCM SPLY 8-98295-876-1 01 1 1508-
22 SENSOR; DEF DCM EXH NOX
(A) 		8-98257-391-0 01 1 1508-
22 SENSOR; DEF DCM EXH NOX
(B) 		8-98257-392-1 01 1 1508-
23 BOLT; SENSOR,DEF DCM EXH NOX 8-98155-181-0 04 1 1508-
25 SENSOR; DEF DCM EXH TEMP
(A) 		8-98221-262-0 01 1 1508-
25 SENSOR; DEF DCM EXH TEMP
(B) 		8-98221-263-0 01 1 1508-
40 GROMMET
(A) ID=39 OD=45 T=19 		1-09332-077-0 01 1 1508-
40 GROMMET
(B) ID=24 OD=30 T=22 		1-09332-126-0 02 1 1508-
40 GROMMET
(C) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1508-
41 VALVE ASM; DEF TANK HTR DLVY 8-97628-956-1 01 1 1508-
42 BOLT; DEF RSVR HTR DLVY VLV
M8X16 FLANGE 		0-28050-816-0 02 1 1508-
64 PLUG; DRAIN,DEF TANK
(A) 		8-98120-263-0 01 1 1508-
64 PLUG; DRAIN,DEF TANK
(B) 		8-98307-371-0 01 1 1508-
95 BRACKET; HARN,DEF DCM EXH NOX SEN 8-98319-143-1 01 1 1508-
96 NUT; BRACKET,DEF DCM EXH NOX SEN HARN
M10 FLANGE 		0-91180-210-0 02 1 1508-
98 CLIP; DEF DCM EXH NOX SEN HARN
ID=10 L=16.5 		8-98082-034-0 09 1 1508-
104 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1508-
104 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1508-
104 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 04 1 1508-
105 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 1508-
107 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 09 1 1508-
107 BOLT; CLIP
(A) M8X25 FLANGE 		0-28050-825-0 01 1 1508-
107 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1508-
107 BOLT; CLIP
(D) M8X25 FLANGE 		0-28650-825-0 02 1 1508-
110 CLIP; TUBE ASM
(A) L=350 		1-09707-183-0 12 1 1508-
110 CLIP; TUBE ASM
(E) ID=13 L=20 		0-95235-235-0 01 1 1508-
110 CLIP; TUBE ASM
(C) ID=13X2 L=16 		0-95325-225-0 02 1 1508-
110 CLIP; TUBE ASM
(F) ID=21 L=30 H=40 		1-09700-991-1 01 1 1508-
110 CLIP; TUBE ASM
(D) ID=16 		8-97329-628-0 02 1 1508-
110 CLIP; TUBE ASM
(B) L=251 		8-97619-917-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(C) 		8-98320-718-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(A) 		8-97634-806-0 01 1 1508-
111 BRACKET; CLIP,TUBE ASM
(B) 		8-97645-073-0 02 1 1508-
111 BRACKET; CLIP,TUBE ASM
(D) 		8-98295-001-0 01 1 1508-
141 TUBE ASM; DEF DCM
(A) 		8-98309-916-0 01 1 1508-
141 TUBE ASM; DEF DCM
(F) 		8-98321-021-0 01 1 1508-
141 TUBE ASM; DEF DCM
(E) 		8-98321-025-0 01 1 1508-
141 TUBE ASM; DEF DCM
(B) 		8-98321-061-0 01 1 1508-
141 TUBE ASM; DEF DCM
(G) 		8-98321-228-0 01 1 1508-
141 TUBE ASM; DEF DCM
(D) 		8-98294-819-0 01 1 1508-
141 TUBE ASM; DEF DCM
(C) 		8-98317-116-0 01 1 1508-
184 BRACKET; TUBE ASM
(A) L=100 H=30 		1-47477-645-2 01 1 1508-
184 BRACKET; TUBE ASM
(B) 		1-47477-694-0 01 1 1508-
184 BRACKET; TUBE ASM
(C) 		8-97645-073-0 01 1 1508-
