6-01 — FRONT BUMPER (#16506) — 67 parça

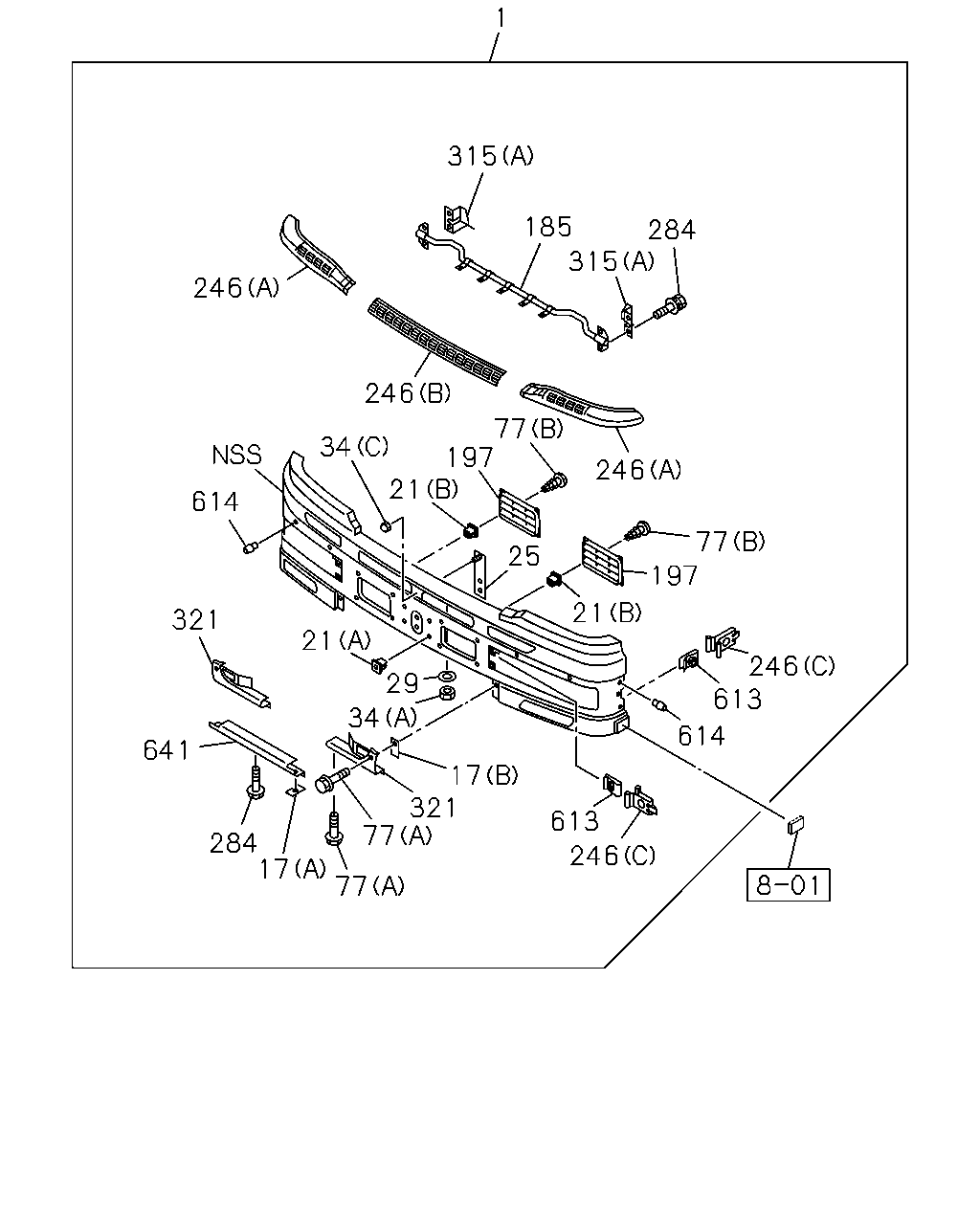

çizim 63072
1 315 185 284 315 246 246 77 197 21 34 246 614 77 25 197 21 321 21 246 613 29 34 614 641 17 321 77 613 284 17 246 77
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		8-98098-600-1 01 1 0904-
17 PROTECTOR; FRT BUMPER
(A) 		1-71260-185-0 02 1 0904-
17 PROTECTOR; FRT BUMPER
(B) 		1-71260-277-0 02 1 0904-
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 08 1 0904-
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0904-
25 SPACER; PLATFORM 1-71230-640-0 01 1 0904-
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 13 1 0904-
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 04 1 0904-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0904-
34 NUT; BRKT,BUMPER
(C) M10 CAP NUT 		1-09650-480-0 01 1 0904-
77 SCREW; BRKT
(B) M5X16 TAPPING 		0-71240-516-0 08 1 0904-
77 SCREW; BRKT
(A) M8X20 W/PL WASHER 		1-71260-184-0 06 1 0904-
185 BRACKET; BUMPER,INNER 1-71230-610-0 01 1 0904-
197 GRILLE; BUMPER 8-97619-503-0 01 1 0904-
197 GRILLE; BUMPER 8-97619-504-0 01 1 0904-
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 0904-
246 PROTECTOR; BUMPER
(B) 		8-97619-479-1 01 1 0904-
246 PROTECTOR; BUMPER
(A) 		8-97619-480-1 01 1 0904-
246 PROTECTOR; BUMPER
(A) 		8-97619-481-1 01 1 0904-
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50640-820-0 03 1 0904-
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0904-
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0904-
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0904-
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0904-
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0904-
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0904-
321 COVER; BUMPER FRT SIDE 1-71260-263-1 01 1 0904-
321 COVER; BUMPER FRT SIDE 1-71260-264-1 01 1 0904-
613 CLIP 1-71260-174-0 06 1 0904-
614 STOPPER; LID 1-71260-163-0 12 1 0904-
641 BUMPER; FRT,LWR 1-71211-304-1 01 1 0904-

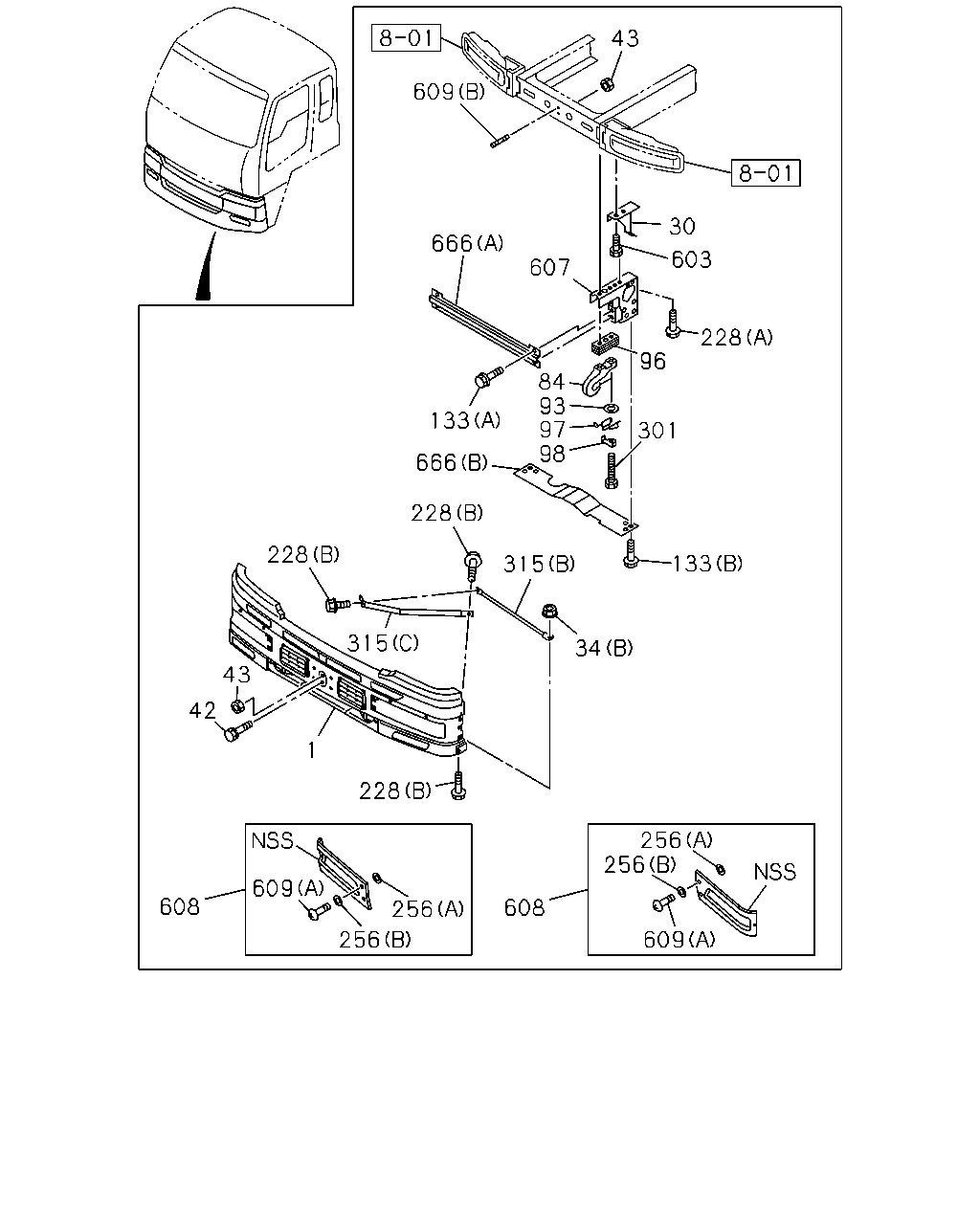

çizim 63075
43 609 30 666 603 607 228 96 84 93 97 98 133 301 666 228 228 133 315 315 34 43 42 1 228 256 256 609 608 608 256 256 609
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		8-98098-600-1 01 1 0904-
30 BRACKET; FRT BUMPER 1-71230-638-0 01 1 0904-
30 BRACKET; FRT BUMPER 1-71230-639-0 01 1 0904-
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 04 1 0904-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0904-
34 NUT; BRKT,BUMPER
(C) M10 CAP NUT 		1-09650-480-0 01 1 0904-
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 0904-
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 03 1 0904-
84 HOOK 1-57181-027-1 01 1 0904-
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0904-
96 PLATE; DIST,HOOK 1-53497-595-0 01 1 0904-
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0904-
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0904-
133 BOLT; PROTECTOR FIX
(A) M12X40 FLANGE 		0-28651-240-0 04 1 0904-
133 BOLT; PROTECTOR FIX
(B) M12X25 FLANGE 		0-28661-225-0 06 1 0904-1207
133 BOLT; PROTECTOR FIX
(B) M12X30 FLANGE 		0-28661-230-0 06 1 1208-
228 BOLT; BRKT
(A) M16X40 		0-20951-640-0 06 1 0904-
228 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 06 1 0904-
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0904-
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0904-
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 0904-
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 0904-
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0904-
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0904-
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0904-
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0904-
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0904-
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0904-
607 BRACKET 8-97608-470-3 01 1 0904-
607 BRACKET 8-97609-952-3 01 1 0904-
608 LID; BUMPER 1-71211-285-2 01 1 0904-
608 LID; BUMPER 1-71211-284-2 01 1 0904-
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 0904-
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0904-
666 PROTECTOR; UNDER
(B) 		8-97608-467-1 01 1 0904-
666 PROTECTOR; UNDER
(A) 		8-97608-471-0 01 1 0904-
