0-28 — VENTILATION SYSTEM (#165031) — 35 parça

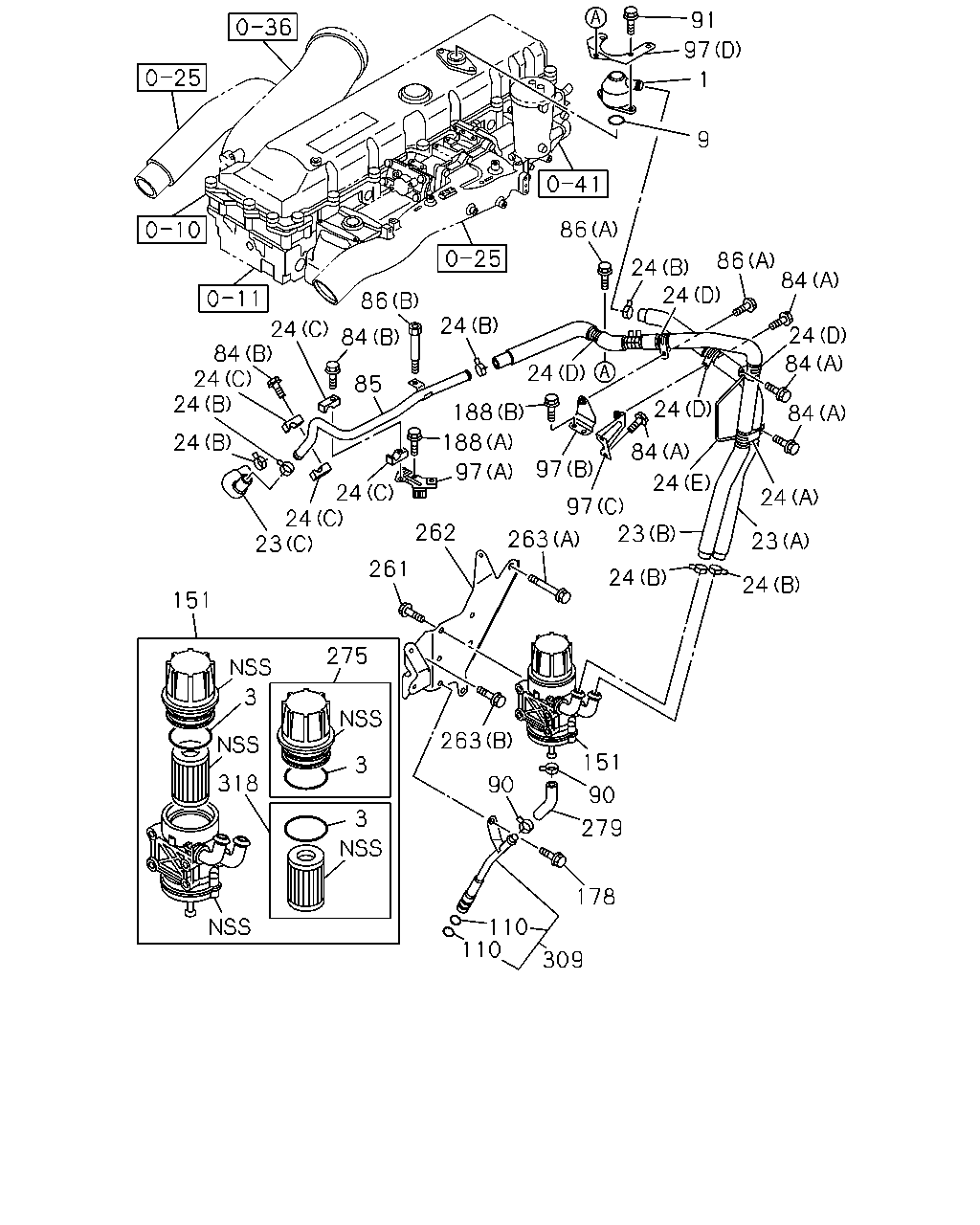

çizim 488786
318 3 3 3 110 110 309 178 279 90 151 263 275 151 23 24 24 262 261 263 24 23 24 23 24 24 97 97 97 188 188 24 84 24 84 84 24 84 86 24 24 9 1 91 97 86 24 84 85 24 84 24 24 24 86 90
BalonParca AdiParca NoAdetTipApplied Date A B
1 BREATHER; AIR 1-11740-181-1 01 1 1508- ● ●
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 1508- ● ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 01 1 1508- ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-98247-131-0 01 1 1508- ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-98247-134-0 01 1 1508- ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		8-98247-593-1 01 1 1508- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(A) ID=30X2 L=28 		1-09701-266-0 01 1 1508- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(C) ID=28.5 		1-09707-150-0 06 1 1508- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=24.5 L=22 		8-97603-362-1 04 1 1508- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) ID=33 L=30 		8-97619-250-0 04 1 1508- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) 		8-98216-429-0 01 1 1508- ● ●
84 BOLT; PIPE CLIP,VENTILATOR
(A) M8X16 FLANGE 		0-28050-816-0 07 1 1508- ● ●
84 BOLT; PIPE CLIP,VENTILATOR
(B) M8X60 FLANGE 		0-28050-860-0 02 1 1508- ● ●
85 PIPE; BREATHER 8-98247-772-0 01 1 1508- ● ●
86 BOLT; BREATHER PIPE
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1508- ● ●
86 BOLT; BREATHER PIPE
(B) 		8-97377-804-0 01 1 1508- ● ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 1508- ● ●
91 BOLT; AIR BREATHER
M10X25 FLANGE 		0-28151-025-0 02 1 1508- ● ●
97 BRACKET; HOSE
(A) 		8-98122-985-1 01 1 1508- ● ●
97 BRACKET; HOSE
(B) 		8-98247-648-0 01 1 1508- ● ●
97 BRACKET; HOSE
(C) 		8-98247-649-0 01 1 1508- ● ●
97 BRACKET; HOSE
(D) 		8-98248-144-0 01 1 1508- ● ●
110 GASKET; PIPE
ID=11 		1-09623-469-0 02 1 1508- ● ●
151 SEPARATOR; OIL,PCV 8-98126-690-0 01 1 1508- ● ●
178 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 1508- ● ●
188 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 1508- ● ●
188 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 02 1 1508- ● ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 1508- ● ●
262 BRACKET; OIL SEPARETOR 8-98122-426-0 01 1 1508- ● ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 1508- ● ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 1508- ● ●
275 CAP; PCV 8-97625-726-0 01 1 1508- ● ●
279 HOSE; RUBBER,OIL DRAIN
L=90 SERVICED BY L=1000 		0-02759-100-0 01 1 1508- ● ●
309 PIPE ASM; OIL SEPARATOR 8-98122-427-0 01 1 1508- ● ●
318 ELEMENT KIT; PCV 8-97625-725-0 01 1 1508- ● ●
