0-25 — INLET MANIFOLD (#165029) — 23 parça

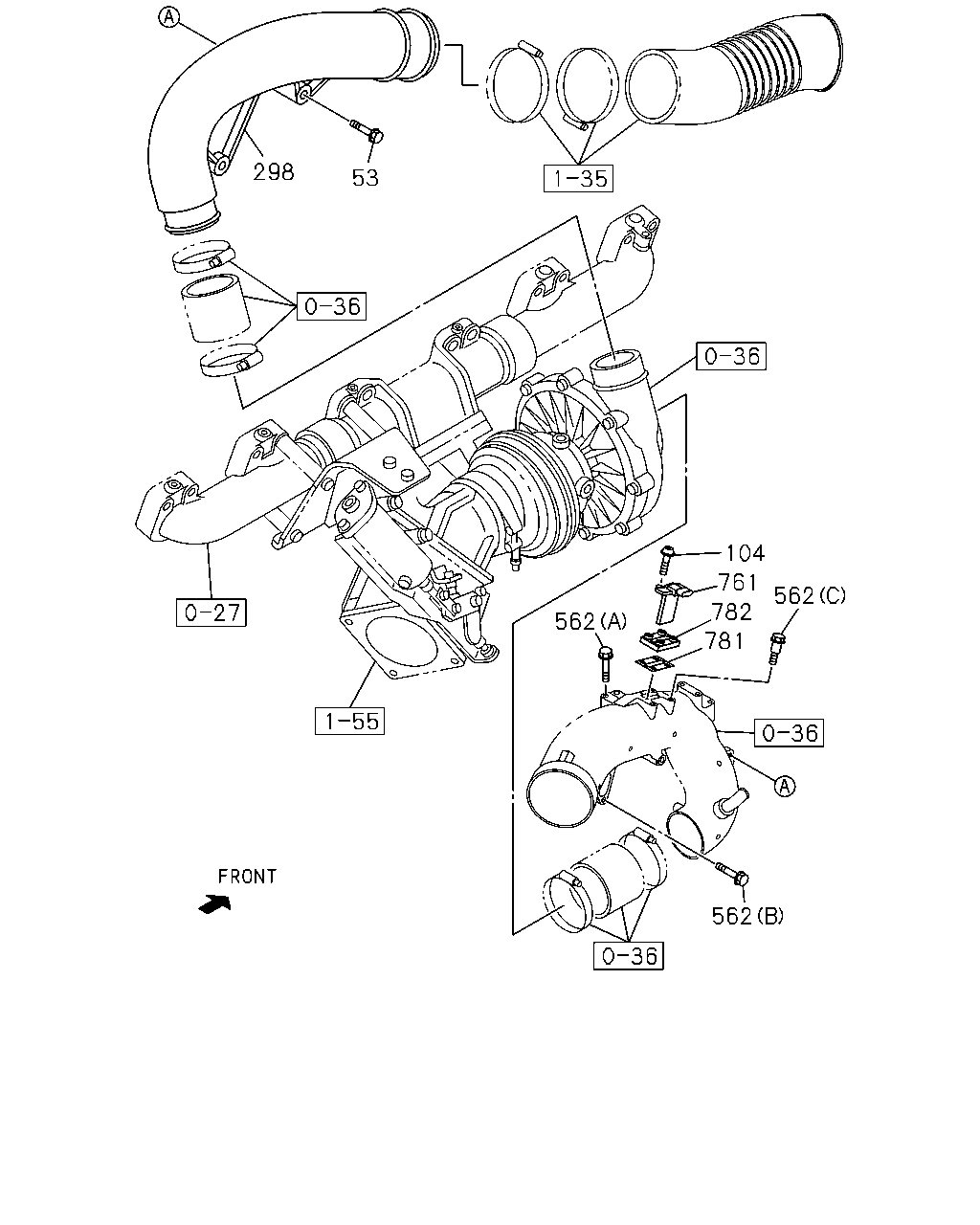

298 53 562 104 761 782 781 562 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	BOLT; INL PIPE M10X60 FLANGE	0-28151-060-0	02	1	1508-	●	●
104	SCREW M4X20 W/LK&PL WASHER	9-03920-420-0	04	1	1508-	●	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	8-98195-096-0	01	1	1508-	●	●
562	BOLT; INL DUCT (A) M10X50 FLANGE	0-28151-050-0	02	1	1508-	●	●
562	BOLT; INL DUCT (B) M10X70 FLANGE	0-28151-070-0	01	1	1508-	●	●
562	BOLT; INL DUCT (C) M10X49.8	8-97039-586-0	02	1	1508-	●	●
761	SENSOR; MANIF	8-97601-967-0	01	1	1508-	●	●
781	GASKET; SENSOR	8-98212-728-0	01	1	1508-	●	●
782	ADAPTER; SENSOR	8-98169-371-0	01	1	1508-	●	●

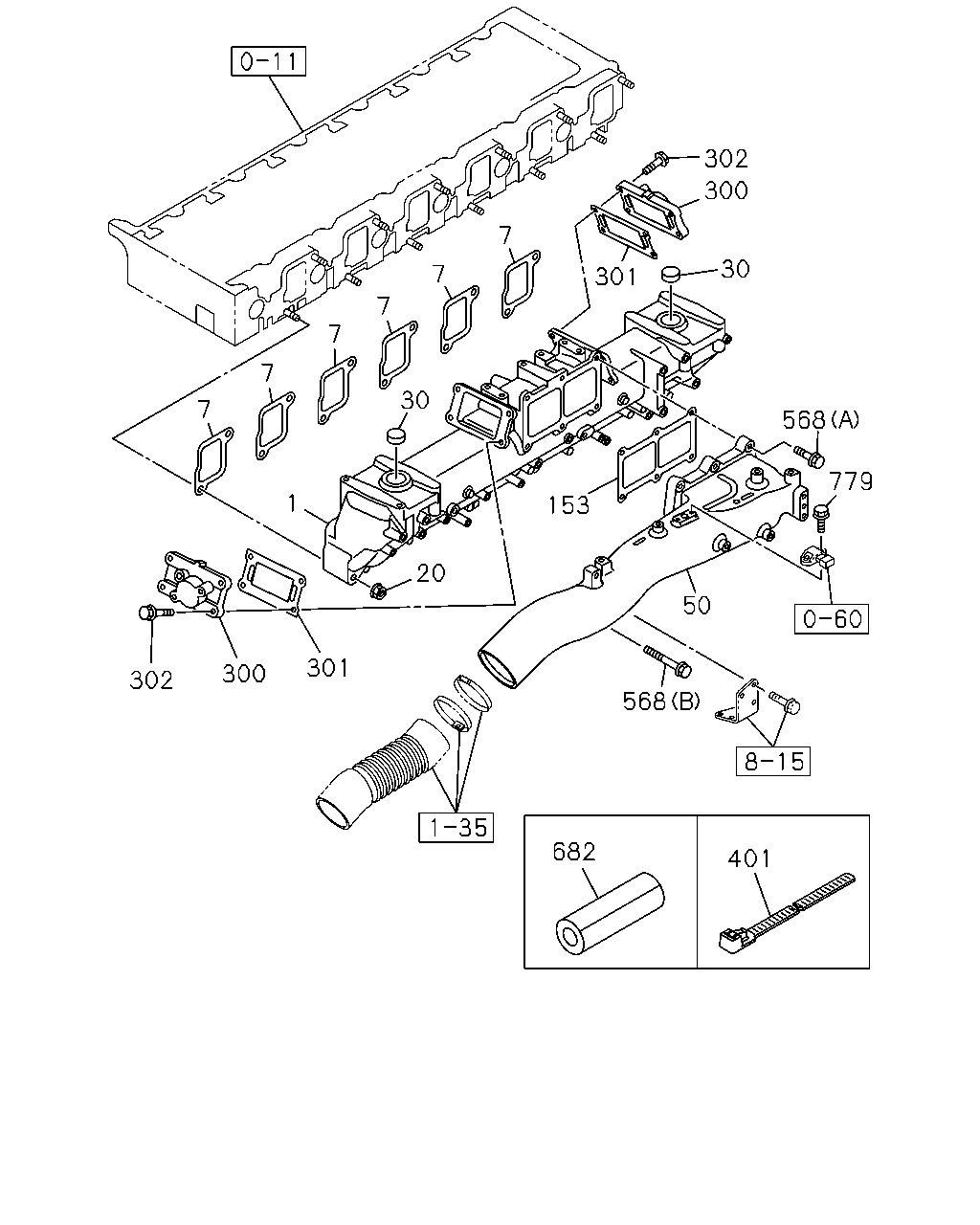

302 300 301 30 7 7 7 7 7 7 1 30 153 568 779 50 568 682 401 20 301 300 302

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; INL	8-98227-864-0	01	1	1508-	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97615-623-1	06	1	1508-	●	●
20	NUT; INL MANIF M10 FLANGE	0-91180-110-0	12	1	1508-	●	●
30	CUP; SEALING,INL MANIF OD=40	8-94241-637-0	02	1	1508-	●	●
50	PIPE; INL	8-98189-459-1	01	1	1508-	●	●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-094-1	01	1	1508-	●	●
300	COVER; INL MANIF	8-98178-944-0	02	1	1508-	●	●
301	GASKET; INL MANIF COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97648-198-0	02	1	1508-	●	●
302	BOLT; INL MANIF COVER M10X40 FLANGE	0-28151-040-0	08	1	1508-	●	●
401	CLIP; BAND L=250	8-98216-430-0	01	1	1508-	●	●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28151-030-0	06	1	1508-	●	●
568	BOLT; PIPE (B) M10X80 FLANGE	0-28151-080-0	01	1	1508-	●	●
682	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	1508-	●	●
779	BOLT; SENSOR M4X10 W/PL WASHER	8-97316-615-0	02	1	1508-	●	●
