5-01 — FRAME AND OTHER PARTS
(#16500) — 43 parça
◀

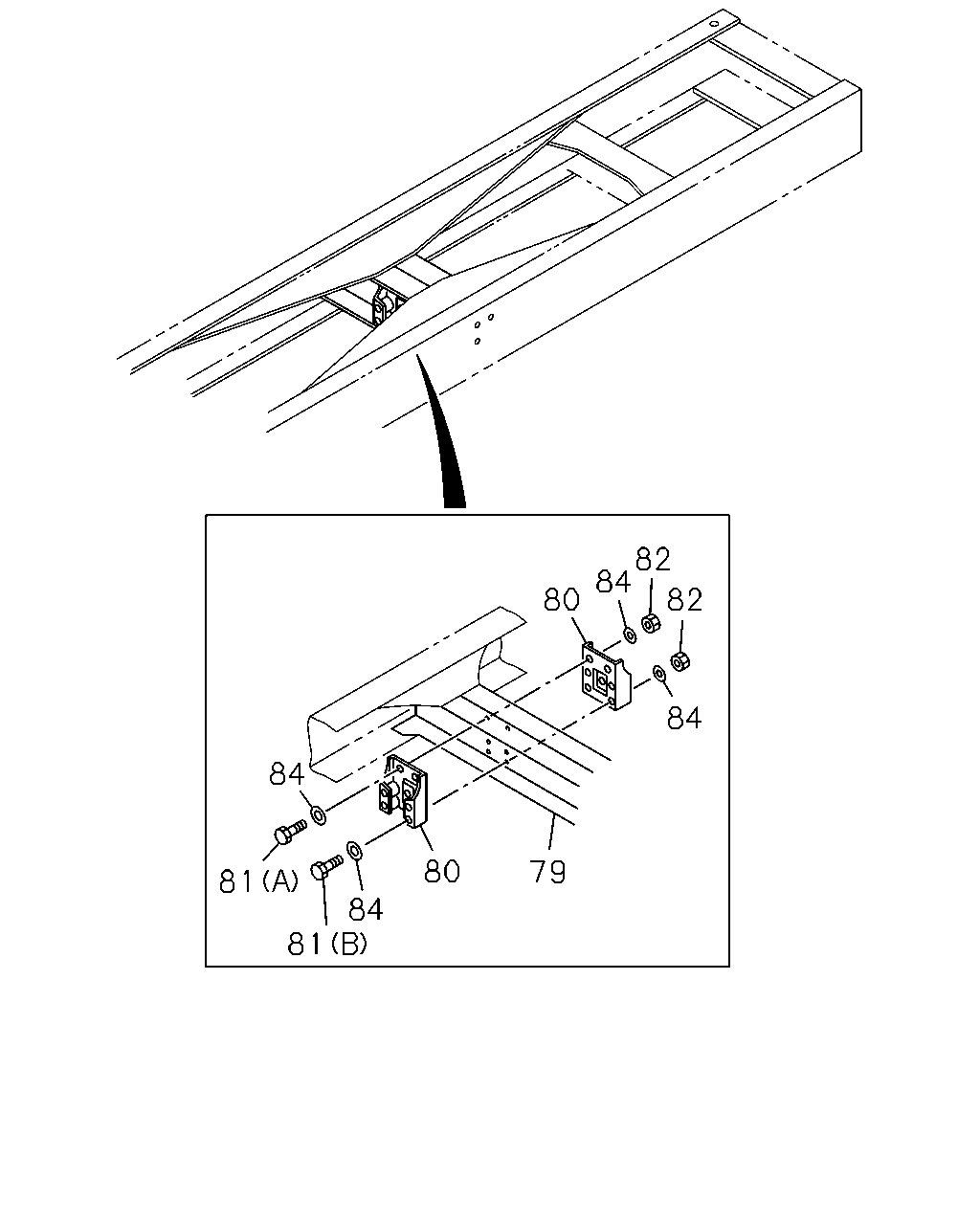

[501A] BRACKET REAR (7 parça)

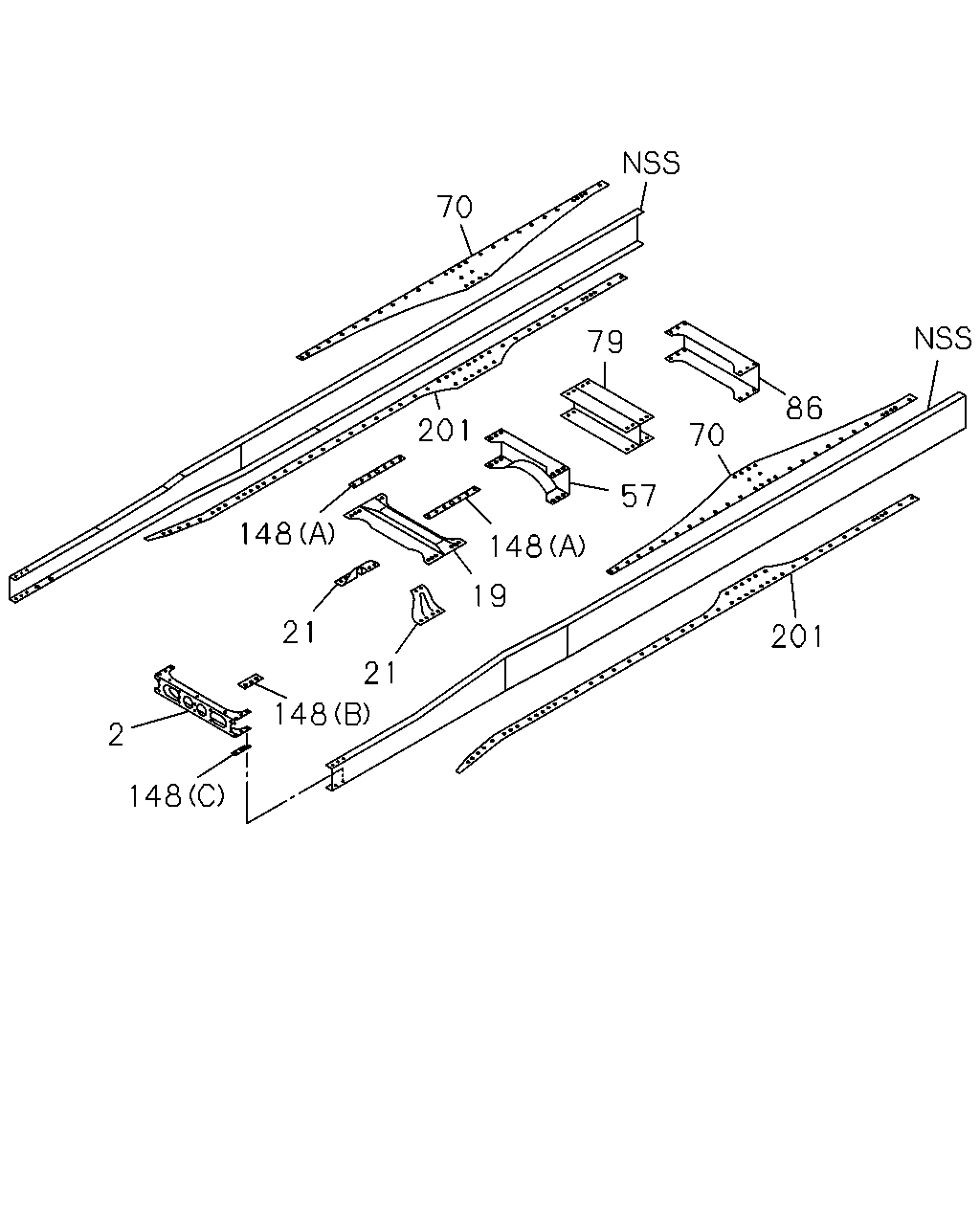

[501A] CROSS MEMBER (11 parça)

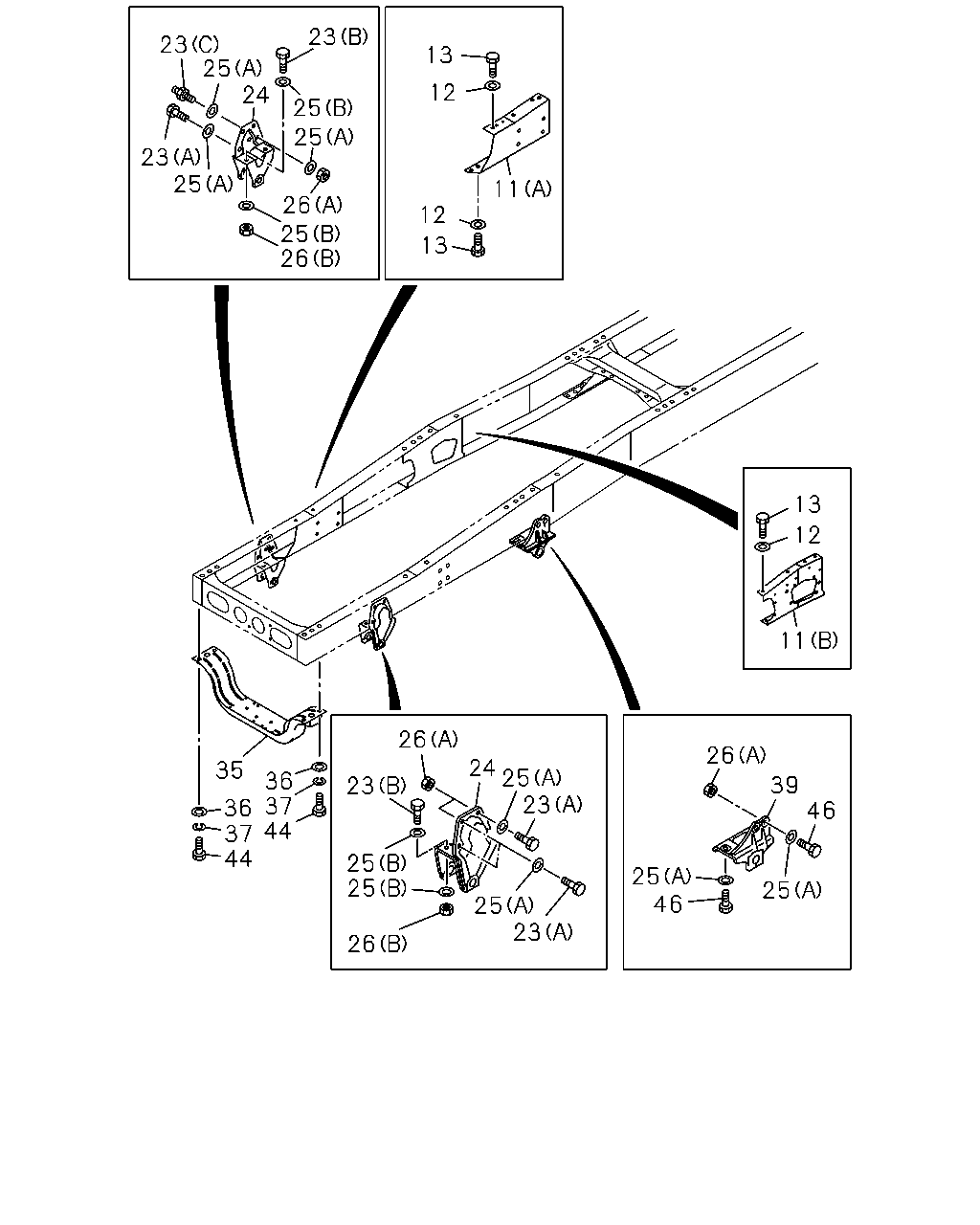

[501A] BRACKET FRONT AND UNDER MEMBER (25 parça)
▶
82
84
80
82
84
84
80
79
81
84
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
79
MEMBER; CROSS,TRUNNION ASM
1-53182-075-0
01
1
0904-
80
BRACKET; C/MBR
1-53363-031-2
02
1
0904-
81
BOLT; BRKT
(A) M14X50
0-20951-450-0
02
1
0904-
81
BOLT; BRKT
(B) M14X205
1-09000-147-0
02
1
0904-
82
NUT; BRKT
M14
0-91110-514-0
04
1
0904-
84
WASHER; PL,BRKT
ID=15
9-09651-069-0
08
1
0904-1201
84
WASHER; PL,BRKT
ID=15
8-98010-627-1
08
1
1202-
70
201
148
79
86
70
57
148
19
21
201
21
148
2
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97604-959-3
01
1
0904-
19
MEMBER; CROSS,2ND
1-53174-221-0
01
1
0904-
21
GUSSET; 2ND CROSS
1-53164-225-0
02
1
0904-
57
MEMBER; CROSS,RR SUSP FRT
1-53171-685-3
01
1
0904-
70
GUSSET; TRUNNION,UPR
1-53161-936-0
02
1
0904-
79
MEMBER; CROSS,TRUNNION ASM
1-53182-075-0
01
1
0904-
86
MEMBER; CROSS,RR SUSP RR
1-53181-757-3
01
1
0904-
148
SPACER; C/MBR
(B)
1-53168-400-1
02
1
0904-
148
SPACER; C/MBR
(C)
1-53168-403-1
02
1
0904-
148
SPACER; C/MBR
(A)
1-53168-443-0
04
1
0904-
201
GUSSET; C/MBR
1-53161-927-0
02
1
0904-
23
23
25
24
13
12
25
25
23
25
11
26
25
26
12
13
13
12
11
26
26
24
25
23
35
36
37
44
39
46
23
36
37
44
25
25
25
46
25
23
25
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53211-367-1
01
1
0904-
11
BRACKET; ENG MTG
(A)
1-53211-368-1
01
1
0904-
11
BRACKET; ENG MTG
(B)
1-53221-226-4
01
1
0904-
11
BRACKET; ENG MTG
(B)
1-53221-227-4
01
1
0904-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
06
1
0904-1201
12
WASHER; PL,BRKT,ENG MTG
ID=15
8-98010-627-1
06
1
1202-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
06
1
0904-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
07
1
0904-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
0904-
23
BOLT; BRKT,SPR
(C) M12X35,M14X45 L=100
1-09029-075-0
01
1
0904-
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
0904-
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
0904-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0904-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
16
1
0904-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
16
1
1202-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
12
1
0904-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0904-
35
MEMBER; UNDER
1-53174-263-2
01
1
0904-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
04
1
0904-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
0904-
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
0904-
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
0904-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
0904-
46
BOLT; BRKT FIX
M14X40
0-20951-440-0
04
1
0904-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
04
1
0904-
