0-87 — COUPLING; INJECTION PUMP (#165) — 10 parça

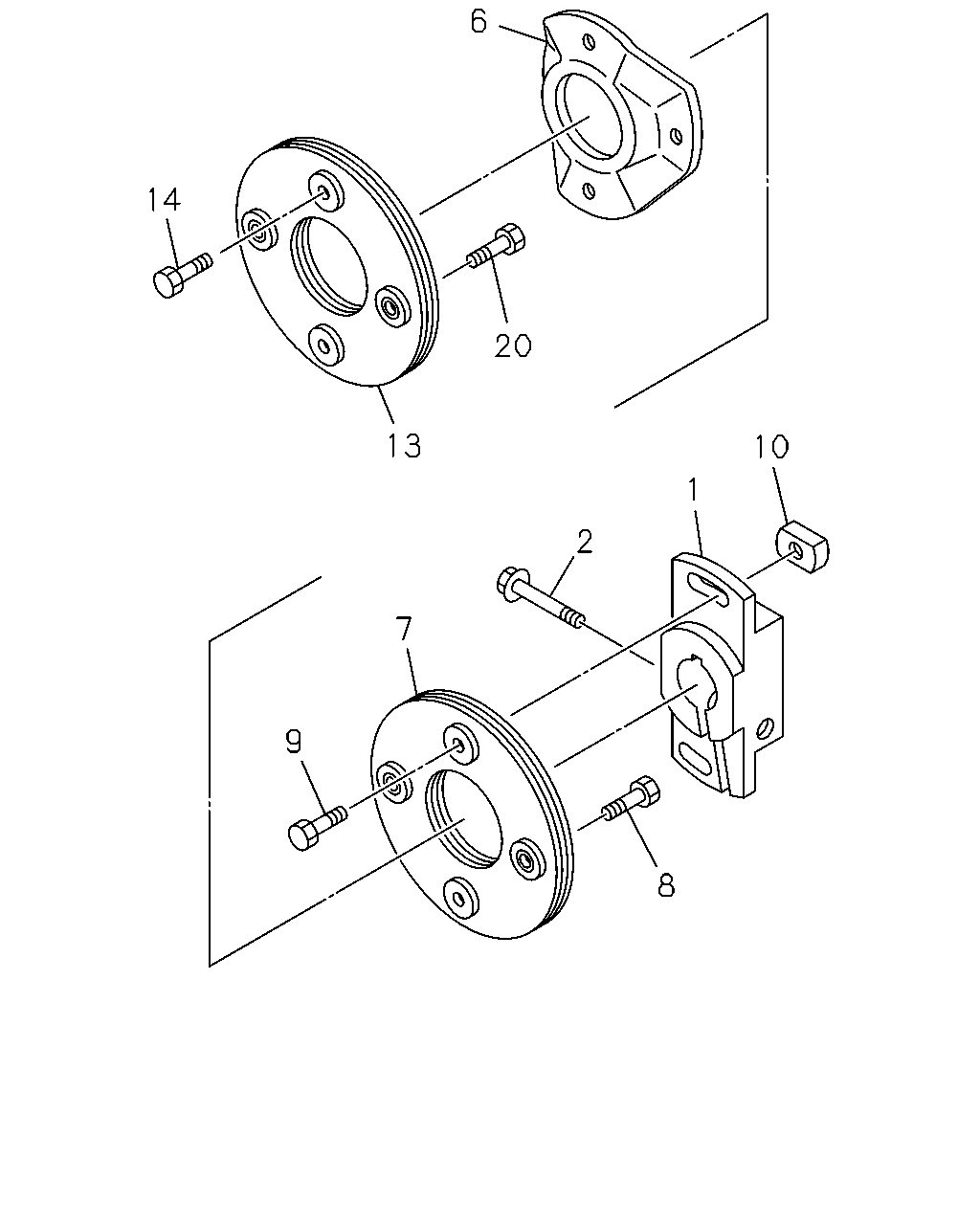

çizim 95317
6 14 20 13 10 1 2 7 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE 1-15782-014-0 01 1 9212- ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9212- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-186-0 01 1 9212- ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-065-0 01 1 9212- ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9212- ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9212- ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9212- ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-065-0 01 1 9212- ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9212- ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9212- ● ●
