◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11199 - CYZ NEW ZEALAND EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#16496) — 12 parça

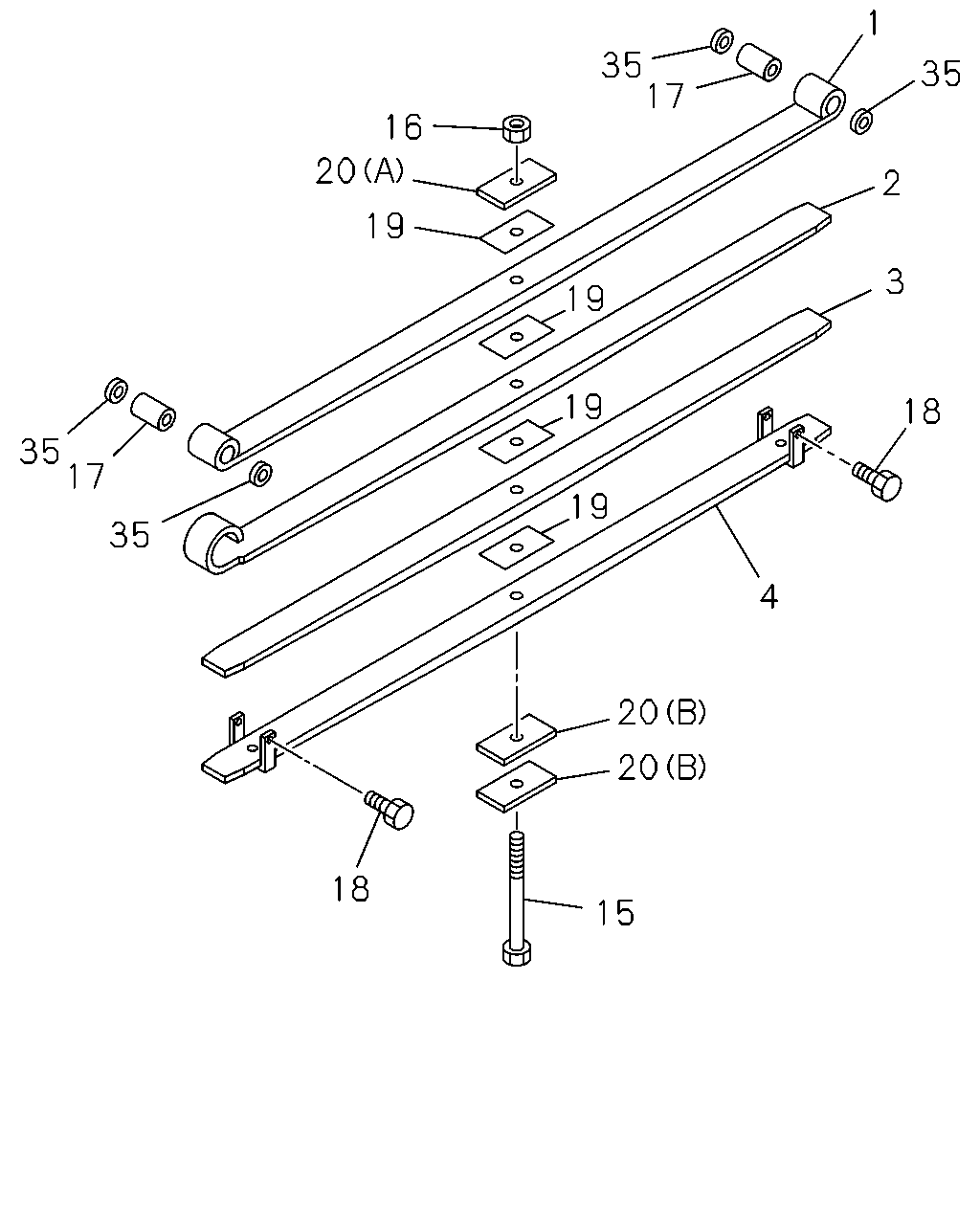

çizim 62486
1 35 17 35 16 20 2 19 3 19 19 18 35 17 19 35 4 20 20 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-97618-758-0 		8-98071-906-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-97618-758-0 		8-98071-907-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-97618-758-0 		8-98071-908-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-97618-758-0 		8-98071-909-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=145 ASM PART: A = 8-97618-758-0 		1-51156-419-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-97618-758-0 		1-09400-061-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 8-97618-758-0 		1-51351-046-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X102 ASM PART: A = 8-97618-758-0 		1-09000-759-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97618-758-0 		1-51177-339-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 8-97618-758-0 		1-51377-400-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=9 ASM PART: A = 8-97618-758-0 		1-51377-401-0 02 1 -
35 SEAL; DUST
ASM PART: A = 8-97618-758-0 		1-51177-321-0 04 1 -
