6-20 — SIDE PANEL AND STEP (#1649) — 93 parça

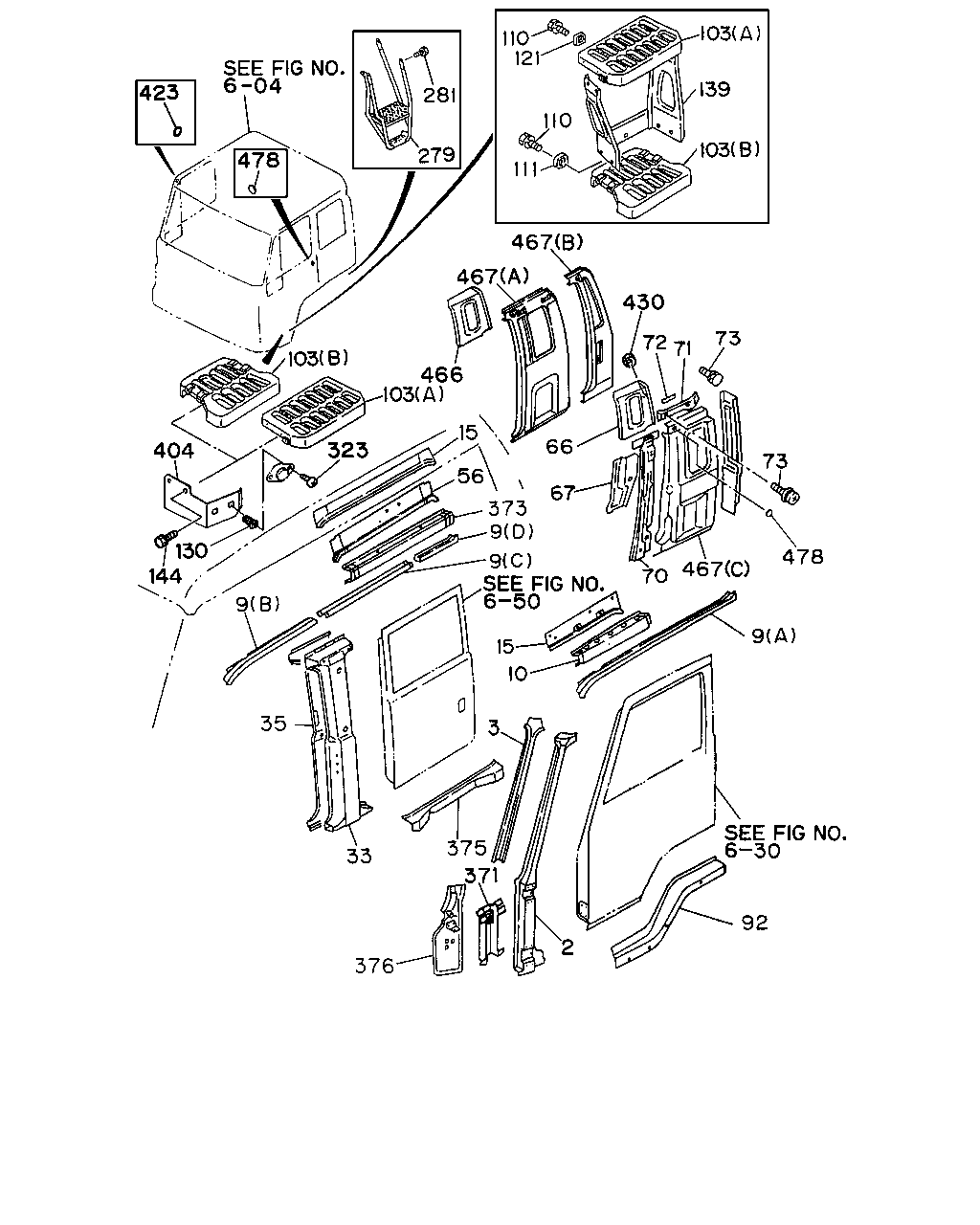

çizim 29891
376 371 375 2 92 3 10 15 33 35 9 144 130 404 323 103 423 478 281 279 110 121 110 111 103 139 103 467 467 466 103 15 56 373 9 9 66 67 430 72 71 73 73 478 467 70 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 PILLAR; FRT 1-61270-645-0 01 1 9207- ● ● ● ● ●
2 PILLAR; FRT
DOOR MIRROR(D32) 		1-61270-659-2 01 1 9207- ● ● ● ● ●
2 PILLAR; FRT
EXC. DOOR MIRROR(D32) 		1-61281-016-2 01 1 9207- ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR 1-61280-549-2 01 1 9207- ● ● ● ● ●
3 PANEL; CLOSING,FRT PILLAR 1-61280-548-2 01 1 9207- ● ● ● ● ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61270-537-6 01 1 9207- ● ● ● ●
9 MOLDING; DRIP,CAB SIDE
(A) 		1-61270-536-6 01 1 9207- ● ● ● ●
9 MOLDING; DRIP,CAB SIDE
(C) 		1-61280-592-0 02 1 9207-9404 ●
9 MOLDING; DRIP,CAB SIDE
(C) 		1-61280-592-0 01 1 9405- ●
9 MOLDING; DRIP,CAB SIDE
(B) 		1-61280-589-0 01 1 9207- ●
9 MOLDING; DRIP,CAB SIDE
(D) 		1-61280-591-0 01 1 9207- ●
9 MOLDING; DRIP,CAB SIDE
(B) 		1-61280-588-0 01 1 9207- ●
9 MOLDING; DRIP,CAB SIDE
(D) 		1-61280-590-0 01 1 9207- ●
10 CLOSING; ROOF SIDE 1-61270-516-2 01 1 9207-9208 ● ● ● ●
10 CLOSING; ROOF SIDE
REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-61270-516-2 01 1 9207-9208 ●
10 CLOSING; ROOF SIDE 1-61270-516-2 01 1 9209- ● ● ● ● ●
10 CLOSING; ROOF SIDE 1-61270-517-2 01 1 9207- ● ● ● ● ●
10 CLOSING; ROOF SIDE
EXC. REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-61270-516-2 02 1 9207-9208 ●
15 PANEL; CANT RAIL SIDE
DELUXE CAB<W14> 		1-61280-830-4 01 1 9207- ● ● ● ●
15 PANEL; CANT RAIL SIDE
DELUXE CAB<W14> 		1-61280-562-4 01 1 9207- ● ● ● ●
15 PANEL; CANT RAIL SIDE
EXC. DELUXE CAB<W14> 		1-61280-831-2 01 1 9207- ● ● ● ●
15 PANEL; CANT RAIL SIDE 1-61280-831-2 01 1 9207- ●
15 PANEL; CANT RAIL SIDE
EXC. DELUXE CAB<W14> 		1-61280-735-2 01 1 9207- ● ● ● ●
15 PANEL; CANT RAIL SIDE 1-61280-735-2 01 1 9207- ●
33 PANEL; CENTER PILLAR,OUTER 1-61280-820-0 01 1 9207- ●
33 PANEL; CENTER PILLAR,OUTER 1-61280-819-0 01 1 9207- ●
35 PANEL; CENTER PILLAR,INNER 1-61280-816-0 01 1 9207-9404 ●
35 PANEL; CENTER PILLAR,INNER
EXC. AUSTRALIA EQUIPMENT(RR3),REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-61280-816-0 01 1 9405- ●
35 PANEL; CENTER PILLAR,INNER 1-61280-815-0 01 1 9207-9404 ●
35 PANEL; CENTER PILLAR,INNER
EXC. AUSTRALIA EQUIPMENT(RR3),REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-61280-815-0 01 1 9405- ●
35 PANEL; CENTER PILLAR,INNER
AUSTRALIA EQUIPMENT(RR3) REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-61281-453-0 01 1 9405- ●
35 PANEL; CENTER PILLAR,INNER
AUSTRALIA EQUIPMENT(RR3) REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-61281-452-0 01 1 9405- ●
56 CANTRAIL; SIDE 1-61280-525-1 01 1 9207- ●
66 PANEL; BACK SIDE INNER
DELUXE CAB<W14> 		1-61280-601-3 01 1 9207- ● ● ● ●
66 PANEL; BACK SIDE INNER
DELUXE CAB<W14> 		1-61280-600-3 01 1 9207- ● ● ● ●
66 PANEL; BACK SIDE INNER
EXC. DELUXE CAB<W14> 		1-61280-905-1 01 1 9207- ● ● ● ●
66 PANEL; BACK SIDE INNER
EXC. DELUXE CAB<W14> 		1-61280-904-1 01 1 9207- ● ● ● ●
66 PANEL; BACK SIDE INNER
AUSTRALIA EQUIPMENT(RR3) REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-61280-855-2 01 1 9207- ●
66 PANEL; BACK SIDE INNER
AUSTRALIA EQUIPMENT(RR3) REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-61280-854-2 01 1 9207- ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-141-0 01 1 9207- ● ● ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-049-0 01 1 9207- ● ● ● ●
67 PANEL; INNER,RR PILLAR LWR
EXC. AUSTRALIA EQUIPMENT(RR3),REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-61280-618-5 01 1 9207-9404 ●
67 PANEL; INNER,RR PILLAR LWR
DOOR MIRROR(D32) REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-61280-862-3 01 1 9207- ●
67 PANEL; INNER,RR PILLAR LWR
EXC. DOOR MIRROR(D32) 		1-61280-677-2 01 1 9207-9210 ●
67 PANEL; INNER,RR PILLAR LWR
DOOR MIRROR(D32) EXC. REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-61280-677-2 01 1 9207-9210 ●
67 PANEL; INNER,RR PILLAR LWR
REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-61280-861-3 01 1 9207- ●
67 PANEL; INNER,RR PILLAR LWR
EXC. REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-61280-617-3 01 1 9207-9210 ●
70 REINFORCEMENT; BACK INNER PANEL 1-61270-746-0 01 1 9207- ● ● ● ●
70 REINFORCEMENT; BACK INNER PANEL 1-61281-077-0 01 1 9207- ● ● ● ●
71 COVER; SIDE PANEL UPR 1-65471-051-0 01 1 9207- ● ● ● ● ●
71 COVER; SIDE PANEL UPR 1-65471-050-0 01 1 9207- ● ● ● ● ●
72 CUSHION; COVER,SIDE PANEL UPR 1-65470-726-1 02 1 9207- ● ● ● ●
73 SCREW; SIDE PANEL COVER 1-09981-385-0 04 1 9207- ● ● ● ●
92 PANEL; SIDE SILL,CAB 1-61270-519-5 01 1 9207- ● ● ● ● ●
92 PANEL; SIDE SILL,CAB 1-61270-518-5 01 1 9207- ● ● ● ● ●
103 PLATE; STEP
(A) 		1-53414-033-0 02 1 9207- ● ● ● ● ●
103 PLATE; STEP
(B) 		1-71998-312-2 02 1 9207- ● ● ● ● ●
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		1-09980-496-0 18 1 9207- ● ● ● ● ●
111 COVER; 1ST STEP 1-71998-153-0 10 1 9207- ● ● ● ● ●
121 COVER; STEP PLATE 1-71998-153-0 08 1 9207- ● ● ● ● ●
130 GROMMET; SCREW,PROTECTOR
LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> M5 		1-09983-116-0 04 1 9405- ●
139 CLOSING; 1ST STEP 1-65680-552-2 01 1 9207- ● ●
139 CLOSING; 1ST STEP 1-65680-551-2 01 1 9207- ● ●
139 CLOSING; 1ST STEP 1-65680-566-1 01 1 9207- ● ● ●
139 CLOSING; 1ST STEP 1-65680-565-1 01 1 9207- ● ● ●
144 BOLT; BRKT
LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> M8X20 W/LK&PL WASHER 		1-09980-496-0 04 1 9405- ●
279 BOARD; STEP 1ST 1-65680-680-0 01 1 9207- ●
279 BOARD; STEP 1ST 1-65680-679-2 01 1 9207- ●
281 BOLT; STEP BOARD TO FLOOR
M8X20 W/LK&PL WASHER 		1-09980-496-0 08 1 9207- ●
323 SCREW; SET
LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> M6X16 TAPPING 		1-09981-524-0 04 1 9405- ●
371 PATCH; SEAT BELT 1-61280-796-0 01 1 9207- ●
371 PATCH; SEAT BELT 1-61280-797-0 01 1 9207- ●
373 PANEL; CANTRAIL,CLOSING RR 1-61280-568-2 01 1 9207- ●
375 PANEL; SIDE SILL RR,CAB 1-61280-638-3 01 1 9207- ●
375 PANEL; SIDE SILL RR,CAB 1-61280-637-3 01 1 9207- ●
376 PANEL ASM; FRT SIDE INNER 1-61470-582-4 01 1 9207- ● ● ● ● ●
376 PANEL ASM; FRT SIDE INNER 1-61470-586-4 01 1 9207- ● ●
376 PANEL ASM; FRT SIDE INNER
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-61470-586-4 01 1 9207- ● ● ●
376 PANEL ASM; FRT SIDE INNER
AUSTRALIA EQUIPMENT(RR3) 		1-61480-633-3 01 1 9207- ● ● ●
404 BRACKET
LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> 		1-65481-422-0 01 1 9405- ●
404 BRACKET
LIGHTING SYSTEM ECE<SLC> EXC. BUMPER W/HEADLAMPS<SLB> 		1-65481-420-0 01 1 9405- ●
423 SEAL; CANTRAIL SIDE
EXC. DELUXE CAB<W14> OD=36 WHITE 		1-76778-007-0 01 1 9501- ● ● ● ● ●
430 NUT; PANEL
AUSTRALIA EQUIPMENT(RR3) REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> M6 		9-09114-086-0 02 1 9405- ●
466 PANEL; INNER,BACK CORNER
EXC. AUSTRALIA EQUIPMENT(RR3),REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-61280-576-1 01 1 9207- ●
466 PANEL; INNER,BACK CORNER
EXC. AUSTRALIA EQUIPMENT(RR3),REAR SEAT BELT OUTSIDE=3PT ELR INSIDE=2PT LAP<SEY> 		1-61280-575-2 01 1 9207- ●
467 PANEL; OUTER,BACK CORNER
(C) 		1-61280-439-5 01 1 9207-9302 ● ● ● ●
467 PANEL; OUTER,BACK CORNER
(C) W/DOOR SW HOLE 		1-61280-474-5 01 1 9303- ● ● ● ●
467 PANEL; OUTER,BACK CORNER
(A) 		1-61280-438-4 01 1 9207- ● ● ● ●
467 PANEL; OUTER,BACK CORNER
(C) 		1-61280-509-5 01 1 9207- ●
467 PANEL; OUTER,BACK CORNER
(B) 		1-61280-508-4 01 1 9207- ●
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 02 1 9207-9302 ● ● ● ●
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 03 1 9303- ● ● ● ●
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 07 1 9207- ●
