Sayfa 4-80 - Isuzu EPC

4-80 — ROAD WHEEL (#16488) — 182 parça

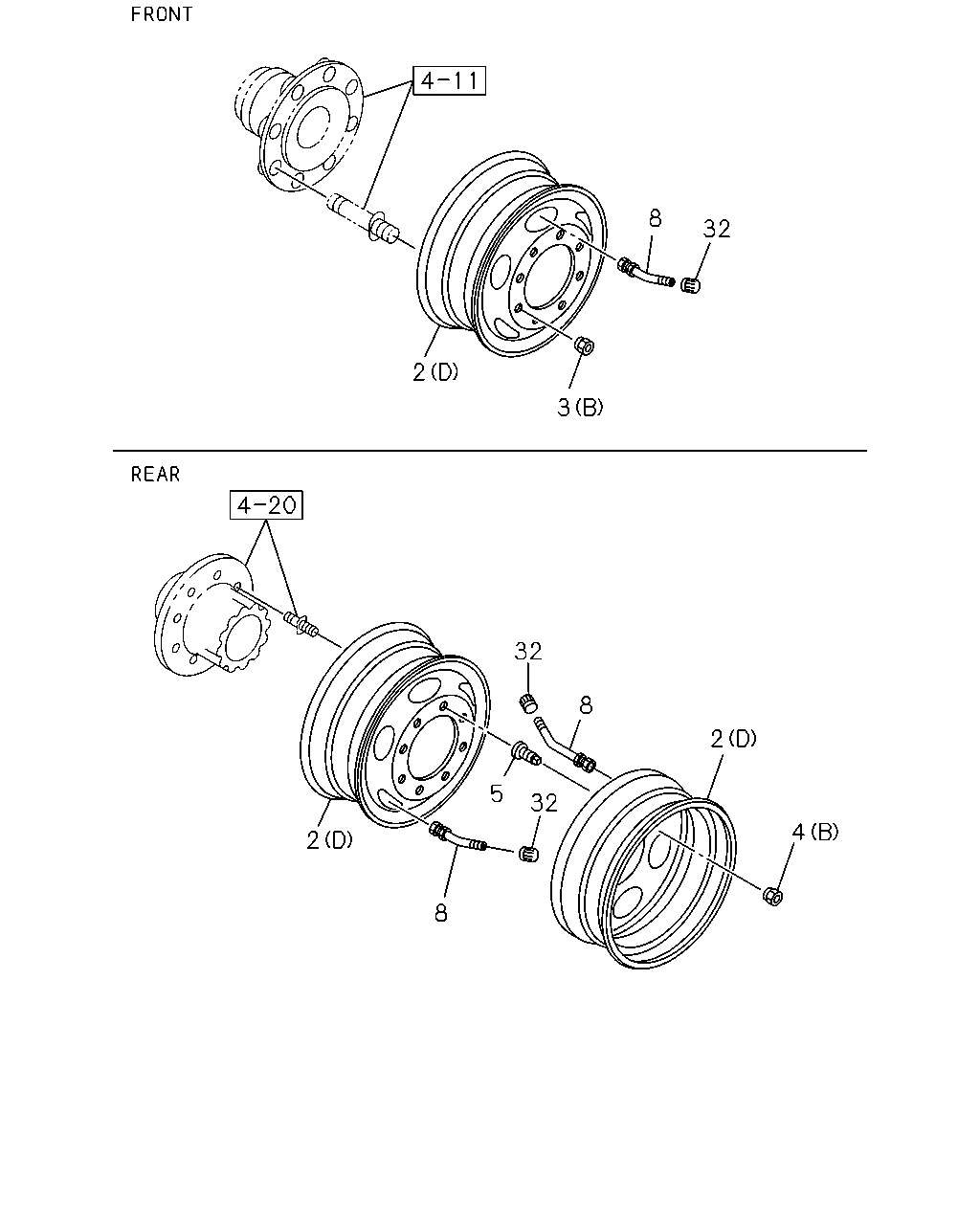

2 8 32 3 32 8 8 16 32 4 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20<Q64> (B) FRONT	1-42350-448-0	04	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20<Q64> (B) REAR	1-42350-448-0	08	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20<Q64> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-448-0	01	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) FRONT	1-42350-745-0	04	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) REAR	1-42350-745-0	08	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-745-0	01	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) FRONT	1-42350-730-0	04	1	1110-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) FRONT	8-98217-247-0	04	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) FRONT	8-98281-497-0	04	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) REAR	1-42350-730-0	08	1	1110-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) REAR	8-98217-247-0	08	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) REAR	8-98281-497-0	08	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-730-0	01	1	1110-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (D) FRONT	1-42350-758-0	04	1	1110-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (D) REAR	1-42350-758-0	08	1	1110-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (D) SPARE	1-42350-758-0	01	1	1110-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (D) SPARE	1-42350-667-0	01	1	1110-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (C) FRONT	1-42350-362-0	04	1	1110-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (C) REAR	1-42350-362-0	08	1	1110-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-362-0	01	1	1110-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (D) FRONT	1-42350-667-0	04	1	1110-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (D) REAR	1-42350-667-0	08	1	1110-
3	NUT; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50VX20<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) M22X1.5	1-42333-055-0	40	1	1110-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) M24 LH THREAD IMA	1-42334-022-3	16	1	1110-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) M24 IMA	1-42333-022-3	16	1	1110-
4	NUT; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50VX20<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) M22X1.5	1-42333-055-0	40	1	1110-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) M30 LH THREAD THA	8-97359-810-0	16	1	1110-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) M30 RH THREAD THA	8-97359-809-0	16	1	1110-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> FRONT	1-42370-048-0	04	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> FRONT	1-42370-019-3	04	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> REAR	1-42370-048-0	08	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> REAR	1-42370-019-3	08	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-048-0	01	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-019-3	01	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT	1-42370-020-3	04	1	1110-1205
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT	1-42370-020-3	04	1	1206-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR	1-42370-020-3	08	1	1110-1205
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR	1-42370-020-3	08	1	1206-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE	1-42370-020-3	01	1	1110-1205
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-020-3	01	1	1206-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50VX20<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> L=170	8-98167-052-0	04	1	1110-
32	CAP; VALVE DISC WHEEL 10STUD 7.50VX20<Q64> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	09	1	1110-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	1110-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>	1-42374-001-0	04	1	1110-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>	1-42374-001-0	08	1	1110-
32	CAP; VALVE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	13	1	1110-

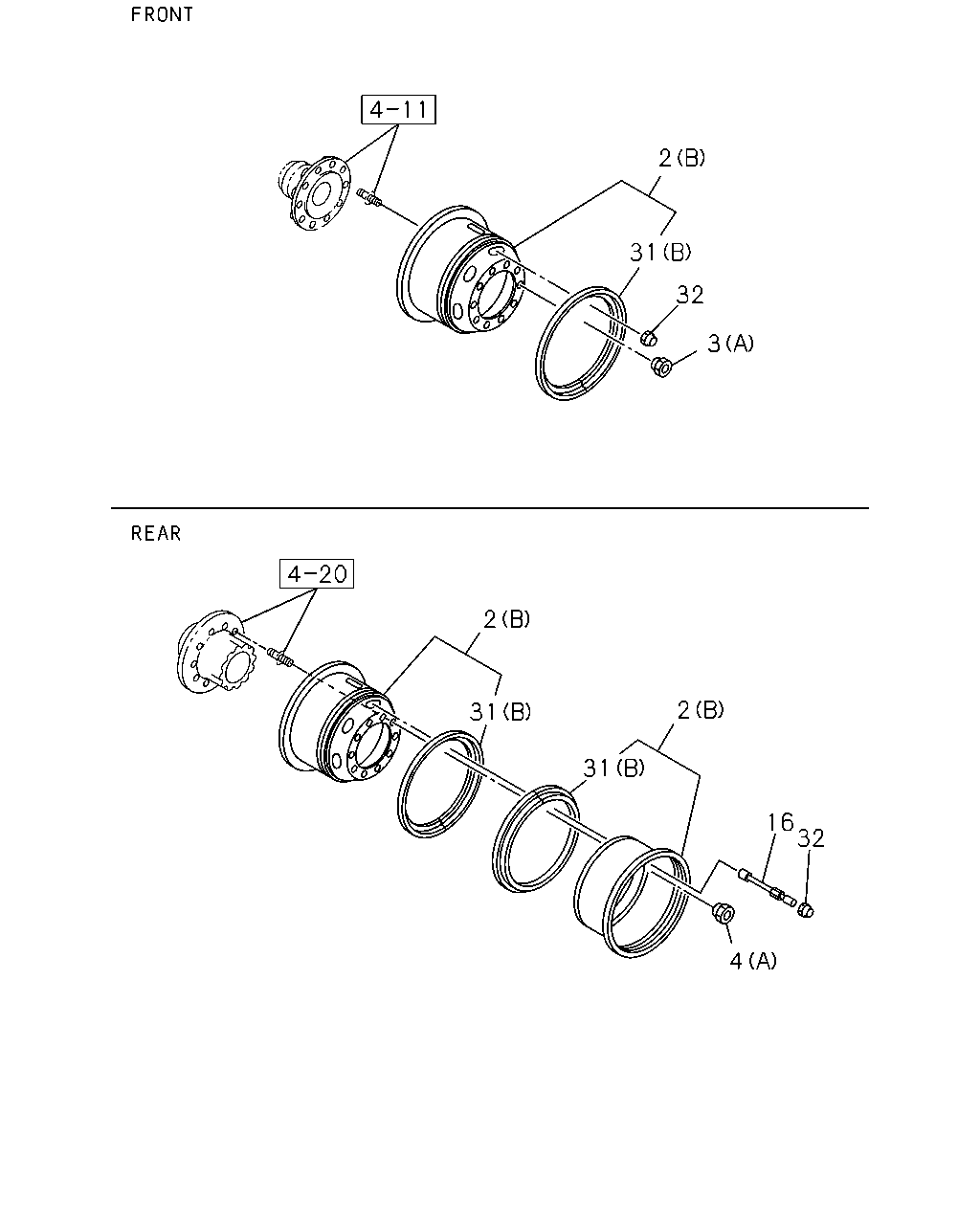

2 31 32 3 2 32 4 5 31 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20<Q64> (B) FRONT	1-42350-448-0	04	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20<Q64> (B) REAR	1-42350-448-0	08	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20<Q64> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-448-0	01	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) FRONT	1-42350-745-0	04	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) REAR	1-42350-745-0	08	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-745-0	01	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) FRONT	1-42350-730-0	04	1	1110-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) FRONT	8-98217-247-0	04	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) FRONT	8-98281-497-0	04	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) REAR	1-42350-730-0	08	1	1110-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) REAR	8-98217-247-0	08	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) REAR	8-98281-497-0	08	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-730-0	01	1	1110-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (D) FRONT	1-42350-758-0	04	1	1110-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (D) REAR	1-42350-758-0	08	1	1110-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (D) SPARE	1-42350-758-0	01	1	1110-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (D) SPARE	1-42350-667-0	01	1	1110-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (C) FRONT	1-42350-362-0	04	1	1110-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (C) REAR	1-42350-362-0	08	1	1110-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-362-0	01	1	1110-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (D) FRONT	1-42350-667-0	04	1	1110-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (D) REAR	1-42350-667-0	08	1	1110-
3	NUT; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50VX20<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) M22X1.5	1-42333-055-0	40	1	1110-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) M24 LH THREAD IMA	1-42334-022-3	16	1	1110-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) M24 IMA	1-42333-022-3	16	1	1110-
4	NUT; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50VX20<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) M22X1.5	1-42333-055-0	40	1	1110-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) M30 LH THREAD THA	8-97359-810-0	16	1	1110-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) M30 RH THREAD THA	8-97359-809-0	16	1	1110-
5	NUT; WHEEL,INNER,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> OUTER M30,INNER M20 LH THREAD THA	8-97359-806-0	16	1	1110-
5	NUT; WHEEL,INNER,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> OUTER M30,INNER M20 RH THREAD THA	8-97359-805-0	16	1	1110-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20<Q64> (B) FRONT	1-42355-014-0	04	1	1110-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20<Q64> (B) REAR	1-42355-014-0	08	1	1110-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20<Q64> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42355-014-0	01	1	1110-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> (A) FRONT	1-42355-004-1	04	1	1110-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> (A) REAR	1-42355-004-1	08	1	1110-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42355-004-1	01	1	1110-
32	CAP; VALVE DISC WHEEL 10STUD 7.50VX20<Q64> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	09	1	1110-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	1110-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>	1-42374-001-0	04	1	1110-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>	1-42374-001-0	08	1	1110-
32	CAP; VALVE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	13	1	1110-

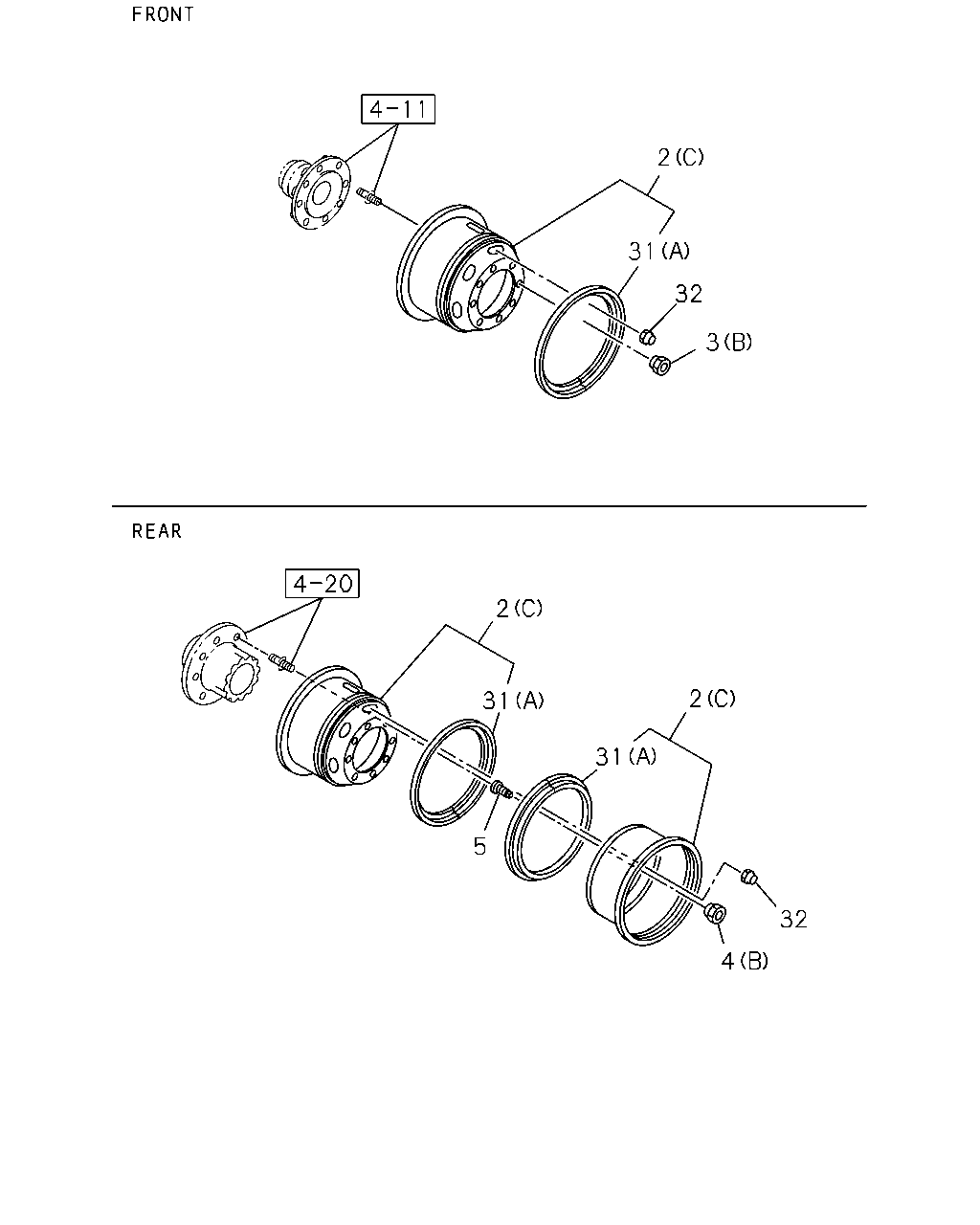

32 8 3 2 2 8 5 32 32 8 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20<Q64> (B) FRONT	1-42350-448-0	04	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20<Q64> (B) REAR	1-42350-448-0	08	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20<Q64> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-448-0	01	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) FRONT	1-42350-745-0	04	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) REAR	1-42350-745-0	08	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-745-0	01	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) FRONT	1-42350-730-0	04	1	1110-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) FRONT	8-98217-247-0	04	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) FRONT	8-98281-497-0	04	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) REAR	1-42350-730-0	08	1	1110-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) REAR	8-98217-247-0	08	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) REAR	8-98281-497-0	08	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-730-0	01	1	1110-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (D) FRONT	1-42350-758-0	04	1	1110-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (D) REAR	1-42350-758-0	08	1	1110-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (D) SPARE	1-42350-758-0	01	1	1110-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (D) SPARE	1-42350-667-0	01	1	1110-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (C) FRONT	1-42350-362-0	04	1	1110-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (C) REAR	1-42350-362-0	08	1	1110-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-362-0	01	1	1110-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (D) FRONT	1-42350-667-0	04	1	1110-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (D) REAR	1-42350-667-0	08	1	1110-
3	NUT; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50VX20<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) M22X1.5	1-42333-055-0	40	1	1110-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) M24 LH THREAD IMA	1-42334-022-3	16	1	1110-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) M24 IMA	1-42333-022-3	16	1	1110-
4	NUT; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50VX20<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) M22X1.5	1-42333-055-0	40	1	1110-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) M30 LH THREAD THA	8-97359-810-0	16	1	1110-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) M30 RH THREAD THA	8-97359-809-0	16	1	1110-
5	NUT; WHEEL,INNER,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> OUTER M30,INNER M20 LH THREAD THA	8-97359-806-0	16	1	1110-
5	NUT; WHEEL,INNER,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> OUTER M30,INNER M20 RH THREAD THA	8-97359-805-0	16	1	1110-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> FRONT	1-42370-048-0	04	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> FRONT	1-42370-019-3	04	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> REAR	1-42370-048-0	08	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> REAR	1-42370-019-3	08	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-048-0	01	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-019-3	01	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT	1-42370-020-3	04	1	1110-1205
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT	1-42370-020-3	04	1	1206-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR	1-42370-020-3	08	1	1110-1205
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR	1-42370-020-3	08	1	1206-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE	1-42370-020-3	01	1	1110-1205
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-020-3	01	1	1206-
32	CAP; VALVE DISC WHEEL 10STUD 7.50VX20<Q64> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	09	1	1110-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	1110-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>	1-42374-001-0	04	1	1110-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>	1-42374-001-0	08	1	1110-
32	CAP; VALVE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	13	1	1110-

4 32 16 31 2 31 2 3 32 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20<Q64> (B) FRONT	1-42350-448-0	04	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20<Q64> (B) REAR	1-42350-448-0	08	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20<Q64> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-448-0	01	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) FRONT	1-42350-745-0	04	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) REAR	1-42350-745-0	08	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-745-0	01	1	1110-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) FRONT	1-42350-730-0	04	1	1110-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) FRONT	8-98217-247-0	04	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) FRONT	8-98281-497-0	04	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) REAR	1-42350-730-0	08	1	1110-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) REAR	8-98217-247-0	08	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) REAR	8-98281-497-0	08	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-730-0	01	1	1110-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (D) FRONT	1-42350-758-0	04	1	1110-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (D) REAR	1-42350-758-0	08	1	1110-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (D) SPARE	1-42350-758-0	01	1	1110-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (D) SPARE	1-42350-667-0	01	1	1110-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (C) FRONT	1-42350-362-0	04	1	1110-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (C) REAR	1-42350-362-0	08	1	1110-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-362-0	01	1	1110-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (D) FRONT	1-42350-667-0	04	1	1110-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (D) REAR	1-42350-667-0	08	1	1110-
3	NUT; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50VX20<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) M22X1.5	1-42333-055-0	40	1	1110-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) M24 LH THREAD IMA	1-42334-022-3	16	1	1110-
3	NUT; WHEEL,FRT AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) M24 IMA	1-42333-022-3	16	1	1110-
4	NUT; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50VX20<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> (A) M22X1.5	1-42333-055-0	40	1	1110-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) M30 LH THREAD THA	8-97359-810-0	16	1	1110-
4	NUT; WHEEL,RR AXLE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) M30 RH THREAD THA	8-97359-809-0	16	1	1110-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50VX20<Q64>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> L=170	8-98167-052-0	04	1	1110-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20<Q64> (B) FRONT	1-42355-014-0	04	1	1110-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20<Q64> (B) REAR	1-42355-014-0	08	1	1110-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20<Q64> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42355-014-0	01	1	1110-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> (A) FRONT	1-42355-004-1	04	1	1110-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> (A) REAR	1-42355-004-1	08	1	1110-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42355-004-1	01	1	1110-
32	CAP; VALVE DISC WHEEL 10STUD 7.50VX20<Q64> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	09	1	1110-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	1110-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>	1-42374-001-0	04	1	1110-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13<QM8>,DISC WHEEL 10STUD 7.50X22.5 162-12<Q87>	1-42374-001-0	08	1	1110-
32	CAP; VALVE WHEEL 8STUD 7.50VX20 165-13<Q62>,DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	13	1	1110-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
