4-10 — FRONT AXLE (#16472) — 129 parça

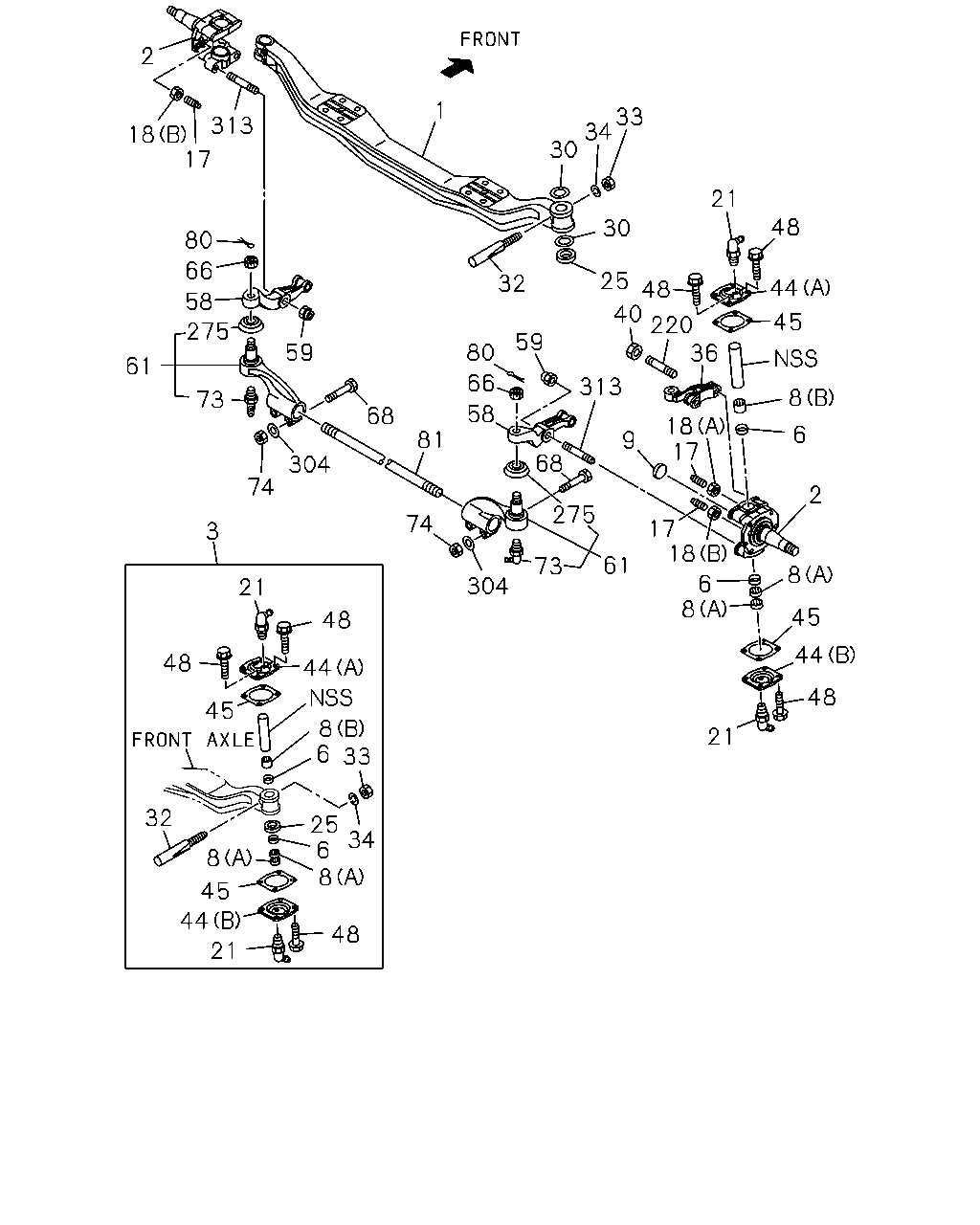

çizim 96908
21 48 44 45 8 6 8 18 2 6 8 45 44 48 36 18 17 17 9 220 48 21 25 40 313 68 275 61 73 304 74 58 66 80 59 32 30 30 34 33 1 313 2 18 17 80 66 58 275 59 61 73 68 81 304 74 3 48 8 6 25 6 8 44 48 21 48 45 32 8 45 44 21 33 34
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-177-4 01 1 1110-
1 AXLE; FRT 1-43111-177-4 01 1 1110-
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1110-1412
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1110-1412
2 KNUCKLE; FRT AXLE
THA 		8-98296-703-0 01 1 1501-
2 KNUCKLE; FRT AXLE
THA 		8-98296-703-0 01 1 1501-
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1110-1412
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1110-1412
2 KNUCKLE; FRT AXLE
THA 		8-98296-704-0 01 1 1501-
2 KNUCKLE; FRT AXLE
THA 		8-98296-704-0 01 1 1501-
3 KING PIN SET 1-87831-353-2 02 1 1110-
3 KING PIN SET 1-87831-353-2 02 1 1110-
6 SEAL; KING PIN 9-09926-024-0 04 1 1110-
6 SEAL; KING PIN 9-09926-024-0 04 1 1110-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1110-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1110-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1110-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1110-
9 PLUG; KNUCKLE
OD=22 		1-09600-011-2 02 1 1110-
9 PLUG; KNUCKLE
OD=22 		1-09600-011-2 02 1 1110-
17 BOLT; STOPPER KNUCKLE
FORWARD M18X53 		1-09009-066-0 01 1 1110-
17 BOLT; STOPPER KNUCKLE
REARWARD M18X56 		1-09009-108-0 03 1 1110-
17 BOLT; STOPPER KNUCKLE
FORWARD M18X43 		1-09009-190-0 02 1 1110-
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 THA 		0-91110-518-0 02 1 1110-
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 THA 		0-91110-518-0 02 1 1110-
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 1110-
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 1110-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 04 1 1110-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 04 1 1110-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1110-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1110-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 THA 		1-43171-185-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 THA 		1-43171-185-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 THA 		1-43171-186-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 THA 		1-43171-186-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 THA 		1-43171-187-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 THA 		1-43171-187-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 THA 		1-43171-188-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 THA 		1-43171-188-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 THA 		1-43171-193-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 THA 		1-43171-193-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 THA 		1-43171-194-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 THA 		1-43171-194-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 THA 		1-43171-195-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 THA 		1-43171-195-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 THA 		1-43171-196-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 THA 		1-43171-196-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 THA 		1-43171-197-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 THA 		1-43171-197-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 THA 		1-43171-198-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 THA 		1-43171-198-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 THA 		1-43171-199-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 THA 		1-43171-199-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1110-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1110-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1110-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1110-
33 NUT; KEY BOLT
M10 THA 		0-91110-510-0 02 1 1110-
33 NUT; KEY BOLT
M10 THA 		0-91110-510-0 02 1 1110-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1110-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1110-
36 ARM; KNUCKLE 8-98061-893-0 01 1 1110-1412
36 ARM; KNUCKLE 8-98061-893-0 01 1 1110-1412
36 ARM; KNUCKLE
THA 		8-98296-709-0 01 1 1501-
36 ARM; KNUCKLE
THA 		8-98296-709-0 01 1 1501-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1110-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1110-
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1110-
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1110-
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1110-
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1110-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1110-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1110-
48 BOLT; COVER
M10X25 FLANGE THA 		0-28751-025-0 16 1 1110-
48 BOLT; COVER
M10X25 FLANGE THA 		0-28751-025-0 16 1 1110-
58 ARM; TIE ROD
THA 		8-98296-713-0 01 1 1501-
58 ARM; TIE ROD
THA 		8-98296-713-0 01 1 1501-
58 ARM; TIE ROD
THA 		8-98296-716-0 01 1 1501-
58 ARM; TIE ROD
THA 		8-98296-716-0 01 1 1501-
58 ARM; TIE ROD
THA 		8-98296-714-0 01 1 1501-
58 ARM; TIE ROD
THA 		8-98296-714-0 01 1 1501-
58 ARM; TIE ROD
THA 		8-98296-717-0 01 1 1501-
58 ARM; TIE ROD
THA 		8-98296-717-0 01 1 1501-
58 ARM; TIE ROD
FORWARD 		1-43134-049-4 01 1 1110-1412
58 ARM; TIE ROD
FORWARD THA 		8-98296-713-0 01 1 1501-
58 ARM; TIE ROD
REARWARD 		1-43134-060-2 01 1 1110-1412
58 ARM; TIE ROD
REARWARD THA 		8-98296-716-0 01 1 1501-
58 ARM; TIE ROD
FORWARD 		1-43135-049-4 01 1 1110-1412
58 ARM; TIE ROD
FORWARD THA 		8-98296-714-0 01 1 1501-
58 ARM; TIE ROD
REARWARD 		1-43135-060-2 01 1 1110-1412
58 ARM; TIE ROD
REARWARD THA 		8-98296-717-0 01 1 1501-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1110-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1110-
61 ROD END; TIE ROD 8-98096-753-0 01 1 1110-1306
61 ROD END; TIE ROD 8-98096-753-0 01 1 1110-1306
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307-
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307-
61 ROD END; TIE ROD 8-98096-754-0 01 1 1110-1306
61 ROD END; TIE ROD 8-98096-754-0 01 1 1110-1306
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307-
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1110-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1110-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1110-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1110-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1110-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1110-
74 NUT; TIE ROD END
M12 THA 		0-91110-512-0 04 1 1110-
74 NUT; TIE ROD END
M12 THA 		0-91110-512-0 04 1 1110-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1110-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1110-
81 ROD; TIE 8-98105-064-0 01 1 1110-
81 ROD; TIE 8-98105-064-0 01 1 1110-
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1110-
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1110-
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1110-1306
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1110-1306
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
304 WASHER; PL
ID=12.5 		0-91614-512-0 04 1 1110-
304 WASHER; PL
ID=12.5 		0-91614-512-0 04 1 1110-
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1110-
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1110-
