6-05 — FRONT PANEL (#1647) — 75 parça

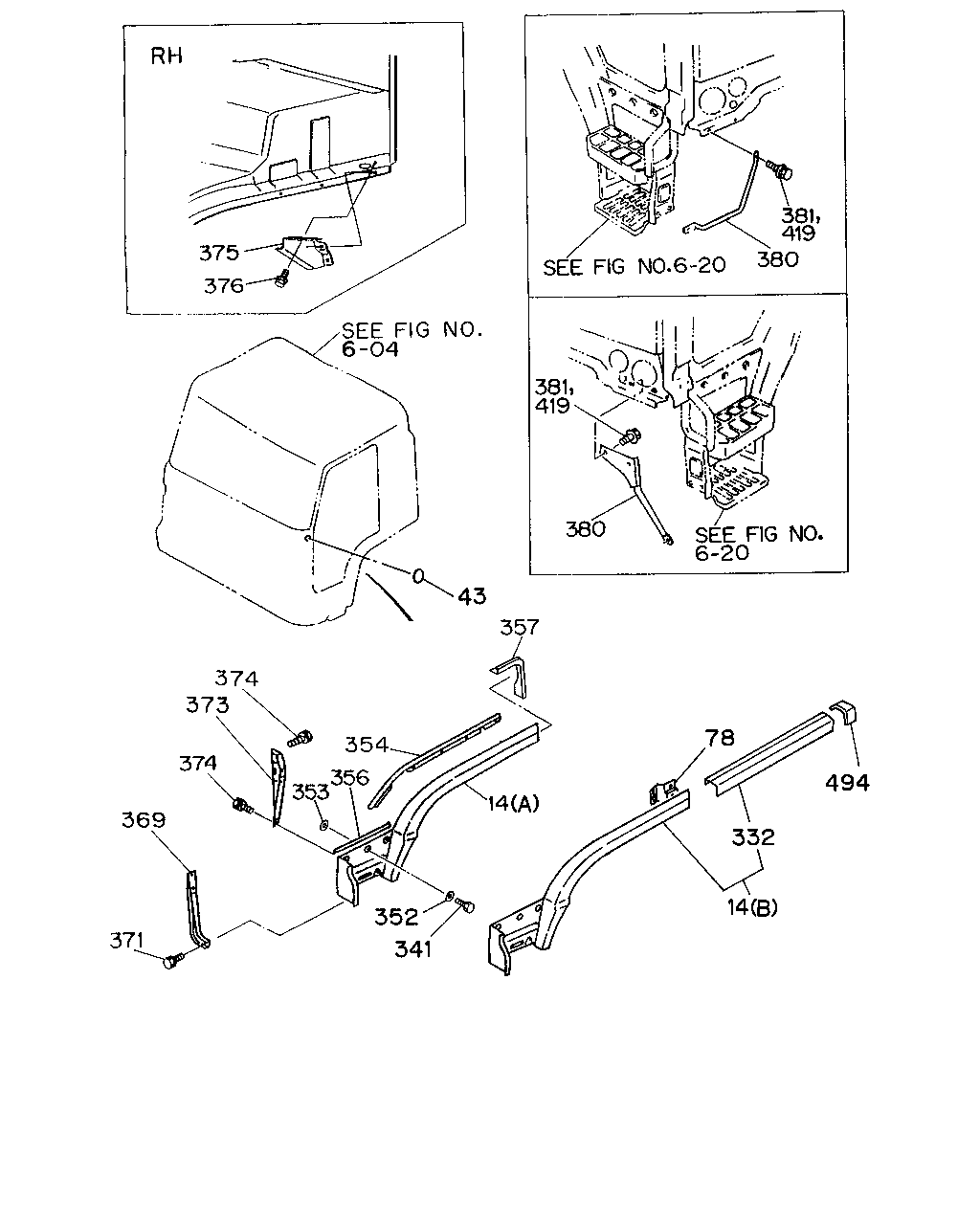

çizim 93681
371 369 374 373 374 354 356 353 43 357 14 352 341 78 494 332 14 380 419 381 376 381 419 380 375
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 FENDER; FRT 1-65480-727-4 01 1 9207- ● ● ● ●
14 FENDER; FRT 1-65480-726-4 01 1 9207- ● ● ● ●
14 FENDER; FRT 1-65480-748-3 01 1 9207- ●
14 FENDER; FRT 1-65480-747-3 01 1 9207- ●
43 GROMMET; LOCATION HOLE,A-POST
OD=36 BLACK 		1-76798-018-0 02 1 9207- ● ● ● ● ●
78 BRACKET; FENDER 1-65480-780-1 01 1 9207- ●
78 BRACKET; FENDER 1-65480-779-1 01 1 9207- ●
332 FENDER; RR 1-65480-757-1 01 1 9207- ●
332 FENDER; RR 1-65480-756-1 01 1 9207- ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 12 1 9207- ● ● ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-493-0 06 1 9207- ● ● ● ● ●
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 9207- ●
352 WASHER; NYLON 1-09985-171-0 06 1 9207- ● ● ● ● ●
353 SPACER; FENDER TO CAB
ID=12.5 		1-09503-171-0 02 1 9501- ● ● ● ●
354 SEAL; FENDER SIDE 1-71998-307-1 01 1 9207- ● ● ● ●
354 SEAL; FENDER SIDE 1-71998-306-1 01 1 9207- ● ● ● ●
354 SEAL; FENDER SIDE 1-71998-404-0 01 1 9207- ●
354 SEAL; FENDER SIDE 1-71998-403-0 01 1 9207- ●
356 FINISHER; STEP CLOSING,FENDER 1-71998-228-0 01 1 9207- ● ● ● ● ●
356 FINISHER; STEP CLOSING,FENDER 1-71998-148-1 01 1 9207- ● ● ● ● ●
357 FINISHER; WIDE FENDER RR 1-71998-311-0 01 1 9207- ● ● ● ●
357 FINISHER; WIDE FENDER RR 1-71998-310-0 01 1 9207- ● ● ● ●
369 SUPPORT; FENDER STEP FRT 1-65680-300-3 01 1 9207- ● ● ● ● ●
369 SUPPORT; FENDER STEP FRT 1-65680-299-3 01 1 9207- ● ● ● ● ●
371 BOLT; SUPPORT,FENDER STEP FRT
M8X20 W/LK&PL WASHER 		1-09980-496-0 04 1 9207- ● ● ● ● ●
373 SUPPORT; FENDER STEP REAR 1-65680-280-5 01 1 9207- ● ● ● ● ●
373 SUPPORT; FENDER STEP REAR 1-65680-279-5 01 1 9207- ● ● ● ● ●
374 BOLT; SUPPORT,FENDER STEP REAR
M8X20 W/LK&PL WASHER 		1-09980-496-0 08 1 9207- ● ● ● ● ●
375 SUPPORT; FENDER REAR 1-65680-663-0 01 1 9207- ● ● ● ●
376 BOLT; SUPPORT,FENDER RR
M6X20 W/LK&PL WASHER 		1-09980-495-0 01 1 9207- ● ● ● ●
380 STAY ASM; FENDER STEP FRT 1-65680-795-0 01 1 9207- ● ●
380 STAY ASM; FENDER STEP FRT 1-65680-792-0 01 1 9207- ● ●
380 STAY ASM; FENDER STEP FRT 1-65680-828-0 01 1 9207- ●
380 STAY ASM; FENDER STEP FRT
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65680-828-0 01 1 9207- ● ●
380 STAY ASM; FENDER STEP FRT 1-65680-827-0 01 1 9207- ●
380 STAY ASM; FENDER STEP FRT
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65680-827-0 01 1 9207- ● ●
380 STAY ASM; FENDER STEP FRT
BUMPER W/HEADLAMPS<SLB> 		1-65680-876-0 01 1 9207- ● ●
380 STAY ASM; FENDER STEP FRT
BUMPER W/HEADLAMPS<SLB> 		1-65680-874-0 01 1 9207- ● ●
381 BOLT; STAY,FENDER STEP
M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 9207- ● ●
381 BOLT; STAY,FENDER STEP
M8X20 W/LK&PL WASHER 		1-09980-496-0 01 1 9207- ● ●
381 BOLT; STAY,FENDER STEP
M8X20 W/LK&PL WASHER 		1-09980-496-0 02 1 9207- ● ● ●
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		1-09980-496-0 08 1 9207- ● ● ● ● ●
494 FINISHER; FENDER 1-71998-406-0 01 1 9207- ●
494 FINISHER; FENDER 1-71998-405-0 01 1 9207- ●

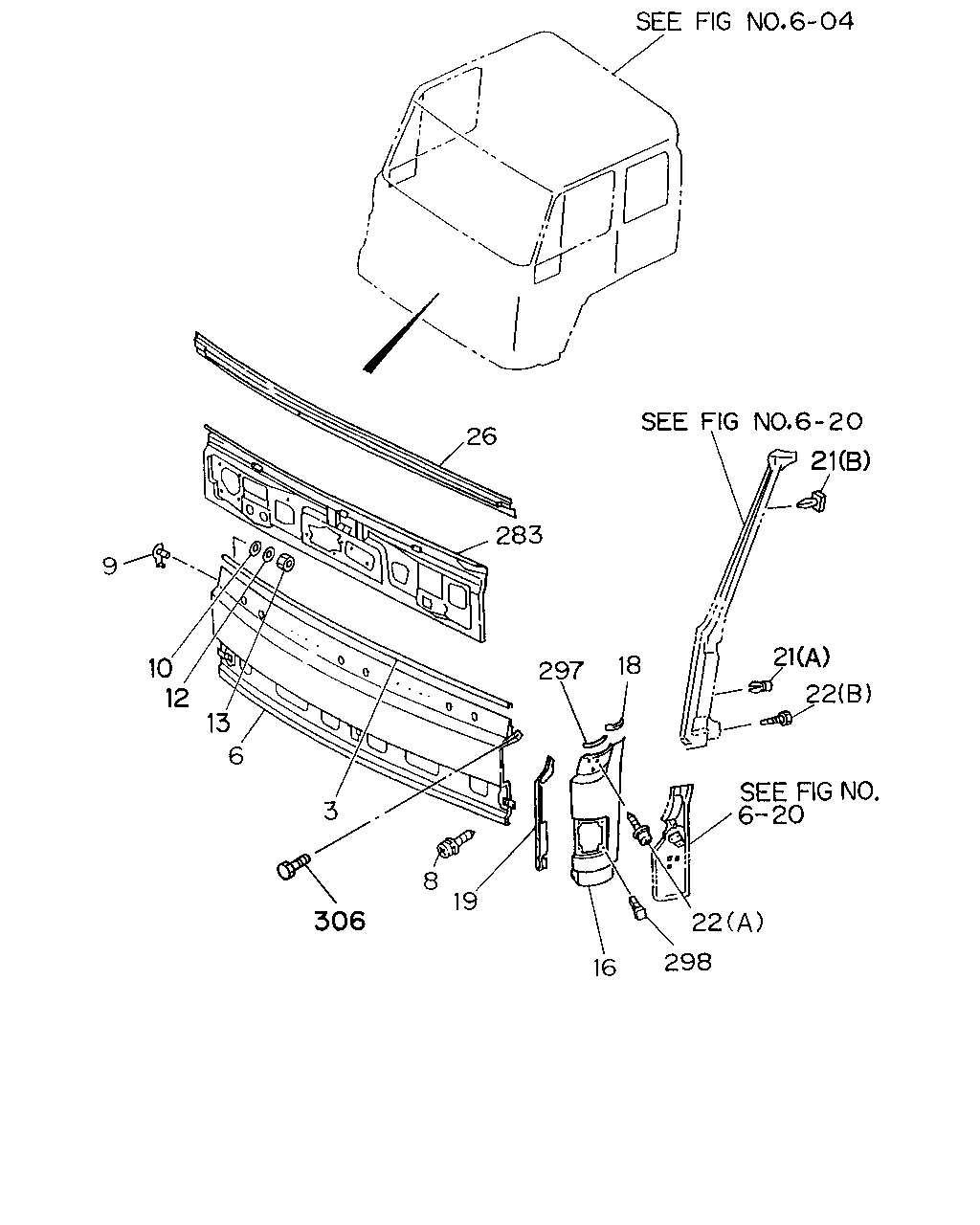

çizim 94452
26 283 9 10 12 13 6 3 306 8 19 297 18 21 21 22 22 298 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 FINISHER; FRT PANEL UPR
L=2100 		1-71907-093-0 01 1 9207- ● ● ● ● ●
6 PANEL; FRONT 1-65480-910-1 01 1 9207- ● ● ● ● ●
8 SCREW; FRT PANEL
M6X16 W/LK&PL WASHER 		1-09980-574-0 07 1 9207- ● ● ● ● ●
9 FASTENER; FRT PANEL TO SIDE PANEL 1-65570-152-1 02 1 9207- ● ● ● ● ●
10 WASHER; FRT PANEL TO SIDE PANEL
ID=9 OD=20 		1-09985-145-0 02 1 9207- ● ● ● ● ●
12 WASHER; PL,FRT PANEL TO SIDE PANEL
ID=8.4 OD=22 		9-09160-708-0 02 1 9207- ● ● ● ● ●
13 NUT; FRT PANEL TO SIDE PANEL
M8 FLANGE 		1-09984-064-0 02 1 9207- ● ● ● ● ●
16 PANEL; FRONT,SIDE 1-65480-536-9 01 1 9207- ● ● ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65480-536-9 01 1 9207- ● ●
16 PANEL; FRONT,SIDE 1-65480-533-9 01 1 9207- ● ● ●
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65480-533-9 01 1 9207- ● ●
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65481-127-1 01 1 9207- ● ●
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> 		1-65481-126-1 01 1 9207- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-65570-172-1 01 1 9207- ● ● ● ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-65570-171-1 01 1 9207- ● ● ● ● ●
19 SEAL; FRT SIDE PANEL 1-65580-195-0 01 1 9207- ● ● ● ● ●
19 SEAL; FRT SIDE PANEL 1-65580-194-0 01 1 9207- ● ● ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10X16 L=8 M6 		1-09983-118-0 02 1 9207- ● ● ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10X10 L=8 M6 		1-09983-119-0 02 1 9207- ● ● ● ● ●
22 SCREW; FRT PANEL SIDE
(A) 		1-09980-574-0 02 1 9207- ● ● ● ● ●
22 SCREW; FRT PANEL SIDE
(B) 		1-09981-426-0 04 1 9207- ● ● ● ● ●
26 PANEL; REINF,FRT PANEL CENTER,INNER 1-61480-408-5 01 1 9207- ● ● ● ● ●
283 PANEL ASM; FRT CENTER,INNER 1-61480-410-4 01 1 9207-9311 ● ● ● ● ●
283 PANEL ASM; FRT CENTER,INNER 1-61480-410-4 01 1 9312- ● ●
283 PANEL ASM; FRT CENTER,INNER
EXC. AUSTRALIA PACKAGE<D2Y>,AUSTRALIA EQUIPMENT(RR3) 		1-61480-410-4 01 1 9312- ● ● ●
283 PANEL ASM; FRT CENTER,INNER
AUSTRALIA EQUIPMENT(RR3) 		1-61480-756-0 01 1 9312- ● ● ●
297 FINISHER; SIDE PANEL,CAB
L=2040 		1-71998-300-0 02 1 9207- ● ● ● ● ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL 8-94279-039-0 08 1 9207- ● ● ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> 		8-94279-039-0 08 1 9207- ● ●
298 GROMMET; SCREW,LAMP,FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> 		8-94279-039-0 12 1 9207- ● ●
306 BOLT; SUPPORT,OUTSIDE MIRROR BRKT
M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9208-9209 ● ● ● ● ●
