Isuzu WW
▶
TRUCKS
▶
FSS
▶
11658 - FSS MALAYSIA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#164676) — 11 parça
◀

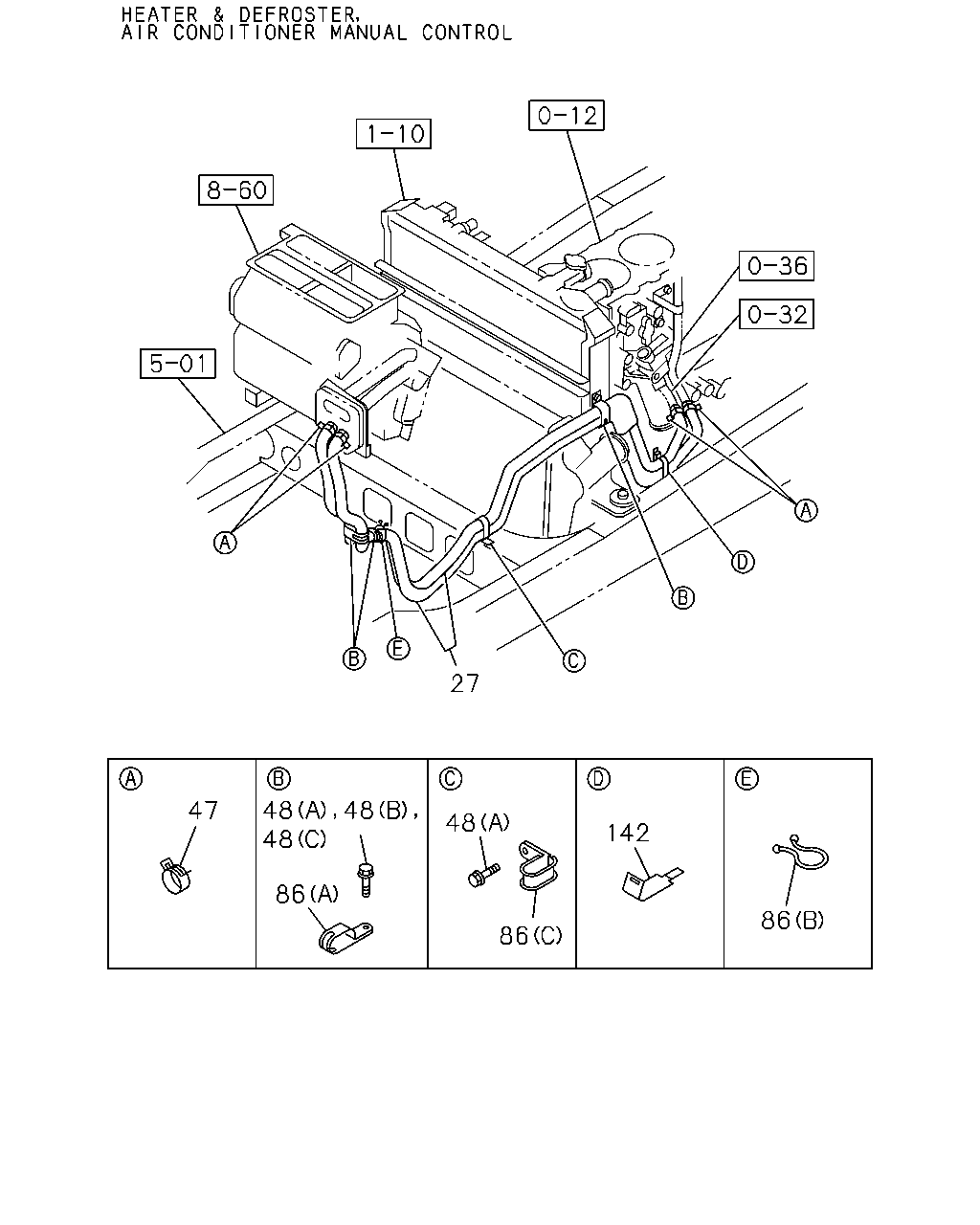

[845A] NO.2 (9 parça)

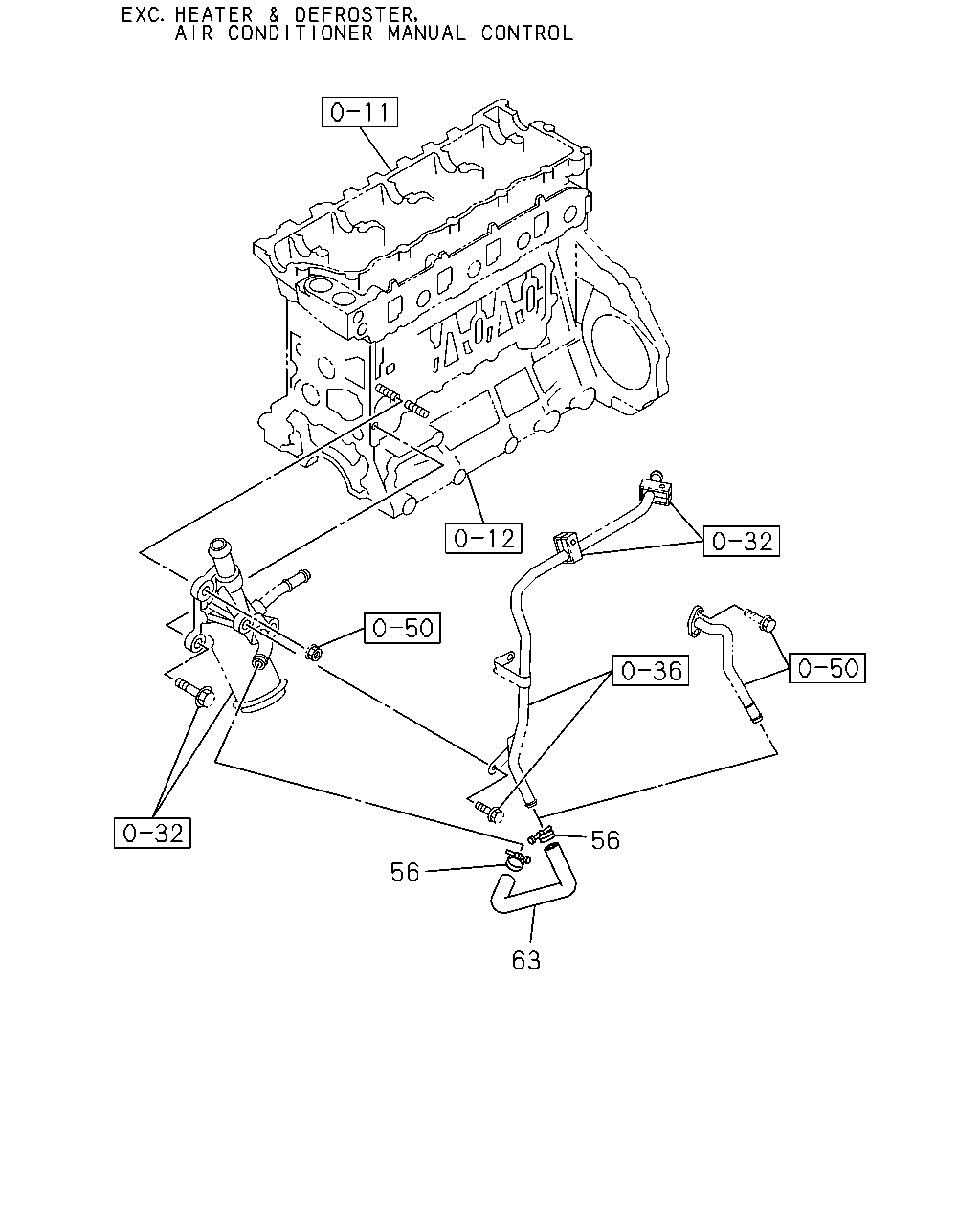

[845A] NO.1 (2 parça)
▶
27
86
142
86
48
48
48
48
86
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98207-259-0
01
1
1505-
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-97359-141-0
04
1
1505-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE MAL
0-28050-816-0
01
1
1505-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE MAL
0-28650-825-0
02
1
1505-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
1505-
86
CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-94463-508-0
01
1
1505-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
03
1
1505-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-98029-677-0
01
1
1505-
142
CLIP; BAND
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170
8-98166-021-0
01
1
1505-
56
63
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
56
CLAMP; HTR HOSE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=25
8-94233-115-0
02
1
1505-
63
HOSE; WATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60)
8-94134-250-1
01
1
1505-
