◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11658 - FSS MALAYSIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#164673) — 23 parça

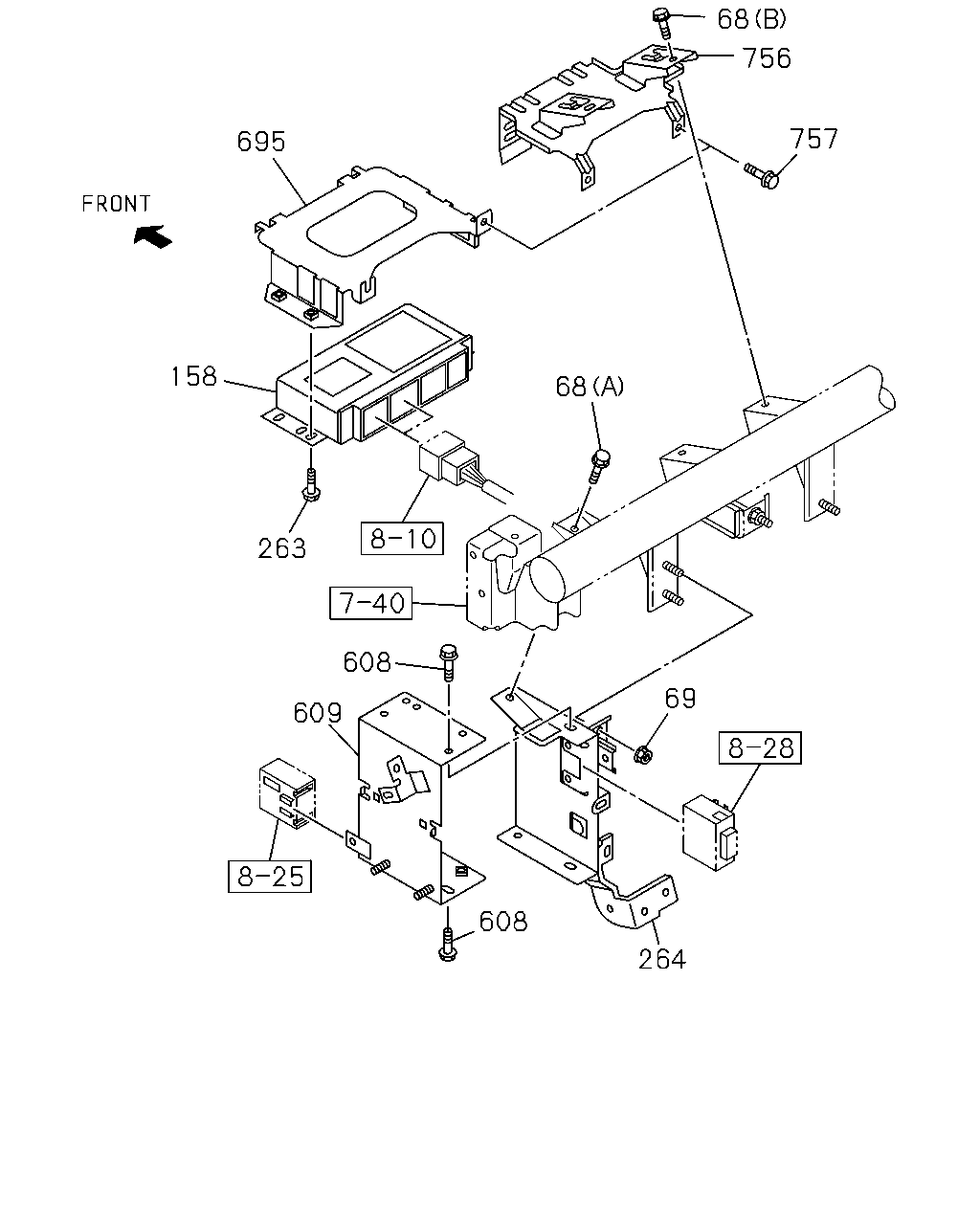

çizim 484436
264 608 609 69 608 263 158 695 68 757 756 68
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(A) M6X16 FLANGE MAL 		0-28650-616-0 01 1 1505-
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1505-
69 NUT; BRKT
M6 FLANGE MAL 		0-91180-106-0 01 1 1505-
158 CONTROLLER; ABS 8-98222-314-0 01 1 1505-
263 BOLT; CONT UNIT
M6X16 FLANGE MAL 		0-28650-616-0 01 1 1505-1506
263 BOLT; CONT UNIT
M6X16 FLANGE MAL 		0-28650-616-0 04 1 1507-
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1505-
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE MAL 		0-28650-616-0 05 1 1505-
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-1 01 1 1505-
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 1505-
756 BRACKET; ECU,BCM 8-98056-411-3 01 1 1505-
757 BOLT; BRKT,BCM
M6X16 FLANGE MAL 		0-28650-616-0 02 1 1505-

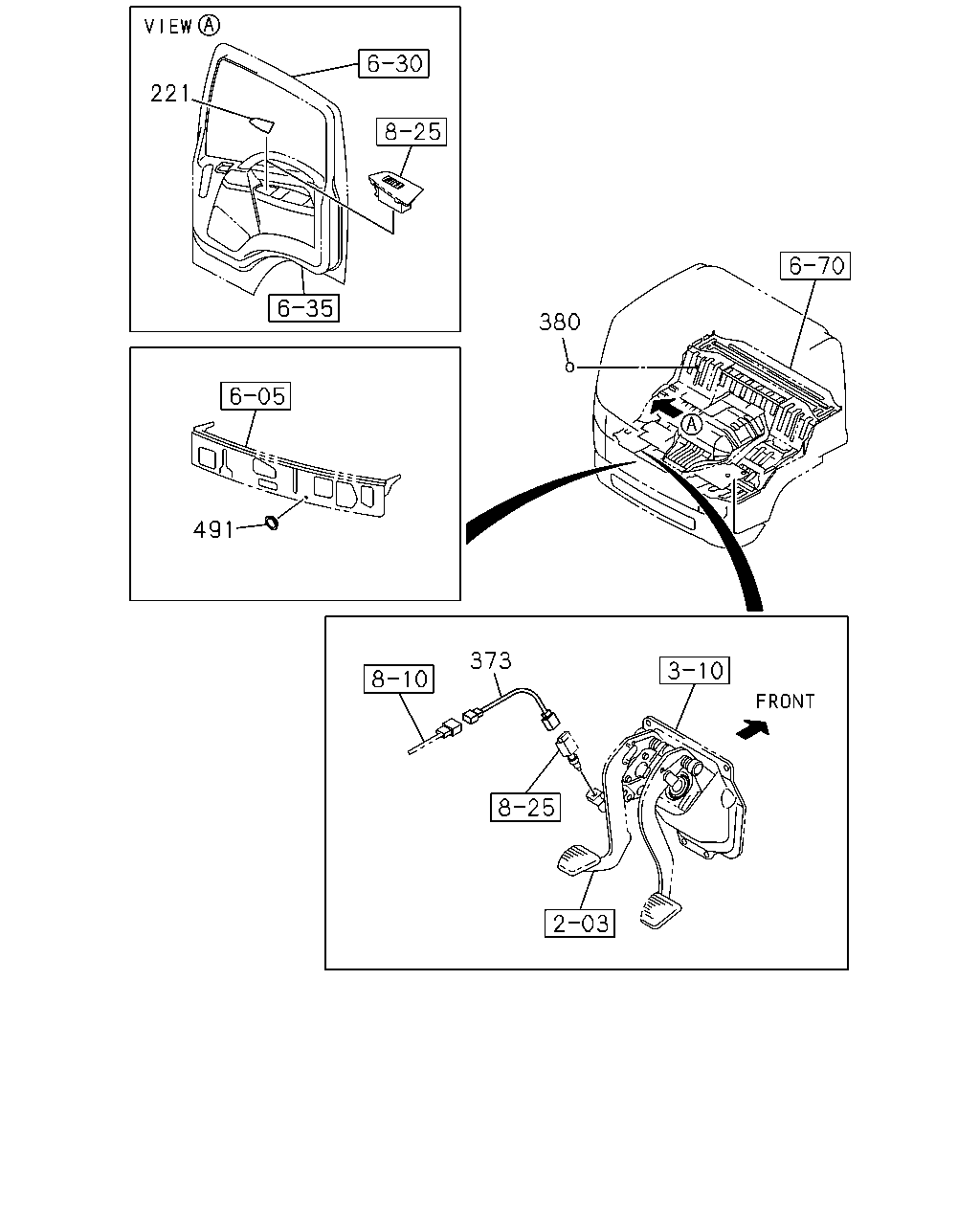

çizim 484451
221 380 491 373
BalonParca AdiParca NoAdetTipApplied Date
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1505-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1505-
373 HARNESS; CLU SWITCH 8-98053-829-3 01 1 1505-
380 SEAL
OD=25 BLACK MAL 		1-76798-019-0 01 1 1505-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1505-

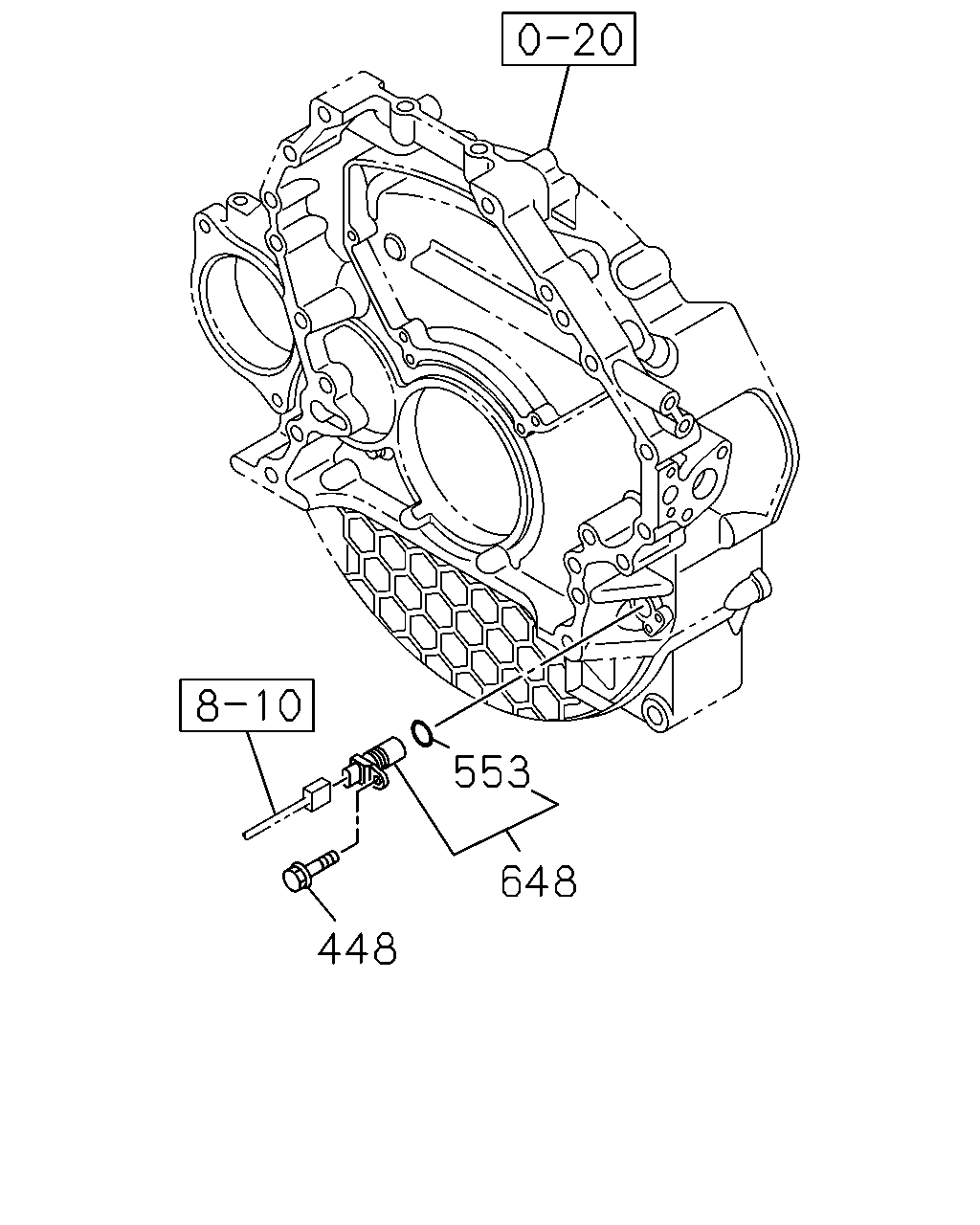

çizim 484989
553 448 648
BalonParca AdiParca NoAdetTipApplied Date
448 BOLT; SENSOR
M6X16 FLANGE MAL 		0-28050-616-0 01 1 1505-
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1505-
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1505-

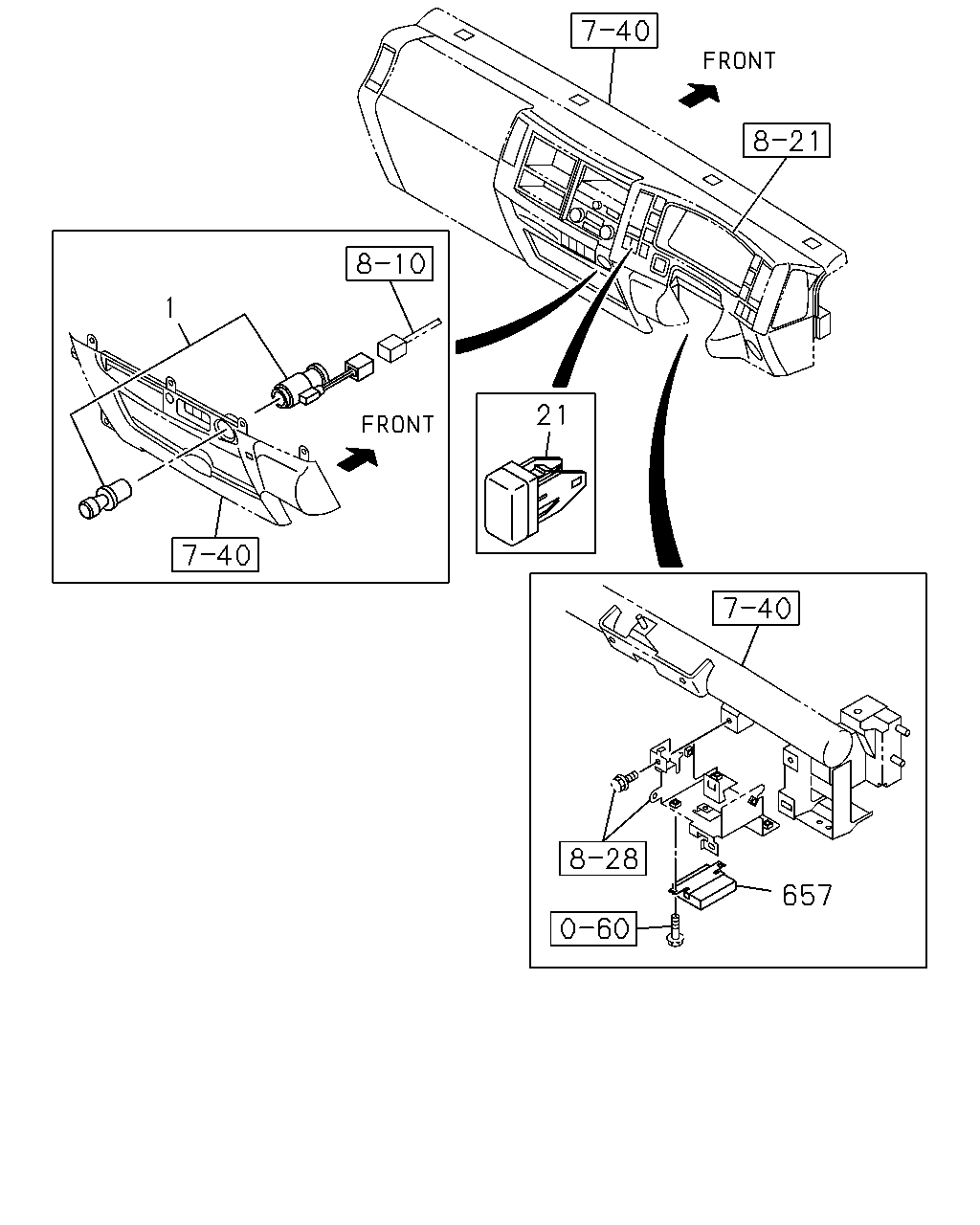

çizim 485085
21 1 657
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1505-
21 COVER; HOLE 8-98025-954-1 01 1 1505-
657 CONTROL UNIT; MIMAMORI 8-98260-912-1 01 1 1505-
