◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11658 - FSS MALAYSIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#164669) — 115 parça

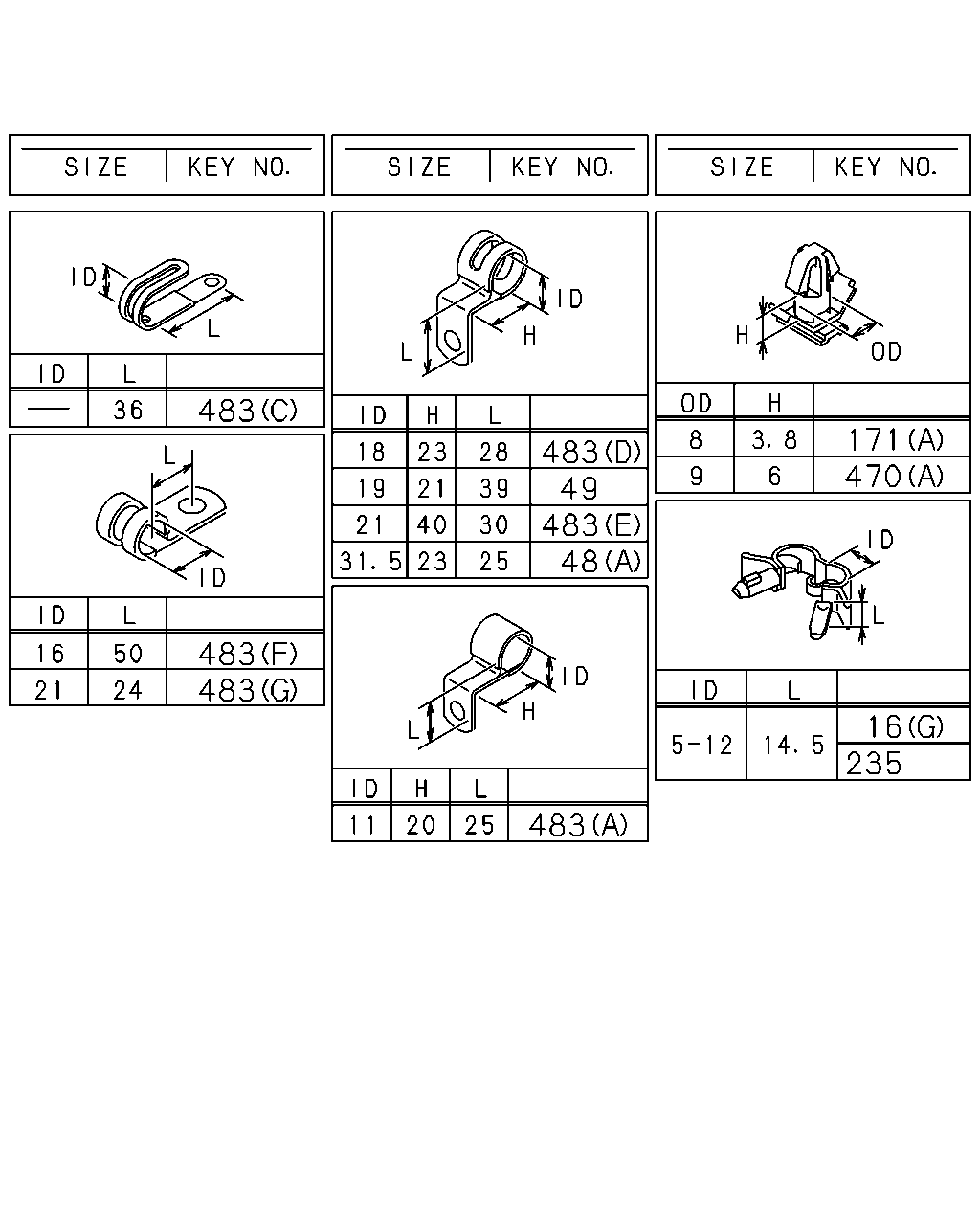

çizim 484341
483 483 483 483 49 483 48 171 470 16 235 483
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(E) ID=11 L=20 		0-95235-035-0 02 1 1505-
16 CLIP; HARNESS
(H) ID=19 L=20 		0-95235-836-0 01 1 1505-
16 CLIP; HARNESS
(D) ID=24 L=24 		1-09701-001-1 02 1 1505-
16 CLIP; HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 02 1 1505-
16 CLIP; HARNESS
(I) L=140 MAL 		5-09707-031-1 01 1 1505-
16 CLIP; HARNESS
(F) ID=10 & 16 MAL 		8-94413-325-0 01 1 1505-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 MAL 		8-97173-307-0 18 1 1505-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 MAL 		8-97173-307-0 18 1 1505-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=40.6 MAL 		8-97229-357-0 02 1 1505-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=40.6 MAL 		8-97229-357-0 02 1 1505-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) MAL 		8-98052-679-0 02 1 1505-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) MAL 		8-98052-679-0 02 1 1505-
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1505-
48 CLIP; FRAME HARNESS
(B) L=250 		5-09707-030-1 01 1 1505-
48 CLIP; FRAME HARNESS
(B) L=250 		5-09707-030-1 02 1 1505-
48 CLIP; FRAME HARNESS
(C) L=140 MAL 		5-09707-031-1 02 1 1505-
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 MAL 		1-09700-972-1 01 1 1505-
171 CLIP; STARTER HARNESS
(A) OD=8 H=3.8 		1-09709-309-0 01 1 1505-
171 CLIP; STARTER HARNESS
(B) 		8-97101-436-0 01 1 1505-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=5-12 L=14.5 		1-09987-221-0 01 1 1505-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 1505-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1505-
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1505-
483 CLIP; ENG HARNESS
(E) ID=21 L=30 H=40 		1-09700-991-1 01 1 1505-
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 1505-
483 CLIP; ENG HARNESS
(F) ID=16 L=50 		1-09701-158-0 01 1 1505-
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 03 1 1505-
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 02 1 1505-
483 CLIP; ENG HARNESS
(G) ID=21 L=24 		8-98019-191-0 01 1 1505-

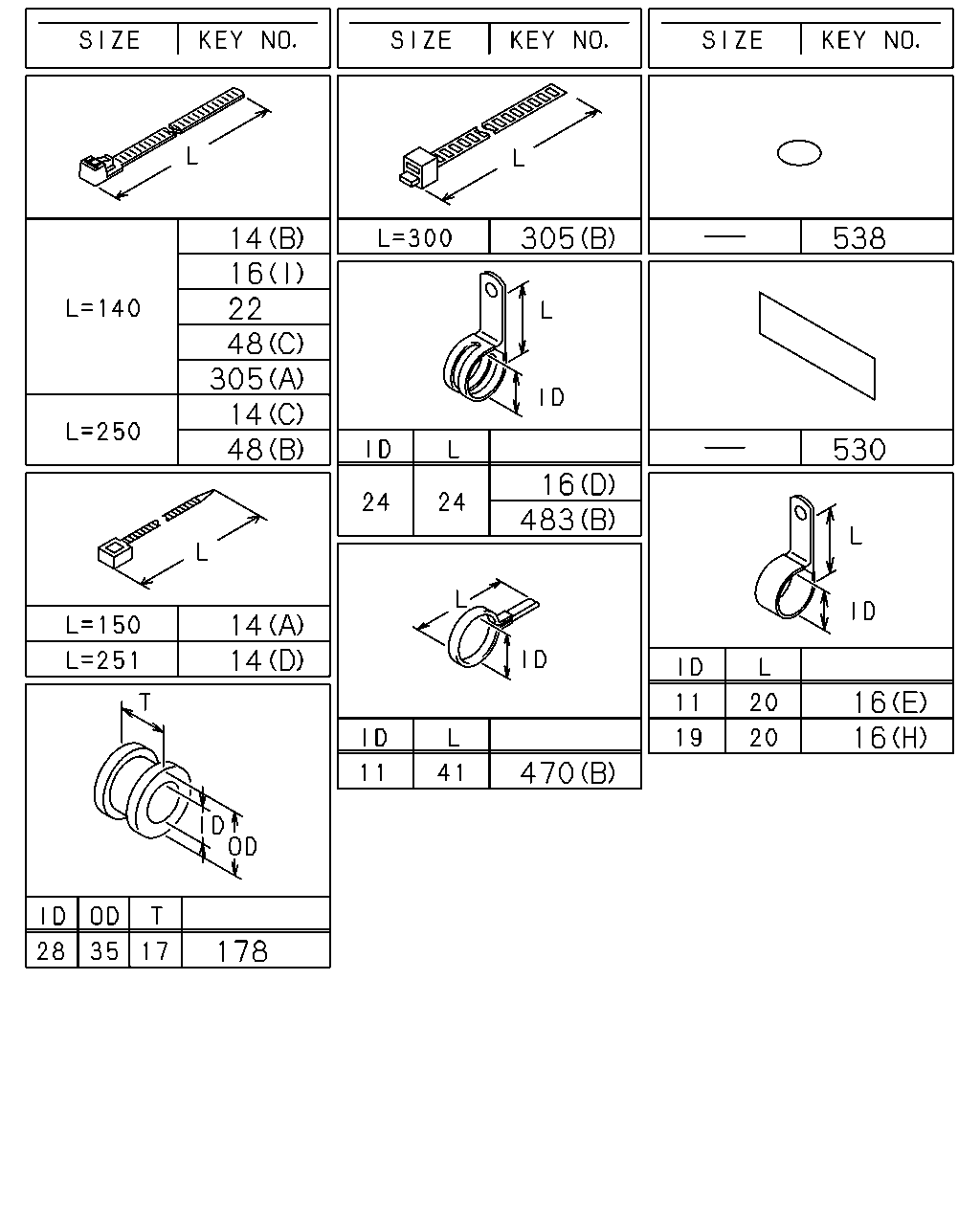

çizim 484350
14 16 22 48 305 14 48 14 14 178 470 483 16 305 538 530 16 16
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 01 1 1505-
14 CLIP; BAND,HARNESS
(B) L=140 MAL 		5-09707-031-1 02 1 1505-
14 CLIP; BAND,HARNESS
(A) L=150 		8-97355-273-0 01 1 1505-
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 1505-
16 CLIP; HARNESS
(E) ID=11 L=20 		0-95235-035-0 02 1 1505-
16 CLIP; HARNESS
(H) ID=19 L=20 		0-95235-836-0 01 1 1505-
16 CLIP; HARNESS
(D) ID=24 L=24 		1-09701-001-1 02 1 1505-
16 CLIP; HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 02 1 1505-
16 CLIP; HARNESS
(I) L=140 MAL 		5-09707-031-1 01 1 1505-
16 CLIP; HARNESS
(F) ID=10 & 16 MAL 		8-94413-325-0 01 1 1505-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 MAL 		8-97173-307-0 18 1 1505-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 MAL 		8-97173-307-0 18 1 1505-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=40.6 MAL 		8-97229-357-0 02 1 1505-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=40.6 MAL 		8-97229-357-0 02 1 1505-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) MAL 		8-98052-679-0 02 1 1505-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) MAL 		8-98052-679-0 02 1 1505-
22 CLIP; ENG HARNESS
L=140 MAL 		5-09707-031-1 02 1 1505-
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1505-
48 CLIP; FRAME HARNESS
(B) L=250 		5-09707-030-1 01 1 1505-
48 CLIP; FRAME HARNESS
(B) L=250 		5-09707-030-1 02 1 1505-
48 CLIP; FRAME HARNESS
(C) L=140 MAL 		5-09707-031-1 02 1 1505-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1505-
305 CLIP; ENG HARNESS
(B) L=300 		1-09707-001-1 01 1 1505-
305 CLIP; ENG HARNESS
(A) L=140 MAL 		5-09707-031-1 01 1 1505-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 1505-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1505-
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1505-
483 CLIP; ENG HARNESS
(E) ID=21 L=30 H=40 		1-09700-991-1 01 1 1505-
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 1505-
483 CLIP; ENG HARNESS
(F) ID=16 L=50 		1-09701-158-0 01 1 1505-
483 CLIP; ENG HARNESS
(A) ID=12 B=13 ID=6.5 		5-09700-348-0 03 1 1505-
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 02 1 1505-
483 CLIP; ENG HARNESS
(G) ID=21 L=24 		8-98019-191-0 01 1 1505-
530 SEAL; HARNESS
180X40 		1-72498-019-1 17 1 1505-
538 SEAL; HOLE
OD=25 BLACK MAL 		1-76798-019-0 01 1 1505-

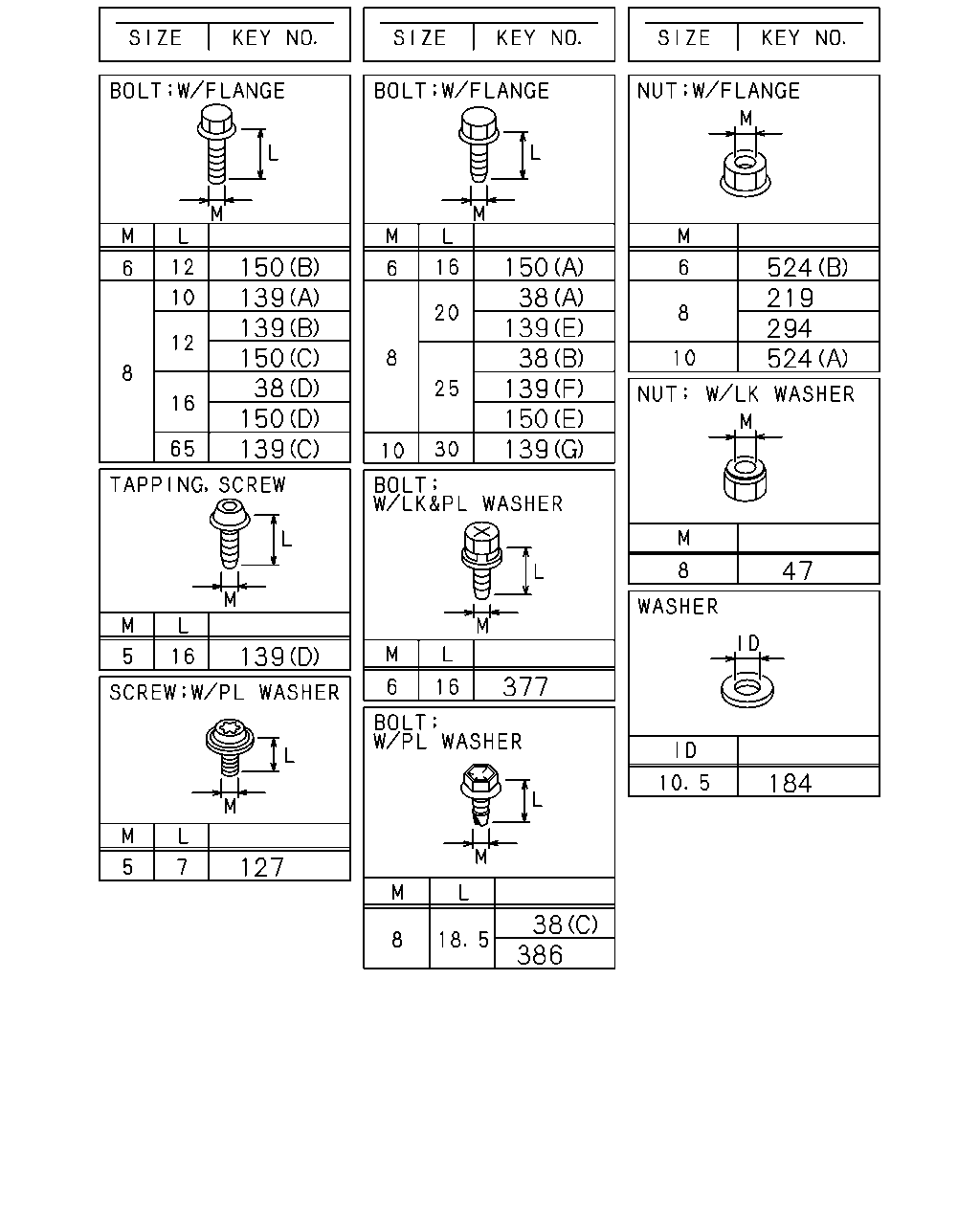

çizim 484362
150 139 139 150 38 150 139 150 38 139 38 139 150 139 524 219 294 524 47 184 377 139 127 38 386
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(D) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1505-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE MAL 		0-28650-820-0 01 1 1505-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE MAL 		0-28650-820-0 01 1 1505-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1505-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1505-
38 BOLT; CLIP,HARNESS
(C) M8X18.5 W/PL WASHER MAL 		8-98141-255-0 03 1 1505-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1505-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1505-
139 BOLT; BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 1505-
139 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 01 1 1505-
139 BOLT; BRKT
(E) M8X20 FLANGE MAL 		0-28650-820-0 01 1 1505-
139 BOLT; BRKT
(F) M8X25 FLANGE MAL 		0-28650-825-0 03 1 1505-
139 BOLT; BRKT
(G) M10X30 FLANGE 		0-28651-030-0 01 1 1505-
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X65 FLANGE 		1-09044-072-1 01 1 1505-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1505-
150 BOLT; CLIP
(B) M6X12 FLANGE MAL 		0-28050-612-0 03 1 1505-
150 BOLT; CLIP
(C) M8X12 FLANGE 		0-28050-812-0 01 1 1505-
150 BOLT; CLIP
(D) M8X16 FLANGE MAL 		0-28050-816-0 02 1 1505-
150 BOLT; CLIP
(A) M6X16 FLANGE MAL 		0-28650-616-0 01 1 1505-
150 BOLT; CLIP
(E) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1505-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1505-
219 NUT
M8 FLANGE MAL 		0-91180-108-0 01 1 1505-
294 NUT
M8 FLANGE MAL 		0-91180-108-0 05 1 1505-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER MAL 		8-97086-823-0 02 1 1505-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER MAL 		8-98141-255-0 02 1 1505-
524 NUT; HARNESS
(B) M6 FLANGE MAL 		0-91180-106-0 04 1 1505-
524 NUT; HARNESS
(A) M10 FLANGE MAL 		0-91180-110-0 01 1 1505-
çizim 484461
16 16 171 116 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(E) ID=11 L=20 		0-95235-035-0 02 1 1505-
16 CLIP; HARNESS
(H) ID=19 L=20 		0-95235-836-0 01 1 1505-
16 CLIP; HARNESS
(D) ID=24 L=24 		1-09701-001-1 02 1 1505-
16 CLIP; HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 02 1 1505-
16 CLIP; HARNESS
(I) L=140 MAL 		5-09707-031-1 01 1 1505-
16 CLIP; HARNESS
(F) ID=10 & 16 MAL 		8-94413-325-0 01 1 1505-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 MAL 		8-97173-307-0 18 1 1505-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 MAL 		8-97173-307-0 18 1 1505-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (A) L=40.6 MAL 		8-97229-357-0 02 1 1505-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (A) L=40.6 MAL 		8-97229-357-0 02 1 1505-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) MAL 		8-98052-679-0 02 1 1505-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) MAL 		8-98052-679-0 02 1 1505-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1505-
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 01 1 1505-
171 CLIP; STARTER HARNESS
(A) OD=8 H=3.8 		1-09709-309-0 01 1 1505-
171 CLIP; STARTER HARNESS
(B) 		8-97101-436-0 01 1 1505-

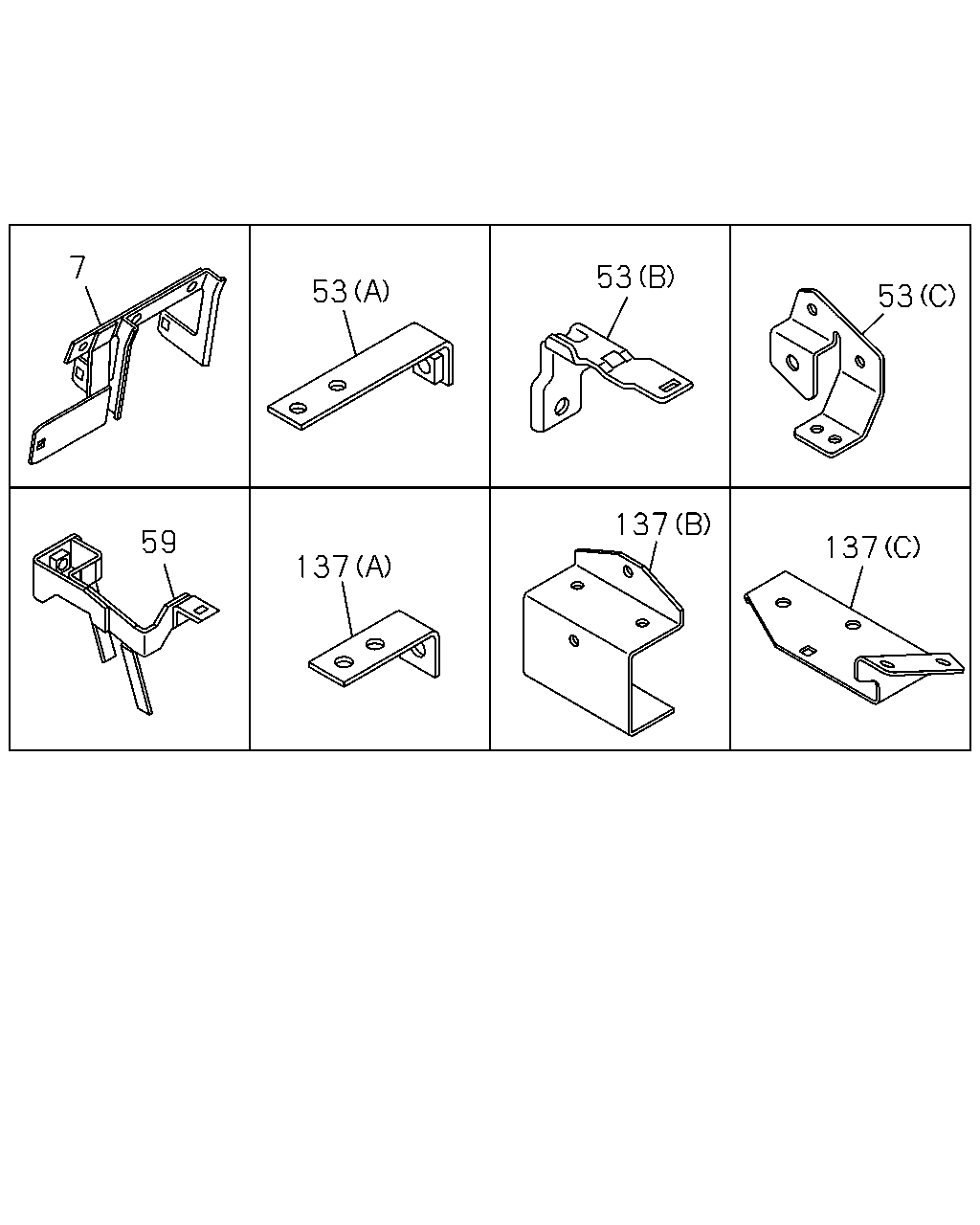

çizim 485104
7 53 53 53 137 137 137 59
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1505-
53 BRACKET; HARNESS
(A) 		8-97212-532-0 01 1 1505-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1505-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98084-590-0 01 1 1505-
59 BRACKET; FRAME HARNESS 8-97609-264-2 01 1 1505-
137 BRACKET; HARNESS CLAMP
(A) L=62 		1-21464-170-2 01 1 1505-
137 BRACKET; HARNESS CLAMP
(B) 		8-97609-797-1 02 1 1505-
137 BRACKET; HARNESS CLAMP
(C) 		8-97616-565-1 01 1 1505-
