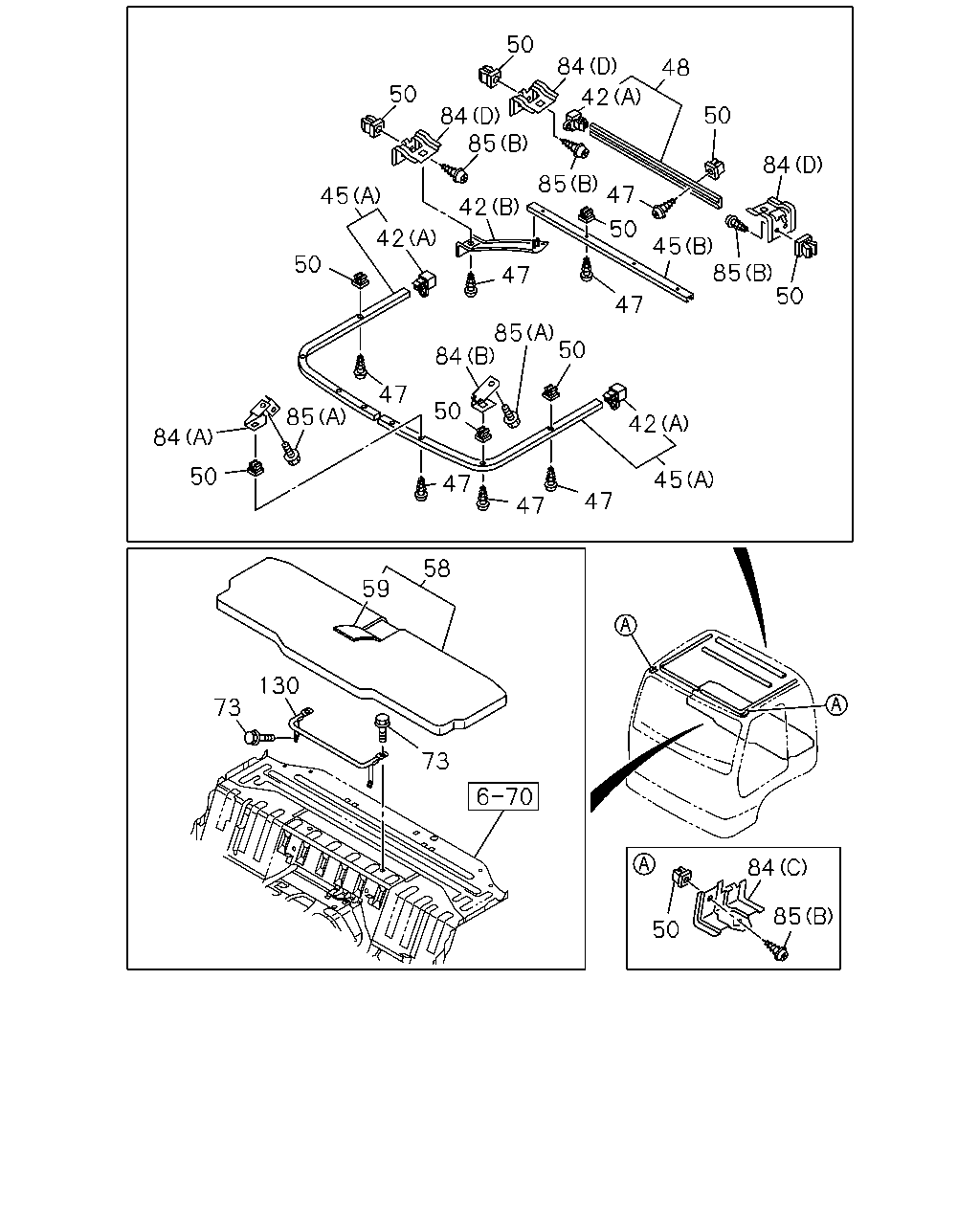

7-70 — SEPARATER AND BED (#164664) — 27 parça

50 50 45 50 42 42 85 84 84 48 50 42 47 85 47 85 84 47 85 50 84 47 47 47 45 42 50 47 45 50 85 84 50 58 59 130 73 73 50 84 85 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	1505-
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	1505-
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	01	1	1505-
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	02	1	1505-
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-486-0	01	1	1505-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-676-0	01	1	1505-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-675-0	01	1	1505-
47	SCREW; CURTAIN RAIL M5X20 MAL	5-09981-059-0	06	1	1505-
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20 MAL	5-09981-059-0	14	1	1505-
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-866-2	01	1	1505-
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 MAL	8-94279-078-0	02	1	1507-
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5 MAL	8-94279-078-0	06	1	1505-
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5 MAL	8-94279-078-0	20	1	1505-
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97407-384-2	01	1	1505-
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-894-1	01	1	1505-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97412-043-1	01	1	1505-
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-135-0	01	1	1505-
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	1505-
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	1505-
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	1505-
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (C)	8-98028-326-1	02	1	1505-
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (D)	8-98042-152-0	04	1	1505-
84	BRACKET; CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> (D)	8-98042-152-0	02	1	1505-
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> (B) M5X20 MAL	5-09981-059-0	02	1	1507-
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	02	1	1505-
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> (B) M5X20 MAL	5-09981-059-0	06	1	1505-
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	1505-
