◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11658 - FSS MALAYSIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#164662) — 114 parça

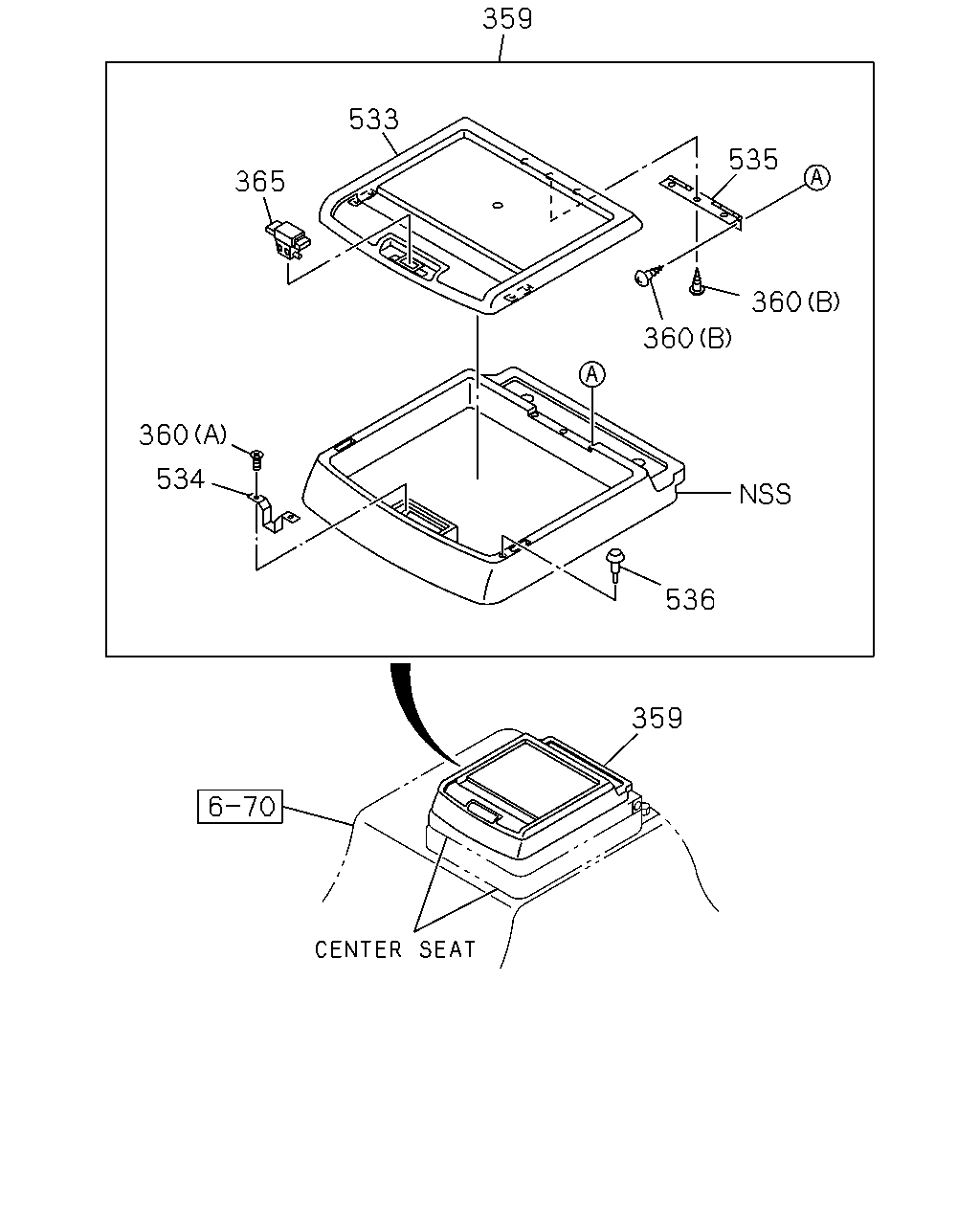

çizim 484371
359 535 360 360 536 359 534 360 365 533
BalonParca AdiParca NoAdetTipApplied Date
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1505-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1505-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1505-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 MAL 		8-98062-663-0 04 1 1505-
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1505-
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1505-
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1505-
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1505-
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1505-

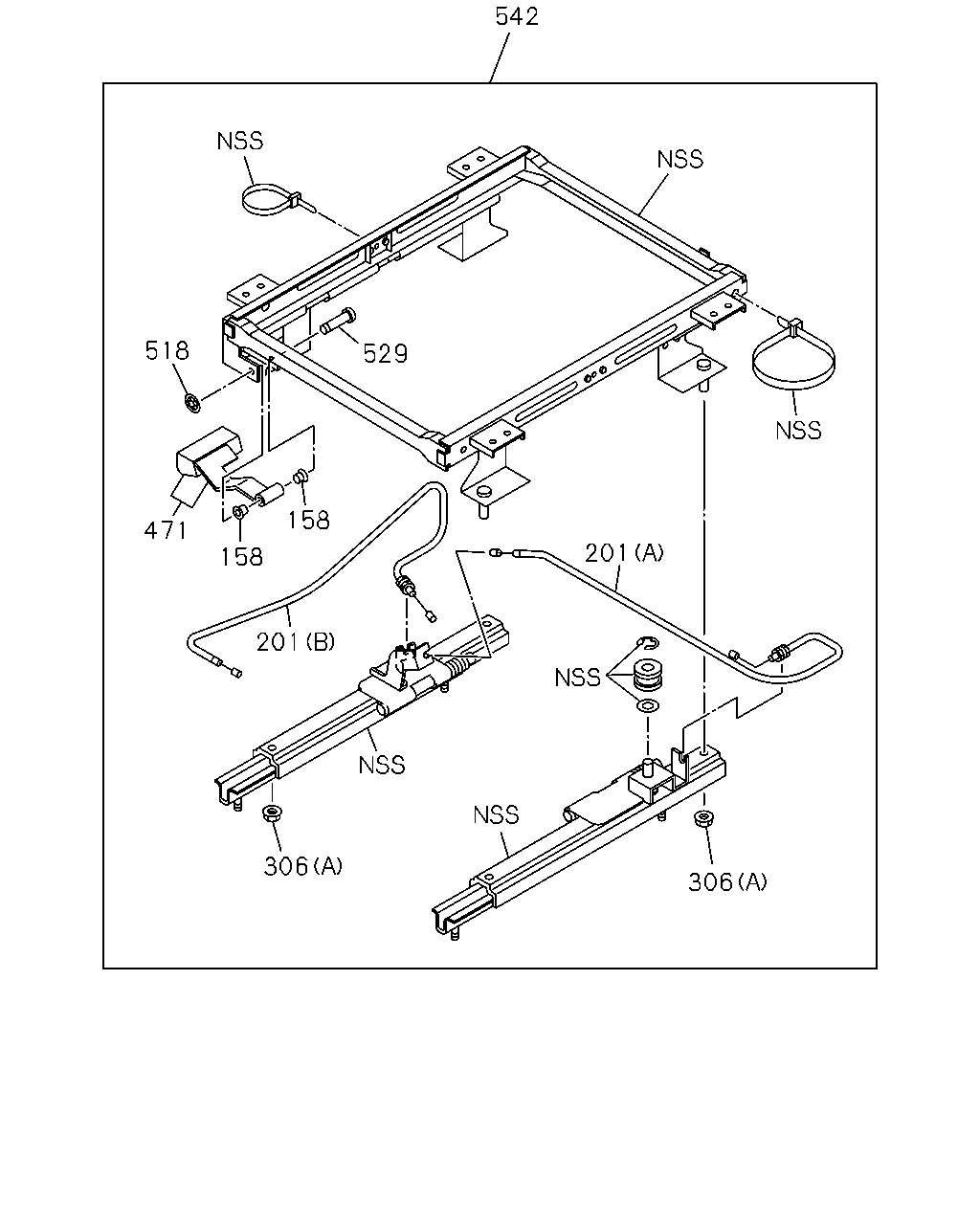

çizim 484373
542 201 306 306 201 158 158 471 518 529
BalonParca AdiParca NoAdetTipApplied Date
158 BUSHING; LINK ARM
SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1505-1506
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1510-
201 CABLE; ADJ
SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1505-1506
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1510-
201 CABLE; ADJ
SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1505-1506
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE MAL 		0-91180-110-0 02 1 1505-
306 NUT; SEAT ADJ
SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1505-1506
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1510-
471 LEVER; SEAT ADJ
SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1505-1506
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 1510-
518 NUT; TILT ADJ
SEAT CLOTH<7FL> 		1-75518-263-0 01 1 1505-1506
518 NUT; TILT ADJ 1-75518-263-0 01 1 1510-
529 PIN; LINK
SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1505-1506
529 PIN; LINK 1-75518-262-0 01 1 1510-
542 ADJUSTER ASM; SEAT SLIDE
SEAT CLOTH<7FL> 		8-98291-653-0 01 1 1505-1506
542 ADJUSTER ASM; SEAT SLIDE 8-98291-653-0 01 1 1510-

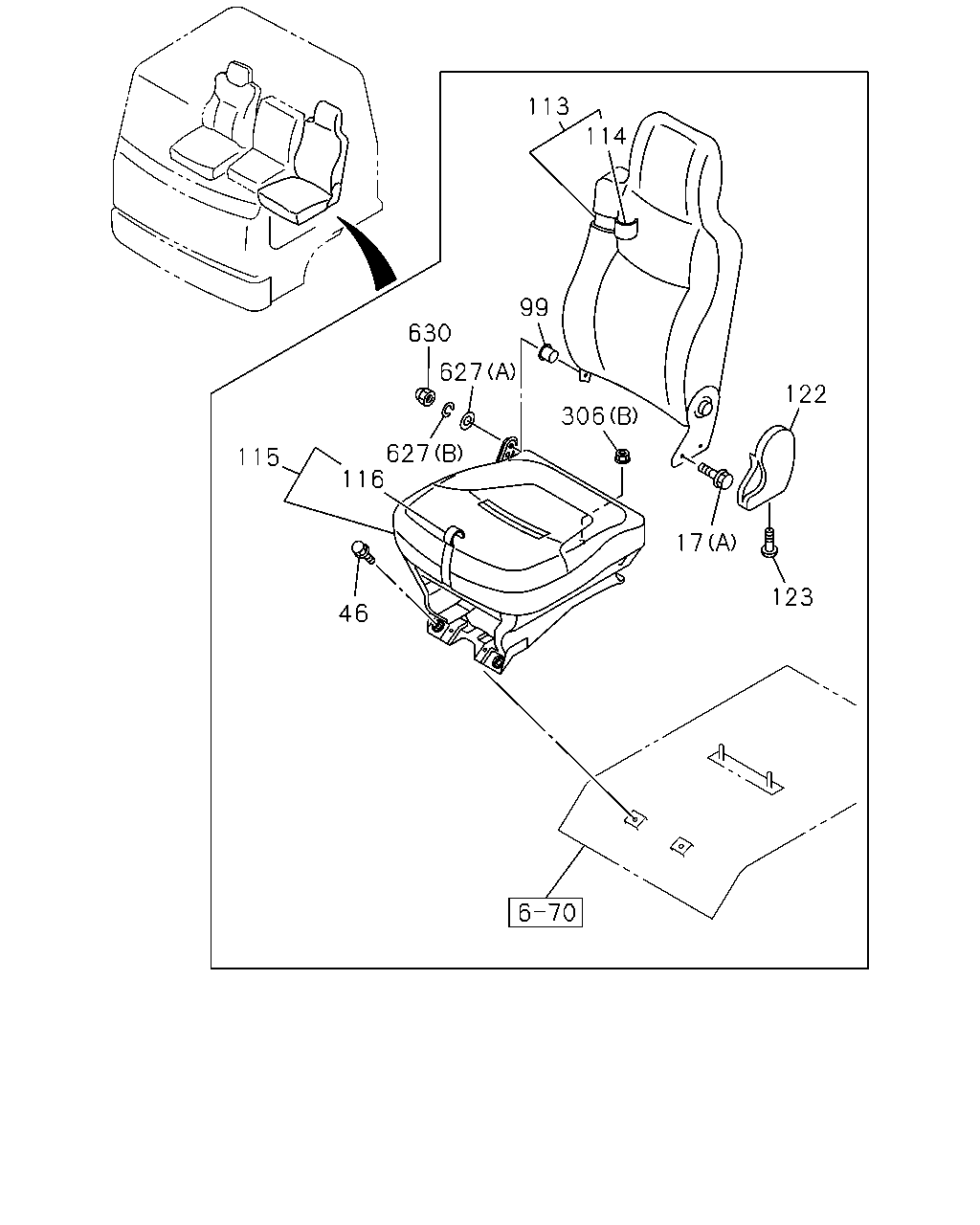

çizim 484569
113 122 123 46 115 116 627 630 99 114 17 306 627
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
SEAT CLOTH<7FL> (B) M10X20 MAL 		8-98062-661-0 02 1 1505-1506
17 BOLT; RECLINING
(B) M10X20 MAL 		8-98062-661-0 02 1 1510-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1505-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1505-
99 BUSHING; SEAT BACK
MAL 		8-98112-751-0 01 1 1505-
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-422-0 01 1 1505-
113 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-966-1 01 1 1505-
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-424-0 01 1 1505-
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97411-916-0 01 1 1505-
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-418-1 01 1 1505-
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-965-1 01 1 1505-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-420-0 01 1 1505-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97411-915-0 01 1 1505-
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1505-
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1505-
306 NUT; SEAT ADJ
(B) M10 FLANGE MAL 		0-91180-110-0 02 1 1505-
306 NUT; SEAT ADJ
SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1505-1506
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1510-
627 WASHER; FRT SEAT
(A) MAL 		8-98063-223-0 01 1 1505-
627 WASHER; FRT SEAT
(B) MAL 		8-98063-224-0 01 1 1505-
630 NUT; CAP
M8 MAL 		8-98063-225-0 01 1 1505-

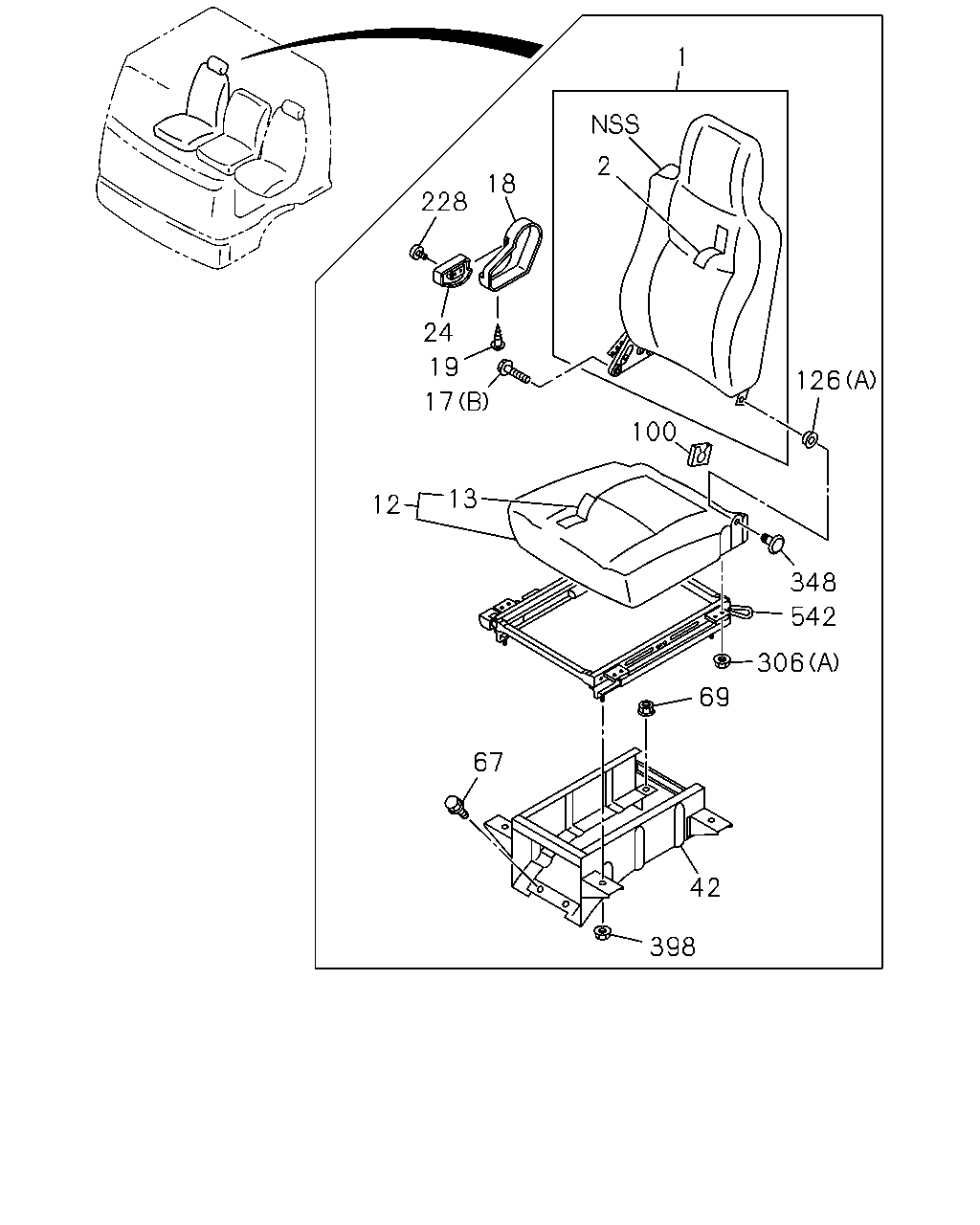

çizim 484603
18 228 24 17 13 12 100 126 348 542 306 69 42 398 67 2 1 19
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-955-5 01 1 1510-1512
1 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97466-618-0 01 1 1601-
1 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1505-1506
1 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-406-1 01 1 1510-1512
1 BACK ASM; SEAT
SEAT CLOTH<7FL> 		8-97466-620-0 01 1 1601-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97411-910-2 01 1 1510-
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1505-1506
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-411-0 01 1 1510-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DARK GRAY 		8-97414-123-2 01 1 1510-1512
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> 		8-97466-608-0 01 1 1601-
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-1 01 1 1505-1506
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-398-2 01 1 1510-1512
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> 		8-97466-611-0 01 1 1601-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97411-909-1 01 1 1510-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-1 01 1 1505-1506
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-402-2 01 1 1510-
17 BOLT; RECLINING
SEAT CLOTH<7FL> (B) M10X20 MAL 		8-98062-661-0 02 1 1505-1506
17 BOLT; RECLINING
(B) M10X20 MAL 		8-98062-661-0 02 1 1510-
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 1505-
18 COVER; RECLINING
SEAT CLOTH<7FL> GRAY MAL 		8-97409-332-0 01 1 1505-1506
18 COVER; RECLINING
GRAY MAL 		8-97409-332-0 01 1 1510-
19 SCREW; COVER
SEAT CLOTH<7FL> M5 MAL 		8-98062-663-0 01 1 1505-1506
19 SCREW; COVER
M5 MAL 		8-98062-663-0 01 1 1510-
24 KNOB; RECLINING,FRT,SEAT
SEAT CLOTH<7FL> GRAY MAL 		8-97409-333-0 01 1 1505-1506
24 KNOB; RECLINING,FRT,SEAT
GRAY MAL 		8-97409-333-0 01 1 1510-
42 STAND; DRIVER SEAT
SEAT CLOTH<7FL> 		1-75558-604-2 01 1 1505-1506
42 STAND; DRIVER SEAT 1-75558-604-2 01 1 1510-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1505-
69 NUT; FRT SEAT
M10 FLANGE MAL 		0-91180-110-0 02 1 1505-
100 COVER; HINGE
SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1505-1506
100 COVER; HINGE 8-98203-070-0 01 1 1510-1512
100 COVER; HINGE 8-98286-009-0 01 1 1601-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) MAL 		8-97854-900-0 01 1 1505-
126 BUSHING; HINGE,RECLINING
SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1505-1506
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-1512
126 BUSHING; HINGE,RECLINING
(A) 		8-98286-007-0 01 1 1601-
228 SCREW; KNOB
SEAT CLOTH<7FL> M4 MAL 		8-98062-662-0 01 1 1505-1506
228 SCREW; KNOB
M4 MAL 		8-98062-662-0 01 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE MAL 		0-91180-110-0 02 1 1505-
306 NUT; SEAT ADJ
SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 08 1 1505-1506
306 NUT; SEAT ADJ
(A) M8 FLANGE 		1-75538-207-0 08 1 1510-
348 BOLT; HINGE,SEAT 8-98286-008-0 01 1 1601-
398 NUT; STAND
SEAT CLOTH<7FL> M8 FLANGE 		1-75538-207-0 04 1 1505-1506
398 NUT; STAND
M8 FLANGE 		1-75538-207-0 04 1 1510-
542 ADJUSTER ASM; SEAT SLIDE
SEAT CLOTH<7FL> 		8-98291-653-0 01 1 1505-1506
542 ADJUSTER ASM; SEAT SLIDE 8-98291-653-0 01 1 1510-
çizim 485094
632
BalonParca AdiParca NoAdetTipApplied Date
632 GROMMET
OD=24 		8-94119-796-0 01 1 1505-

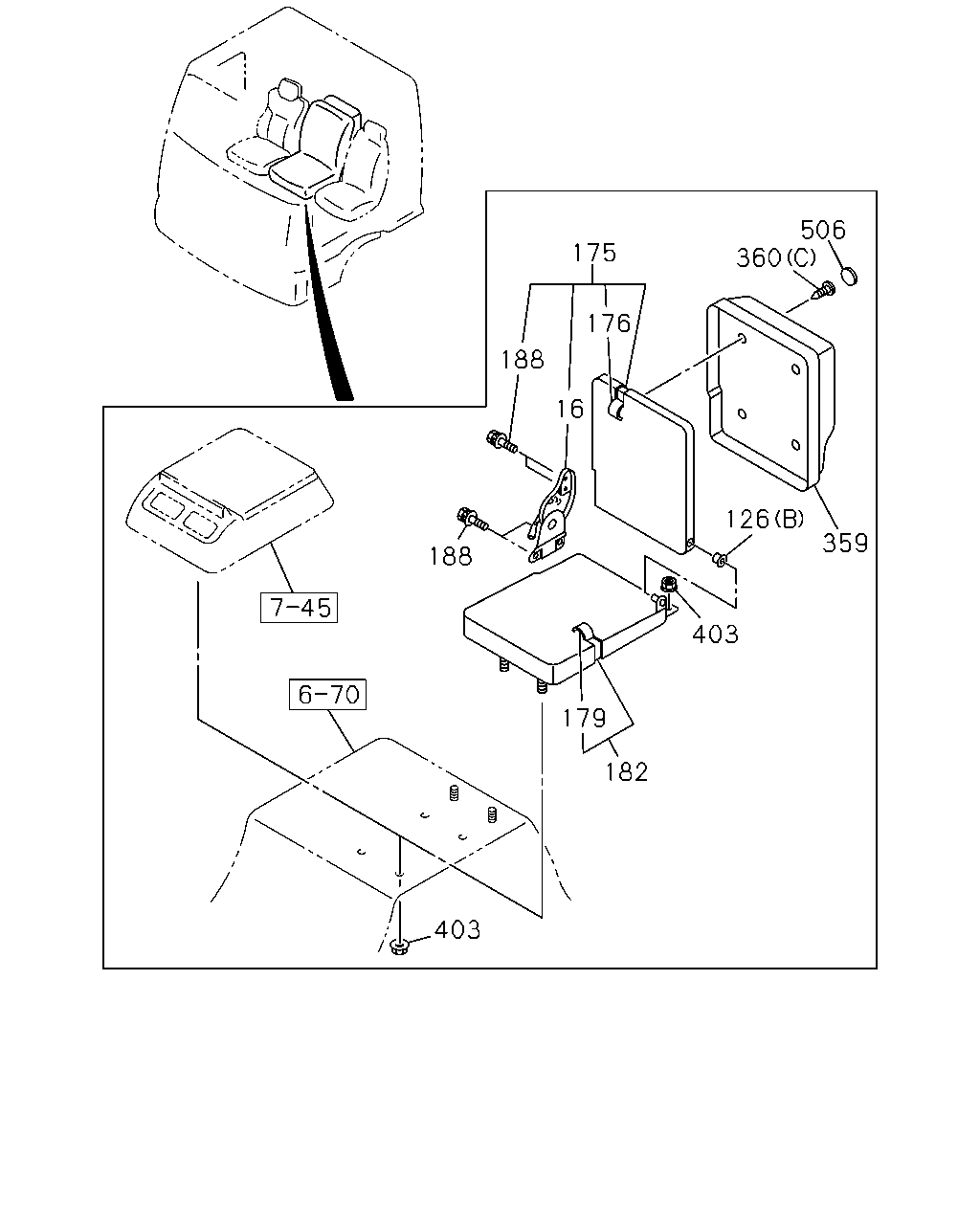

çizim 485398
175 176 360 506 359 126 403 182 179 403 188 16 188
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1505-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) MAL 		8-97854-900-0 01 1 1505-
126 BUSHING; HINGE,RECLINING
SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1505-1506
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-1512
126 BUSHING; HINGE,RECLINING
(A) 		8-98286-007-0 01 1 1601-
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-434-1 01 1 1505-
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-975-1 01 1 1505-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-435-1 01 1 1505-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-976-1 01 1 1505-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-432-1 01 1 1505-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-974-1 01 1 1505-
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-430-3 01 1 1505-
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-973-3 01 1 1505-
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1505-
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1505-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1505-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1505-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 MAL 		8-98062-663-0 04 1 1505-
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE MAL 		0-91180-108-0 04 1 1505-
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1505-
