◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11658 - FSS MALAYSIA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#164647) — 10 parça

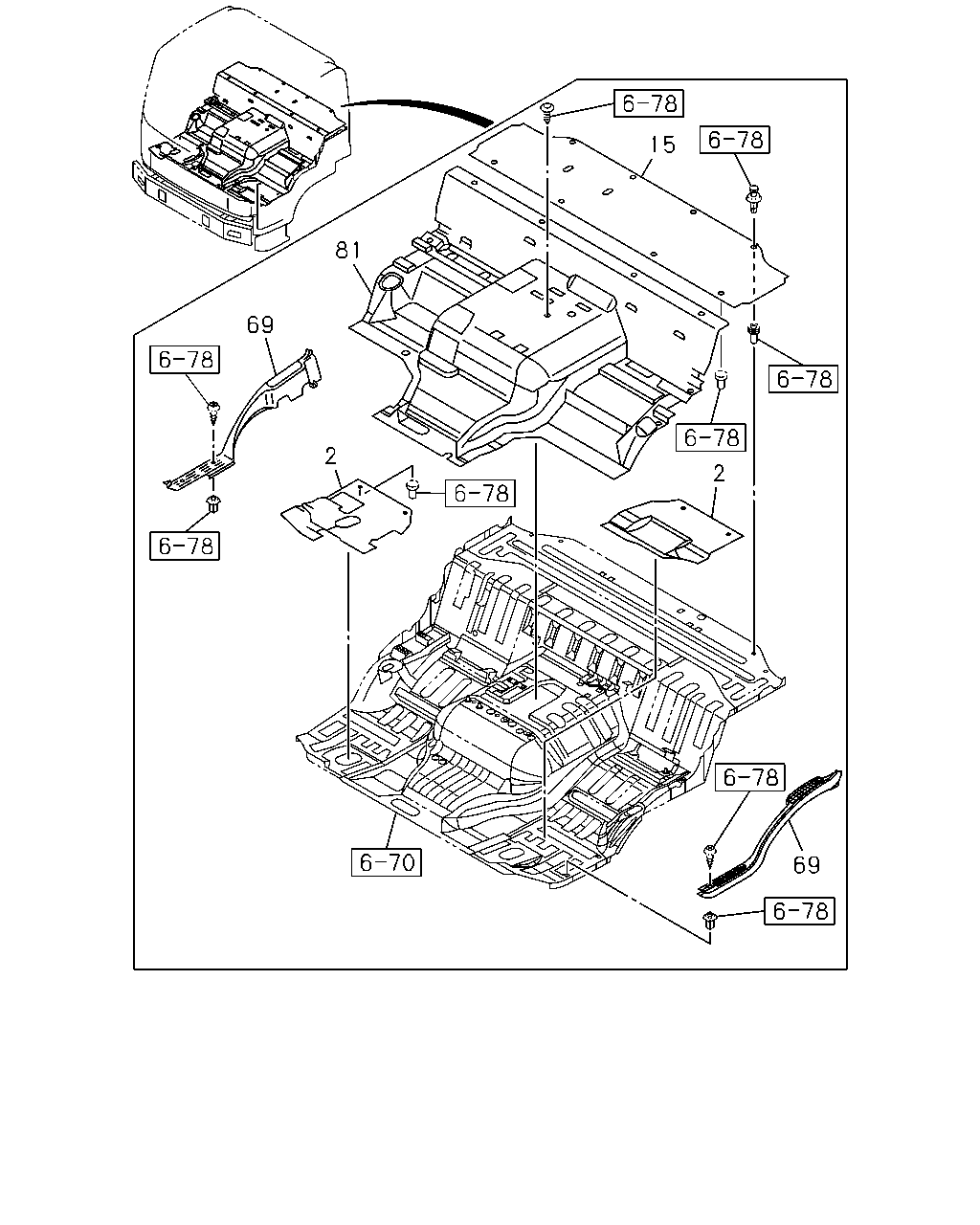

çizim 484766
15 2 69 2 69 81
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-746-5 01 1 1505-
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-747-2 01 1 1505-
2 MAT; FLOOR
VINYL CARPET<B30> DARK GRAY 		8-97418-947-0 01 1 1505-
2 MAT; FLOOR
VINYL CARPET<B30> DARK GRAY 		8-97418-949-0 01 1 1505-
15 MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 1505-
15 MAT; FLOOR REAR
VINYL CARPET<B30>,FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1505-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97407-413-1 01 1 1505-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97407-412-1 01 1 1505-
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-406-3 01 1 1505-
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> DARK GRAY 		8-97418-940-0 01 1 1505-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
