◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11658 - FSS MALAYSIA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#164646) — 62 parça

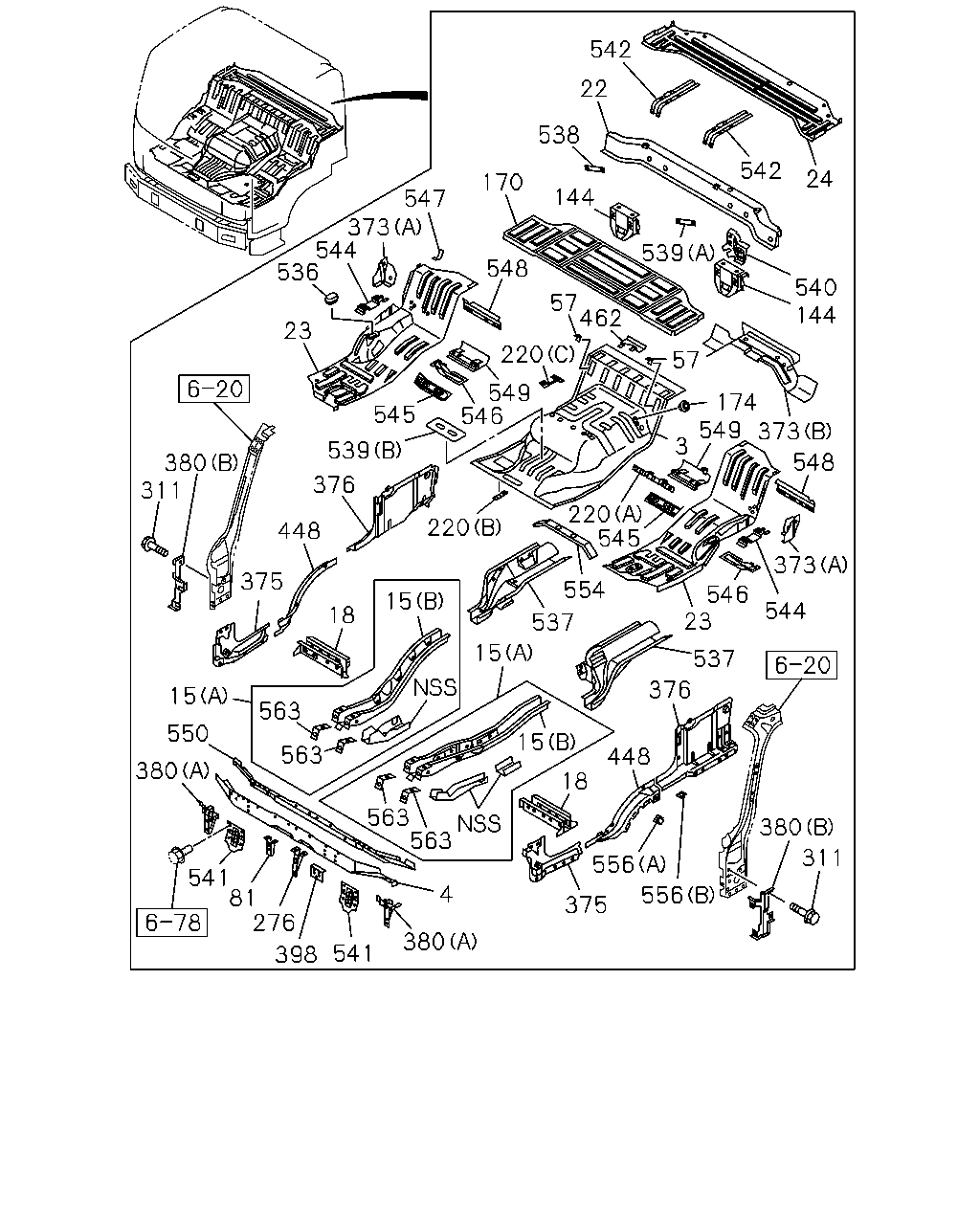

çizim 485260
542 22 538 170 144 539 542 24 540 144 57 174 549 373 548 3 462 57 548 220 549 546 545 23 536 544 373 547 539 376 448 375 380 311 18 15 220 220 545 554 537 15 546 23 537 544 373 376 448 18 556 556 375 380 311 4 380 541 398 276 81 541 563 563 15 563 563 15 550 380
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-98167-036-0 01 1 1505-
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1505-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1505-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1505-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1505-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1505-
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1505-
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1505-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1505-
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1505-
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1505-
24 PANEL; BED PAN 8-97584-378-6 01 1 1505-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1505-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1505-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1505-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1505-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1505-
174 GROMMET; AIR PIPE
OD=35 MAL 		8-94122-971-0 01 1 1505-
220 PATCH
(A) 		8-97588-840-4 01 1 1505-
220 PATCH
(B) 		8-97589-603-3 01 1 1505-
220 PATCH
(C) 		8-97589-627-2 01 1 1505-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1505-
311 BOLT; BRKT
M6X16 FLANGE MAL 		0-28650-616-0 04 1 1505-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 1505-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1505-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1505-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1505-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1505-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1505-
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1505-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1505-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1505-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1505-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1505-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1505-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1505-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1505-
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 1505-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1505-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1505-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1505-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1505-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1505-
539 PATCH ASM; SAFTY HOOK
(B) 		8-98131-661-0 01 1 1505-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1505-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1505-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1505-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1505-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1505-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1505-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1505-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1505-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1505-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1505-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1505-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1505-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1505-
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1505-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1505-
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1505-
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1505-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1505-
