11658 - FSS MALAYSIA
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

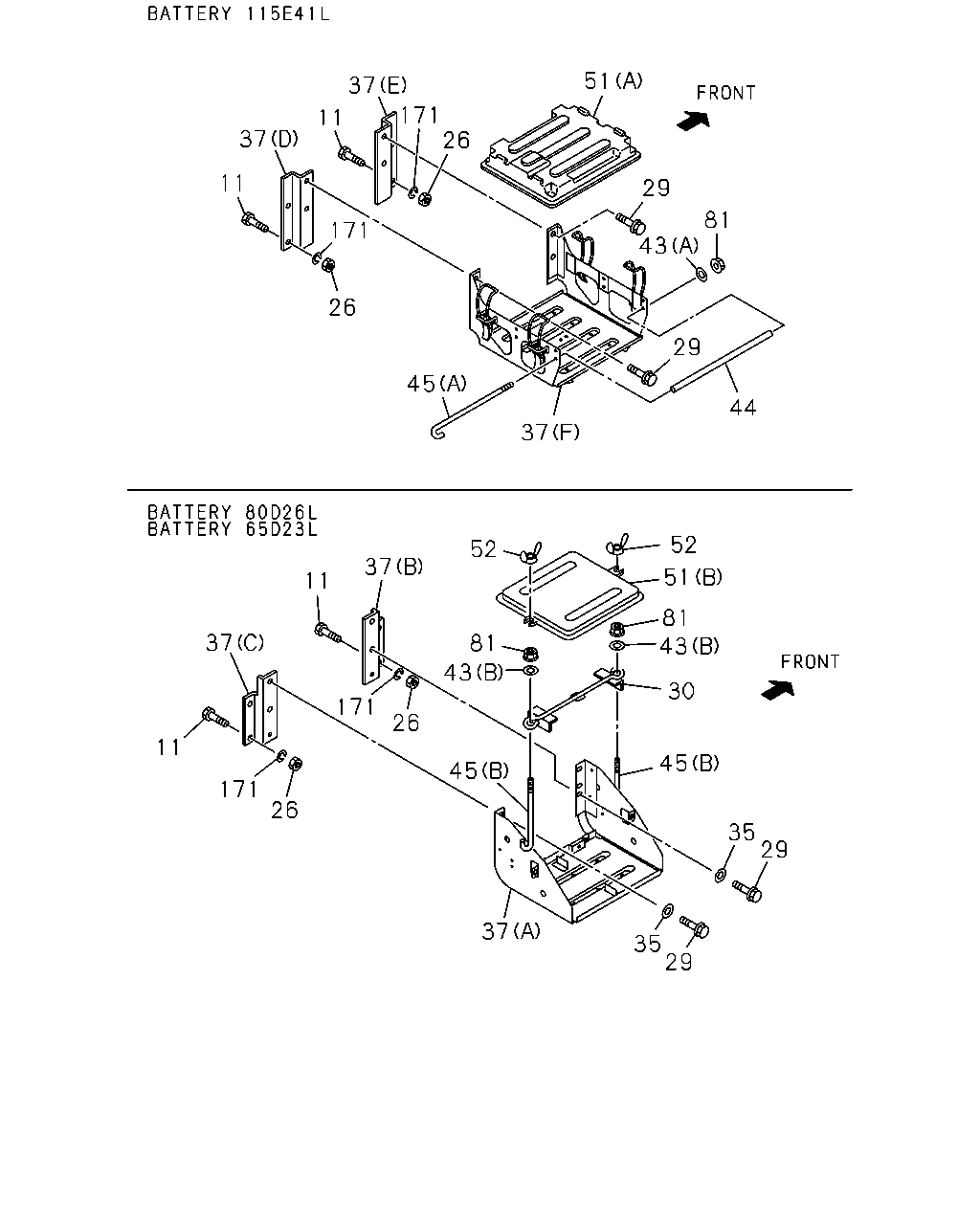

5-20 — BATTERY CARRIER
(#164631) — 22 parça
37
11
171
171
26
37
11
26
51
29
43
81
29
44
37
45
52
81
43
37
11
37
11
171
26
171
26
45
37
35
29
29
35
45
30
81
43
51
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; BRKT FIX
M14X35
0-20851-435-0
04
1
1505-
26
NUT; BRKT
M14 MAL
0-91110-514-0
04
1
1505-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE MAL
0-28651-035-0
04
1
1505-
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> MAL
5-53615-004-1
01
1
1505-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1505-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (D)
8-98152-834-1
01
1
1505-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (E)
8-98152-835-1
01
1
1505-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (F)
8-98261-640-1
01
1
1505-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A) MAL
8-97384-068-2
01
1
1505-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A) MAL
8-97384-067-2
01
1
1505-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
1-53619-056-1
01
1
1505-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (C)
1-53619-057-2
01
1
1505-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (A) ID=8.4 OD=16 MAL
0-91610-508-0
02
1
1505-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22
0-91614-708-0
02
1
1505-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1505-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1505-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120 MAL
9-53616-615-0
02
1
1505-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1505-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) MAL
8-97120-747-0
01
1
1505-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1505-
81
NUT; BATTERY
M8 FLANGE MAL
0-91180-108-0
02
1
1505-
171
WASHER; BRKT
ID=14.2 MAL
0-91510-814-0
04
1
1505-
