Isuzu WW
▶
TRUCKS
▶
FSS
▶
11658 - FSS MALAYSIA
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶

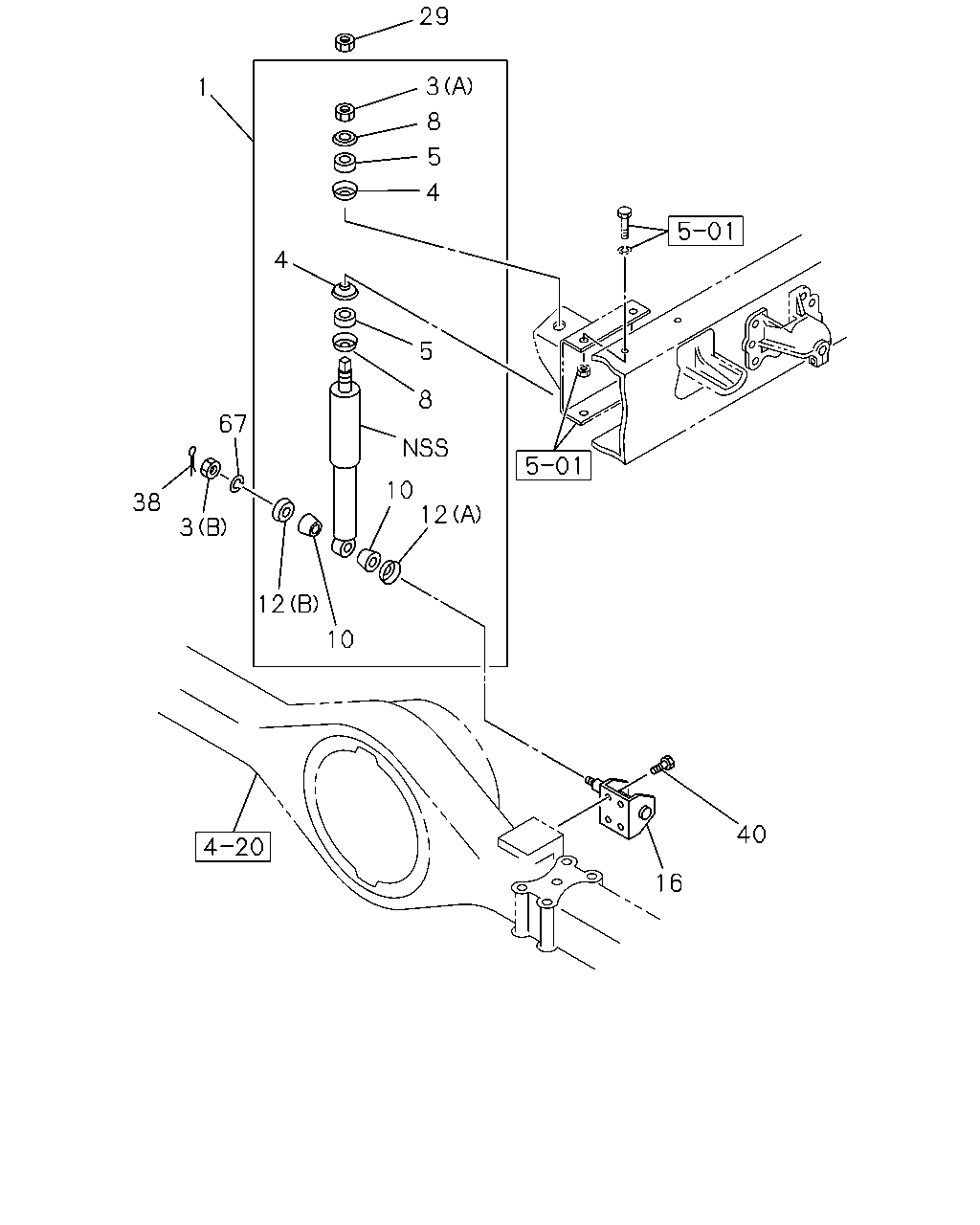

4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#164625) — 14 parça
40
16
10
12
3
38
67
12
10
8
5
4
4
5
8
3
29
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ABSORBER ASM; SHOCK,RR
REAR SHOCK ABSORBER<GL6>
8-98050-245-0
02
1
1505-
3
NUT; S/ABS
REAR SHOCK ABSORBER<GL6> (A) M14
9-99111-414-0
02
1
1505-
3
NUT; S/ABS
REAR SHOCK ABSORBER<GL6> (B) M20 SLOTTED
9-99116-420-0
02
1
1505-
4
WASHER; CENTER,S/ABS
REAR SHOCK ABSORBER<GL6> ID=24 MAL
1-51631-067-0
04
1
1505-
5
BUSHING; RUBBER,S/ABS,UPR
REAR SHOCK ABSORBER<GL6> ID=16 T=25 MAL
1-51631-069-0
04
1
1505-
8
WASHER; S/ABS
REAR SHOCK ABSORBER<GL6> ID=16.5 MAL
1-51631-068-0
04
1
1505-
10
BUSHING; RUBBER,S/ABS
REAR SHOCK ABSORBER<GL6> MAL
9-51631-026-0
04
1
1505-
12
WASHER; S/ABS TO RR AXLE
REAR SHOCK ABSORBER<GL6> (A) ID=27 MAL
9-51631-027-0
02
1
1505-
12
WASHER; S/ABS TO RR AXLE
REAR SHOCK ABSORBER<GL6> (B) ID=21 MAL
9-51631-028-0
02
1
1505-
16
BRACKET; S/ABS,RR
REAR SHOCK ABSORBER<GL6>
1-51681-471-0
02
1
1505-
29
NUT; LK,S/ABS,RR SUSP
REAR SHOCK ABSORBER<GL6> M14
0-91111-514-0
02
1
1505-
38
PIN; SPLIT,S/ABS
REAR SHOCK ABSORBER<GL6> OD=3.7 L=30
0-81124-030-0
02
1
1505-
40
BOLT; LWR BRKT
REAR SHOCK ABSORBER<GL6> M12X30 W/LK WASHER MAL
0-50541-230-0
08
1
1505-
67
WASHER; PL,S/ABS
REAR SHOCK ABSORBER<GL6> ID=21
0-91610-520-0
02
1
1505-
