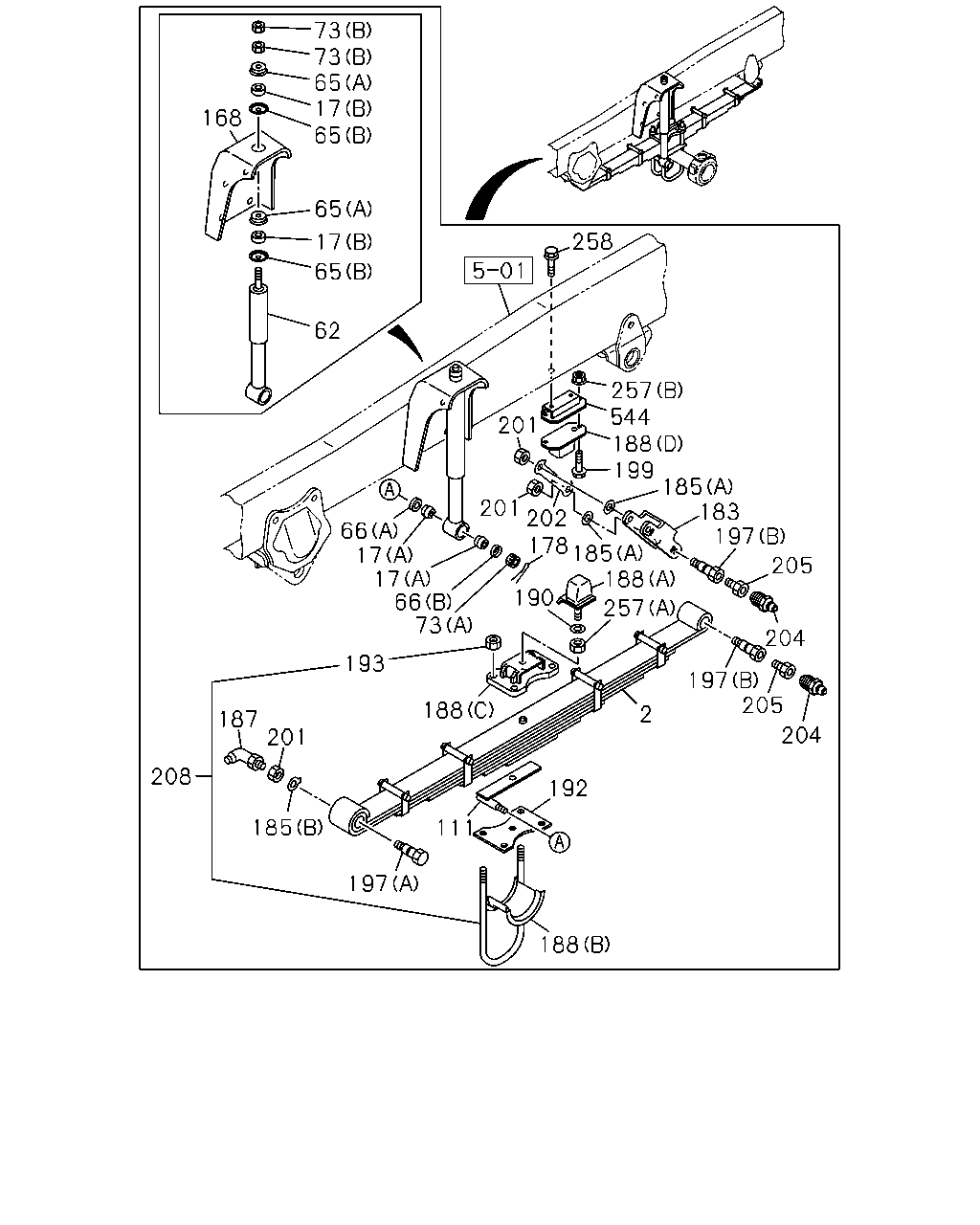

2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
|
8-98147-528-0 |
02 |
1 |
1505- |
| |
17 |
BUSHING; RUBBER,S/ABS
(A)
MAL
|
1-51631-009-1 |
04 |
1 |
1505- |
| |
17 |
BUSHING; RUBBER,S/ABS
(B)
MAL
|
9-51631-050-0 |
04 |
1 |
1505- |
| |
62 |
ABSORBER ASM; SHOCK,FRT
MAL
|
1-51630-180-4 |
02 |
1 |
1505- |
| |
65 |
WASHER; S/ABS
(A)
ID=16.8
|
1-51631-022-0 |
04 |
1 |
1505- |
| |
65 |
WASHER; S/ABS
(B)
ID=14.5
|
9-51631-051-0 |
04 |
1 |
1505- |
| |
66 |
WASHER; LK,S/ABS SETTING
(A)
ID=23
|
1-51631-019-0 |
02 |
1 |
1505- |
| |
66 |
WASHER; LK,S/ABS SETTING
(B)
ID=17
|
1-51631-020-0 |
02 |
1 |
1505- |
| |
73 |
NUT; BRKT,SHOCK
(B)
M12
|
8-98010-412-0 |
04 |
1 |
1505- |
| |
73 |
NUT; BRKT,SHOCK
(A)
M16 SLOTTED
|
8-98049-689-0 |
02 |
1 |
1505- |
| |
111 |
SUPPORTER; S/ABS,FRT SUSP
|
1-51681-528-3 |
01 |
1 |
1505- |
| |
111 |
SUPPORTER; S/ABS,FRT SUSP
|
1-51681-529-3 |
01 |
1 |
1505- |
| |
168 |
BRACKET; S/ABS,FRT SUSP
STABILIZER REAR LIGHT DUTY<GN1>
MAL
|
1-51681-360-0 |
02 |
1 |
1505- |
| |
178 |
PIN; SPLIT,S/ABS
OD=3.7 L=25
|
0-81124-025-0 |
02 |
1 |
1505- |
| |
183 |
SHACKLE; FRT SUSP
|
1-51162-028-0 |
02 |
1 |
1505- |
| |
185 |
WASHER; LK,PIN
(A)
ID=25.5
|
8-98010-404-0 |
04 |
1 |
1505- |
| |
185 |
WASHER; LK,PIN
(B)
ID=23
|
8-98010-411-0 |
02 |
1 |
1505- |
| |
187 |
NIPPLE; GREASE,FRT
PT1/8 ELBOW
|
0-90301-610-0 |
02 |
1 |
1505- |
| |
188 |
RUBBER; CLAMP,U-BOLT,FRT SPR
(B)
|
1-43219-029-2 |
01 |
1 |
1505- |
| |
188 |
RUBBER; CLAMP,U-BOLT,FRT SPR
(C)
|
1-51173-019-0 |
02 |
1 |
1505- |
| |
188 |
RUBBER; CLAMP,U-BOLT,FRT SPR
(A)
|
1-51174-019-0 |
02 |
1 |
1505- |
| |
188 |
RUBBER; CLAMP,U-BOLT,FRT SPR
(D)
|
1-51174-009-2 |
01 |
1 |
1505- |
| |
188 |
RUBBER; CLAMP,U-BOLT,FRT SPR
(D)
|
1-51174-008-2 |
01 |
1 |
1505- |
| |
190 |
WASHER; LK,CUSHION RUBBER
ID=12.2
MAL
|
0-91510-512-0 |
02 |
1 |
1505- |
| |
192 |
PIECE; DIST
|
1-51177-207-2 |
01 |
1 |
1505- |
| |
192 |
PIECE; DIST
|
1-51177-215-1 |
01 |
1 |
1505- |
| |
193 |
NUT; U BOLT
M16
|
8-97360-121-0 |
08 |
1 |
1505- |
| |
197 |
PIN; FRT SPR,FRT
(B)
MAL
|
8-98060-333-0 |
04 |
1 |
1505- |
| |
197 |
PIN; FRT SPR,FRT
(A)
MAL
|
8-98060-335-0 |
02 |
1 |
1505- |
| |
199 |
BOLT
M8X20 FLANGE
MAL
|
0-28650-820-0 |
04 |
1 |
1505- |
| |
201 |
NUT; PIN LK
M22
|
0-91111-522-0 |
06 |
1 |
1505- |
| |
202 |
PLATE; LK,SPR PIN
|
1-51169-015-0 |
02 |
1 |
1505- |
| |
204 |
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
|
0-90301-410-0 |
04 |
1 |
1505- |
| |
205 |
ATTACHMENT; GREASE NIPPLE
|
9-43165-001-0 |
04 |
1 |
1505- |
| |
208 |
U-BOLT SET; FRT SPRING
L=320
|
1-87870-490-0 |
04 |
1 |
1505- |
| |
257 |
NUT; CUSHION RUBBER
(A)
M12
MAL
|
0-91110-512-0 |
02 |
1 |
1505- |
| |
257 |
NUT; CUSHION RUBBER
(B)
M8 FLANGE
MAL
|
0-91180-108-0 |
04 |
1 |
1505- |
| |
258 |
BOLT; CUSHION,WIND UP
M10X25 FLANGE
MAL
|
0-28651-025-0 |
04 |
1 |
1505- |
| |
544 |
BRACKET; RUBBER
|
8-98147-398-0 |
01 |
1 |
1505- |
| |
544 |
BRACKET; RUBBER
|
8-98147-399-0 |
01 |
1 |
1505- |
