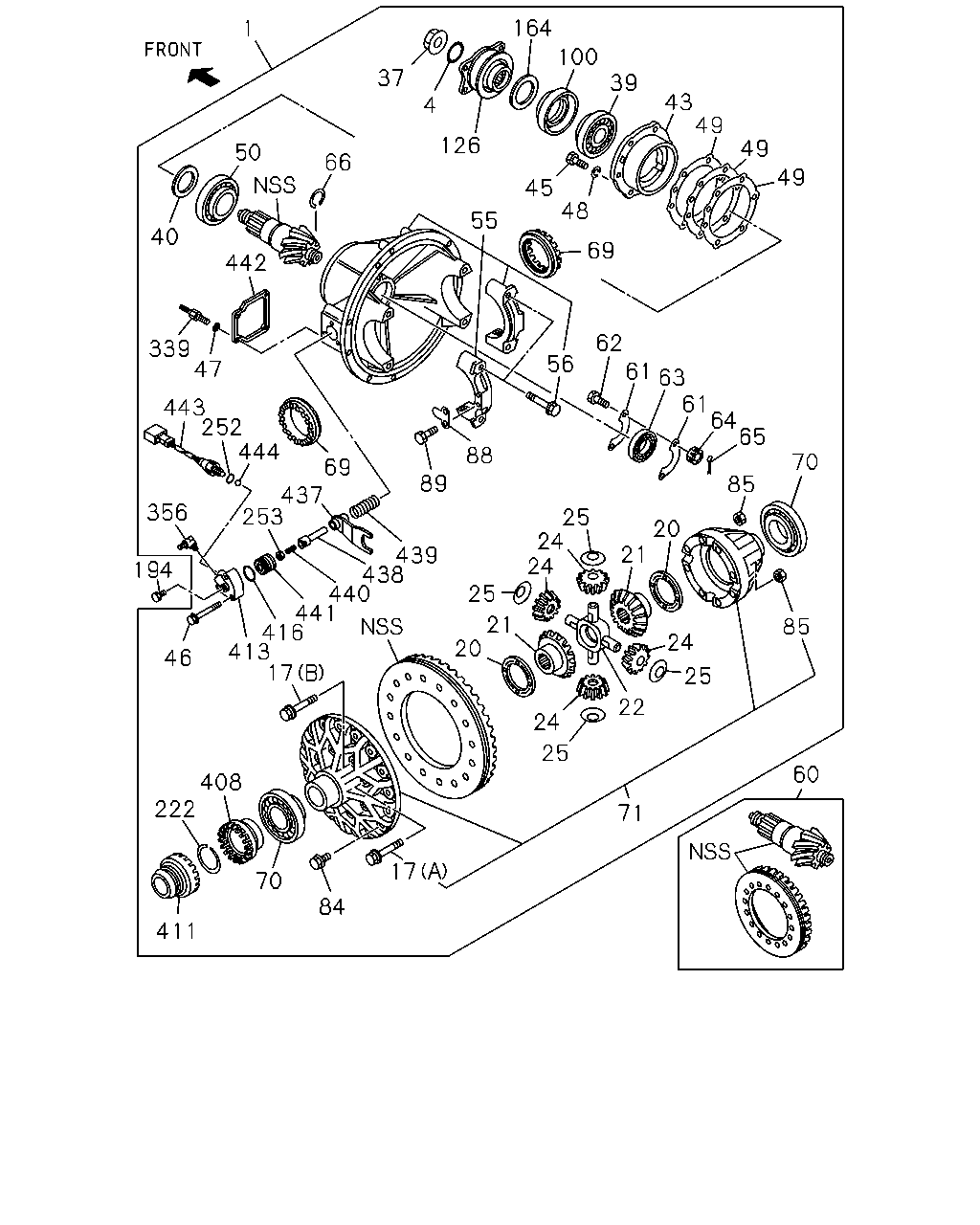

4-25 — REAR FINAL DRIVE (#164614) — 93 parça

164 39 100 43 49 69 49 45 126 4 37 1 66 55 56 62 61 63 61 64 85 65 85 70 60 71 25 24 22 25 24 21 20 25 24 25 21 20 24 17 84 70 408 222 411 17 413 440 441 416 438 439 89 88 69 437 253 356 194 444 252 443 47 339 442 40 50 49 46 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR 39/7	1-41003-342-0	01	1	1505-	●
1	DRIVE ASM; FINAL,RR 39/6	1-41003-386-0	01	1	1505-		●
4	GASKET; FLANGE,FINAL PINION ID=37.5 T=4	1-09623-582-0	01	1	1505-	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	1505-	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X112 FLANGE	1-09070-057-1	04	1	1505-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	1505-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	1505-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	1505-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	1505-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	1505-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	1505-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	1505-	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-149-0	02	1	1505-	●	●
22	SPIDER; DIFF PINION	1-41521-050-2	01	1	1505-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-049-0	04	1	1505-	●	●
25	WASHER; THRUST,PINION ID=29 OD=60	1-41562-119-0	04	1	1505-	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-083-0	01	1	1505-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1505-	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1505-	●	●
40	SHIM; FINAL PINION T=1.60	1-41229-179-0	AR	1	1505-	●	●
40	SHIM; FINAL PINION T=1.61	1-41229-180-0	AR	1	1505-	●	●
40	SHIM; FINAL PINION T=1.62	1-41229-181-0	AR	1	1505-	●	●
40	SHIM; FINAL PINION T=1.63	1-41229-182-0	AR	1	1505-	●	●
40	SHIM; FINAL PINION T=1.64	1-41229-183-0	AR	1	1505-	●	●
40	SHIM; FINAL PINION T=1.65	1-41229-184-0	AR	1	1505-	●	●
40	SHIM; FINAL PINION T=1.66	1-41229-185-0	AR	1	1505-	●	●
40	SHIM; FINAL PINION T=1.67	1-41229-186-0	AR	1	1505-	●	●
40	SHIM; FINAL PINION T=1.68	1-41229-187-0	AR	1	1505-	●	●
40	SHIM; FINAL PINION T=1.69	1-41229-188-0	AR	1	1505-	●	●
40	SHIM; FINAL PINION T=1.70	1-41229-189-0	AR	1	1505-	●	●
43	CAGE; FINAL PINION	1-41151-027-0	01	1	1505-	●	●
45	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1505-	●	●
46	BOLT M8X60 FLANGE	0-28050-860-0	03	1	1505-	●	●
47	WASHER; LK ID=8.2	1-09985-177-0	04	1	1505-	●	●
48	WASHER; LK,FINAL PINION ID=12.2 MAL	0-91510-812-0	06	1	1505-	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1505-	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1505-	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1505-	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1505-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1505-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1505-	●	●
55	CARRIER; DIFF	1-41110-122-0	01	1	1505-	●	●
56	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1505-	●	●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-391-2	01	1	1505-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-394-2	01	1	1505-		●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1505-	●	●
62	BOLT; RET M8X35 W/PIN HOLE	1-09042-046-0	02	1	1505-	●	●
63	BEARING; PINION PILOT NSK	1-09810-073-2	01	1	1505-	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-074-1	01	1	1505-	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1505-	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1505-	●	●
66	RING; SNAP,PILOT BRG OD=34.2	1-09588-214-0	01	1	1505-	●	●
69	NUT; ADJ,DIFF CAGE M128 H=22	1-41121-013-0	01	1	1505-	●	●
69	NUT; ADJ,DIFF CAGE M138 H=30	1-41121-054-0	01	1	1505-	●	●
70	BEARING; DIFF CAGE NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1505-	●	●
70	BEARING; DIFF CAGE NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1505-	●	●
70	BEARING; DIFF CAGE JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1505-	●	●
70	BEARING; DIFF CAGE JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1505-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-335-0	01	1	1505-	●	●
84	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1505-	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	08	1	1505-	●	●
88	PLATE; LK,ADJ NUT T=2.3	9-41124-015-0	02	1	1505-	●	●
89	BOLT; LK PLATE M8X12 FLANGE	8-94479-696-1	04	1	1505-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1505-	●	●
100	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1505-	●	●
126	COUPLING; DRIVING PINION	1-37245-414-0	01	1	1505-	●	●
164	COLLAR; DIST,PINION T=10.7	1-36355-031-0	01	1	1505-	●	●
164	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1505-	●	●
164	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1505-	●	●
164	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1505-	●	●
164	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1505-	●	●
164	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1505-	●	●
164	COLLAR; DIST,PINION T=11.9	1-36355-043-0	01	1	1505-	●	●
164	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1505-	●	●
164	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1505-	●	●
194	PLUG M12X9	0-92002-412-0	01	1	1505-	●	●
222	RING; SNAP	1-09588-186-0	01	1	1505-	●	●
252	GASKET; CARRIER ID=14.2	8-94462-114-0	01	1	1505-	●	●
253	NUT M12	0-91111-512-0	01	1	1505-	●	●
339	BOLT; COVER M6X14,M8X17 L=42	5-09309-006-1	04	1	1505-	●	●
356	NIPPLE; SHIFT UNIT M12 & PT1/4 ELBOW MAL	1-09650-430-0	01	1	1505-	●	●
408	CLAW; CLU,DIFF LK	1-41266-025-0	01	1	1505-	●	●
411	SLEEVE; CLU	1-41266-027-0	01	1	1505-	●	●
413	CYLINDER; DIFF LK	1-41279-021-0	01	1	1505-	●	●
416	GASKET ID=43.7	9-09561-344-0	01	1	1505-	●	●
437	FORK ASM; SHIFT,DIFF LK	1-41271-015-0	01	1	1505-	●	●
438	ROD; SHIFTER,DIFF LK	1-41271-014-0	01	1	1505-	●	●
439	SPRING; RETUN,DIFF LK	1-09580-507-0	01	1	1505-	●	●
440	SCREW SET; DIFF LK M12X31	1-09120-021-0	01	1	1505-	●	●
441	PISTON; CHAMBER,DIFF LK	1-41279-020-0	01	1	1505-	●	●
442	COVER; CARRIER,DIFF LK	1-41117-005-0	01	1	1505-	●	●
443	SWITCH; STROKE	1-82340-534-0	01	1	1505-	●	●
444	BALL	9-00097-010-0	01	1	1505-	●	●
