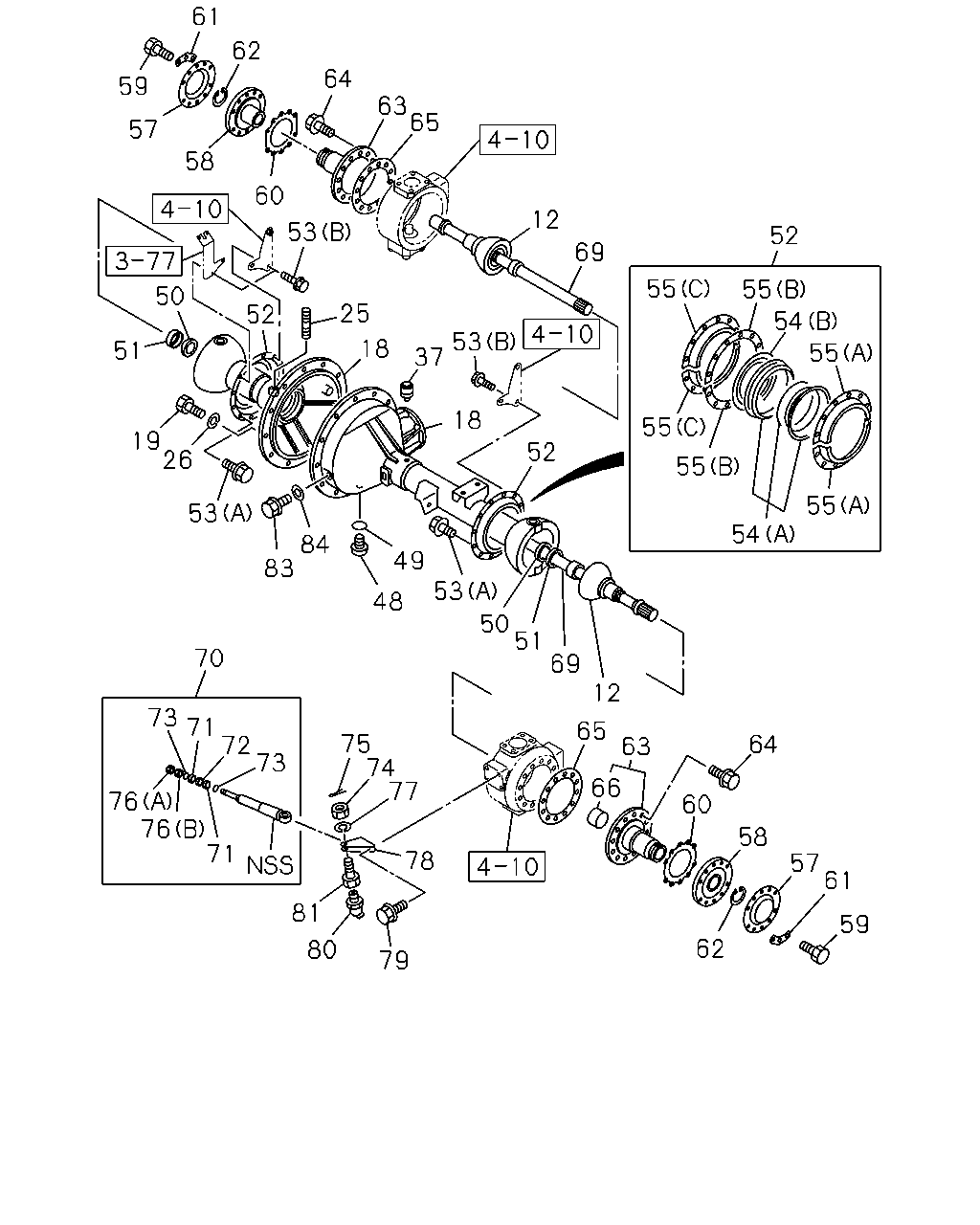

4-12 — FRONT DRIVE SHAFT (#164611) — 50 parça

62 59 61 57 58 60 64 63 66 65 12 69 51 78 77 79 80 81 74 75 70 73 72 71 73 71 76 76 54 55 55 55 55 54 55 52 55 50 53 49 48 84 83 53 26 19 51 52 25 18 18 37 52 53 12 69 65 63 64 62 61 59 57 60 53 50 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	JOINT ASM	1-43330-018-0	02	1	1505-
18	CASE; FRT AXLE	1-43210-108-2	01	1	1505-
18	CASE; FRT AXLE	8-98196-257-0	01	1	1505-
19	BOLT; FRT AXLE M12X30	9-02361-230-0	13	1	1505-
25	STUD; AXLE CASE TO SPRING SEAT	8-98169-740-0	04	1	1505-
26	WASHER; LK,CASE,FRT AXLE ID=12.2 MAL	0-91510-812-0	13	1	1505-
37	BREATHER; FRT AXLE CASE	9-36122-001-0	01	1	1505-
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1505-
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1505-
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	1505-
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	1505-
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	1505-
53	BOLT; OIL SEAL (A) M8X12 FLANGE	0-28050-812-0	16	1	1505-
53	BOLT; OIL SEAL (B) M8X16 FLANGE MAL	0-28050-816-0	08	1	1505-
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	1505-
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	1505-
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	1505-
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	1505-
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	1505-
57	COVER; FLANGE,FRT AXLE SHAFT	9-42313-116-0	02	1	1505-
58	FLANGE; AXLE SHAFT,FRT	1-42312-028-0	02	1	1505-
59	BOLT; FLANGE,FRT AXLE SHAFT M12X45	9-09804-239-1	20	1	1505-
60	GASKET; FLANGE,FRT AXLE SHAFT	1-42175-001-0	02	1	1505-
61	PLATE; LK,FLANGE	1-43319-005-0	08	1	1505-
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	1505-
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	1505-
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1505-
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	12	1	1505-
64	BOLT; SPINDLE M12X70 FLANGE	0-28061-270-0	04	1	1505-
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	1505-
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	1505-
69	SHAFT; AXLE,FRT INNER	1-43311-065-0	01	1	1505-
69	SHAFT; AXLE,FRT INNER	1-43311-066-0	01	1	1505-
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-337-0	01	1	1505-
71	BUSHING; RUB,LWR,FRT S/ABS OD=25.4	9-51631-602-0	02	1	1505-
72	WASHER; CENTER,LWR,FRT S/ABS ID=15.0 OD=32	9-51631-049-0	01	1	1505-
73	WASHER; LWR,FRT S/ABS ID=10.5 OD=32	9-51631-048-0	02	1	1505-
74	NUT; S/ABS M12	0-91116-512-0	01	1	1505-
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	1505-
76	NUT; LWR,FRT S/ABS (A) M10	9-09110-410-0	01	1	1505-
76	NUT; LWR,FRT S/ABS (B) M10	9-09111-410-0	01	1	1505-
77	WASHER; LK,S/ABS ID=12.2 MAL	0-91510-512-0	01	1	1505-
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	1505-
79	BOLT; BRKT M12X16 FLANGE	0-28051-216-0	02	1	1505-
79	BOLT; BRKT M12X25 FLANGE	0-28051-225-0	02	1	1505-
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1505-
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	1505-
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	1505-
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	1505-

188

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

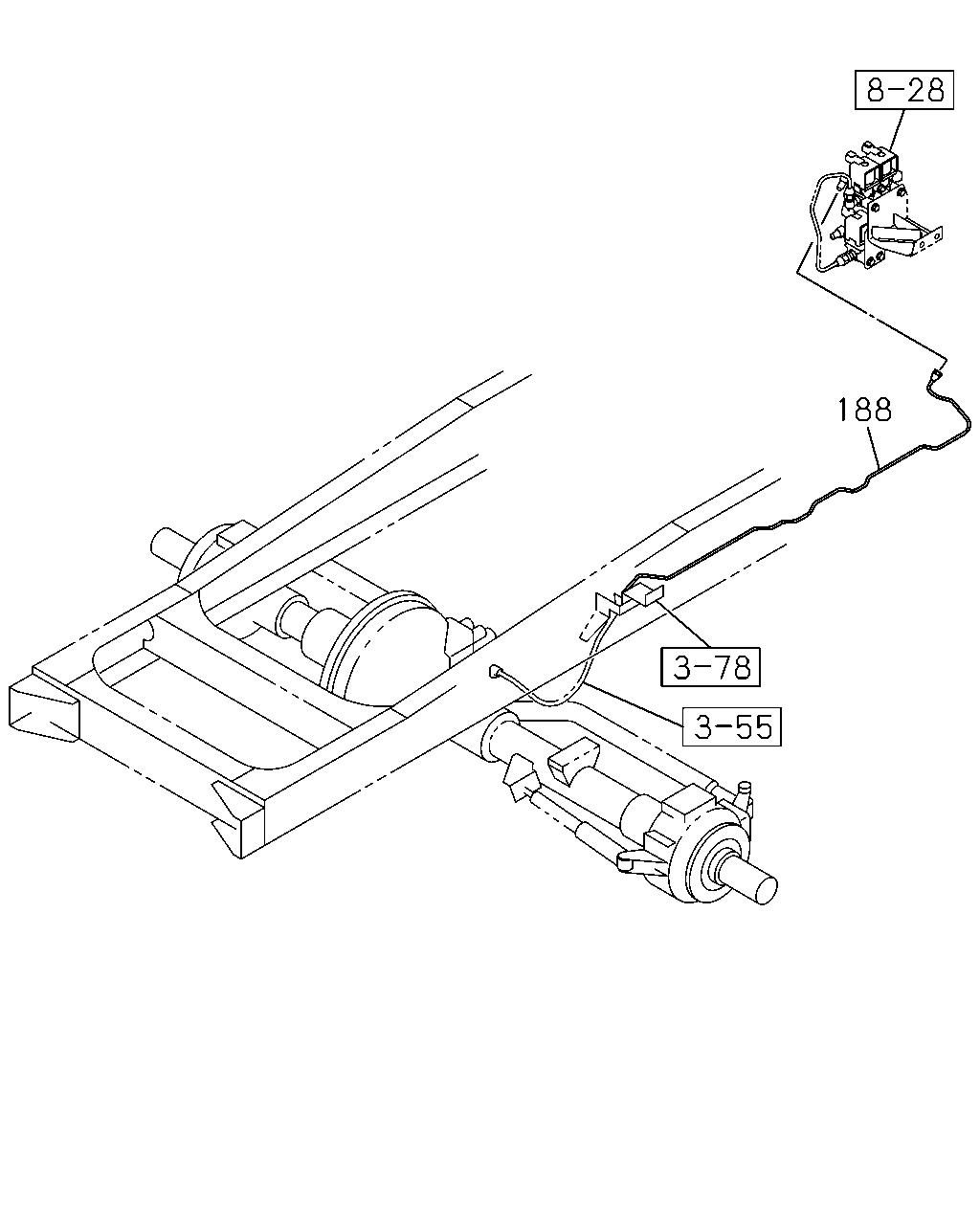

	188	PIPE; AIR,DIFF LOCK L=1499 SERVICED BY L=1500	1-47428-819-0	01	1	1505-
