Isuzu WW
▶
TRUCKS
▶
FSS
▶
11658 - FSS MALAYSIA
▶
3 - Brakes, Brake System
▶
3-83 - FIXING PARTS; TRAILER PIPING
▶

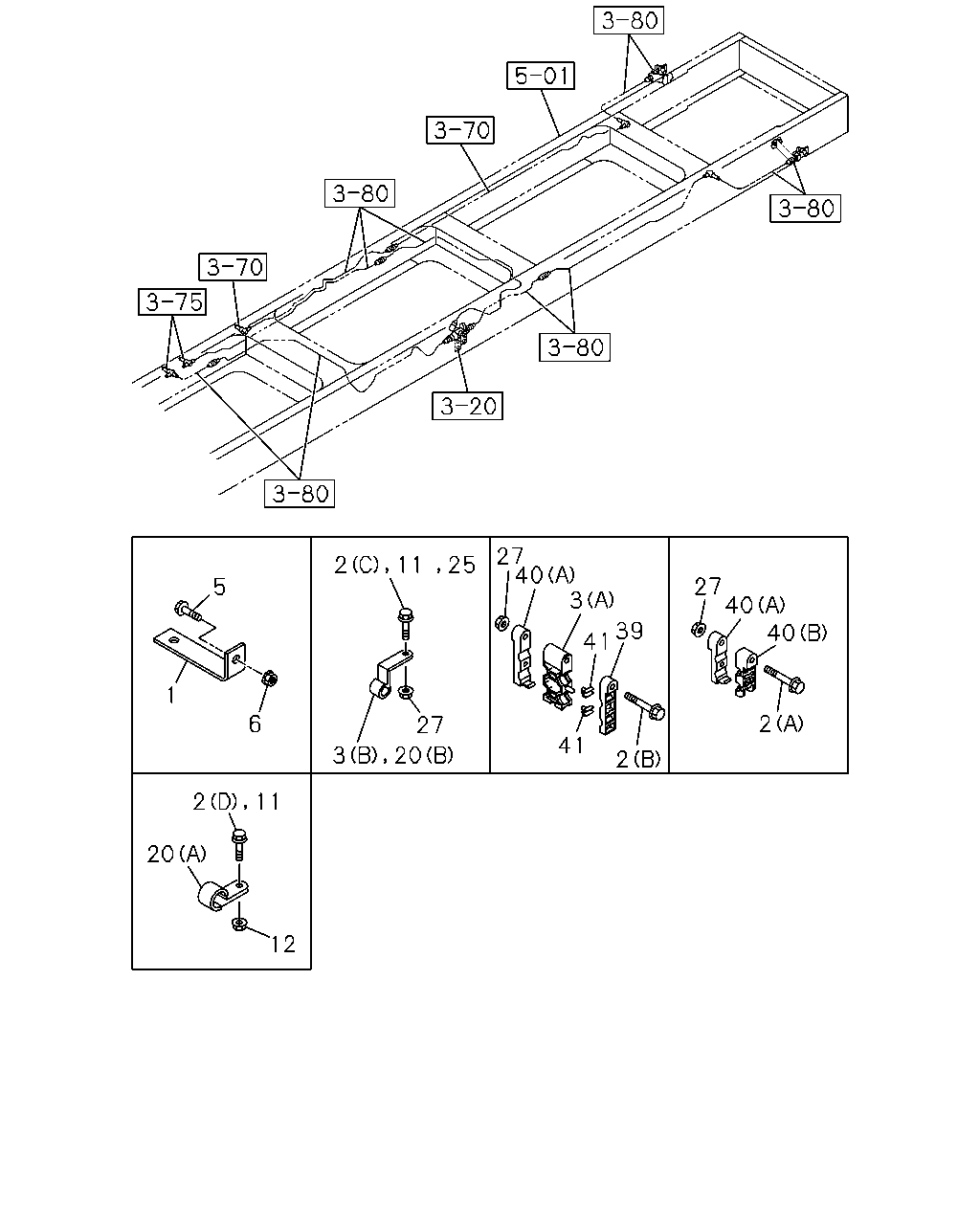

3-83 — FIXING PARTS; TRAILER PIPING
(#164607) — 20 parça
2
5
1
6
11
2
20
12
3
20
27
11
25
27
40
3
41
39
41
2
27
40
40
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CLIP
TRAILER BRAKE CONTROL<J91>
1-34656-009-0
01
1
1505-
2
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> (A) M8X50 FLANGE
0-28050-850-0
03
1
1505-
2
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> (B) M8X70 FLANGE
0-28050-870-0
01
1
1505-
2
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> (D) M8X20 FLANGE MAL
0-28650-820-0
02
1
1505-
2
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> (C) M8X25 FLANGE MAL
0-28650-825-0
04
1
1505-
3
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> (A) ID=10 MAL
1-09709-242-0
01
1
1505-
3
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> (B) ID=11 H=20 L=20
8-98033-780-0
04
1
1505-
5
BOLT; BRKT
TRAILER BRAKE CONTROL<J91> M8X25 FLANGE MAL
0-28650-825-0
01
1
1505-
6
NUT; BRKT
TRAILER BRAKE CONTROL<J91> M8 FLANGE MAL
0-91180-108-0
01
1
1505-
11
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> M8X20 FLANGE MAL
0-28650-820-0
01
1
1505-
11
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> M8X25 FLANGE MAL
0-28650-825-0
04
1
1505-
12
NUT; CLIP
TRAILER BRAKE CONTROL<J91> M8 FLANGE MAL
0-91180-108-0
05
1
1505-
20
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> (A) ID=11 L=16
0-95235-025-0
03
1
1505-
20
CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> (B) ID=11 H=20 L=20
8-98033-780-0
08
1
1505-
25
BOLT; CLIP
TRAILER BRAKE CONTROL<J91> M8X25 FLANGE MAL
0-28650-825-0
04
1
1505-
27
NUT; CLIP
TRAILER BRAKE CONTROL<J91> M8 FLANGE MAL
0-91180-108-0
14
1
1505-
39
CLIP; UPR
TRAILER BRAKE CONTROL<J91> ID=10 & 10 MAL
1-09709-241-0
04
1
1505-
40
CLIP; LWR
TRAILER BRAKE CONTROL<J91> (A) ID=10 & 10 MAL
1-09709-241-0
01
1
1505-
40
CLIP; LWR
TRAILER BRAKE CONTROL<J91> (B) ID=10 & 10 MAL
1-09709-243-0
03
1
1505-
41
COLLAR
TRAILER BRAKE CONTROL<J91> ID=6 MAL
1-47459-010-0
04
1
1505-
