3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#164606) — 31 parça
◀

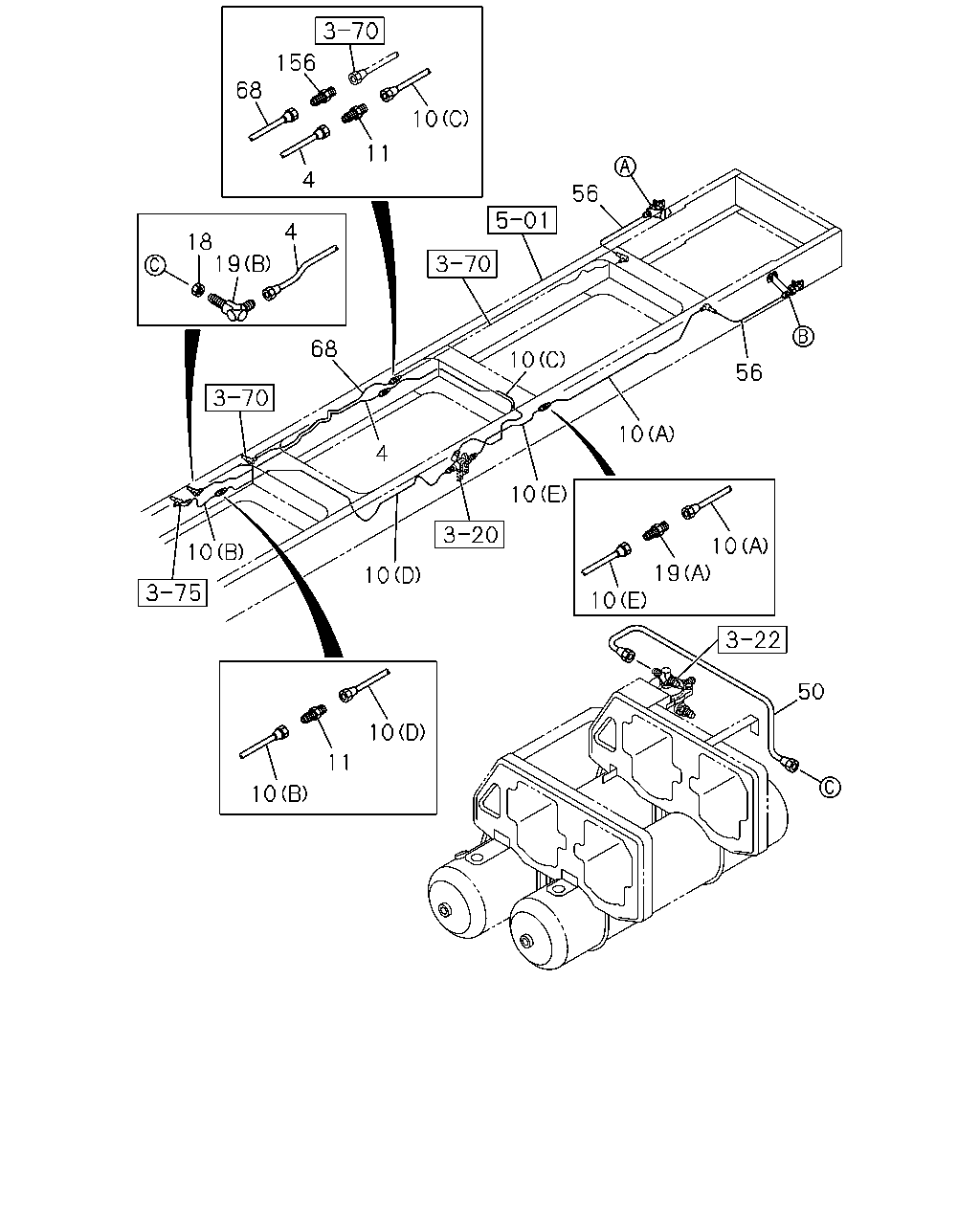

[380A] NO.1 (14 parça)
[380A] NO.2 (17 parça)
▶
10
11
10
10
10
19
50
56
10
10
10
10
4
10
56
10
11
4
156
68
18
4
19
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
PIPE; AIR,UNION TO UNION
TRAILER BRAKE CONTROL<J91> L=1054 SERVICED BY L=1100
1-47428-875-0
01
1
1505-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (E) L=720 SERVICED BY L=730
1-47428-871-0
01
1
1505-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (A) L=1279 SERVICED BY L=1300
1-47428-877-0
01
1
1505-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (C) L=1532 SERVICED BY L=1550
1-47428-879-0
01
1
1505-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (D) L=2002 SERVICED BY L=2100
1-47428-882-0
01
1
1505-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (B) L=306
8-98286-860-0
01
1
1505-
11
UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 STRAIGHT L=42
0-92123-010-0
02
1
1505-
18
NUT; UNION
TRAILER BRAKE CONTROL<J91> M16 MAL
0-91111-516-0
03
1
1505-
19
UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> (A) M16 STRAIGHT L=42
0-92123-010-0
01
1
1505-
19
UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW
0-92135-210-0
02
1
1505-
50
PIPE; AIR,UNION TO RELAY VLV
L=774 SERVICED BY L=800
1-47428-872-0
01
1
1505-
56
PIPE; AIR,UNION TO COCK
TRAILER BRAKE CONTROL<J91> L=464
8-98165-426-0
02
1
1505-
68
PIPE; AIR,UNION TO UNION
TRAILER BRAKE CONTROL<J91> L=1156 SERVICED BY L=1250
1-47428-876-0
01
1
1505-
156
UNION
TRAILER BRAKE CONTROL<J91> M16 STRAIGHT L=42
0-92123-010-0
01
1
1505-
81
29
84
3
56
42
121
18
19
10
16
18
56
3
84
29
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
NUT; COCK
TRAILER BRAKE CONTROL<J91> M16 MAL
0-91111-516-0
02
1
1505-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (E) L=720 SERVICED BY L=730
1-47428-871-0
01
1
1505-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (A) L=1279 SERVICED BY L=1300
1-47428-877-0
01
1
1505-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (C) L=1532 SERVICED BY L=1550
1-47428-879-0
01
1
1505-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (D) L=2002 SERVICED BY L=2100
1-47428-882-0
01
1
1505-
10
PIPE; AIR,UNION TO DBL CHECK VLV
TRAILER BRAKE CONTROL<J91> (B) L=306
8-98286-860-0
01
1
1505-
16
UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 ELBOW
0-92135-210-0
01
1
1505-
18
NUT; UNION
TRAILER BRAKE CONTROL<J91> M16 MAL
0-91111-516-0
03
1
1505-
19
UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> (A) M16 STRAIGHT L=42
0-92123-010-0
01
1
1505-
19
UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW
0-92135-210-0
02
1
1505-
29
CONNECTOR; COCK
TRAILER BRAKE CONTROL<J91>
1-09650-121-1
02
1
1505-
42
BOLT; BRKT
TRAILER BRAKE CONTROL<J91> M10X30 FLANGE
0-28651-030-0
02
1
1505-
56
PIPE; AIR,UNION TO COCK
TRAILER BRAKE CONTROL<J91> L=464
8-98165-426-0
02
1
1505-
81
COCK; AIR COUPLING
TRAILER BRAKE CONTROL<J91> (B) EMERGENCY RED
1-47478-466-1
01
1
1505-
81
COCK; AIR COUPLING
TRAILER BRAKE CONTROL<J91> (A) SERVICE YELLOW
1-47478-467-1
01
1
1505-
84
BRACKET; COUPLER
TRAILER BRAKE CONTROL<J91>
8-98154-702-0
02
1
1505-
121
NUT; BRKT
TRAILER BRAKE CONTROL<J91> M10 FLANGE MAL
0-91180-210-0
02
1
1505-
