3-77 — BRAKE PIPING; AIR,REAR
(#164604) — 23 parça
◀

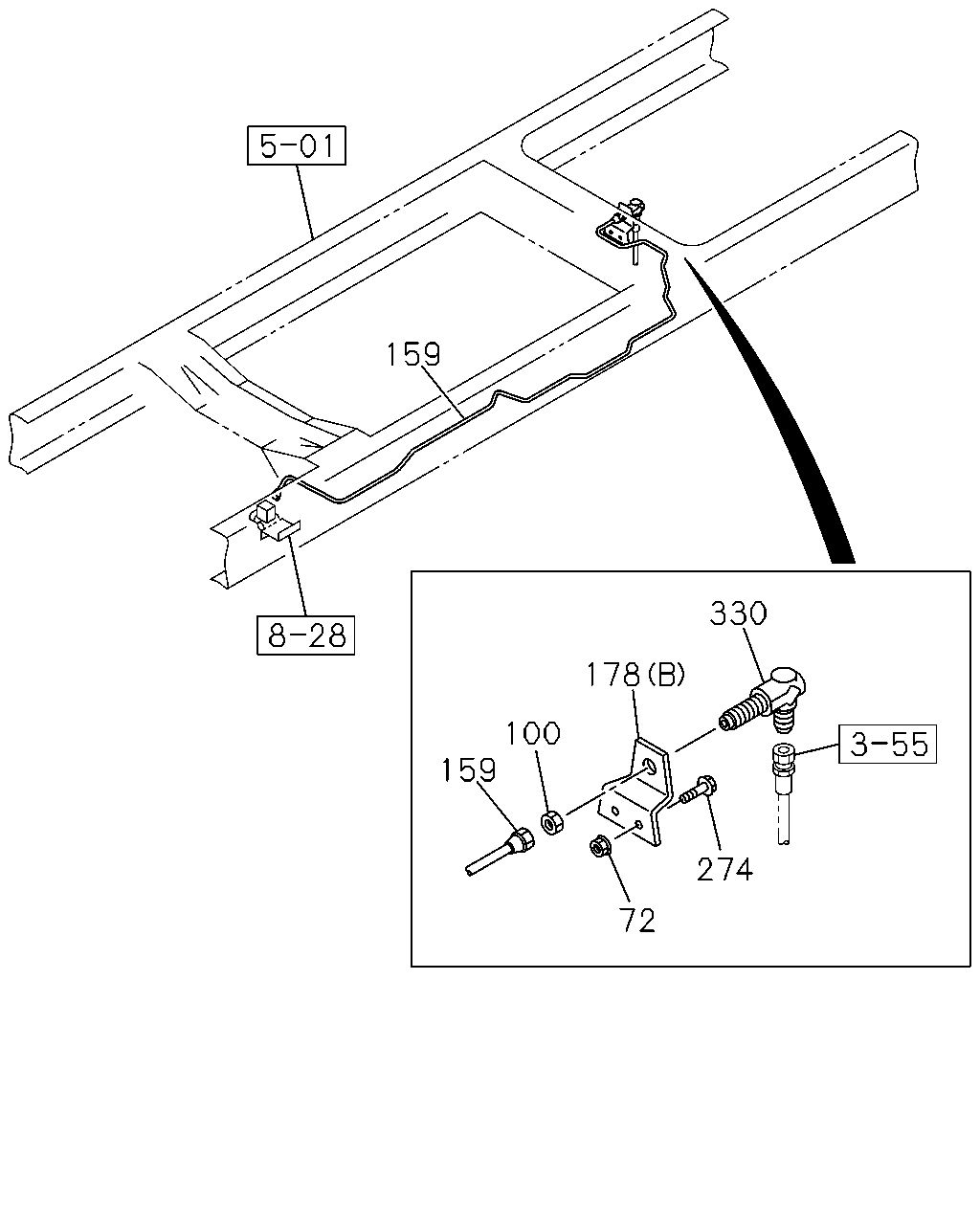

[377A] REAR AXLE SIDE (7 parça)

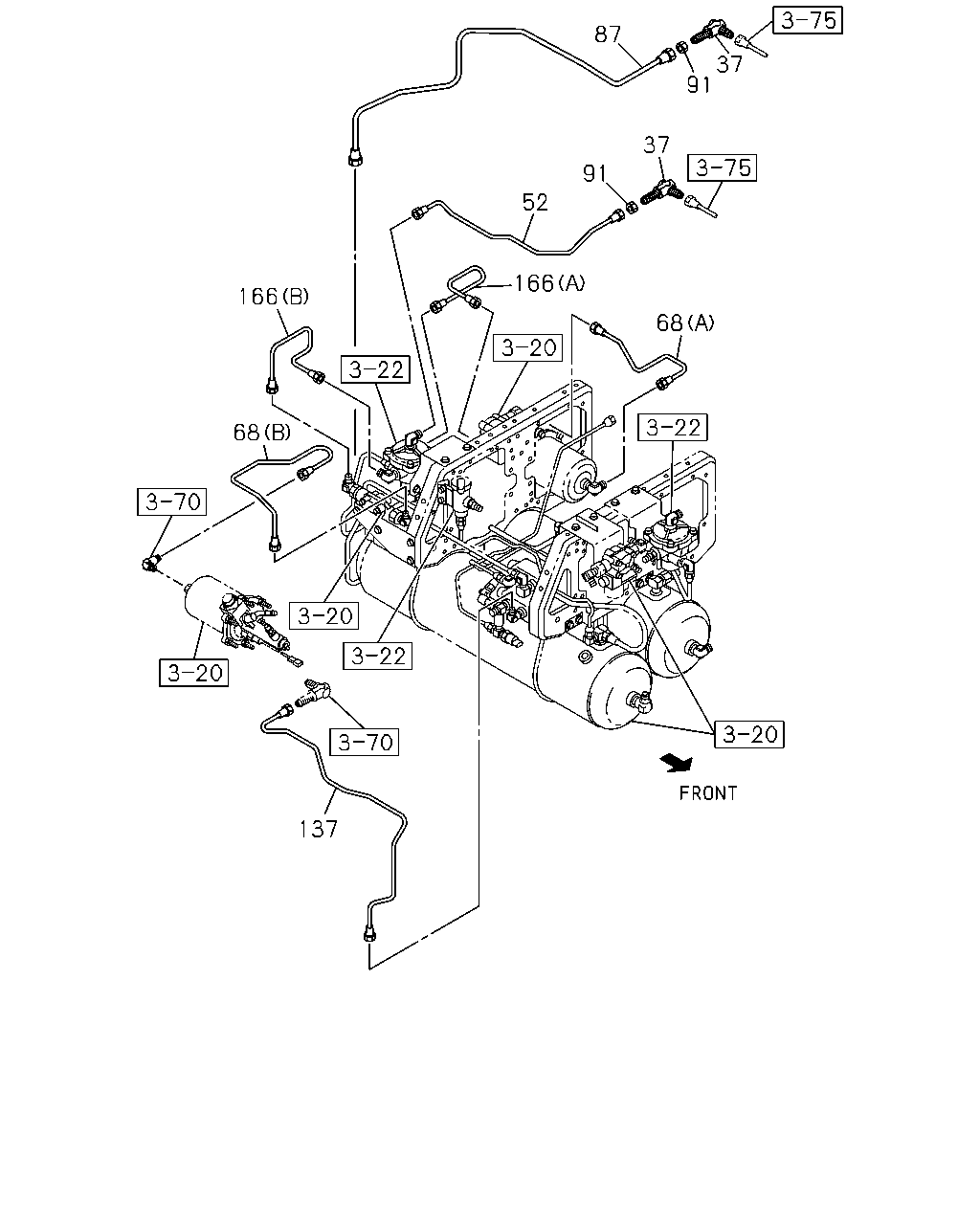

[377A] AIR TANK SIDE (9 parça)
[377A] FRONT AXLE SIDE (3 parça)

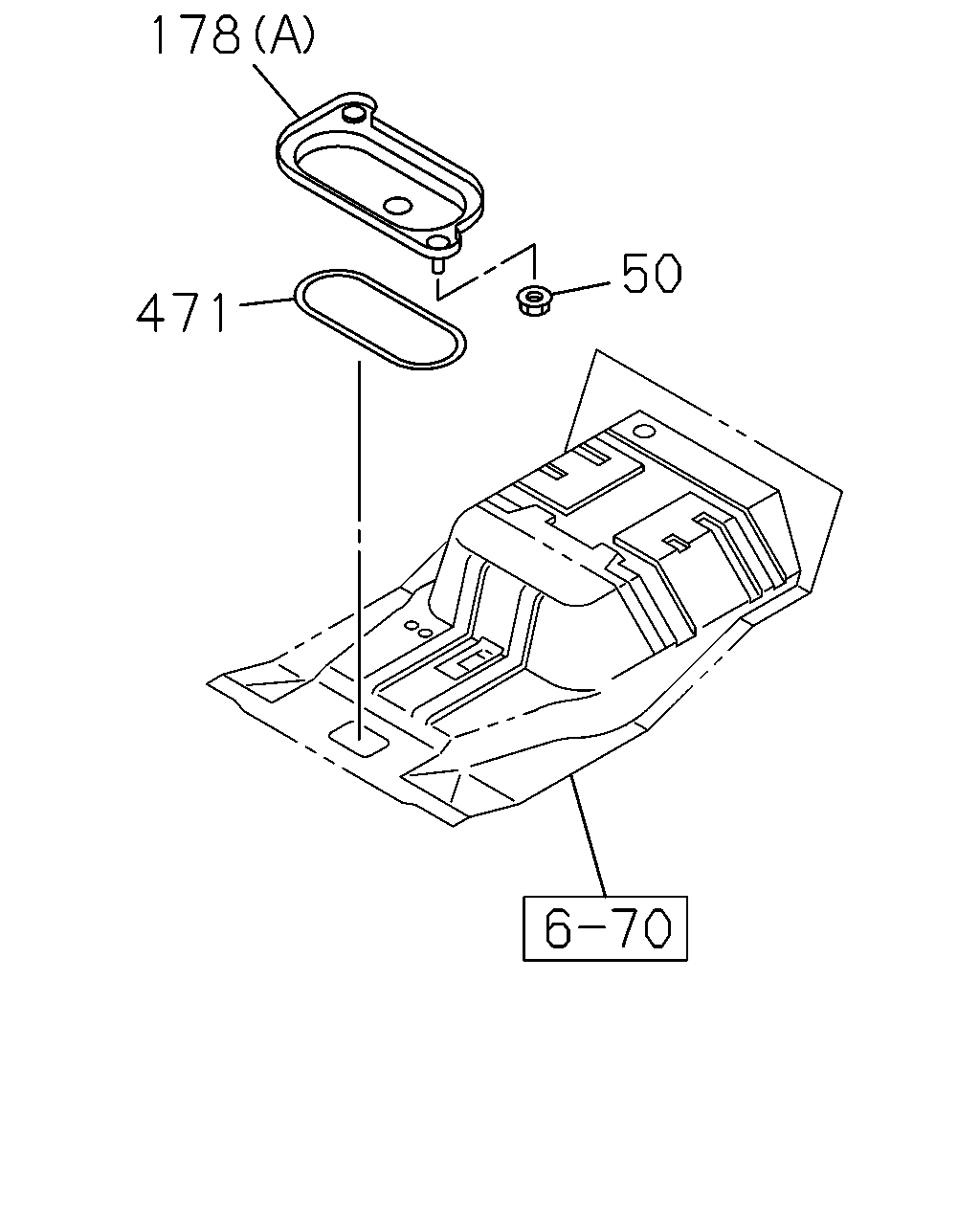

[377A] CAB SIDE (4 parça)
▶
159
330
178
100
159
72
274
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
72
NUT; BRKT
TRAILER BRAKE CONTROL<J91> M8 FLANGE MAL
0-91180-108-0
02
1
1505-
100
NUT; UNION
TRAILER BRAKE CONTROL<J91> M12
9-09840-280-0
01
1
1505-
159
PIPE; AIR,UNION TO FLEX HOSE
TRAILER BRAKE CONTROL<J91> L=2335 SERVICED BY L=2350
1-47428-825-0
01
1
1505-
178
BRACKET; UNION
(A)
8-98017-052-1
01
1
1505-
178
BRACKET; UNION
TRAILER BRAKE CONTROL<J91> (B)
8-98156-572-0
01
1
1505-
274
BOLT; BRKT
TRAILER BRAKE CONTROL<J91> M8X25 FLANGE MAL
0-28650-825-0
02
1
1505-
330
UNION; FLEX HOSE
TRAILER BRAKE CONTROL<J91> M12 ELBOW
0-92125-006-0
01
1
1505-
87
91
37
37
91
52
166
68
166
68
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 ELBOW
0-92135-210-0
02
1
1505-
52
PIPE; AIR,UNION TO RELAY VLV
L=666 SERVICED BY L=700
1-47428-870-0
01
1
1505-
68
PIPE; AIR,MODULATOR TO UNION
(B)
8-98147-519-0
01
1
1505-
68
PIPE; AIR,MODULATOR TO UNION
(A)
8-98167-302-0
01
1
1505-
87
PIPE; AIR,AIR TANK TO UNION
L=1056 SERVICED BY L=1100
1-47428-875-0
01
1
1505-
91
NUT; PIPE UNION
TRAILER BRAKE CONTROL<J91> M16 MAL
0-91111-516-0
02
1
1505-
137
PIPE; AIR,PROTECTION VLV TO UNION
L=1155 SERVICED BY L=1250
1-47428-876-0
01
1
1505-
166
PIPE; AIR,RELAY VALVE TO UNION
(B) L=428
8-98147-517-0
01
1
1505-
166
PIPE; AIR,RELAY VALVE TO UNION
(A) L=345
8-98147-516-0
01
1
1505-
163
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
NIPPLE; AIR PIPE
M12 L=56.5
0-92113-106-0
01
1
1505-
163
BRACKET; FLEX HOSE
8-98093-260-0
01
1
1505-
163
BRACKET; FLEX HOSE
8-98106-706-0
01
1
1505-
178
471
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
NUT; UNION BRKT
M8 FLANGE MAL
0-91180-108-0
02
1
1505-
178
BRACKET; UNION
(A)
8-98017-052-1
01
1
1505-
178
BRACKET; UNION
TRAILER BRAKE CONTROL<J91> (B)
8-98156-572-0
01
1
1505-
471
SEAL; BRKT
1-79738-832-0
01
1
1505-
