◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11658 - FSS MALAYSIA ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#164603) — 30 parça

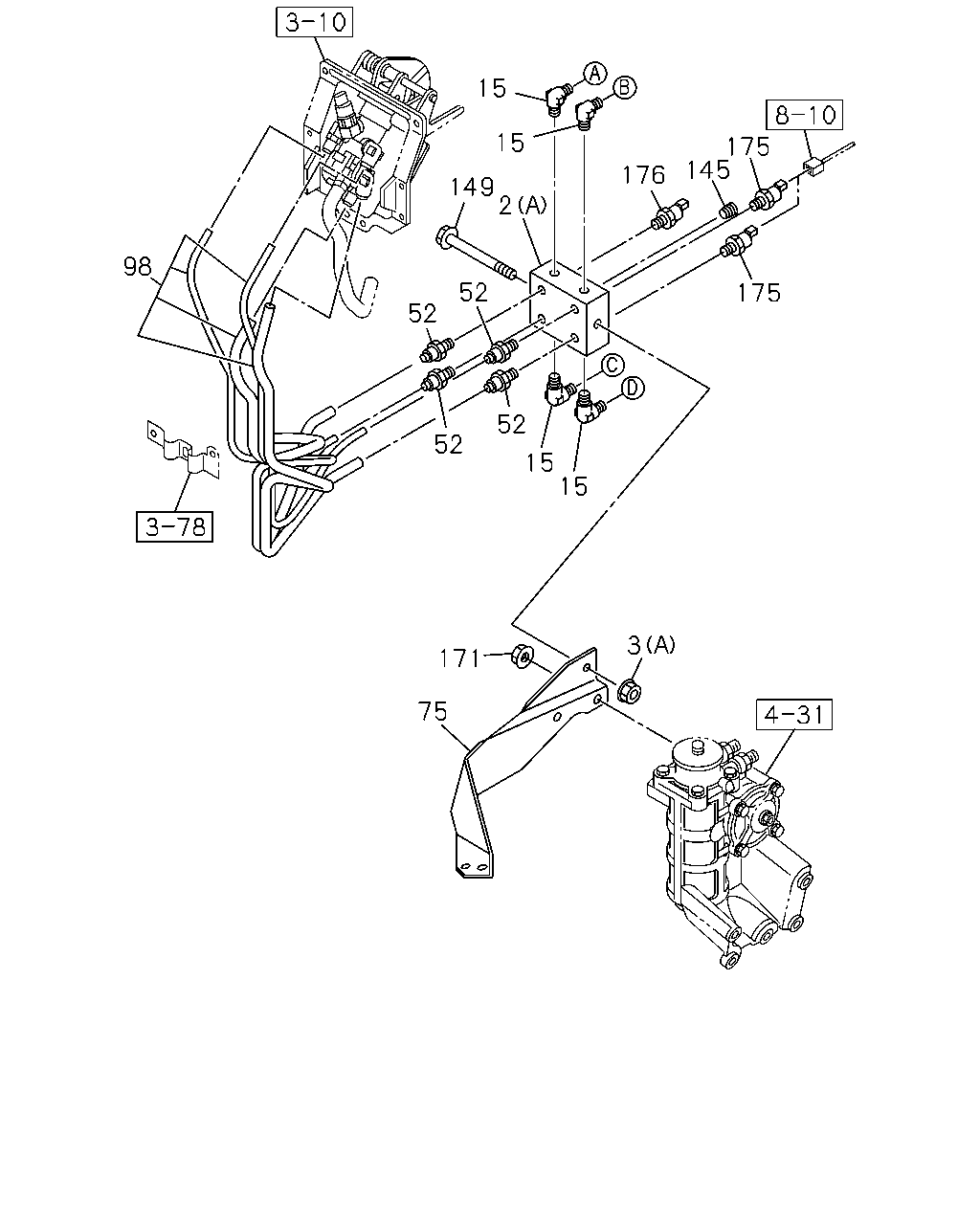

çizim 484755
15 15 149 52 52 52 52 98 15 15 171 75 3 175 176 145 175 2
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW 		0-92135-210-0 01 1 1505-
2 UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> (A) MAL 		8-98057-394-1 01 1 1505-
3 NUT; PIPE UNION
TRAILER BRAKE CONTROL<J91> (B) M16 MAL 		0-91111-516-0 01 1 1505-
3 NUT; PIPE UNION
TRAILER BRAKE CONTROL<J91> (A) M8 FLANGE MAL 		0-91180-108-0 01 1 1505-
15 CONNECTOR; AIR PIPE
TRAILER BRAKE CONTROL<J91> M16 & PT1/4 ELBOW MAL 		0-92134-310-0 04 1 1505-
52 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1505-
75 BRACKET; UNION
TRAILER BRAKE CONTROL<J91> 		8-98078-734-0 01 1 1505-
98 TUBE; NYLON
TRAILER BRAKE CONTROL<J91> 		8-98079-127-0 01 1 1505-
145 PLUG
TRAILER BRAKE CONTROL<J91> PT1/4 MAL 		9-99204-513-0 01 1 1505-
149 BOLT; UNION
TRAILER BRAKE CONTROL<J91> M8X100 FLANGE 		0-28050-800-0 01 1 1505-
171 NUT; BRACKET
TRAILER BRAKE CONTROL<J91> M10 FLANGE MAL 		0-91180-210-0 02 1 1505-
175 SENSOR; AIR PRESS
TRAILER BRAKE CONTROL<J91> THREAD R1/4 		1-80220-023-1 02 1 1505-
176 SWITCH; AIR PRESS
TRAILER BRAKE CONTROL<J91> STAMP 0.3 		8-98010-857-0 01 1 1505-

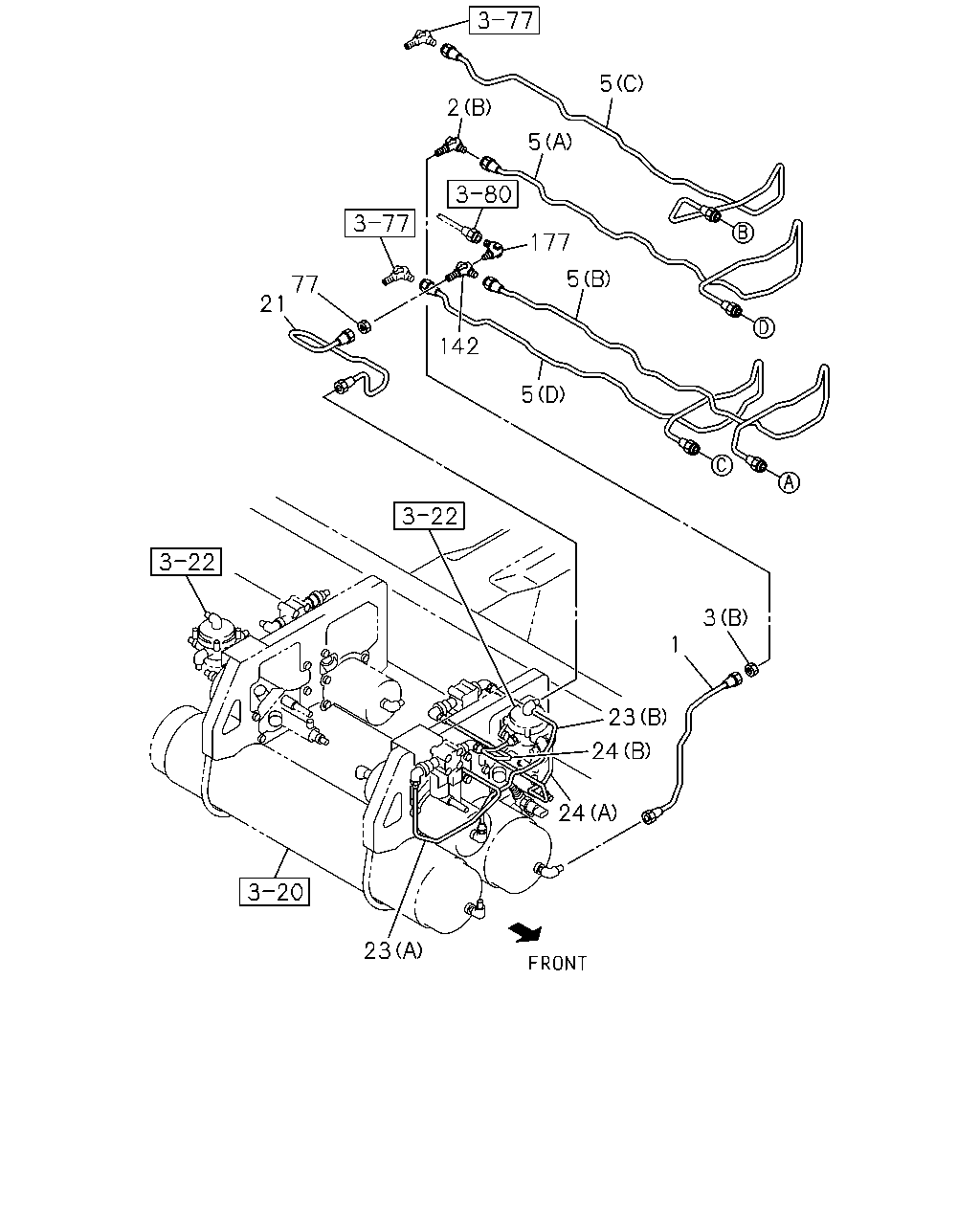

çizim 484809
5 2 77 21 5 177 142 5 5 3 1 23 24 24 23
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=502 SERVICED BY L=550 		1-47428-867-0 01 1 1505-
2 UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> (B) M16 ELBOW 		0-92135-210-0 01 1 1505-
2 UNION; AIR PIPE
TRAILER BRAKE CONTROL<J91> (A) MAL 		8-98057-394-1 01 1 1505-
3 NUT; PIPE UNION
TRAILER BRAKE CONTROL<J91> (B) M16 MAL 		0-91111-516-0 01 1 1505-
3 NUT; PIPE UNION
TRAILER BRAKE CONTROL<J91> (A) M8 FLANGE MAL 		0-91180-108-0 01 1 1505-
5 PIPE; AIR,UNION TO UNION
TRAILER BRAKE CONTROL<J91> (A) L=2491 SERVICED BY L=2500 		1-47428-883-0 01 1 1505-
5 PIPE; AIR,UNION TO UNION
TRAILER BRAKE CONTROL<J91> (B) L=3068 SERVICED BY L=3300 		1-47428-886-0 01 1 1505-
5 PIPE; AIR,UNION TO UNION
TRAILER BRAKE CONTROL<J91> (C) L=2914 SERVICED BY L=3300 		1-47428-886-0 01 1 1505-
5 PIPE; AIR,UNION TO UNION
TRAILER BRAKE CONTROL<J91> (D) L=3068 SERVICED BY L=3300 		1-47428-886-0 01 1 1505-
21 PIPE; AIR,UNION TO RELAY VLV
L=696 SERVICED BY L=700 		1-47428-870-0 01 1 1505-
23 PIPE; AIR,MODULATOR
(A) 		8-98157-076-0 01 1 1505-
23 PIPE; AIR,MODULATOR
(B) 		8-98157-077-0 01 1 1505-
24 PIPE; AIR,RELAY VLV TO UNION
(B) L=435 		8-98147-513-0 01 1 1505-
24 PIPE; AIR,RELAY VLV TO UNION
(A) L=498 		8-98140-418-0 01 1 1505-
77 NUT; PIPE UNION
TRAILER BRAKE CONTROL<J91> M16 MAL 		0-91111-516-0 01 1 1505-
142 UNION; 3-WAY
TRAILER BRAKE CONTROL<J91> 		1-09656-561-1 01 1 1505-
177 CONNECTOR
TRAILER BRAKE CONTROL<J91> M16 & PT1/4 ELBOW MAL 		0-92134-310-0 01 1 1505-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
