3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#164600) — 27 parça
◀

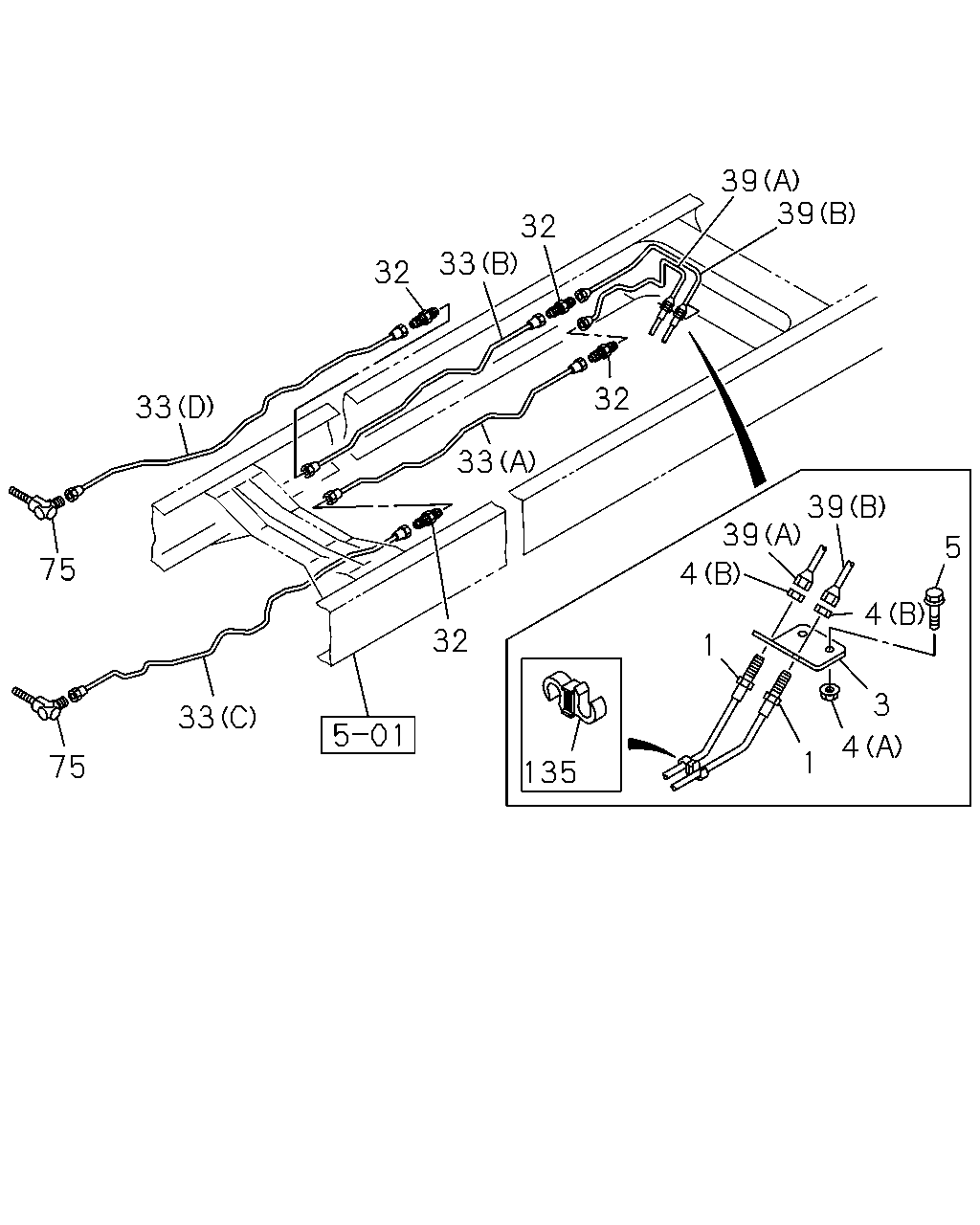

[355A] FRAME SIDE (14 parça)

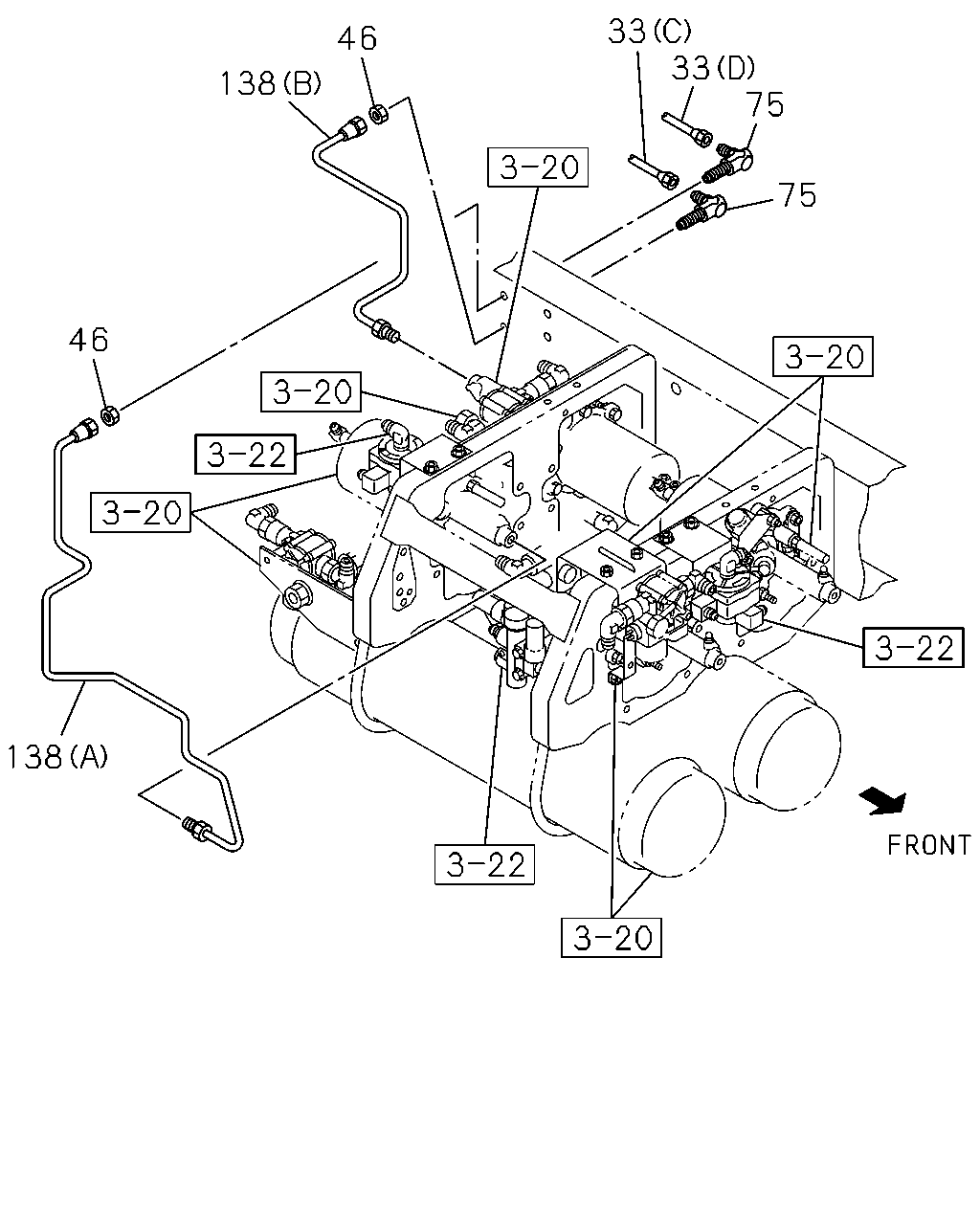

[355A] AIR TANK SIDE (8 parça)

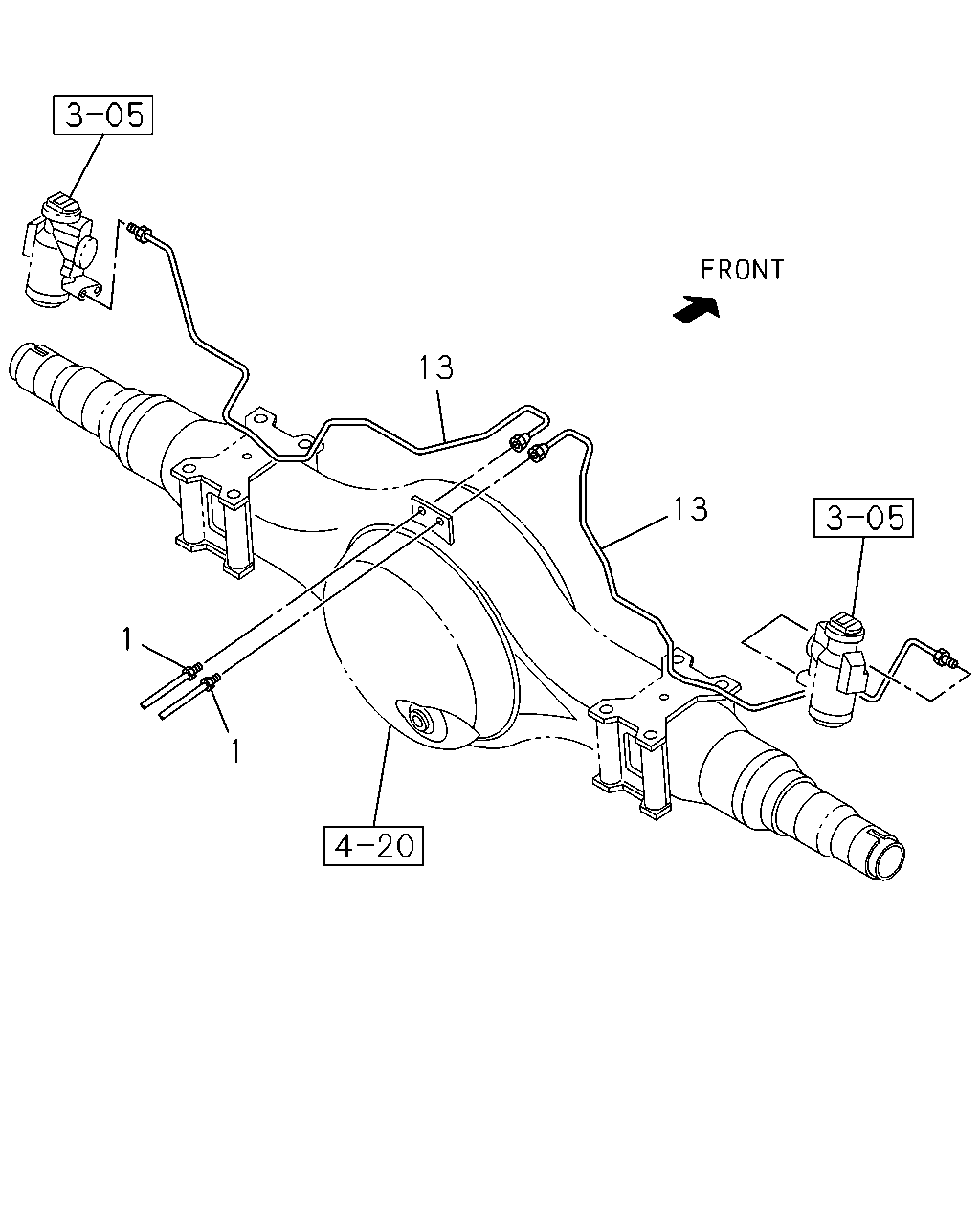

[355A] REAR AXLE SIDE (3 parça)

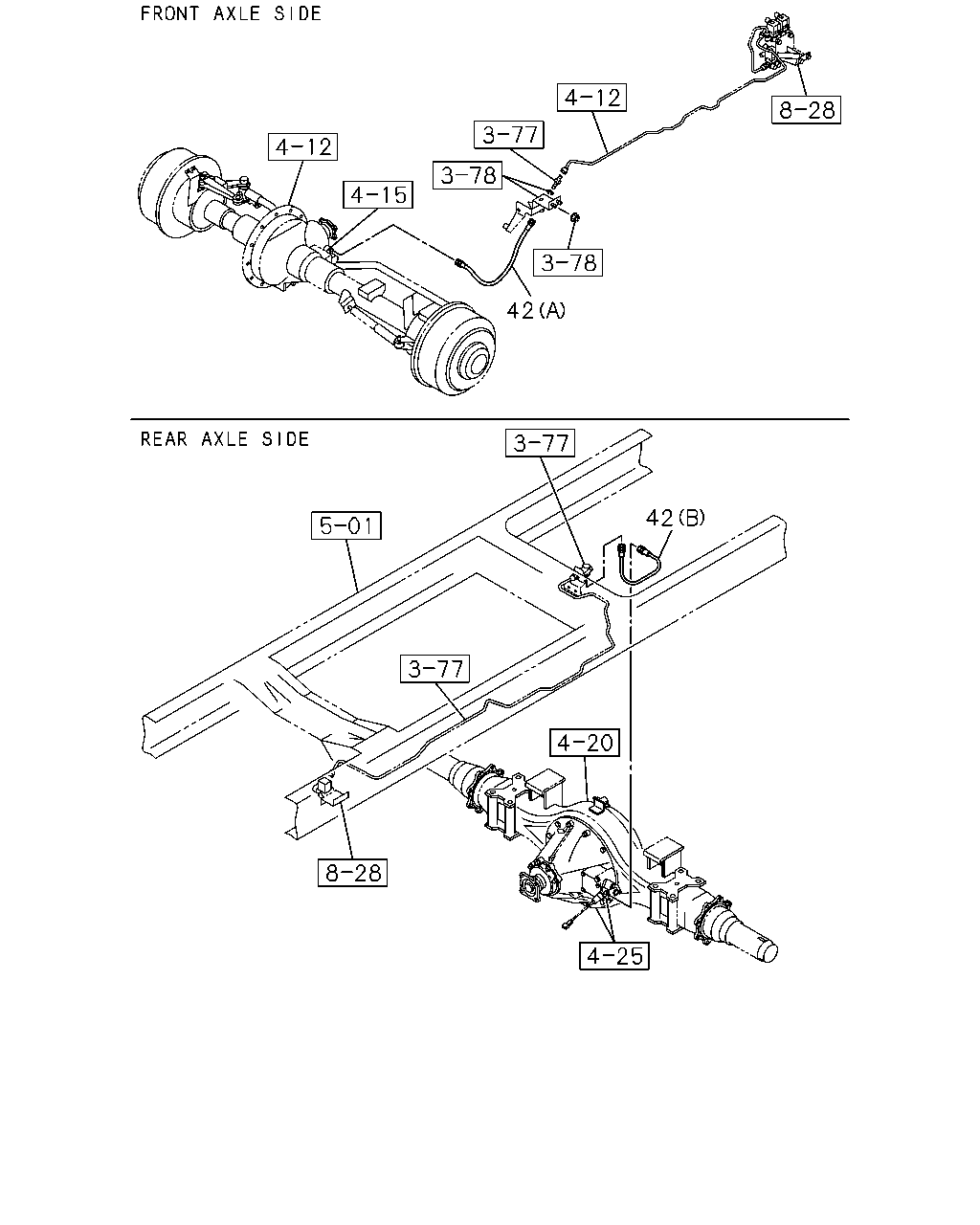

[355A] HOSE;DIFF LOCK (2 parça)
▶
39
39
32
33
32
33
75
75
32
33
32
33
135
4
1
1
4
3
4
5
39
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=730
0-05211-730-0
02
1
1505-
3
BRACKET; FLEX HOSE,RR BRK
8-98146-322-0
01
1
1505-
4
NUT; BRKT,FLEX HOSE,RR BRK
(A) M8 FLANGE MAL
0-91180-108-0
02
1
1505-
4
NUT; BRKT,FLEX HOSE,RR BRK
(B) M12
9-09840-280-0
04
1
1505-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28650-830-0
02
1
1505-
32
UNION; OIL PIPE
M12 L=40
0-92113-006-0
04
1
1505-
33
PIPE; OIL,UNION TO UNION
(A) L=852 SERVICED BY L=900
1-47428-729-0
01
1
1505-
33
PIPE; OIL,UNION TO UNION
(B) L=851 SERVICED BY L=900
1-47428-729-0
01
1
1505-
33
PIPE; OIL,UNION TO UNION
(D) L=1221 SERVICED BY L=1250
1-47428-733-0
01
1
1505-
33
PIPE; OIL,UNION TO UNION
(C) L=1390 SERVICED BY L=1500
1-47428-735-0
01
1
1505-
39
PIPE; OIL,UNION TO RR FLEX HOSE
(A) L=815 SERVICED BY L=900
1-47428-729-0
01
1
1505-
39
PIPE; OIL,UNION TO RR FLEX HOSE
(B) L=874 SERVICED BY L=900
1-47428-729-0
01
1
1505-
75
UNION; OIL PIPE
M12 ELBOW
8-97325-150-0
02
1
1505-
135
CLIP; FLEX HOSE
ID=10 & 10
1-09709-277-1
01
1
1505-
138
46
33
75
33
75
46
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
PIPE; OIL,UNION TO UNION
(A) L=852 SERVICED BY L=900
1-47428-729-0
01
1
1505-
33
PIPE; OIL,UNION TO UNION
(B) L=851 SERVICED BY L=900
1-47428-729-0
01
1
1505-
33
PIPE; OIL,UNION TO UNION
(D) L=1221 SERVICED BY L=1250
1-47428-733-0
01
1
1505-
33
PIPE; OIL,UNION TO UNION
(C) L=1390 SERVICED BY L=1500
1-47428-735-0
01
1
1505-
46
NUT; UNION,OIL PIPE
M12
9-09840-280-0
02
1
1505-
75
UNION; OIL PIPE
M12 ELBOW
8-97325-150-0
02
1
1505-
138
PIPE; HYDRAULIC UNIT
(A) L=783
8-98147-594-0
01
1
1505-
138
PIPE; HYDRAULIC UNIT
(B) L=251
8-98147-593-0
01
1
1505-
13
1
1
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=730
0-05211-730-0
02
1
1505-
13
PIPE; BRK,RR AXLE
8-98043-994-1
01
1
1505-
13
PIPE; BRK,RR AXLE
8-98043-995-1
01
1
1505-
42
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
HOSE; FLEX,DIFF LOCK
(A)
1-09363-668-0
01
1
1505-
42
HOSE; FLEX,DIFF LOCK
TRAILER BRAKE CONTROL<J91> (B)
8-98147-774-0
01
1
1505-
