Isuzu WW
▶
TRUCKS
▶
FSS
▶
11658 - FSS MALAYSIA
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶
3-22 — AIR CONTROL PARTS
(#164594) — 33 parça
◀

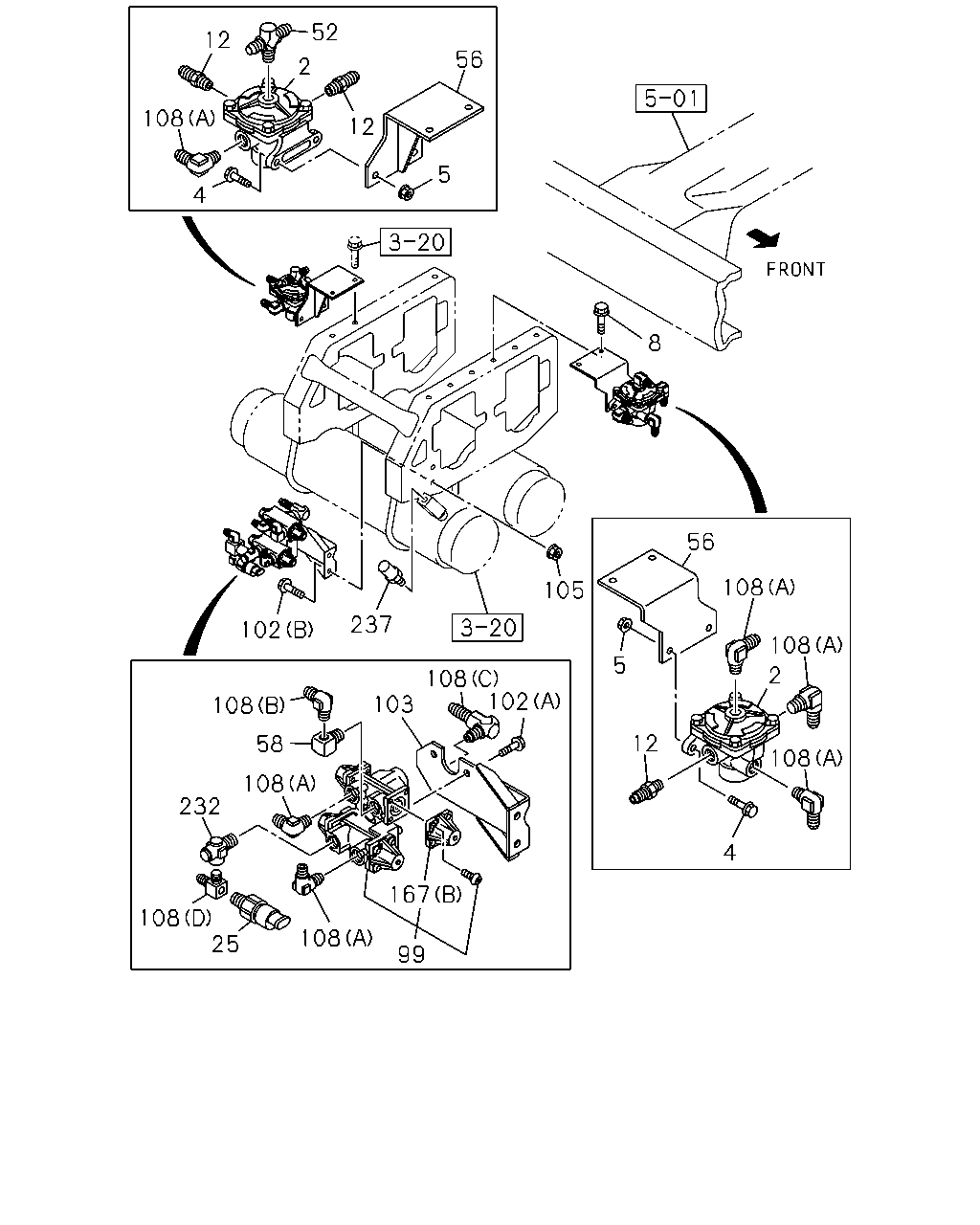

[322A] FIXING (22 parça)

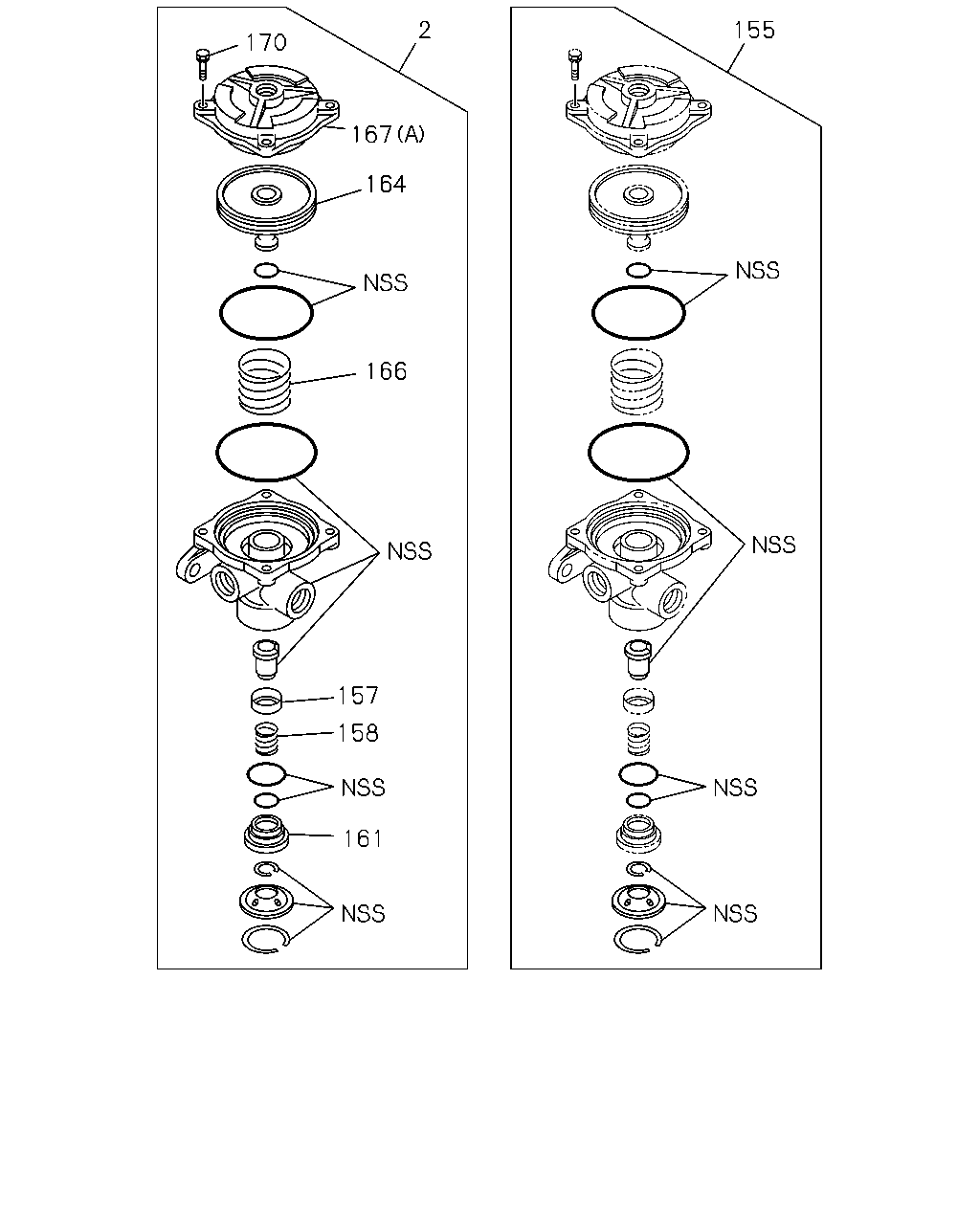

[322A] COMPONENT AND REPAIR KIT;RELAY VALVE (10 parça)
[322A] REPAIR KIT;PROTECTION VALVE (1 parça)
▶
56
12
5
2
4
108
12
52
102
237
105
56
8
108
5
12
4
108
108
2
108
102
103
108
58
108
232
108
25
108
99
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
VALVE; RELAY
1-48210-875-0
02
1
1505-
4
BOLT; RELAY VLV TO BRKT
M10X30 FLANGE
0-28651-030-0
04
1
1505-
5
NUT
M10 FLANGE MAL
0-91180-210-0
04
1
1505-
8
BOLT; BRKT
M10X25 FLANGE MAL
0-28651-025-0
02
1
1505-
12
CONNECTOR; RELAY VLV
M16 & PT3/8 STRAIGHT MAL
1-09650-179-1
03
1
1505-
25
SWITCH; PRESSURE
STAMP 5.5 MAL
8-97609-249-0
01
1
1505-
52
CONNECTOR; RELAY VLV
M16X2 & PT3/8 3WAY MAL
1-09656-455-2
01
1
1505-
56
BRACKET; RELAY VLV
8-97615-197-0
02
1
1505-
58
ADAPTER
PT1/4 & PT3/8 2WAY MAL
1-09660-809-0
01
1
1505-
99
VALVE; PROTECTION
1-48110-288-3
01
1
1505-
102
BOLT; PROTECTION VALVE
(A) M8X16 FLANGE MAL
0-28050-816-0
02
1
1505-
102
BOLT; PROTECTION VALVE
(B) M10X25 FLANGE MAL
0-28651-025-0
02
1
1505-
103
BRACKET; PROTECTION VALVE
8-97622-131-0
01
1
1505-
105
NUT; BRKT,VALVE
M10 FLANGE MAL
0-91180-210-0
02
1
1505-
108
CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW MAL
0-92134-310-0
01
1
1505-
108
CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW MAL
1-09650-438-0
06
1
1505-
108
CONNECTOR; ELBOW
(C) MAL
1-09650-516-0
01
1
1505-
108
CONNECTOR; ELBOW
(D)
8-98148-475-0
01
1
1505-
167
COVER; VALVE
(B) MAL
1-48119-625-0
04
1
1505-
167
COVER; VALVE
(A)
1-48219-070-0
02
1
1505-
232
VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY
8-98032-527-0
01
1
1505-
237
VALVE; SAFETY
1-48320-012-2
01
1
1505-
2
170
167
164
166
157
158
161
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
VALVE; RELAY
1-48210-875-0
02
1
1505-
155
REPAIR KIT; RELAY VALVE
1-85576-033-0
02
1
1505-
157
RETAINER; VALVE
1-48213-002-0
02
1
1505-
158
SPRING; VALVE
1-47819-089-0
02
1
1505-
161
GUIDE; VALVE
1-48129-014-0
02
1
1505-
164
PISTON; RELAY VALVE
1-48219-071-0
02
1
1505-
166
SPRING; PISTON
1-47819-090-0
02
1
1505-
167
COVER; VALVE
(B) MAL
1-48119-625-0
04
1
1505-
167
COVER; VALVE
(A)
1-48219-070-0
02
1
1505-
170
SCREW; COVER TO BODY
1-48219-039-0
08
1
1505-
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
REPAIR KIT; PROTECTION VALVE
1-85576-451-2
01
1
1505-
