Isuzu WW
▶
TRUCKS
▶
FYH
▶
11354 - FYH(THAILAND)EURO3
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#16459) — 31 parça
◀
[326A] COMPONENT (25 parça)
[326A] FIXING (6 parça)
▶
164
3
164
47
45
49
48
50
46
44
43
42
41
40
39
38
37
36
35
34
54
55
54
53
52
51
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
W/GREASE
1-48469-096-0
01
1
1110-
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
1110-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
1110-
35
HOLDER; CAM
1-48469-054-0
01
1
1110-
36
RING; CAM
1-48469-056-0
01
1
1110-
37
GUIDE; CAM RING
1-48469-058-0
01
1
1110-
38
SEAT; EXH VLV
1-48469-057-0
01
1
1110-
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
1110-
40
RING; SNAP
1-48469-067-0
01
1
1110-
41
SEAT; FEED VLV
1-48469-066-0
01
1
1110-
42
VALVE; FEED
1-48469-065-0
01
1
1110-
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
1110-
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
1110-
45
SPRING; FEED VLV
1-48469-070-0
01
1
1110-
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
1110-
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
1110-
48
WASHER; COVER
1-48469-091-0
04
1
1110-
49
SCREW; COVER
1-48469-092-0
04
1
1110-
50
COVER; HAND BRK VLV
1-48469-090-0
01
1
1110-
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
1110-
52
SCREW; HANDLE
1-48469-062-0
01
1
1110-
53
WASHER; HANDLE
1-48469-061-0
01
1
1110-
54
SEAT; SPRING
1-48469-082-0
02
1
1110-
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
1110-
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
1110-

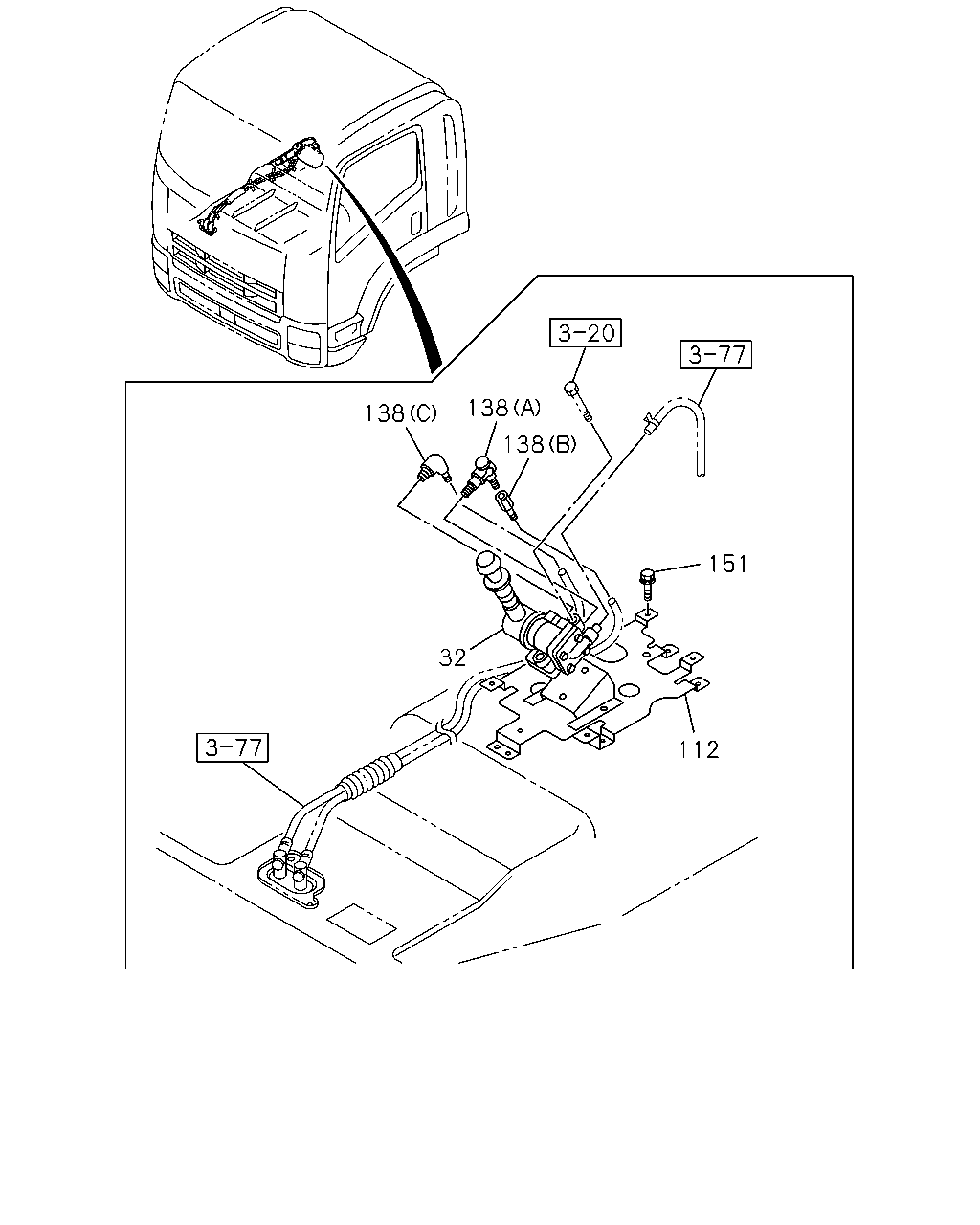

112
151
138
138
138
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
1110-
112
BRACKET; CONT VLV
1-73908-054-7
01
1
1110-
138
CONNECTOR; DELIVERY
(A) DIN6 & PT1/4 ELBOW
1-09650-240-1
01
1
1110-
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1110-
138
CONNECTOR; DELIVERY
(C) DIN8 & R1/4 ELBOW THA
1-09660-956-0
01
1
1110-
151
BOLT; VLV BRKT
M6X16 THA
0-52000-616-0
04
1
1110-
