Isuzu WW
▶
TRUCKS
▶
FSS
▶
11658 - FSS MALAYSIA
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

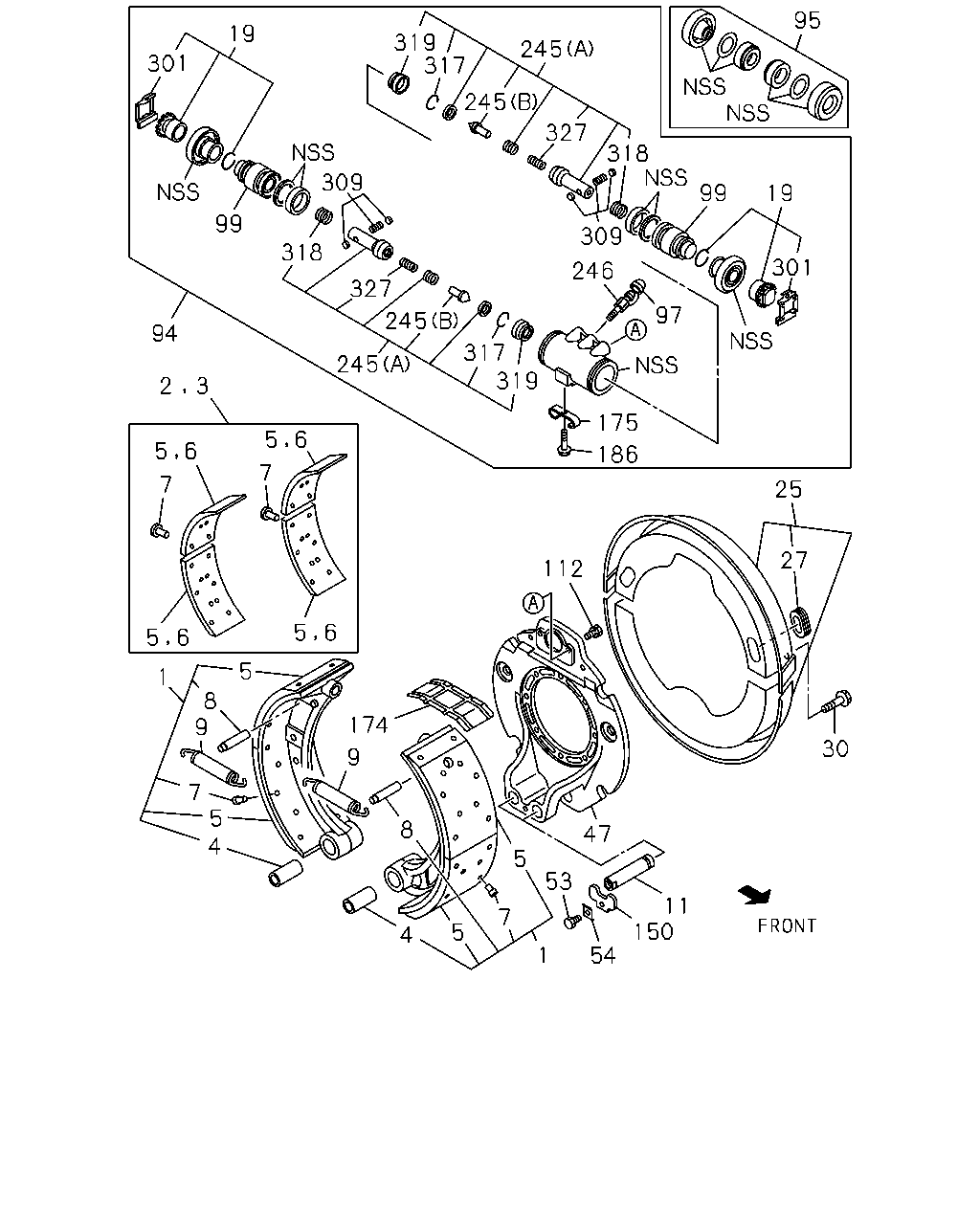

3-05 — REAR WHEEL BRAKE
(#164589) — 42 parça
11
150
54
1
53
5
7
5
4
47
30
27
25
112
174
9
8
4
5
8
9
7
5
1
6
5
5
6
5
6
7
7
6
5
3
2
94
19
301
309
99
318
327
245
245
317
175
319
186
97
246
309
301
19
99
318
327
245
317
319
245
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
LEADING
1-47170-496-0
01
1
1505-
1
SHOE; BRK,RR
TRAILING
1-47170-497-0
01
1
1505-
1
SHOE; BRK,RR
LEADING
1-47170-498-0
01
1
1505-
1
SHOE; BRK,RR
TRAILING
1-47170-499-0
01
1
1505-
2
LINING SET; RR BRK,STANDARD
LEADING
1-88311-390-0
01
1
1505-
2
LINING SET; RR BRK,STANDARD
TRAILING
1-88311-394-0
01
1
1505-
3
LINING SET; RR BRK,OVER SIZE
LEADING
1-88311-391-0
01
1
1505-
3
LINING SET; RR BRK,OVER SIZE
TRAILING
1-88311-395-0
01
1
1505-
4
BUSHING; BRK SHOE,RR WHEEL
1-47112-011-0
04
1
1505-
5
LINING; RR BRK SHOE,STANDARD
1-47126-812-0
08
1
1505-
6
LINING; RR BRK SHOE,OVER SIZE
1-47126-813-0
08
1
1505-
7
RIVET; LINING,RR BRK
TRAILING L=18.5
1-09732-034-0
40
1
1505-
7
RIVET; LINING,RR BRK
LEADING L=15.5
1-09732-053-0
40
1
1505-
8
PIN; RETURN SPRING,RR BRK SHOE
1-47119-134-0
04
1
1505-
9
SPRING; RETURN,BRK SHOE
1-09583-359-0
04
1
1505-
11
PIN; ANCHOR,RR WHEEL BRK
L=106.5
1-47131-038-0
04
1
1505-
19
ADJUSTER; RR BRK
1-47621-015-0
04
1
1505-
25
COVER SET; RR BRK DRUM
1-47151-458-1
02
1
1505-
27
COVER; CHECK HOLE,DRUM COVER
1-09333-151-0
04
1
1505-
30
BOLT; DRUM COVER
M10X12
1-47159-187-0
12
1
1505-
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
1-47137-571-0
01
1
1505-
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
1-47137-572-0
01
1
1505-
53
BOLT; LOCK PLATE
M10X16
0-20851-016-0
02
1
1505-
54
WASHER; LK,ANCHOR PIN,RR BRK
1-47133-011-0
02
1
1505-
94
CYLINDER; WHEEL,RR BRK
8-98166-405-0
02
1
1505-
95
CUP SET; RR WHEEL CYL
1-87830-922-0
02
1
1505-
97
CAP; BLEEDER,RR WHEEL CYL
OD=12
1-47619-011-0
02
1
1505-
99
PISTON; RR WHEEL CYL
1-47624-357-0
04
1
1505-
112
BOLT; WHEEL CYL SETTING
M12X32 W/LK WASHER
0-50551-232-0
04
1
1505-
150
PLATE; LK,ANCHOR PIN
1-47133-005-0
02
1
1505-
174
COVER; CYL,RR WHEEL CYL
1-47159-197-0
02
1
1505-
175
HANGER; RR WHEEL BRK
1-47619-145-0
02
1
1505-
186
BOLT; HANGER
M8X16 W/LK WASHER
0-50540-816-0
02
1
1505-
245
SHAFT
(A)
1-47623-027-1
04
1
1505-
245
SHAFT
(B)
1-47629-121-0
04
1
1505-
246
BLEEDER
1-47615-002-0
02
1
1505-
301
CLIP; ANTI LOTATION
1-47621-016-0
04
1
1505-
309
SPRING; ADJUSTER SHAFT
1-09580-544-0
04
1
1505-
317
RING; RETAINER
1-47629-119-0
04
1
1505-
318
SPRING; ADJ
1-09580-542-0
04
1
1505-
319
RING; DRIVE
1-47629-120-0
04
1
1505-
327
SPRING; ADJ
1-09580-543-0
04
1
1505-
