Isuzu WW
▶
TRUCKS
▶
FSS
▶
11658 - FSS MALAYSIA
▶
3 - Brakes, Brake System
▶

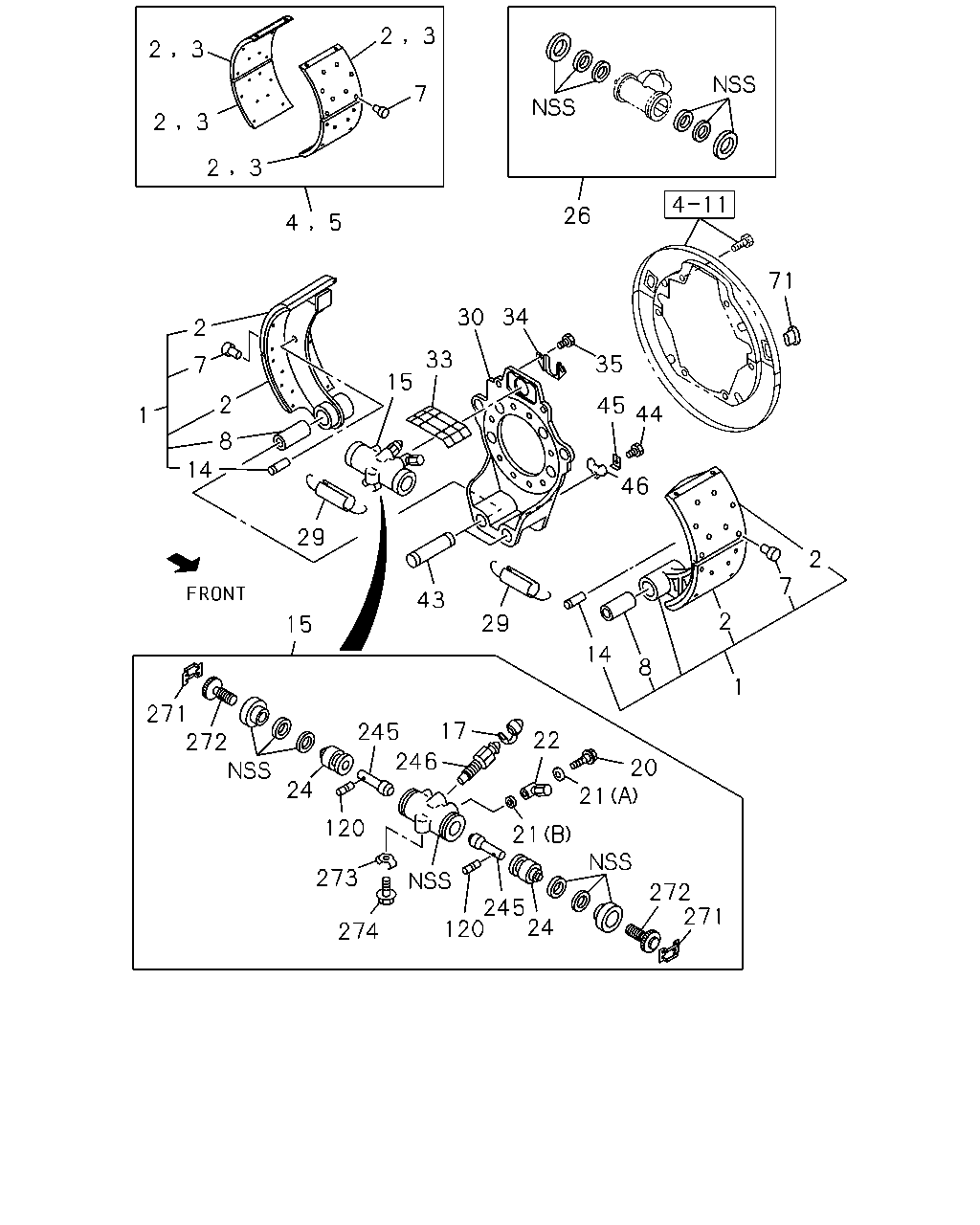

3-01 - FRONT WHEEL BRAKE
▶
3-01 — FRONT WHEEL BRAKE
(#164588) — 36 parça
2
3
2
3
3
3
2
2
4
5
26
71
35
34
30
33
15
45
44
46
2
1
7
2
8
14
29
43
29
2
7
5
8
14
1
15
20
22
17
245
271
272
24
120
273
274
120
246
21
21
272
271
245
24
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
LEADING
1-47170-518-0
02
1
1505-
1
SHOE; BRK,FRT
TRAILING
1-47170-519-0
02
1
1505-
2
LINING; FRT BRK SHOE,STANDARD
1-47126-818-0
08
1
1505-
3
LINING; FRT BRK SHOE,OVER SIZE
1-47126-819-0
08
1
1505-
4
LINING SET; FRT BRK,STANDARD
1-88311-402-0
02
1
1505-
5
LINING SET; FRT BRK,OVER SIZE
1-88311-403-0
02
1
1505-
7
RIVET; LINING,FRT BRK
L=18.5
1-09732-034-0
80
1
1505-
8
BUSHING; BRK SHOE
1-47112-011-0
04
1
1505-
14
PIN; SHOE RETURN SPR
1-47119-134-0
04
1
1505-
15
CYLINDER; WHEEL,FRT BRK
1-47601-092-1
01
1
1505-
15
CYLINDER; WHEEL,FRT BRK
1-47601-093-1
01
1
1505-
17
CAP; BLEEDER,FRT WHEEL CYL
OD=12
1-47619-011-0
02
1
1505-
20
BOLT; JOINT
M12X40.5 EYE BOLT
1-47634-006-0
02
1
1505-
21
GASKET; UNION BOLT
(A) ID=15.2
1-09630-019-0
02
1
1505-
21
GASKET; UNION BOLT
(B) ID=12.2
1-09630-020-0
02
1
1505-
22
JOINT; PIPE
1-47631-057-1
02
1
1505-
24
PISTON; FRT WHEEL CYL
1-47624-369-0
04
1
1505-
26
CUP SET; FRT WHEEL CYL
1-87830-930-0
02
1
1505-
29
SPRING; RETURN,FRT BRK SHOE
1-09583-362-0
04
1
1505-
30
BRACKET; ANCHOR,FRT
1-47137-569-0
01
1
1505-
30
BRACKET; ANCHOR,FRT
1-47137-570-0
01
1
1505-
33
COVER; WHEEL CYL
1-47159-197-0
02
1
1505-
34
PLATE; DIRECTION,FRT
1-47159-094-0
02
1
1505-
35
BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER
0-50551-235-0
04
1
1505-
43
PIN; ANCHOR
L=106.5
1-47131-038-0
04
1
1505-
44
BOLT; LOCK,ANCHOR PIN
M10X16
0-20851-016-0
02
1
1505-
45
WASHER; LK
1-47133-011-0
02
1
1505-
46
PLATE; LOCK
1-47133-005-0
02
1
1505-
71
GROMMET; CHECK HOLE
1-09333-151-0
04
1
1505-
120
SPRING; LK,ADJ,FRT WHEEL CYL
1-09580-544-0
04
1
1505-
245
SHAFT; ADJ
1-47623-027-1
04
1
1505-
246
BLEEDER
1-47615-002-0
02
1
1505-
271
CLIP; ADJ
1-47621-016-0
04
1
1505-
272
ADJUSTER; MANUAL
1-47621-015-0
04
1
1505-
273
HANGER
1-47619-145-0
02
1
1505-
274
BOLT; HANGER
M8X16 W/LK WASHER
0-50540-816-0
02
1
1505-
