Isuzu WW
▶
TRUCKS
▶
FSS
▶
11658 - FSS MALAYSIA
▶
2 - Clutch, Transmission, Trans Axle
▶
2-60 - TRANSFER
▶
2-60 — TRANSFER
(#164580) — 16 parça
◀

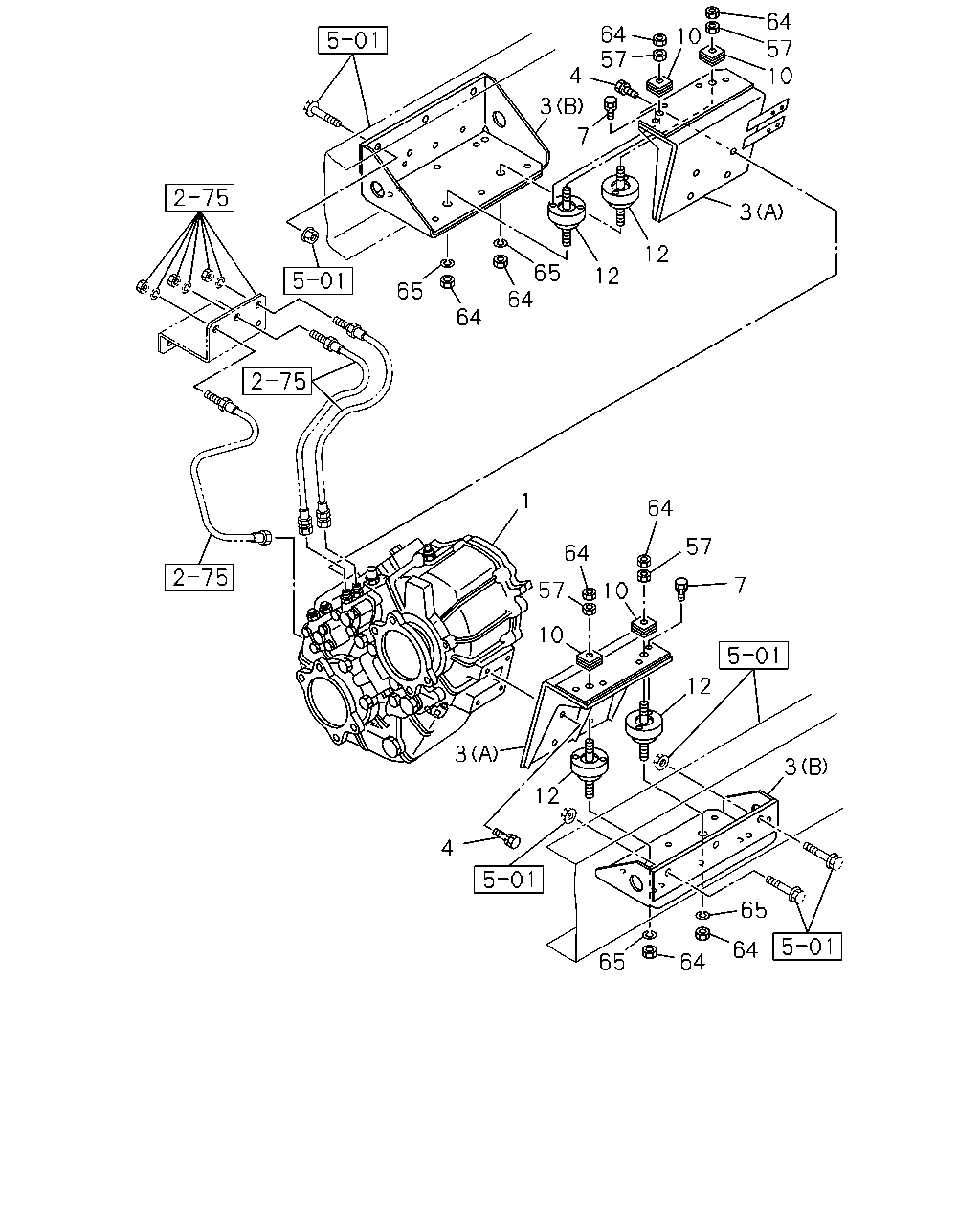

[260A] TRANSFER FIXING (15 parça)

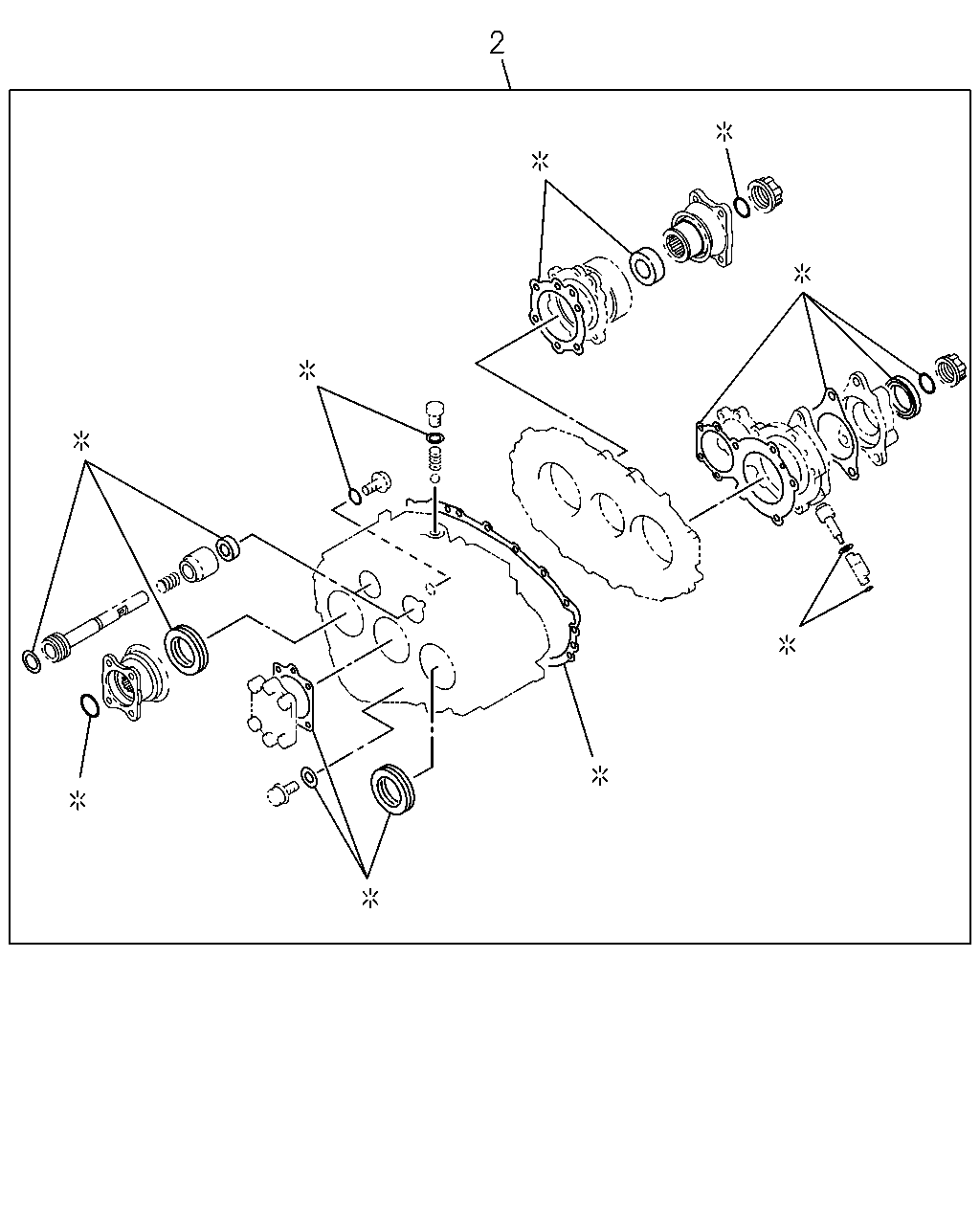

[260A] REPAIR KIT (1 parça)
▶
64
10
64
4
57
3
7
12
2
65
64
64
65
57
3
10
1
64
64
57
10
10
7
12
12
3
4
65
64
64
65
3
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSFER ASM
1-36000-732-0
01
1
1505-
2
REPAIR KIT; TRANSFER OVERHAUL
1-87831-338-0
01
1
1505-
3
BRACKET; TRANSFER
(A)
8-98308-293-0
01
1
1505-
3
BRACKET; TRANSFER
(A)
8-98308-294-0
01
1
1505-
3
BRACKET; TRANSFER
STABILIZER REAR LIGHT DUTY<GN1> (B)
8-97613-315-1
01
1
1505-
3
BRACKET; TRANSFER
STABILIZER REAR LIGHT DUTY<GN1> (B)
8-97614-324-1
01
1
1505-
4
BOLT; BRKT TO TRANSFER
M12X30 FLANGE
0-28051-230-0
08
1
1505-
4
BOLT; BRKT TO TRANSFER
M12X25 FLANGE
0-28151-225-0
08
1
1505-
7
BOLT; CUSHION RUBBER
M10X25 FLANGE
0-28051-025-0
08
1
1505-
10
RUBBER; CUSHION,UPR,TRANSFER
1-36189-027-0
04
1
1505-
12
RUBBER; CUSHION,LWR,TRANSFER
1-36189-026-2
04
1
1505-
57
NUT; CUSHION RUBBER,UPR
M12 MAL
0-91110-512-0
04
1
1505-
64
NUT; CUSHION RUBBER,LWR
M14 MAL
0-91110-514-0
04
1
1505-
64
NUT; CUSHION RUBBER,LWR
M12
0-91111-512-0
04
1
1505-
65
WASHER; LK,CUSHION RUBBER,LWR
ID=14.2
0-91510-514-0
04
1
1505-
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; TRANSFER OVERHAUL
1-87831-338-0
01
1
1505-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
