◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11354 - FYH(THAILAND)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#16457) — 140 parça

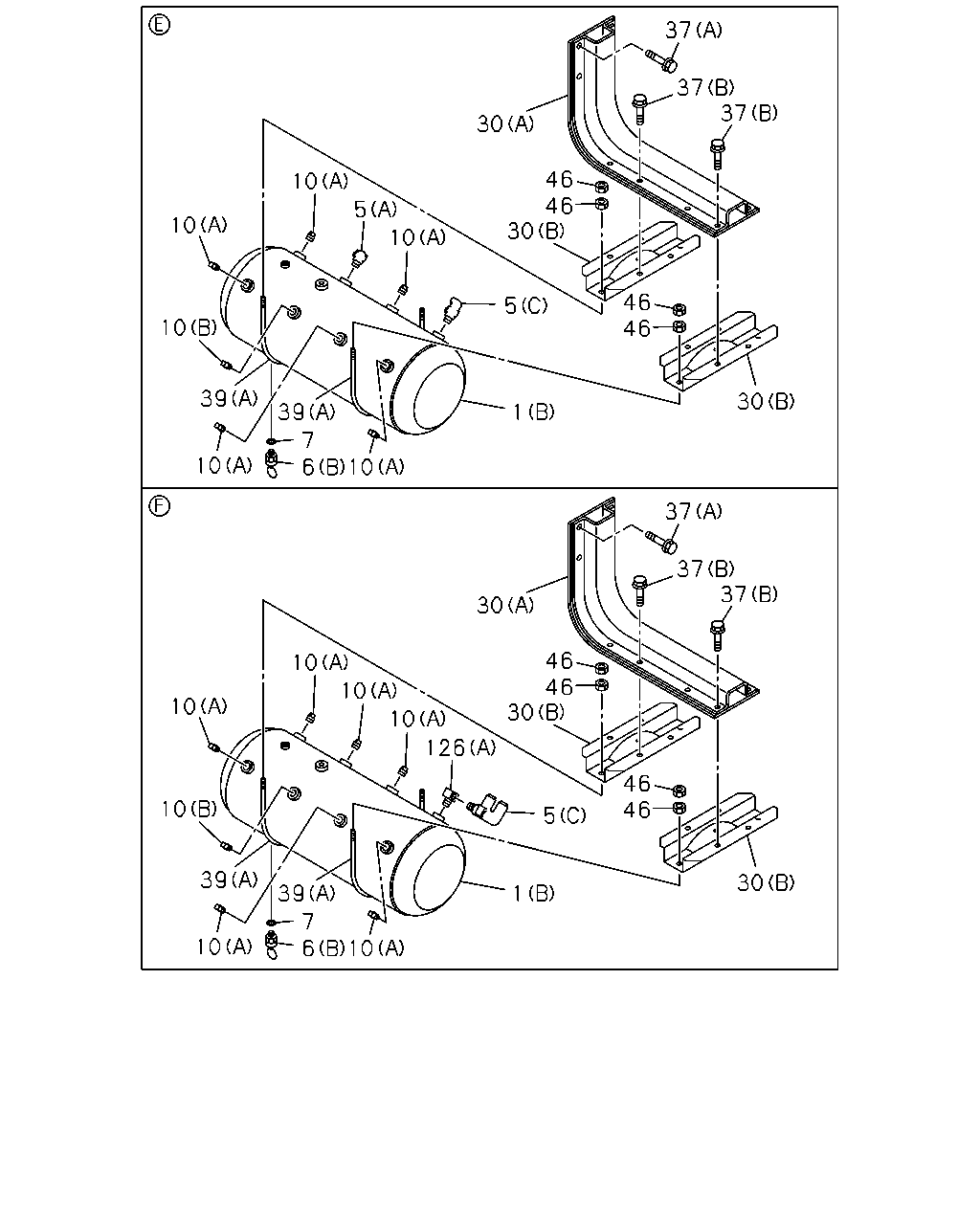

çizim 96648
37 37 37 46 30 46 30 5 10 5 10 10 10 39 6 7 39 10 10 1 30 46 46 37 37 37 30 46 46 30 126 10 10 10 10 10 39 39 7 6 10 10 1 30 46 46 5
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(B) 		8-98207-594-0 02 1 1203-
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1110-1202
1 TANK ASM; AIR
(A) 		8-98207-593-0 01 1 1203-
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1110-
1 TANK ASM; AIR
(B) 		8-98187-713-0 03 1 1110-1202
1 TANK ASM; AIR
(B) 		8-98207-594-0 01 1 1203-
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1110-
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1110-
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1110-
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 1110-
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 1110-
5 UNION; AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 02 1 1110-
5 UNION; AIR TANK
(D) DIN6 & R1/4 ELBOW THA 		1-09661-067-0 01 1 1110-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1110-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1110-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 04 1 1110-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1110-
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 02 1 1110-1202
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 01 1 1203-
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 03 1 1110-1202
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 10 1 1203-
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 14 1 1110-1202
10 PLUG; AIR TANK
(B) PT1/4 THA 		9-99204-513-0 03 1 1110-1202
10 PLUG; AIR TANK
(B) PT1/4 THA 		9-99204-513-0 01 1 1203-
10 PLUG; AIR TANK
(B) PT1/4 THA 		9-99204-513-0 01 1 1110-1202
10 PLUG; AIR TANK
(B) PT1/4 THA 		9-99204-513-0 01 1 1110-1202
30 BRACKET; AIR TANK,SUB
(A) THA 		8-98179-238-0 02 1 1110-
30 BRACKET; AIR TANK,SUB
(B) 		8-98179-239-0 04 1 1110-
37 BOLT; AIR TANK
(B) M10X25 FLANGE THA 		0-28651-025-0 16 1 1110-
37 BOLT; AIR TANK
(A) M10X40 FLANGE THA 		0-28651-040-0 08 1 1110-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1110-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 08 1 1110-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1110-
46 NUT; U-BOLT
M8 THA 		0-91110-508-0 40 1 1110-
46 NUT; U-BOLT
M8 THA 		0-91110-508-0 08 1 1110-
126 CONNECTOR; ELBOW
(A) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 01 1 1110-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1110-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1110-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1110-
126 CONNECTOR; ELBOW
(B) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1110-

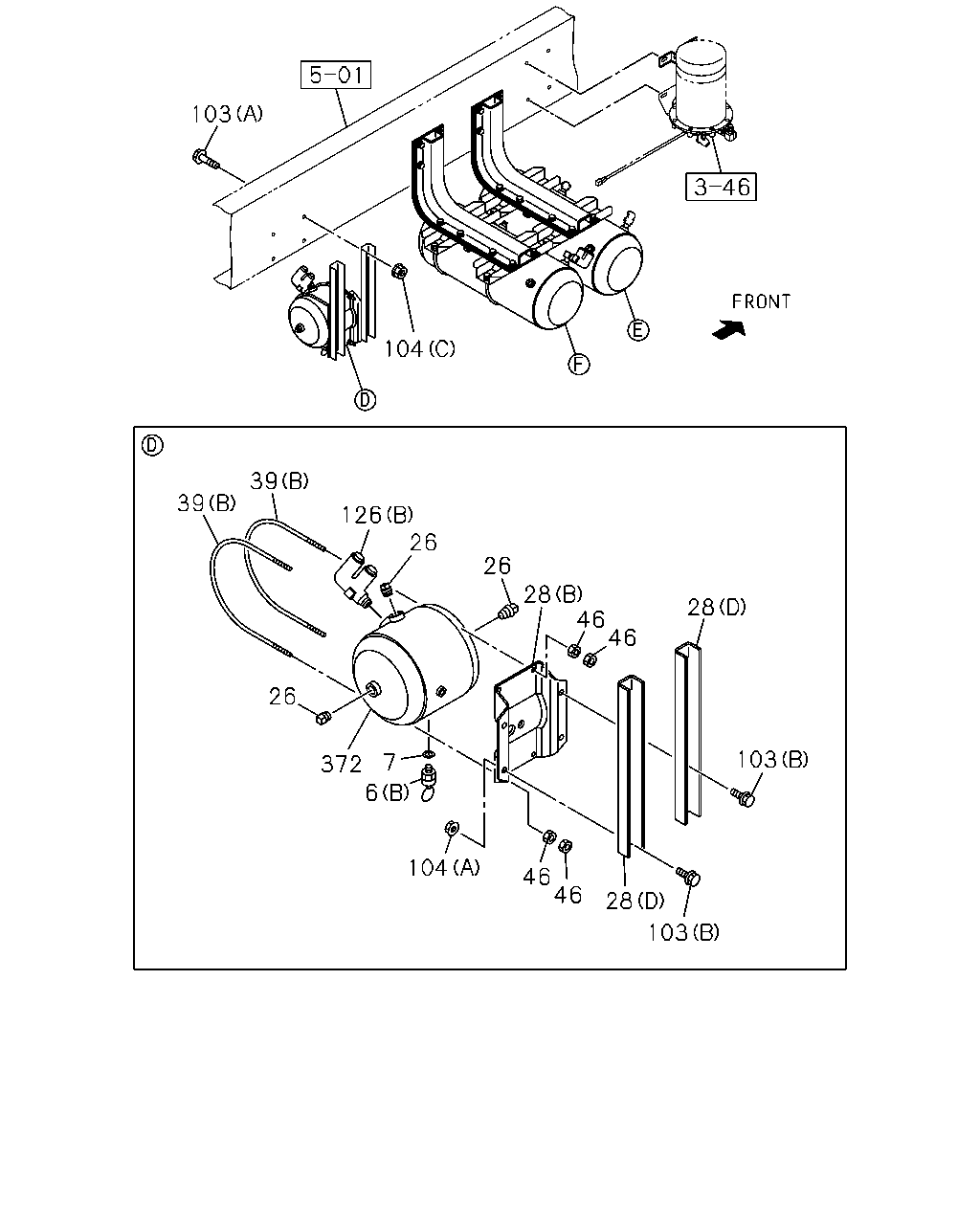

çizim 96798
104 103 126 26 26 28 46 46 103 28 103 28 46 46 104 6 372 26 7 39 39
BalonParca AdiParca NoAdetTipApplied Date
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1110-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1110-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 04 1 1110-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1110-
26 PLUG; SUB AIR TANK
PT3/8 THA 		9-09204-517-0 03 1 1110-
28 BRACKET; AIR TANK
(A) THA 		8-97618-088-1 01 1 1110-
28 BRACKET; AIR TANK
(B) IMA 		8-98092-756-1 01 1 1110-
28 BRACKET; AIR TANK
(C) THA 		8-98093-562-1 01 1 1110-
28 BRACKET; AIR TANK
(D) THA 		8-98100-973-1 02 1 1110-
28 BRACKET; AIR TANK
(E) THA 		8-98112-257-0 01 1 1110-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1110-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 08 1 1110-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1110-
46 NUT; U-BOLT
M8 THA 		0-91110-508-0 40 1 1110-
46 NUT; U-BOLT
M8 THA 		0-91110-508-0 08 1 1110-
103 BOLT; BRKT
(B) M10X25 FLANGE THA 		0-28651-025-0 04 1 1110-
103 BOLT; BRKT
(A) M12X40 FLANGE THA 		0-28651-240-0 04 1 1110-
104 NUT; BRKT
(A) M10 THA 		0-91110-510-0 04 1 1110-
104 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 01 1 1110-
104 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 01 1 1110-
104 NUT; BRKT
(C) M12 FLANGE THA 		0-91180-112-0 03 1 1110-
126 CONNECTOR; ELBOW
(A) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 01 1 1110-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1110-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1110-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1110-
126 CONNECTOR; ELBOW
(B) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1110-
372 TANK; AIR,ACCESORY 8-98090-803-1 01 1 1110-

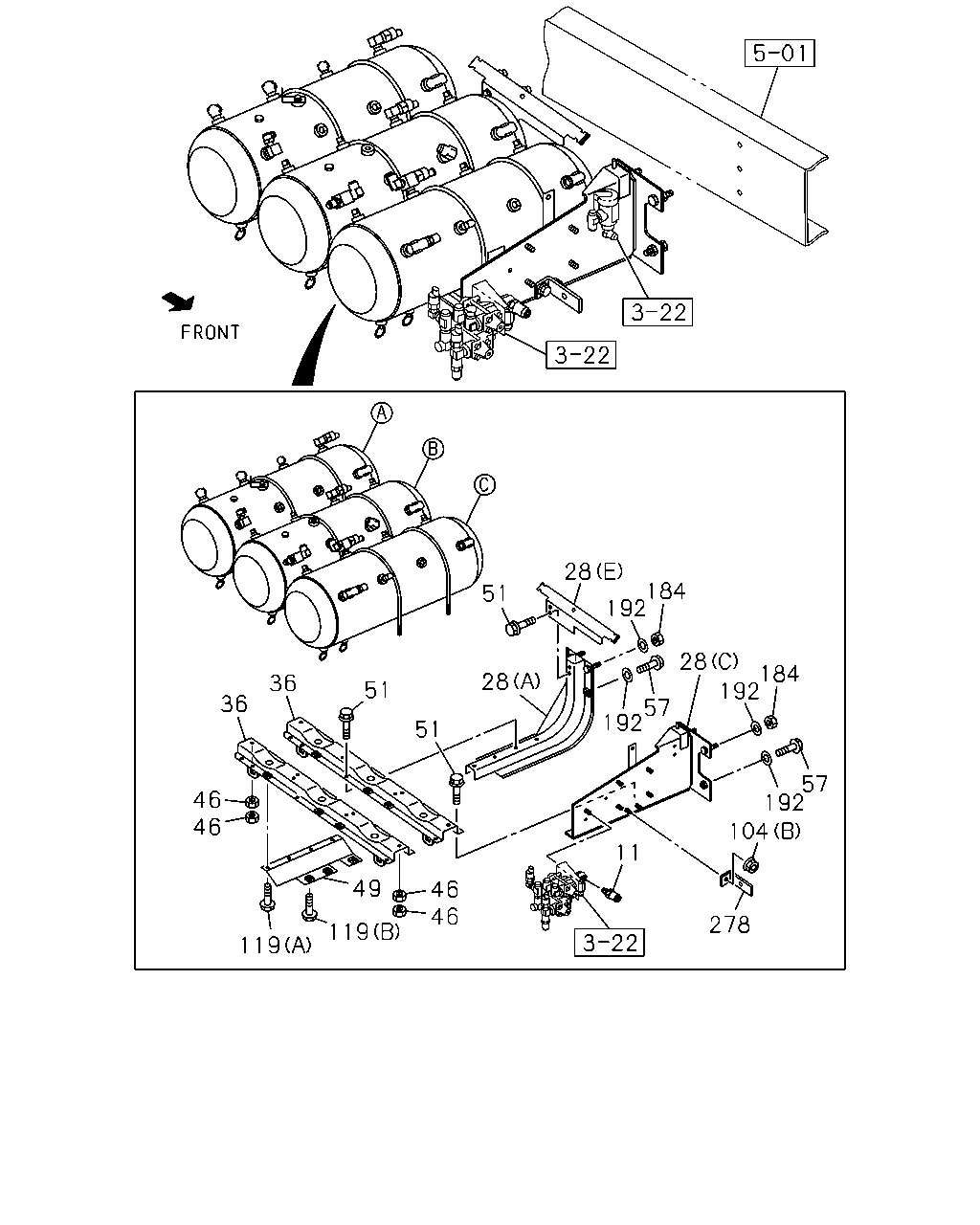

çizim 96816
28 184 192 51 28 28 184 192 57 192 51 51 36 36 46 46 119 49 119 46 46 11 278 104 57 192
BalonParca AdiParca NoAdetTipApplied Date
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 1110-
28 BRACKET; AIR TANK
(A) THA 		8-97618-088-1 01 1 1110-
28 BRACKET; AIR TANK
(B) IMA 		8-98092-756-1 01 1 1110-
28 BRACKET; AIR TANK
(C) THA 		8-98093-562-1 01 1 1110-
28 BRACKET; AIR TANK
(D) THA 		8-98100-973-1 02 1 1110-
28 BRACKET; AIR TANK
(E) THA 		8-98112-257-0 01 1 1110-
36 STAY; MAIN TANK
THA 		8-97618-091-1 02 1 1110-
46 NUT; U-BOLT
M8 THA 		0-91110-508-0 40 1 1110-
46 NUT; U-BOLT
M8 THA 		0-91110-508-0 08 1 1110-
49 BRACKET; AIR TANK
THA 		8-98110-683-0 01 1 1110-
51 BOLT; STAY TO BRKT
M8X20 FLANGE THA 		0-28650-820-0 10 1 1110-
57 BOLT; BRKT,AIR TANK TO FRAME
M14X45 		1-09000-764-0 04 1 1110-
104 NUT; BRKT
(A) M10 THA 		0-91110-510-0 04 1 1110-
104 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 01 1 1110-
104 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 01 1 1110-
104 NUT; BRKT
(C) M12 FLANGE THA 		0-91180-112-0 03 1 1110-
119 BOLT; STAY
(A) M8X20 FLANGE THA 		0-28650-820-0 04 1 1110-
119 BOLT; STAY
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1110-
184 NUT; BRKT
M14 		1-09440-072-0 04 1 1110-
192 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 1110-
278 BRACKET; CONNECTOR
L=75 		1-47478-323-0 01 1 1110-

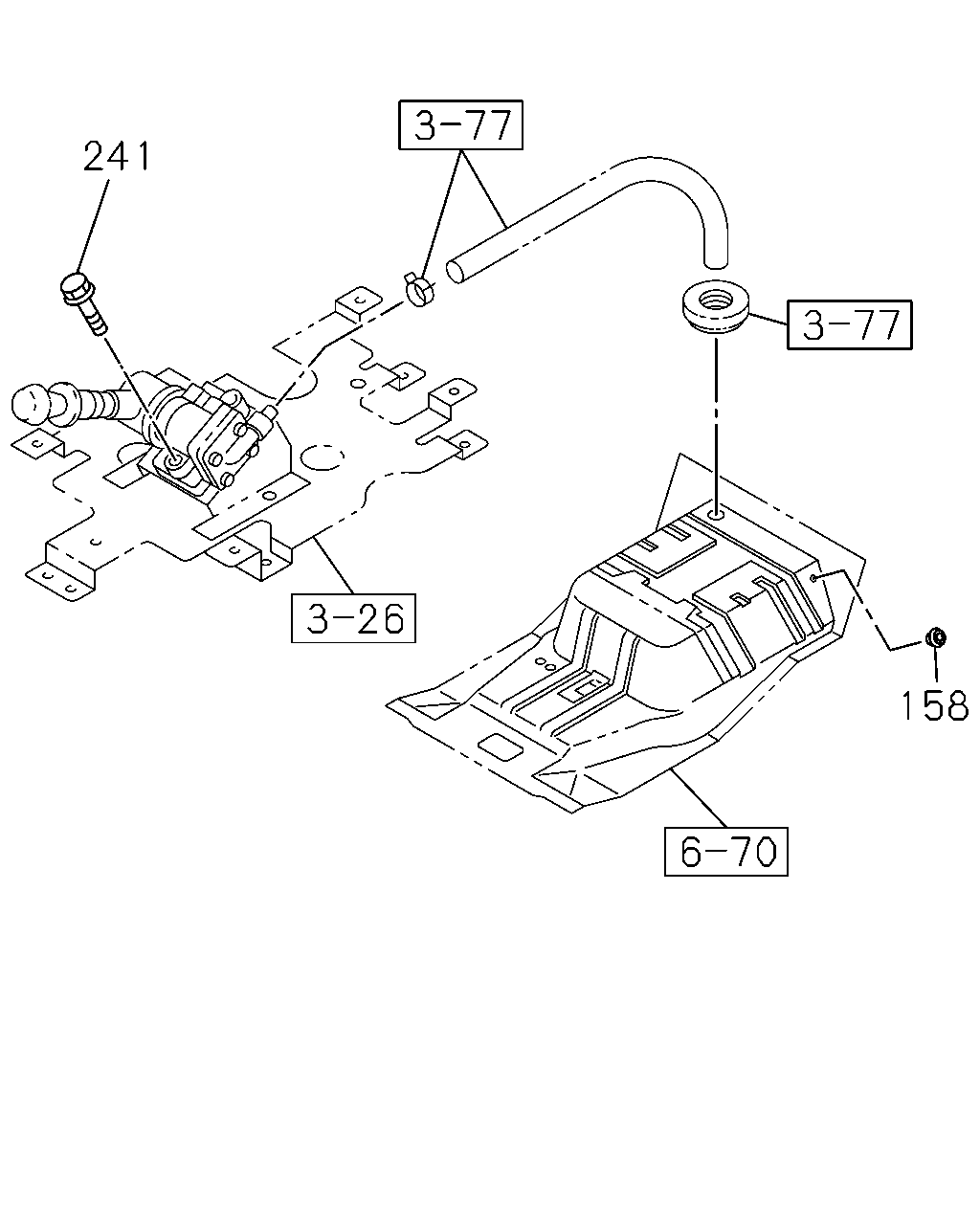

çizim 96971
158 241
BalonParca AdiParca NoAdetTipApplied Date
158 GROMMET; PIPE
OD=35 		8-94122-971-0 01 1 1110-
241 BOLT; SET,CONT VLV
M8X70 FLANGE THA 		0-28050-870-0 02 1 1110-

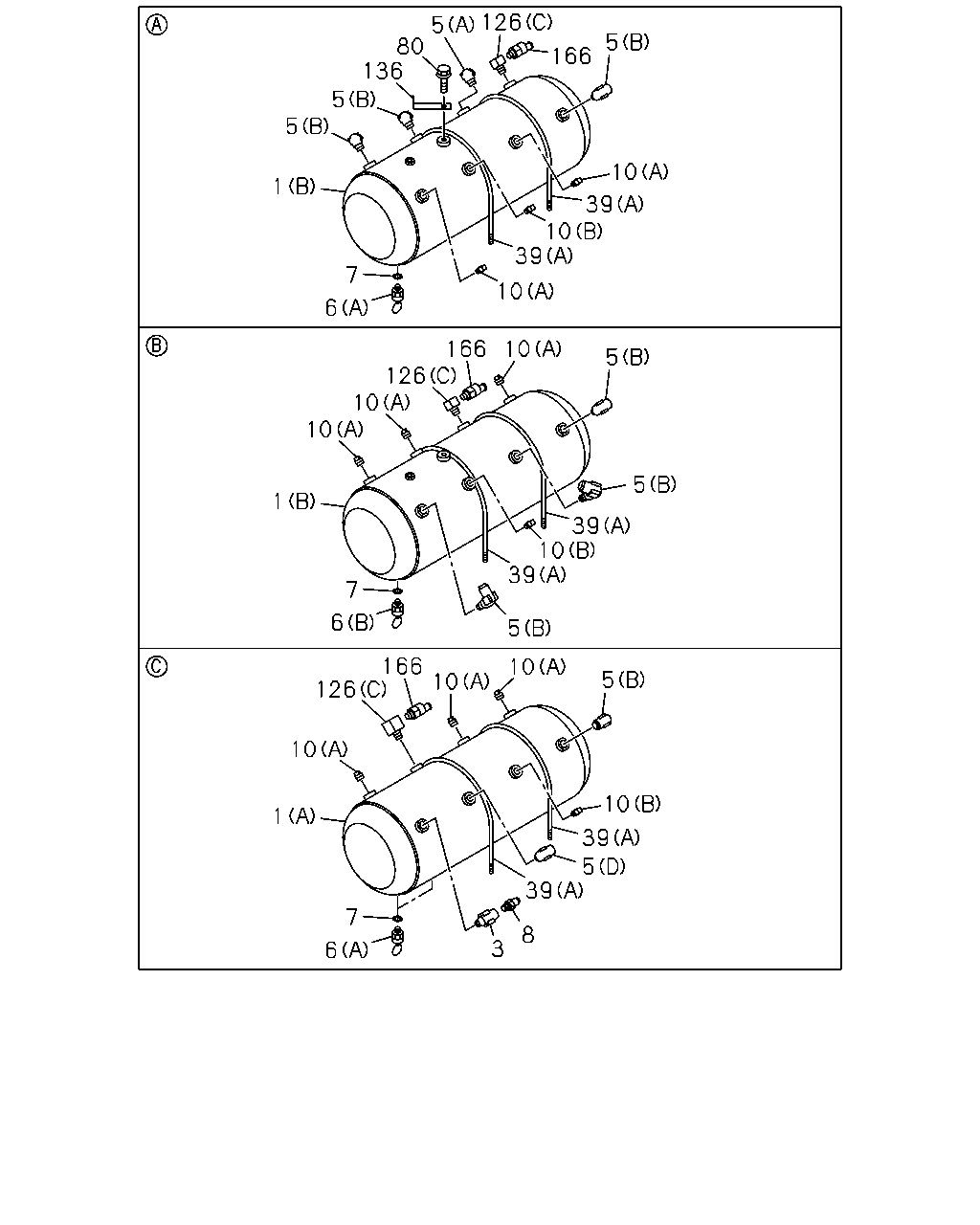

çizim 96972
5 166 126 5 80 136 5 5 1 7 6 10 39 10 39 10 5 5 39 10 39 5 166 126 10 10 10 1 7 6 126 10 1 7 6 3 39 8 5 10 39 5 10 10 166
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(B) 		8-98207-594-0 02 1 1203-
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1110-1202
1 TANK ASM; AIR
(A) 		8-98207-593-0 01 1 1203-
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1110-
1 TANK ASM; AIR
(B) 		8-98187-713-0 03 1 1110-1202
1 TANK ASM; AIR
(B) 		8-98207-594-0 01 1 1203-
3 VALVE; CHECK,AIR TANK
THA 		1-48320-031-1 01 1 1110-
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1110-
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1110-
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1110-
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 1110-
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 1110-
5 UNION; AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 02 1 1110-
5 UNION; AIR TANK
(D) DIN6 & R1/4 ELBOW THA 		1-09661-067-0 01 1 1110-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1110-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1110-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 04 1 1110-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1110-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1110-
8 CONNECTOR; AIR TANK
DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1110-
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 02 1 1110-1202
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 01 1 1203-
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 03 1 1110-1202
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 10 1 1203-
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 14 1 1110-1202
10 PLUG; AIR TANK
(B) PT1/4 THA 		9-99204-513-0 03 1 1110-1202
10 PLUG; AIR TANK
(B) PT1/4 THA 		9-99204-513-0 01 1 1203-
10 PLUG; AIR TANK
(B) PT1/4 THA 		9-99204-513-0 01 1 1110-1202
10 PLUG; AIR TANK
(B) PT1/4 THA 		9-99204-513-0 01 1 1110-1202
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1110-
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 08 1 1110-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1110-
80 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 1110-
126 CONNECTOR; ELBOW
(A) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 01 1 1110-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1110-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1110-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1110-
126 CONNECTOR; ELBOW
(B) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1110-
136 BRACKET; CLIP
L=60 H=30 		1-47477-716-1 01 1 1110-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 THA 		8-97609-249-0 01 1 1110-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 THA 		8-97609-249-0 01 1 1110-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 THA 		8-97609-249-0 01 1 1110-
