2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

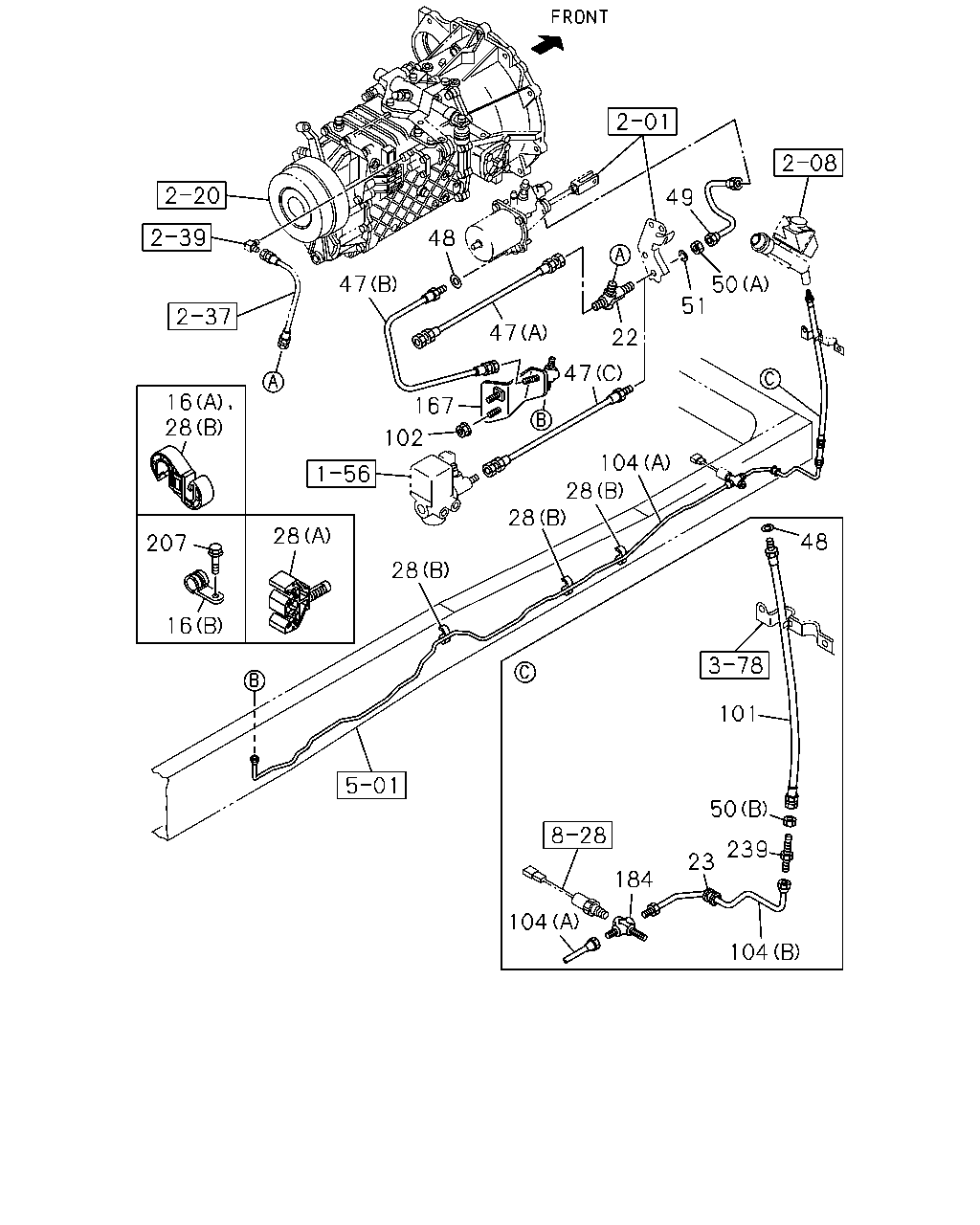

2-05 — CLUTCH PIPING
(#164567) — 24 parça
47
102
167
47
48
49
50
51
22
47
104
28
28
28
28
207
16
28
16
184
104
23
50
239
104
48
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; FLEX HOSE
(B) ID=15 L=28
1-09701-216-0
01
1
1505-
16
CLIP; FLEX HOSE
(A) ID=10 & 10
1-09709-277-1
01
1
1505-
16
CLIP; FLEX HOSE
(A) ID=10 & 12
1-09709-278-1
01
1
1505-
22
UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY
0-92138-706-0
01
1
1505-
23
GROMMET; CLU PIPE
ID=15 OD=20 T=17.5
1-09332-130-0
01
1
1505-
28
CLIP; OIL PIPE
(B) ID=6.35 & 10.0
1-09709-274-1
03
1
1505-
28
CLIP; OIL PIPE
(A)
8-98012-254-1
01
1
1505-
47
HOSE; FLEX,CLU CONT
(B) L=470
8-98072-353-0
01
1
1505-
47
HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=490
1-09363-966-0
01
1
1505-
47
HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=560
1-09363-654-0
01
1
1505-
48
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
9-09571-410-0
02
1
1505-
49
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=204
1-49117-400-0
01
1
1505-
50
NUT; UNION
(B) M12
0-91111-512-0
01
1
1505-
50
NUT; UNION
(A) M12
9-09840-280-0
01
1
1505-
51
WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=12.2 MAL
0-91510-812-0
01
1
1505-
51
WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2 MAL
0-91510-512-0
01
1
1505-
101
HOSE; FLEX,OIL PIPE TO OIL PIPE
L=500
8-98072-350-0
01
1
1505-
102
NUT; FLEX HOSE,CLU CONT
M10 FLANGE MAL
0-91180-210-0
02
1
1505-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2035 SERVICED BY L=2200
1-47428-740-0
01
1
1505-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336
8-98067-058-0
01
1
1505-
167
BRACKET; UNION
8-98286-892-0
01
1
1505-
184
UNION; FLEX HOSE
8-98150-865-0
01
1
1505-
207
BOLT; CLIP
M8X25 FLANGE MAL
0-28650-825-0
01
1
1505-
239
UNION; CLU HOSE
M12 L=66.5
0-92113-306-0
01
1
1505-
