◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11658 - FSS MALAYSIA ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#164560) — 185 parça

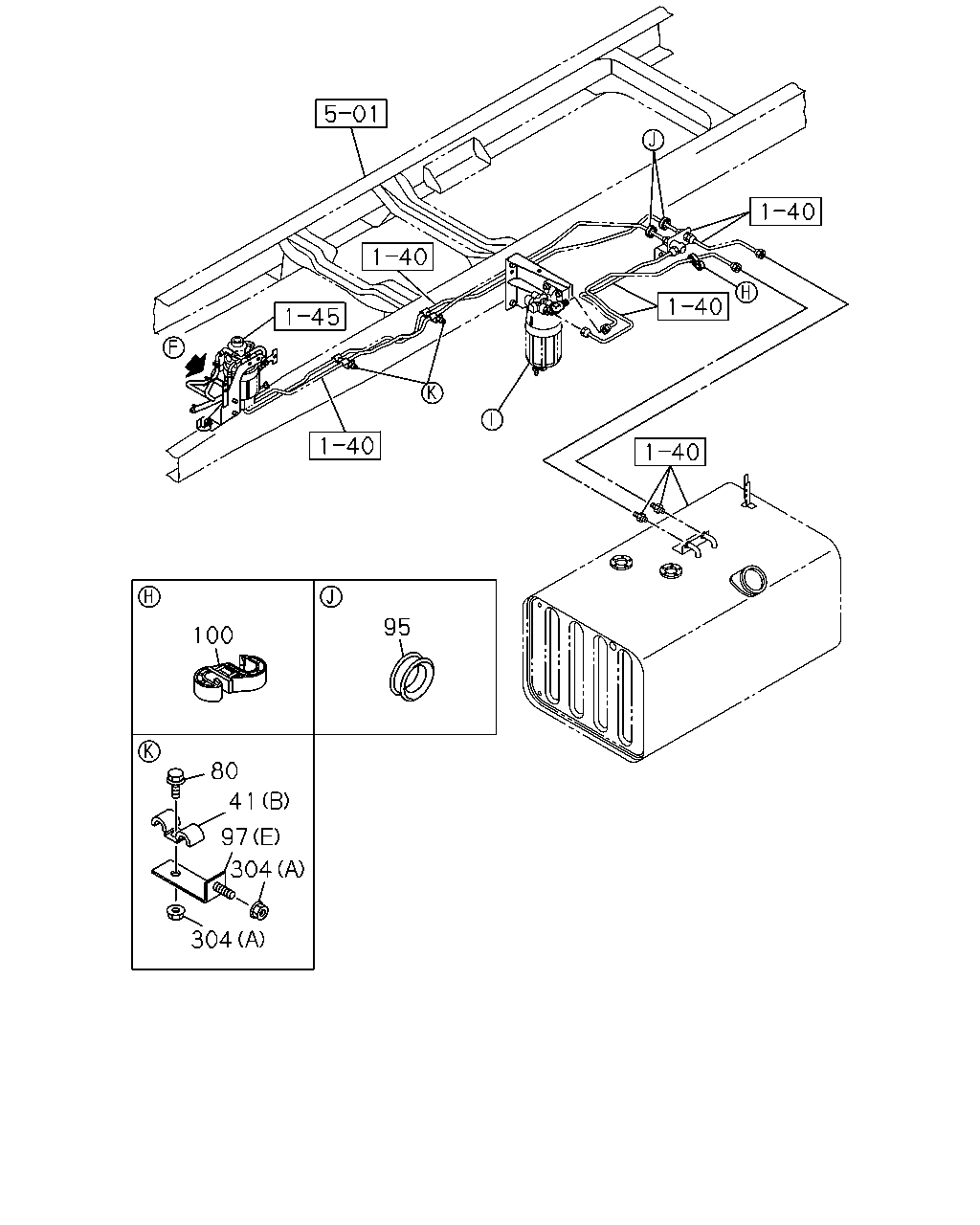

çizim 484211
95 100 80 41 97 304 304
BalonParca AdiParca NoAdetTipApplied Date
41 CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV> EXC. FUEL PIPE STEEL<E2N> (F) ID=16 		8-94238-568-0 04 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(E) ID=14 		1-09704-102-0 02 1 1505-1511
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N>,BIO DIESEL FUEL B10<8NV> (E) ID=14 		1-09704-102-0 04 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 02 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV> (F) ID=16 		8-94238-568-0 02 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=13 		8-94238-571-0 02 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (D) ID=13 		8-94238-571-0 02 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 04 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (E) ID=14 		1-09704-102-0 04 1 1505-1511
41 CLIP; FUEL PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV> (E) ID=14 		1-09704-102-0 02 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (A) L=250 		5-09707-030-1 02 1 1505-
80 BOLT; CLIP,FUEL TANK
FUEL PIPE STEEL<E2N> M8X20 FLANGE MAL 		0-28650-820-0 02 1 1505-
80 BOLT; CLIP,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE MAL 		0-28650-820-0 03 1 1505-
95 BUSHING; PIPE,FUEL TANK
FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17 		9-09956-256-2 02 1 1505-
97 BRACKET; CLIP
(E) 		8-98111-710-1 02 1 1505-
97 BRACKET; CLIP
(C) 		8-98234-127-0 01 1 1505-
97 BRACKET; CLIP
FUEL PIPE STEEL<E2N> (D) L=105 		1-47477-409-0 01 1 1505-
97 BRACKET; CLIP
EXC. FUEL PIPE STEEL<E2N> (B) 		8-98117-691-0 01 1 1505-
97 BRACKET; CLIP
EXC. FUEL PIPE STEEL<E2N> (A) 		8-98204-698-0 01 1 1505-
100 CLIP; FUEL PIPE
FUEL PIPE STEEL<E2N> ID=10 & 10 		1-09709-277-1 01 1 1505-
304 NUT; BRKT
(A) M8 FLANGE MAL 		0-91180-108-0 01 1 1505-
304 NUT; BRKT
(A) M8 FLANGE MAL 		0-91180-108-0 02 1 1505-
304 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 02 1 1505-
304 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 02 1 1505-

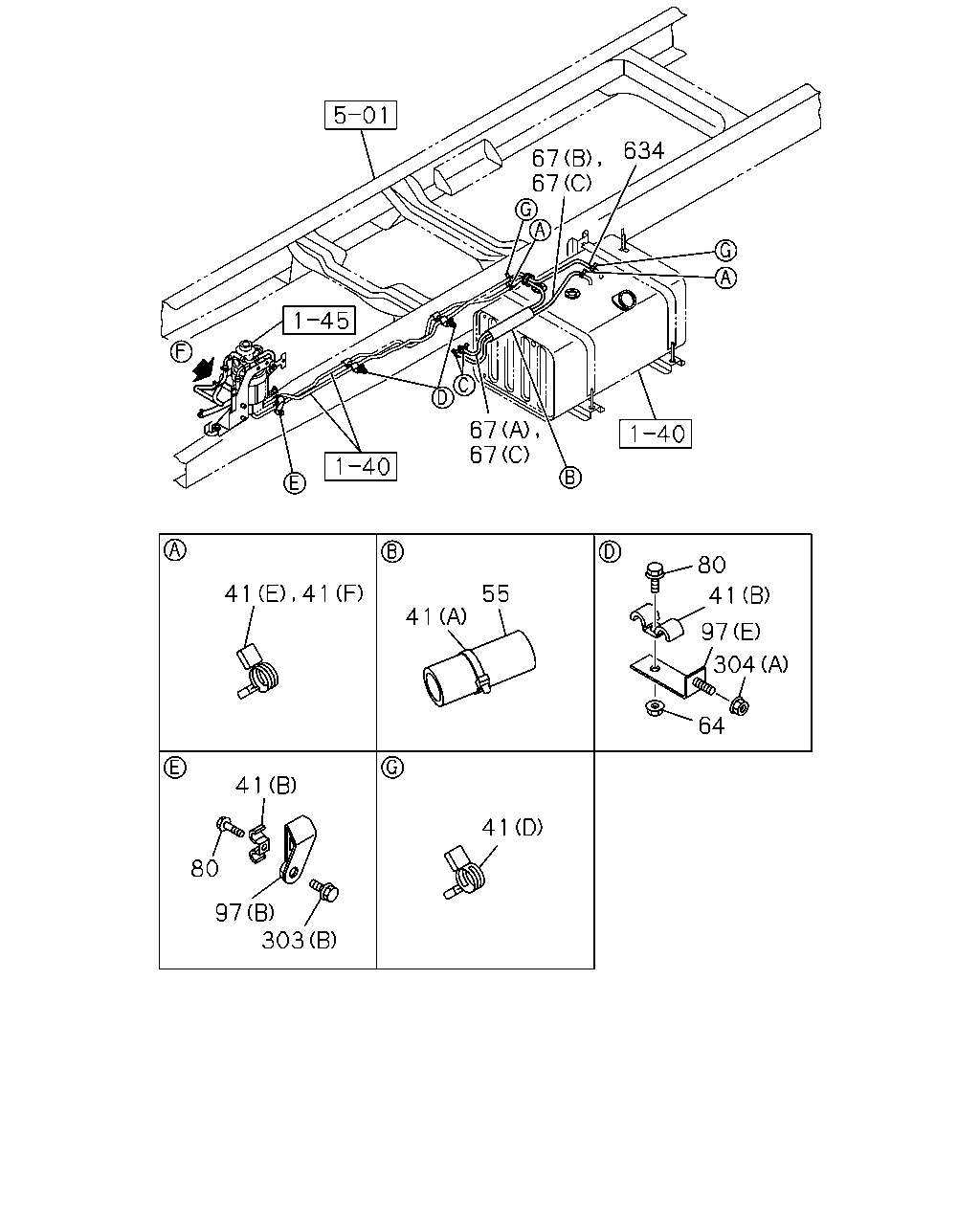

çizim 484217
67 67 634 67 41 67 41 41 80 55 41 97 304 64 41 303 97 80 41
BalonParca AdiParca NoAdetTipApplied Date
41 CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV> EXC. FUEL PIPE STEEL<E2N> (F) ID=16 		8-94238-568-0 04 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(E) ID=14 		1-09704-102-0 02 1 1505-1511
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N>,BIO DIESEL FUEL B10<8NV> (E) ID=14 		1-09704-102-0 04 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 02 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV> (F) ID=16 		8-94238-568-0 02 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=13 		8-94238-571-0 02 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (D) ID=13 		8-94238-571-0 02 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 04 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (E) ID=14 		1-09704-102-0 04 1 1505-1511
41 CLIP; FUEL PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV> (E) ID=14 		1-09704-102-0 02 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (A) L=250 		5-09707-030-1 02 1 1505-
55 COVER; PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> L=250 SERVICED BY L=1300 		1-09360-677-1 01 1 1505-1511
55 COVER; PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV> L=250 SERVICED BY L=1300 		1-09360-677-1 01 1 1512-
64 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 03 1 1505-
64 NUT; CLIP
FUEL PIPE STEEL<E2N> M8 FLANGE MAL 		0-91180-108-0 01 1 1505-
64 NUT; CLIP
EXC. FUEL PIPE STEEL<E2N> M8 FLANGE MAL 		0-91180-108-0 02 1 1505-
67 HOSE; FUEL,DELIVERY
BIO DIESEL FUEL B10<8NV> EXC. FUEL PIPE STEEL<E2N> (C) 		8-98330-228-0 02 1 1512-
67 HOSE; FUEL,DELIVERY
EXC. FUEL PIPE STEEL<E2N> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 1505-1511
67 HOSE; FUEL,DELIVERY
EXC. FUEL PIPE STEEL<E2N>,BIO DIESEL FUEL B10<8NV> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 1512-
67 HOSE; FUEL,DELIVERY
EXC. FUEL PIPE STEEL<E2N> (B) L=1100 SERVICED BY L=3000 		0-01260-300-0 01 1 1505-1511
67 HOSE; FUEL,DELIVERY
EXC. FUEL PIPE STEEL<E2N>,BIO DIESEL FUEL B10<8NV> (B) L=1100 SERVICED BY L=3000 		0-01260-300-0 01 1 1512-
80 BOLT; CLIP,FUEL TANK
FUEL PIPE STEEL<E2N> M8X20 FLANGE MAL 		0-28650-820-0 02 1 1505-
80 BOLT; CLIP,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE MAL 		0-28650-820-0 03 1 1505-
97 BRACKET; CLIP
(E) 		8-98111-710-1 02 1 1505-
97 BRACKET; CLIP
(C) 		8-98234-127-0 01 1 1505-
97 BRACKET; CLIP
FUEL PIPE STEEL<E2N> (D) L=105 		1-47477-409-0 01 1 1505-
97 BRACKET; CLIP
EXC. FUEL PIPE STEEL<E2N> (B) 		8-98117-691-0 01 1 1505-
97 BRACKET; CLIP
EXC. FUEL PIPE STEEL<E2N> (A) 		8-98204-698-0 01 1 1505-
303 BOLT; BRKT
(A) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1505-
303 BOLT; BRKT
(A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1505-
303 BOLT; BRKT
(C) M10X35 FLANGE MAL 		0-28651-035-0 02 1 1505-
303 BOLT; BRKT
EXC. FUEL PIPE STEEL<E2N> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1505-
304 NUT; BRKT
(A) M8 FLANGE MAL 		0-91180-108-0 01 1 1505-
304 NUT; BRKT
(A) M8 FLANGE MAL 		0-91180-108-0 02 1 1505-
304 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 02 1 1505-
304 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 02 1 1505-
634 HOSE; RUBBER RETURN
BIO DIESEL FUEL B10<8NV> EXC. FUEL PIPE STEEL<E2N> SERVICED BY L=3000 		0-01558-300-0 01 1 1512-
634 HOSE; RUBBER RETURN
EXC. FUEL PIPE STEEL<E2N> L=450 SERVICED BY L=3000 		0-01558-300-0 01 1 1505-1511
634 HOSE; RUBBER RETURN
EXC. FUEL PIPE STEEL<E2N>,BIO DIESEL FUEL B10<8NV> L=450 SERVICED BY L=3000 		0-01558-300-0 01 1 1512-

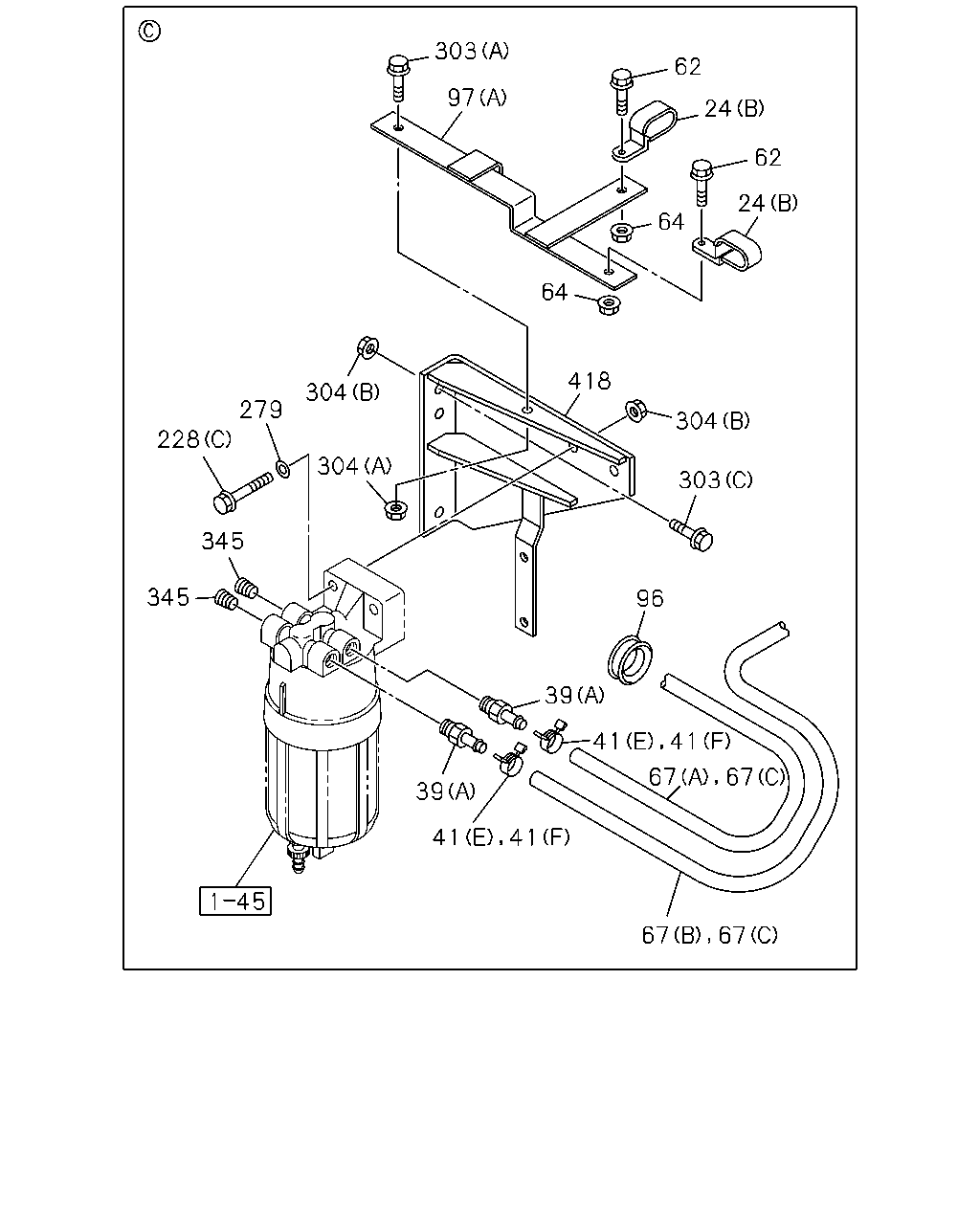

çizim 484218
303 97 62 24 62 24 64 64 418 304 303 96 39 39 41 41 41 41 67 67 304 304 279 228 345 345 67 67
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
BIO DIESEL FUEL B10<8NV> EXC. FUEL PIPE STEEL<E2N> (B) ID=24X2 L=35 		1-09701-121-0 02 1 1512-
24 CLIP; FUEL HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1505-
24 CLIP; FUEL HOSE
EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20 		1-09700-744-0 02 1 1505-1511
24 CLIP; FUEL HOSE
EXC. FUEL PIPE STEEL<E2N>,BIO DIESEL FUEL B10<8NV> (B) ID=14X29 H=15 L=20 		1-09700-744-0 02 1 1512-
39 PIPE; FUEL
(A) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1505-
39 PIPE; FUEL
FUEL PIPE STEEL<E2N> (B) M16 & PT3/8 STRAIGHT 		1-09650-233-1 01 1 1505-
39 PIPE; FUEL
FUEL PIPE STEEL<E2N> (C) M16 & NPTF3/8 ELBOW 		1-09650-447-0 01 1 1505-
39 PIPE; FUEL
FUEL PIPE STEEL<E2N> (D) NPTF3/8 & RC3/8 		1-09660-548-0 01 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV> EXC. FUEL PIPE STEEL<E2N> (F) ID=16 		8-94238-568-0 04 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(E) ID=14 		1-09704-102-0 02 1 1505-1511
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N>,BIO DIESEL FUEL B10<8NV> (E) ID=14 		1-09704-102-0 04 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 02 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV> (F) ID=16 		8-94238-568-0 02 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=13 		8-94238-571-0 02 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (D) ID=13 		8-94238-571-0 02 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 04 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (E) ID=14 		1-09704-102-0 04 1 1505-1511
41 CLIP; FUEL PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV> (E) ID=14 		1-09704-102-0 02 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (A) L=250 		5-09707-030-1 02 1 1505-
62 BOLT; CLIP FIX
EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE MAL 		0-28050-816-0 02 1 1505-
64 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 03 1 1505-
64 NUT; CLIP
FUEL PIPE STEEL<E2N> M8 FLANGE MAL 		0-91180-108-0 01 1 1505-
64 NUT; CLIP
EXC. FUEL PIPE STEEL<E2N> M8 FLANGE MAL 		0-91180-108-0 02 1 1505-
67 HOSE; FUEL,DELIVERY
BIO DIESEL FUEL B10<8NV> EXC. FUEL PIPE STEEL<E2N> (C) 		8-98330-228-0 02 1 1512-
67 HOSE; FUEL,DELIVERY
EXC. FUEL PIPE STEEL<E2N> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 1505-1511
67 HOSE; FUEL,DELIVERY
EXC. FUEL PIPE STEEL<E2N>,BIO DIESEL FUEL B10<8NV> (A) L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 1512-
67 HOSE; FUEL,DELIVERY
EXC. FUEL PIPE STEEL<E2N> (B) L=1100 SERVICED BY L=3000 		0-01260-300-0 01 1 1505-1511
67 HOSE; FUEL,DELIVERY
EXC. FUEL PIPE STEEL<E2N>,BIO DIESEL FUEL B10<8NV> (B) L=1100 SERVICED BY L=3000 		0-01260-300-0 01 1 1512-
96 GROMMET; PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N>,BIO DIESEL FUEL B10<8NV> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1512-
96 GROMMET; PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1505-1511
96 GROMMET; PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV> EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17 		9-09956-256-2 02 1 1512-
97 BRACKET; CLIP
(E) 		8-98111-710-1 02 1 1505-
97 BRACKET; CLIP
(C) 		8-98234-127-0 01 1 1505-
97 BRACKET; CLIP
FUEL PIPE STEEL<E2N> (D) L=105 		1-47477-409-0 01 1 1505-
97 BRACKET; CLIP
EXC. FUEL PIPE STEEL<E2N> (B) 		8-98117-691-0 01 1 1505-
97 BRACKET; CLIP
EXC. FUEL PIPE STEEL<E2N> (A) 		8-98204-698-0 01 1 1505-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1505-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE MAL 		0-28051-050-0 02 1 1505-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE MAL 		0-28650-820-0 02 1 1505-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1505-
303 BOLT; BRKT
(A) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1505-
303 BOLT; BRKT
(A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1505-
303 BOLT; BRKT
(C) M10X35 FLANGE MAL 		0-28651-035-0 02 1 1505-
303 BOLT; BRKT
EXC. FUEL PIPE STEEL<E2N> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1505-
304 NUT; BRKT
(A) M8 FLANGE MAL 		0-91180-108-0 01 1 1505-
304 NUT; BRKT
(A) M8 FLANGE MAL 		0-91180-108-0 02 1 1505-
304 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 02 1 1505-
304 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 02 1 1505-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1505-
418 BRACKET; PRE FUEL FILTER 8-98136-381-0 01 1 1505-

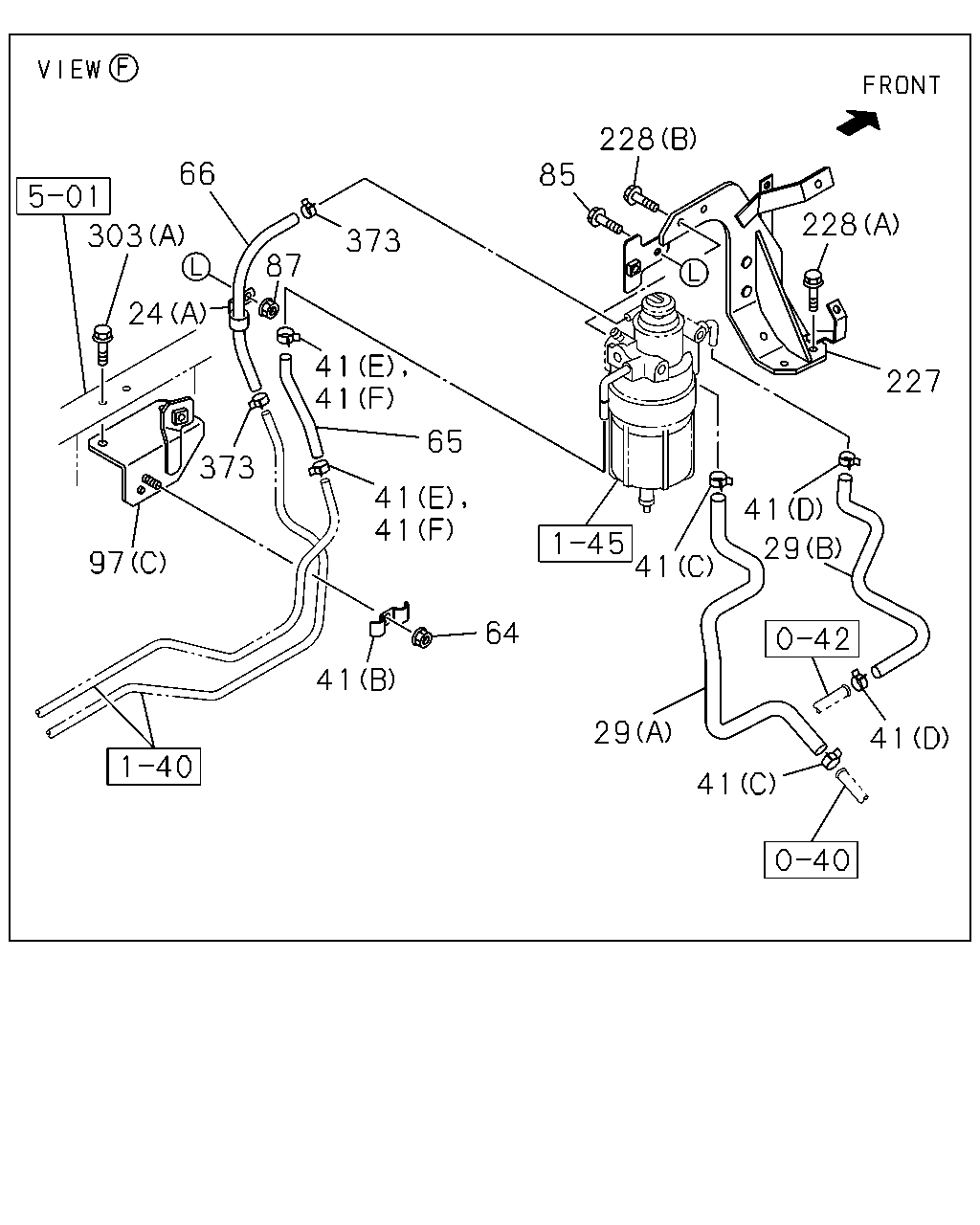

çizim 484220
228 227 41 41 41 29 41 64 41 41 41 65 41 41 373 87 66 303 24 373 97 228 85 29
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
BIO DIESEL FUEL B10<8NV> EXC. FUEL PIPE STEEL<E2N> (B) ID=24X2 L=35 		1-09701-121-0 02 1 1512-
24 CLIP; FUEL HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1505-
24 CLIP; FUEL HOSE
EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20 		1-09700-744-0 02 1 1505-1511
24 CLIP; FUEL HOSE
EXC. FUEL PIPE STEEL<E2N>,BIO DIESEL FUEL B10<8NV> (B) ID=14X29 H=15 L=20 		1-09700-744-0 02 1 1512-
29 HOSE; FUEL
BIO DIESEL FUEL B10<8NV> (A) 		8-98329-937-0 01 1 1512-
29 HOSE; FUEL
(A) ID=9.3 		8-98239-029-0 01 1 1505-1511
29 HOSE; FUEL
EXC. BIO DIESEL FUEL B10<8NV> (A) ID=9.3 		8-98239-029-0 01 1 1512-
29 HOSE; FUEL
(B) ID=7.5 		8-98239-030-0 01 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV> EXC. FUEL PIPE STEEL<E2N> (F) ID=16 		8-94238-568-0 04 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(E) ID=14 		1-09704-102-0 02 1 1505-1511
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N>,BIO DIESEL FUEL B10<8NV> (E) ID=14 		1-09704-102-0 04 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 02 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
BIO DIESEL FUEL B10<8NV> (F) ID=16 		8-94238-568-0 02 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=13 		8-94238-571-0 02 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (D) ID=13 		8-94238-571-0 02 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 04 1 1505-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (E) ID=14 		1-09704-102-0 04 1 1505-1511
41 CLIP; FUEL PIPE,FUEL TANK
EXC. BIO DIESEL FUEL B10<8NV> (E) ID=14 		1-09704-102-0 02 1 1512-
41 CLIP; FUEL PIPE,FUEL TANK
EXC. FUEL PIPE STEEL<E2N> (A) L=250 		5-09707-030-1 02 1 1505-
64 NUT; CLIP
M8 FLANGE MAL 		0-91180-108-0 03 1 1505-
64 NUT; CLIP
FUEL PIPE STEEL<E2N> M8 FLANGE MAL 		0-91180-108-0 01 1 1505-
64 NUT; CLIP
EXC. FUEL PIPE STEEL<E2N> M8 FLANGE MAL 		0-91180-108-0 02 1 1505-
65 HOSE; FUEL,DELIVERY PIPE
BIO DIESEL FUEL B10<8NV> L=190 SERVICED BY L=3000 		0-01859-300-0 01 1 1512-
65 HOSE; FUEL,DELIVERY PIPE
L=190 SERVICED BY L=3000 		0-01260-300-0 01 1 1505-1511
65 HOSE; FUEL,DELIVERY PIPE
EXC. BIO DIESEL FUEL B10<8NV> L=190 SERVICED BY L=3000 		0-01260-300-0 01 1 1512-
66 HOSE; FUEL,RETURN PIPE
L=310 		0-01508-310-0 01 1 1505-
85 BOLT; CLIP,FUEL HOSE
M8X20 FLANGE MAL 		0-28650-820-0 01 1 1505-
87 NUT; CLIP,FUEL HOSE
M8 FLANGE MAL 		0-91180-108-0 01 1 1505-
97 BRACKET; CLIP
(E) 		8-98111-710-1 02 1 1505-
97 BRACKET; CLIP
(C) 		8-98234-127-0 01 1 1505-
97 BRACKET; CLIP
FUEL PIPE STEEL<E2N> (D) L=105 		1-47477-409-0 01 1 1505-
97 BRACKET; CLIP
EXC. FUEL PIPE STEEL<E2N> (B) 		8-98117-691-0 01 1 1505-
97 BRACKET; CLIP
EXC. FUEL PIPE STEEL<E2N> (A) 		8-98204-698-0 01 1 1505-
227 BRACKET; FUEL SEDIMENTER 8-98130-667-0 01 1 1505-1506
227 BRACKET; FUEL SEDIMENTER 8-98208-173-0 01 1 1507-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1505-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE MAL 		0-28051-050-0 02 1 1505-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE MAL 		0-28650-820-0 02 1 1505-
303 BOLT; BRKT
(A) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1505-
303 BOLT; BRKT
(A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1505-
303 BOLT; BRKT
(C) M10X35 FLANGE MAL 		0-28651-035-0 02 1 1505-
303 BOLT; BRKT
EXC. FUEL PIPE STEEL<E2N> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1505-
373 CLAMP; HOSE,FUEL
ID=13 		8-94238-571-0 02 1 1505-

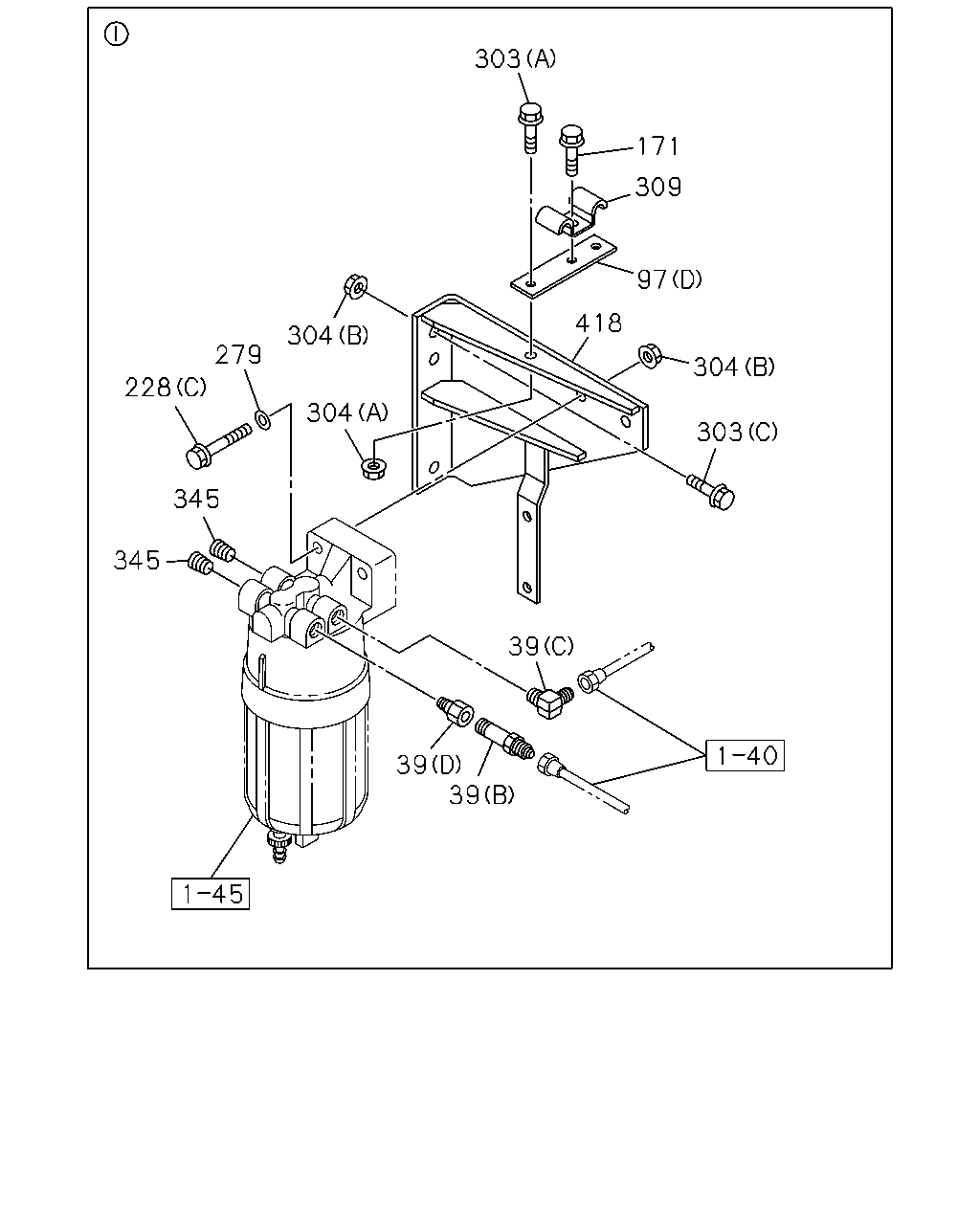

çizim 484221
303 171 309 97 418 304 303 39 39 39 345 345 228 279 304 304
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
(A) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1505-
39 PIPE; FUEL
FUEL PIPE STEEL<E2N> (B) M16 & PT3/8 STRAIGHT 		1-09650-233-1 01 1 1505-
39 PIPE; FUEL
FUEL PIPE STEEL<E2N> (C) M16 & NPTF3/8 ELBOW 		1-09650-447-0 01 1 1505-
39 PIPE; FUEL
FUEL PIPE STEEL<E2N> (D) NPTF3/8 & RC3/8 		1-09660-548-0 01 1 1505-
97 BRACKET; CLIP
(E) 		8-98111-710-1 02 1 1505-
97 BRACKET; CLIP
(C) 		8-98234-127-0 01 1 1505-
97 BRACKET; CLIP
FUEL PIPE STEEL<E2N> (D) L=105 		1-47477-409-0 01 1 1505-
97 BRACKET; CLIP
EXC. FUEL PIPE STEEL<E2N> (B) 		8-98117-691-0 01 1 1505-
97 BRACKET; CLIP
EXC. FUEL PIPE STEEL<E2N> (A) 		8-98204-698-0 01 1 1505-
171 BOLT; CLIP
FUEL PIPE STEEL<E2N> M8X16 FLANGE MAL 		0-28050-816-0 01 1 1505-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1505-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE MAL 		0-28051-050-0 02 1 1505-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE MAL 		0-28650-820-0 02 1 1505-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1505-
303 BOLT; BRKT
(A) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1505-
303 BOLT; BRKT
(A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1505-
303 BOLT; BRKT
(C) M10X35 FLANGE MAL 		0-28651-035-0 02 1 1505-
303 BOLT; BRKT
EXC. FUEL PIPE STEEL<E2N> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1505-
304 NUT; BRKT
(A) M8 FLANGE MAL 		0-91180-108-0 01 1 1505-
304 NUT; BRKT
(A) M8 FLANGE MAL 		0-91180-108-0 02 1 1505-
304 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 02 1 1505-
304 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 02 1 1505-
309 CLIP; PIPE
FUEL PIPE STEEL<E2N> ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1505-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1505-
418 BRACKET; PRE FUEL FILTER 8-98136-381-0 01 1 1505-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
