Isuzu WW
▶
TRUCKS
▶
FSS
▶
11658 - FSS MALAYSIA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#164554) — 45 parça
◀

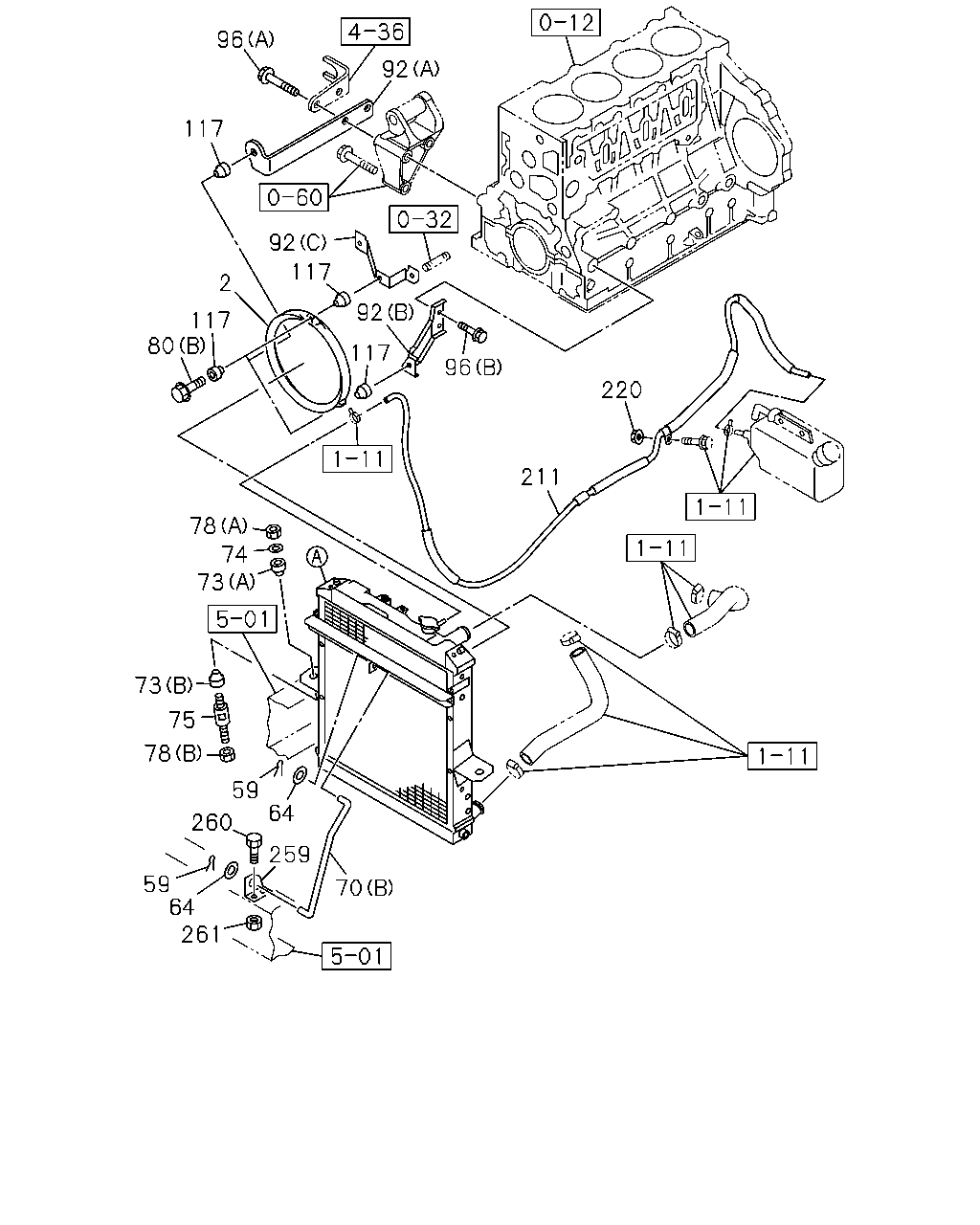

[110A] NO.1 (24 parça)

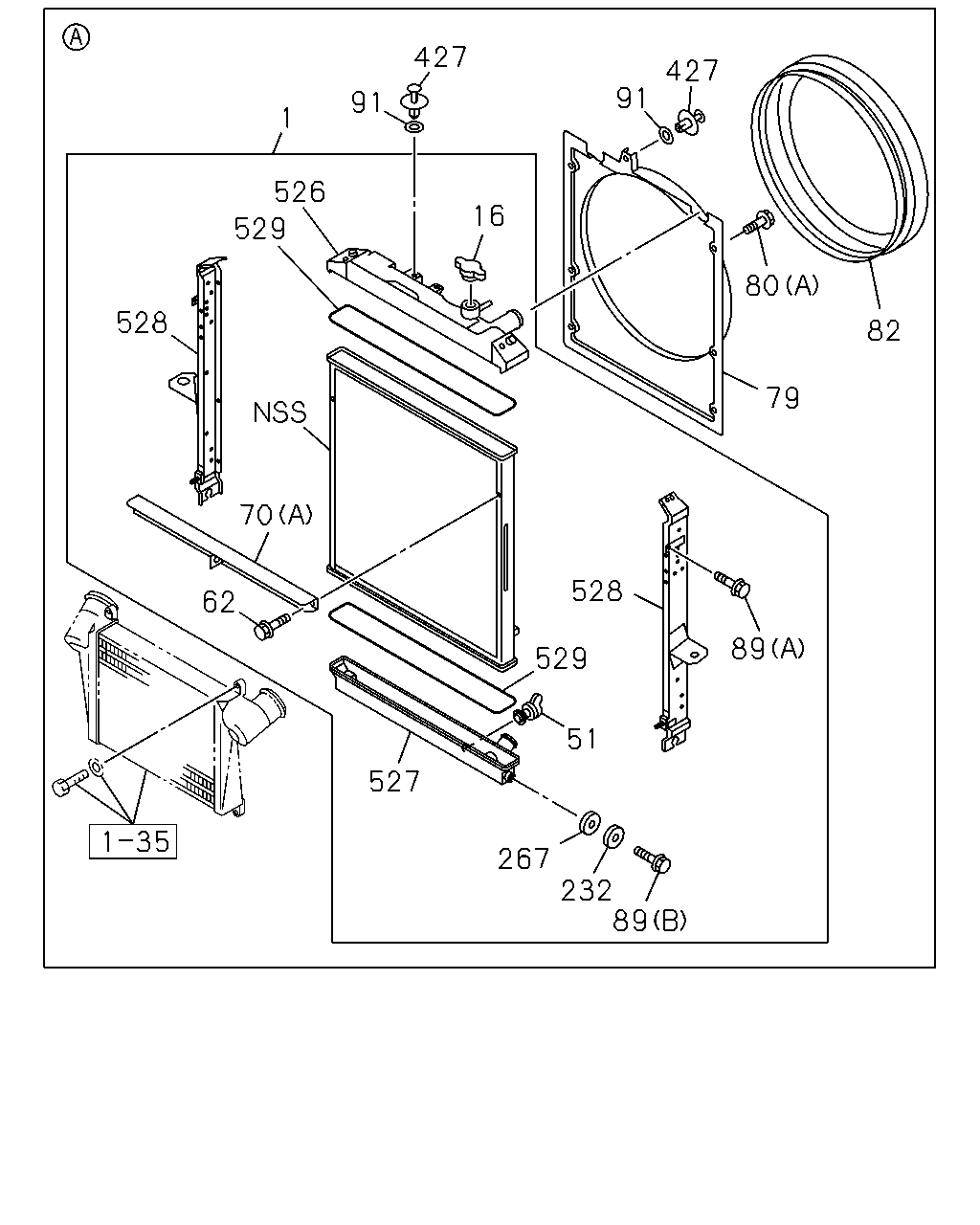

[110A] NO.2 (21 parça)
▶
96
117
2
117
80
78
74
73
73
75
78
59
260
59
64
261
70
259
64
211
220
96
117
92
117
92
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-97350-995-0
01
1
1505-
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1505-
64
WASHER; STAY TO RAD
ID=10.5
0-91610-510-0
02
1
1505-
70
STAY; RAD
(B)
8-98010-657-0
01
1
1505-
70
STAY; RAD
(A)
8-98018-941-0
01
1
1505-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1505-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1505-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1505-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1505-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE MAL
0-91180-210-0
02
1
1505-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE MAL
0-91180-212-0
02
1
1505-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1505-
80
BOLT; FAN GUIDE
(A) M6X16
1-21559-481-0
04
1
1505-
92
BRACKET; FAN GUIDE
(A)
8-97350-997-0
01
1
1505-
92
BRACKET; FAN GUIDE
(C)
8-97382-827-2
01
1
1505-
92
BRACKET; FAN GUIDE
(B)
8-97386-233-0
01
1
1505-
96
BOLT; STAY FIX
(B) M10X20 FLANGE
0-28151-020-0
02
1
1505-
96
BOLT; STAY FIX
(A) M10X75 FLANGE
8-94399-669-1
02
1
1505-
117
RUBBER; MTG,FAN GUIDE
1-09337-027-0
06
1
1505-
211
HOSE; RAD TO PIPE
8-98208-885-2
01
1
1505-
220
NUT; CLIP
M8 FLANGE MAL
0-91180-108-0
01
1
1505-
259
BRACKET; RAD STAY
8-98208-883-0
01
1
1505-
260
BOLT; BRKT
M8X20 FLANGE MAL
0-28650-820-0
02
1
1505-
261
NUT; BRKT
M8 FLANGE MAL
0-91180-108-0
02
1
1505-
1
526
529
528
70
62
527
529
528
51
267
232
89
89
79
80
82
91
16
91
427
427
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98208-849-0
01
1
1505-
16
CAP; RAD
8-98096-226-0
01
1
1505-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1505-
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1505-
70
STAY; RAD
(B)
8-98010-657-0
01
1
1505-
70
STAY; RAD
(A)
8-98018-941-0
01
1
1505-
79
GUIDE; FAN,RAD
8-98010-297-0
01
1
1505-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1505-
80
BOLT; FAN GUIDE
(A) M6X16
1-21559-481-0
04
1
1505-
82
COVER; FAN,RAD
8-98006-478-0
01
1
1505-
89
BOLT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1505-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
02
1
1505-
91
WASHER; PL
1-21469-111-0
02
1
1505-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
02
1
1505-
267
RUBBER; CUSHION
1-21467-023-0
02
1
1505-
427
CLIP; FAN GUIDE
1-09470-009-0
02
1
1505-
526
TANK; UPR,RADIATOR CORE
8-98107-793-0
01
1
1505-
527
TANK; LWR,RADIATOR CORE
8-98032-433-1
01
1
1505-
528
PLATE; SIDE,RADIATOR CORE
8-98208-850-0
01
1
1505-
528
PLATE; SIDE,RADIATOR CORE
8-98208-851-0
01
1
1505-
529
GASKET; CORE,RADIATOR
8-98032-435-0
02
1
1505-
