Isuzu WW
▶
TRUCKS
▶
FSS
▶
11658 - FSS MALAYSIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#164547) — 31 parça
◀

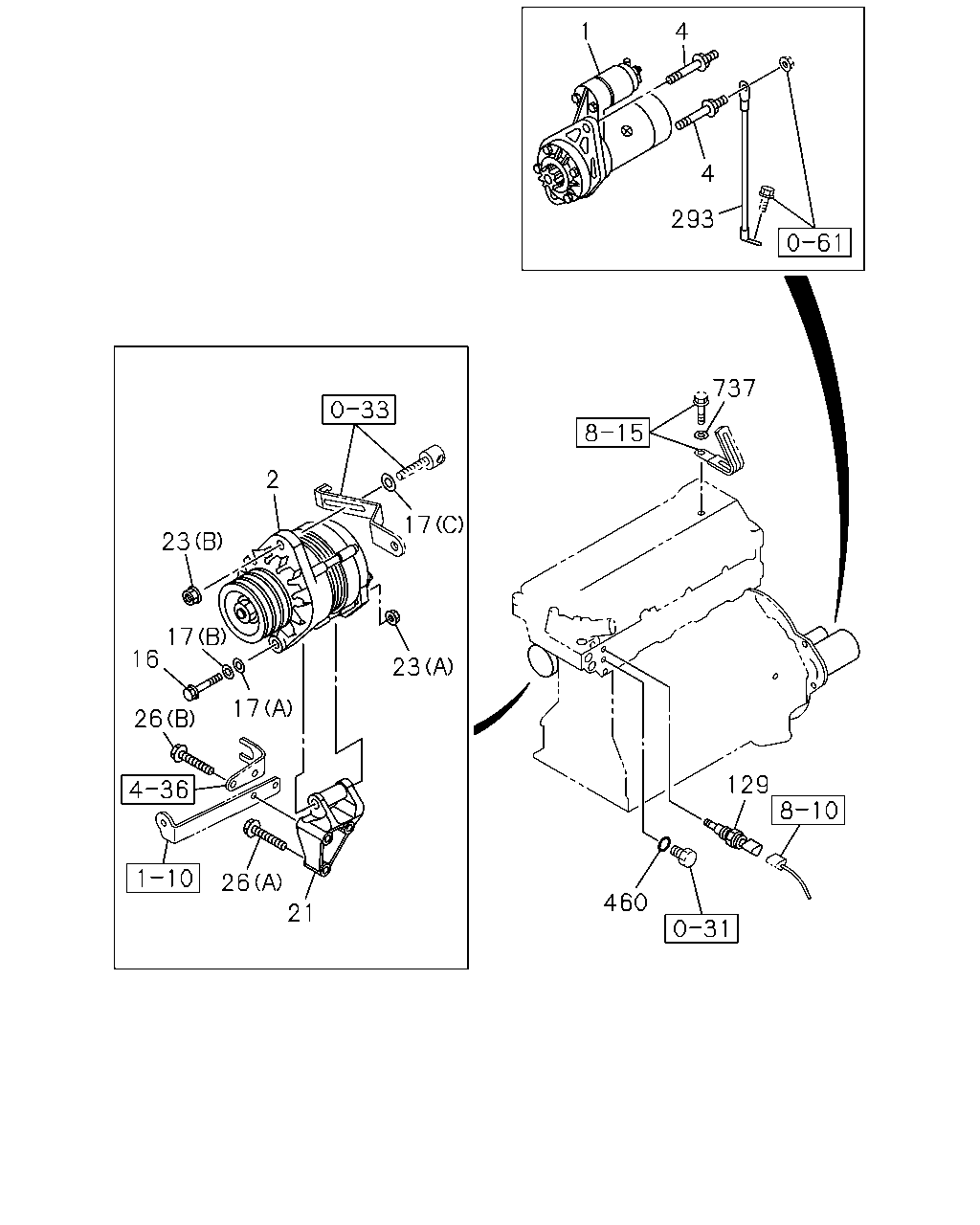

[060A] STARTER AND GENERATOR (18 parça)

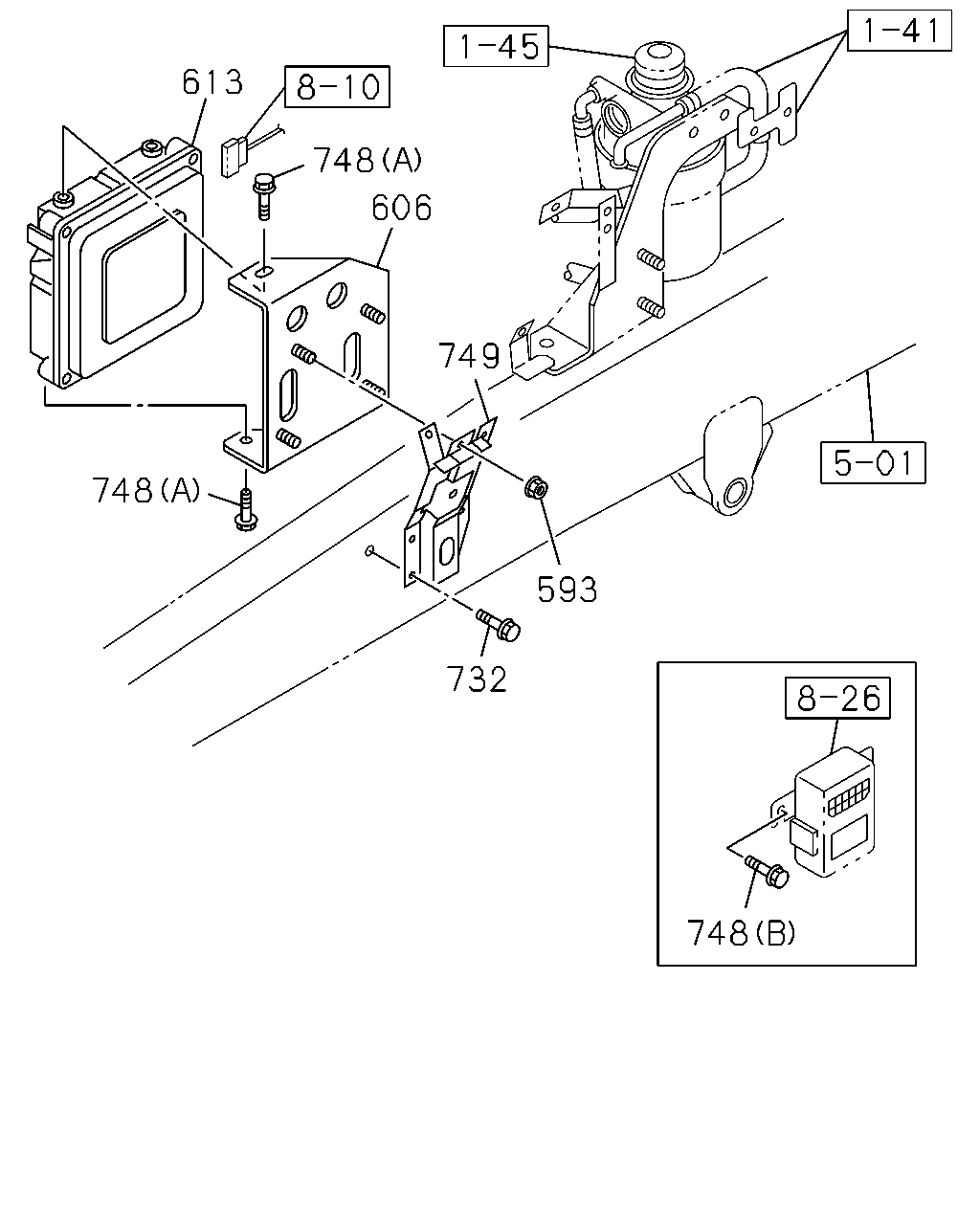

[060A] CONTROL UNIT AND DRM (7 parça)

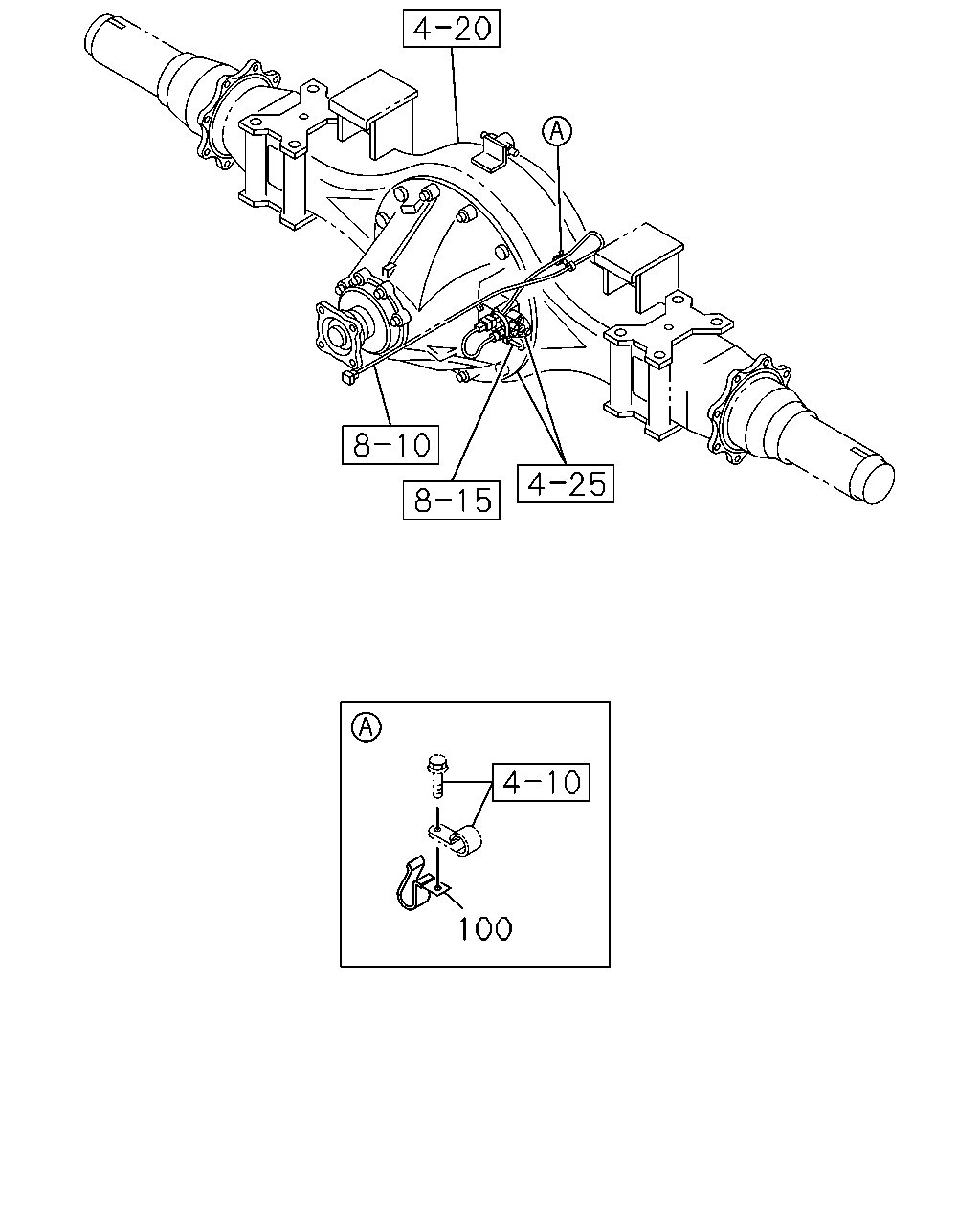

[060A] HARNESS CLIP (1 parça)
[060A] SPEED SENSOR CAP (1 parça)

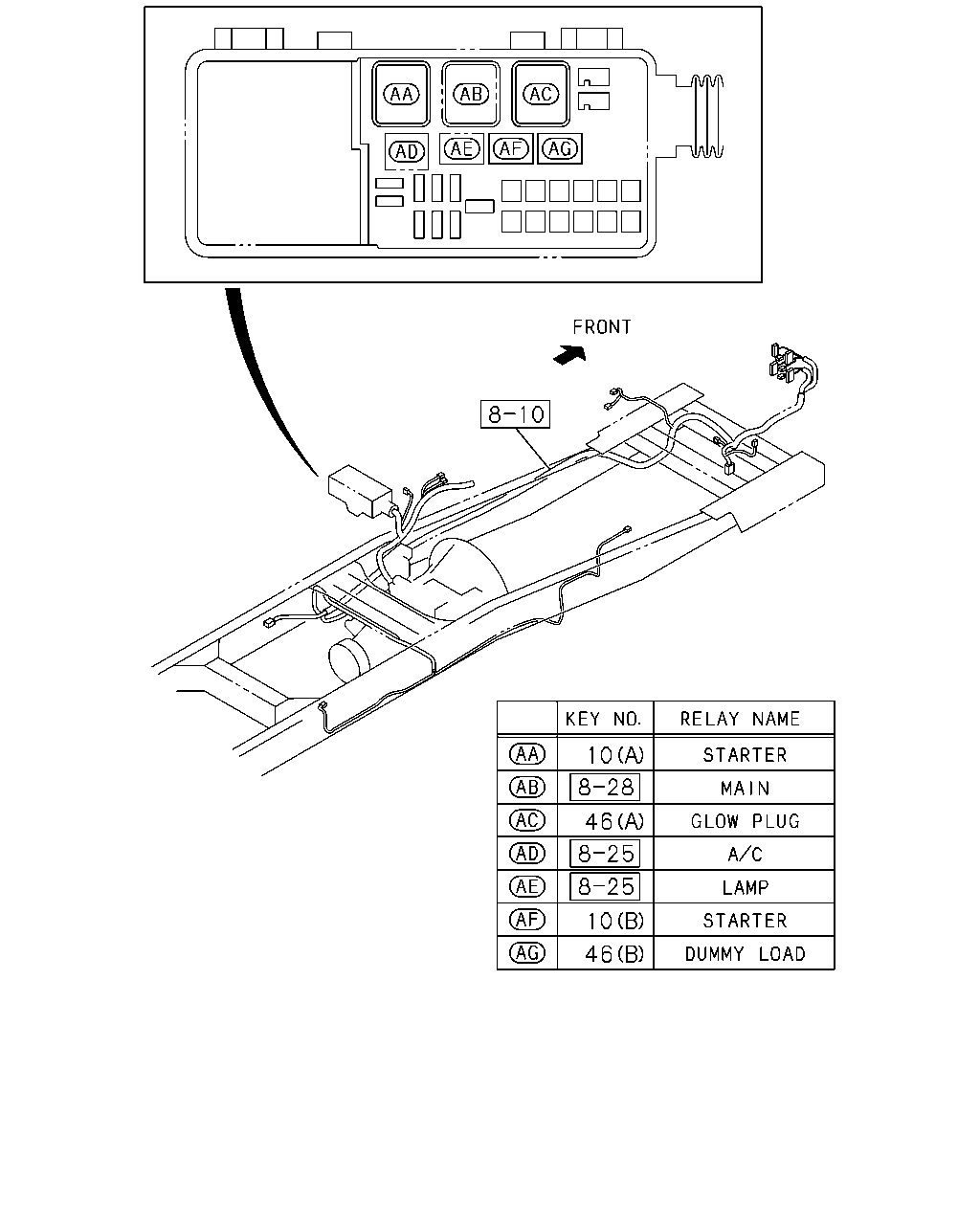

[060A] RELAY (4 parça)
▶
293
4
4
1
737
2
17
23
23
17
16
26
17
26
21
129
460
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI
8-98245-260-1
01
1
1505-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO
8-98013-455-4
01
1
1505-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO
8-98013-456-4
01
1
1505-
4
BOLT; STARTER
M10X15,M14X82 L=110
8-98029-095-0
02
1
1505-
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
1505-
17
WASHER; PL,GEN
(B) ID=14.2 MAL
0-91510-814-0
01
1
1505-
17
WASHER; PL,GEN
(A) ID=15
0-91610-514-0
01
1
1505-
17
WASHER; PL,GEN
(C) ID=12.5 OD=32
9-09160-712-0
01
1
1505-
21
BRACKET; GEN
8-97381-404-0
01
1
1505-
23
NUT; GEN
(A) M14 MAL
0-91110-514-0
01
1
1505-
23
NUT; GEN
(B) M12 FLANGE MAL
0-91180-112-0
01
1
1505-
26
BOLT; GEN BRKT
(A) M10X50 FLANGE
0-28151-050-0
01
1
1505-
26
BOLT; GEN BRKT
(B) M10X70 FLANGE
0-28151-070-0
02
1
1505-
129
SENSOR; GLOW PLUG,THERMO
NISHIDA
8-98260-257-0
01
1
1505-
293
CABLE; STARTER EARTH
8-97618-304-0
01
1
1505-
460
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2
1-09630-086-0
01
1
1505-
737
WASHER; PL
ID=6.4 OD=18
0-91610-706-0
02
1
1505-
737
WASHER; PL
ID=9 OD=18 T=5
9-14149-173-0
01
1
1505-
613
748
749
748
732
593
606
748
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
593
NUT; BRKT
M6 FLANGE MAL
0-91180-106-0
04
1
1505-
606
BRACKET; CONT UNIT
1-53194-675-0
01
1
1505-
613
CONTROL UNIT; ENG
8-98081-130-4
01
1
1505-
732
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
03
1
1505-
748
BOLT; CONT UNIT
(A) M6X12 FLANGE MAL
0-28050-612-0
03
1
1505-
748
BOLT; CONT UNIT
(B) M6X16 FLANGE MAL
0-28650-616-0
02
1
1505-
749
STAY; CONT UNIT
1-53194-596-3
01
1
1505-
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
CLIP; HARNESS
ID=10 L=25
8-94208-375-0
01
1
1505-
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
65
PLUG; SENSOR HOLE
1-83129-133-0
01
1
1505-
10
46
10
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
(A) 24V 50A
8-97264-947-0
01
1
1505-
10
RELAY; STARTER
(B) 24V 10A PANASONIC
8-98167-173-0
01
1
1505-
46
RELAY; GLOW PLUG
(A) 24V 50A
8-97173-947-0
01
1
1505-
46
RELAY; GLOW PLUG
LAMPS EXP PACKAGE<WL5> (B) 24V 10A PANASONIC MAL
8-97173-035-1
01
1
1505-
