◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11629 - FRR RHD EUROPE EURO6 SPACECAB EVSC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#164504) — 100 parça

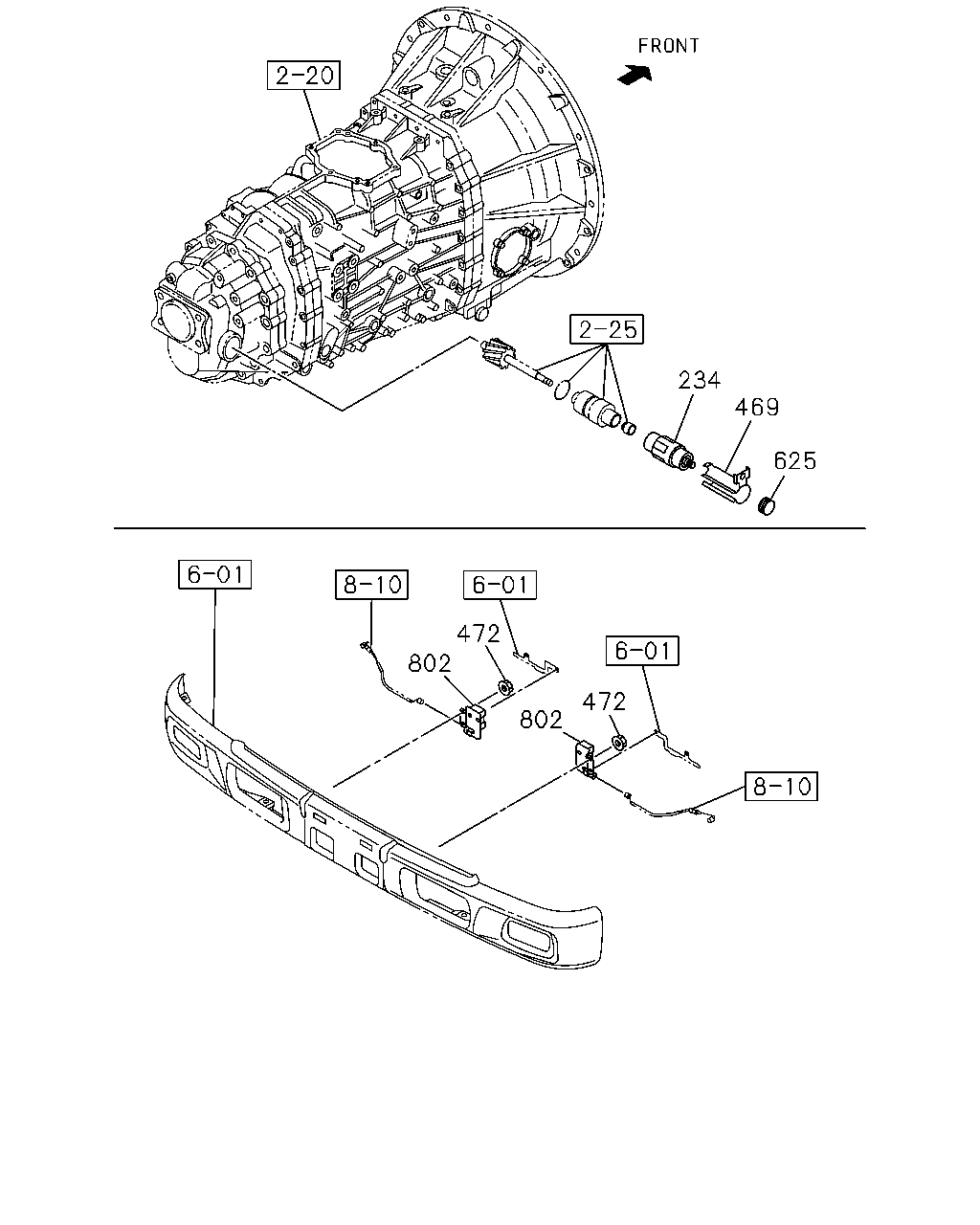

çizim 484044
234 625 469 472 802 472 802
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
TRANSMISSION CONTROL-SMOOTHER(8GF) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1507-
469 PROTECTOR; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-901-0 01 1 1507-1508
469 PROTECTOR; SPEED SENSOR
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98119-901-0 01 1 1509-
472 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 04 1 1507-
625 CAP; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-83129-133-0 01 1 1507-
802 RESISTOR; DAYTIME RUNNING LP 8-98225-338-1 02 1 1507-
çizim 484435
587 396 587 814 813 621 803 803
BalonParca AdiParca NoAdetTipApplied Date
396 BRACKET 8-98301-125-0 01 1 1507-
587 SCREW; CAMERA
(A) M6X16 		0-52000-616-0 02 1 1507-
587 SCREW; CAMERA
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1507-
621 SCREW
M4X8 		0-36230-408-0 02 1 1507-
803 COVER; CAMERA 8-97466-328-1 01 1 1507-
803 COVER; CAMERA 8-97466-358-2 01 1 1507-
813 CAMERA ASM 8-98318-101-0 01 1 1507-
814 BRACKET ASM; CAMERA 8-98301-124-0 01 1 1507-

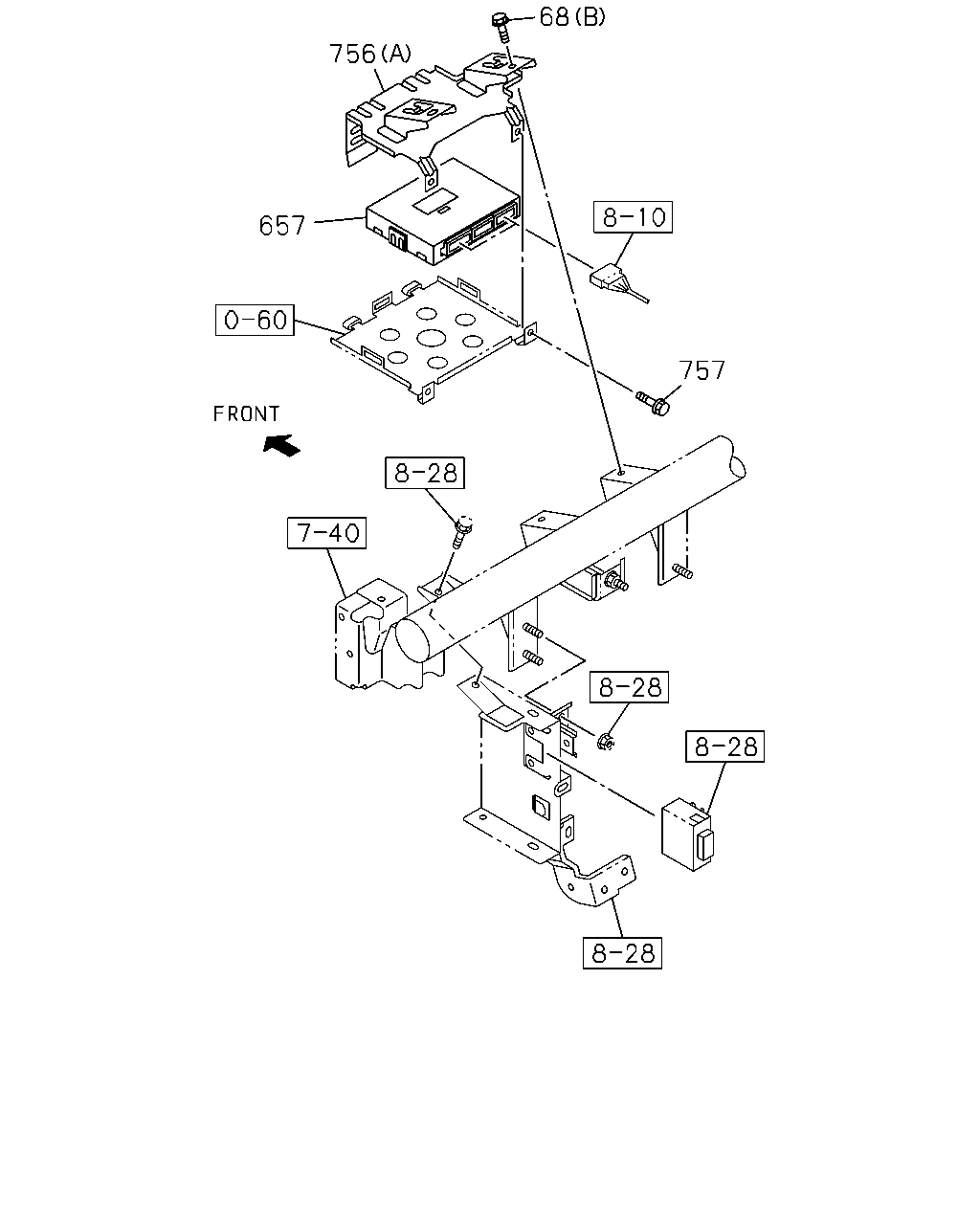

çizim 484450
756 68 657 757
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1507-1508
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1509-
68 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1507-
68 BOLT; BRKT
(D) M6X27 W/PL WASHER 		8-98131-461-0 05 1 1507-
657 CONTROL UNIT; MIMAMORI 8-98290-407-0 01 1 1507-
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1507-
756 BRACKET; ECU,BCM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98252-076-1 01 1 1507-
756 BRACKET; ECU,BCM
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98252-077-1 01 1 1507-
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1507-

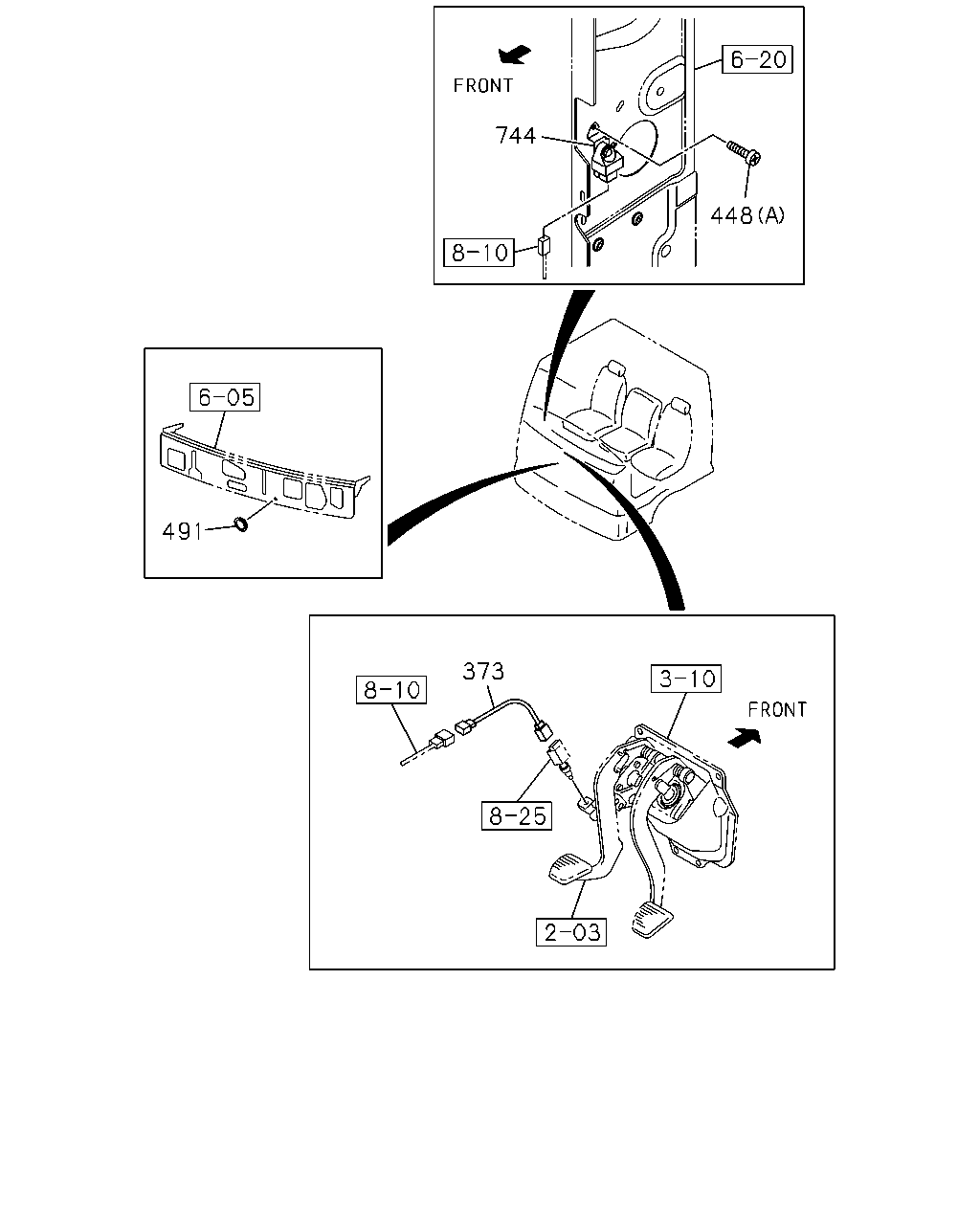

çizim 484486
744 448 491 373
BalonParca AdiParca NoAdetTipApplied Date
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98059-419-2 01 1 1507-
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1507-
448 BOLT; SENSOR
(A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1507-1508
448 BOLT; SENSOR
(A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1509-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1507-
744 SENSOR; AIR BAG 8-98190-212-0 01 1 1507-1508
744 SENSOR; AIR BAG 8-98190-212-0 01 1 1509-

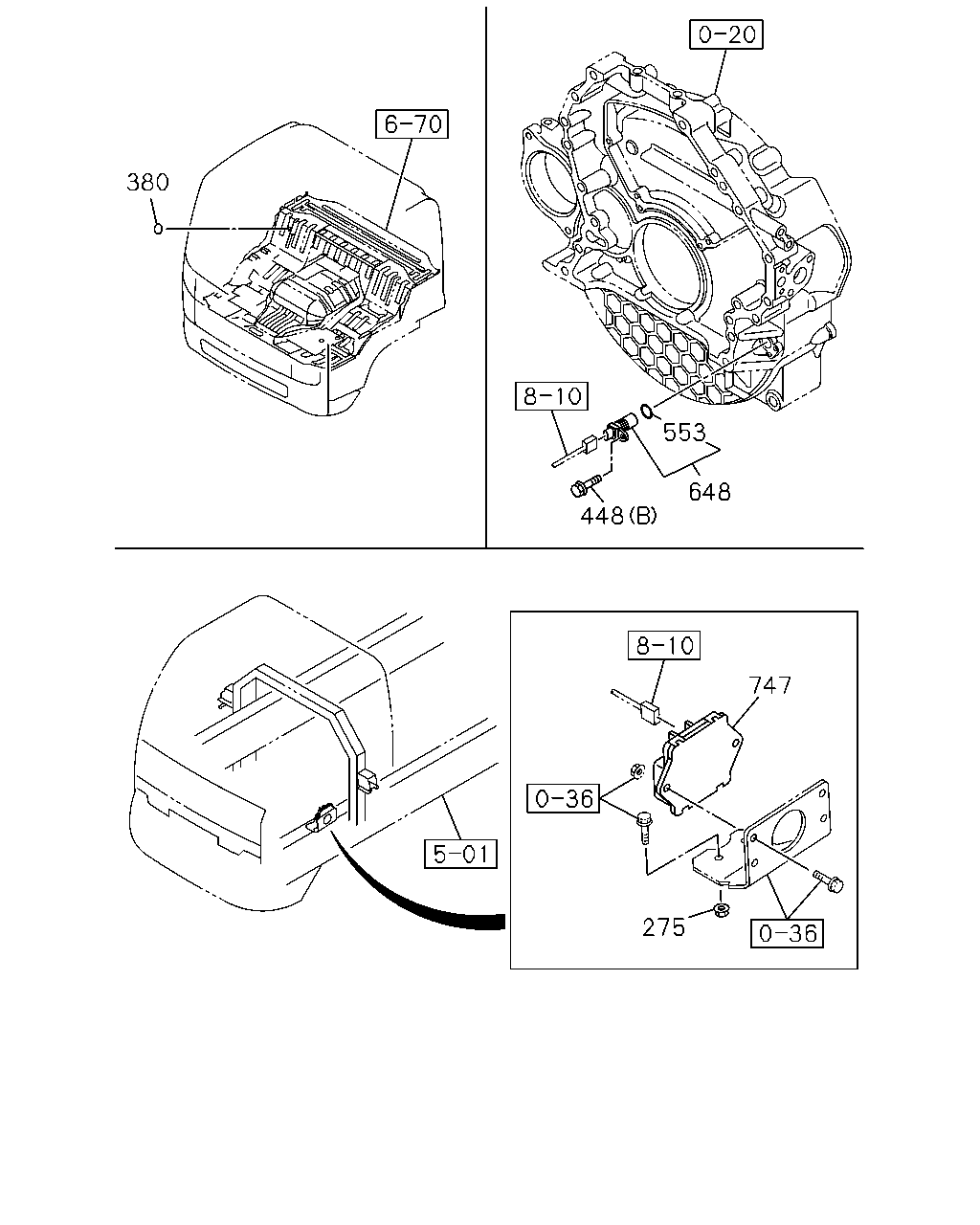

çizim 484498
380 553 648 448 747 275
BalonParca AdiParca NoAdetTipApplied Date
275 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1507-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1507-
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1507-
448 BOLT; SENSOR
(A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1507-1508
448 BOLT; SENSOR
(A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1509-
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1507-
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1507-
747 CONTROL UNIT; TURBOCHARGER 8-98133-124-1 01 1 1507-

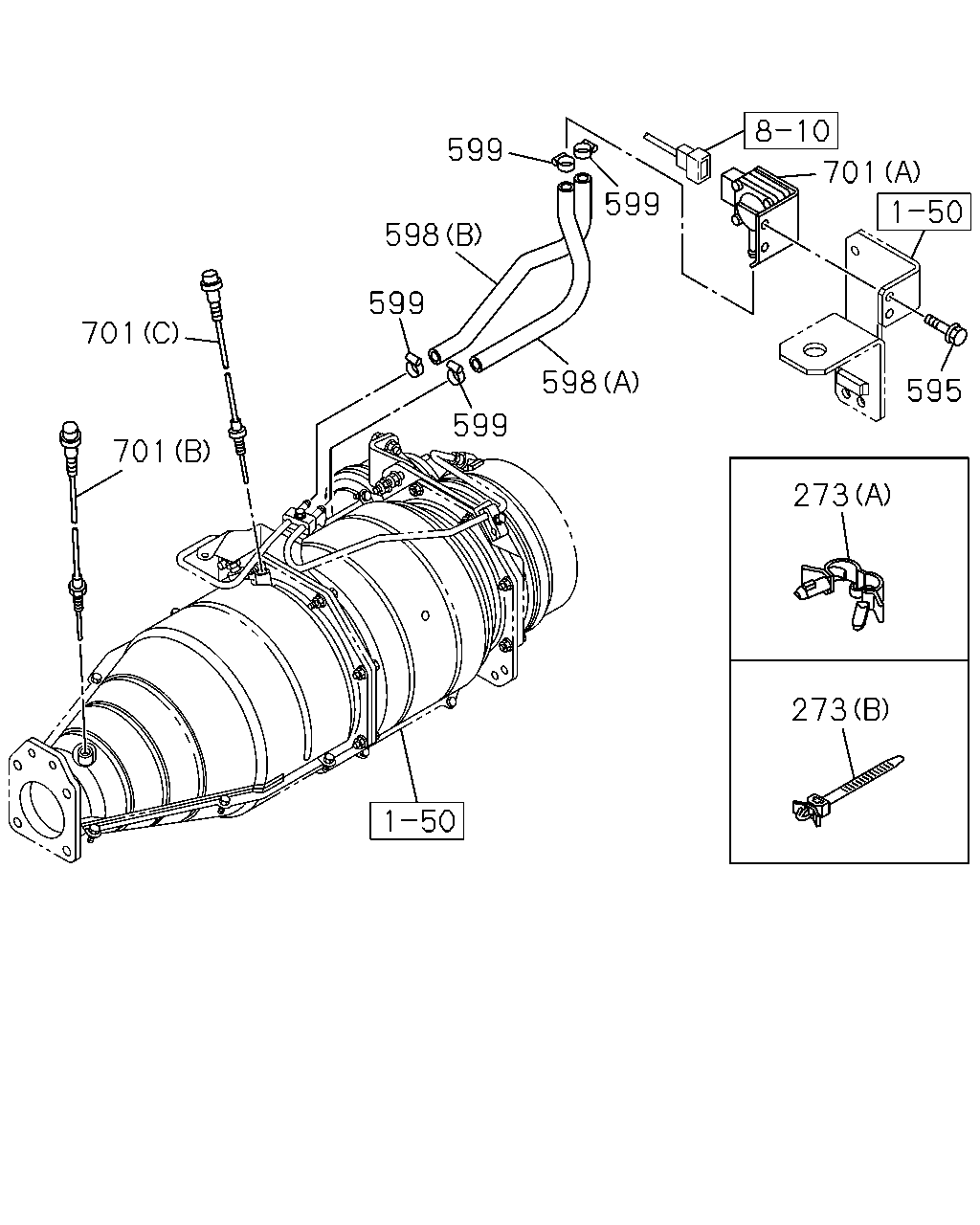

çizim 484540
273 273 595 701 599 598 599 599 598 599 701 701
BalonParca AdiParca NoAdetTipApplied Date
273 CLIP; HARNESS
(B) L=112 		8-94232-618-0 02 1 1507-
273 CLIP; HARNESS
(A) ID=7 L=7.5 		8-97369-561-0 01 1 1507-
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1507-
598 HOSE; RUBBER,SENSOR
(B) 		8-98138-715-0 01 1 1507-
598 HOSE; RUBBER,SENSOR
(A) 		8-98138-716-0 01 1 1507-
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1507-
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1507-
701 SENSOR; DPD
(B) 		8-98004-329-0 01 1 1507-
701 SENSOR; DPD
(C) 		8-98004-330-0 01 1 1507-

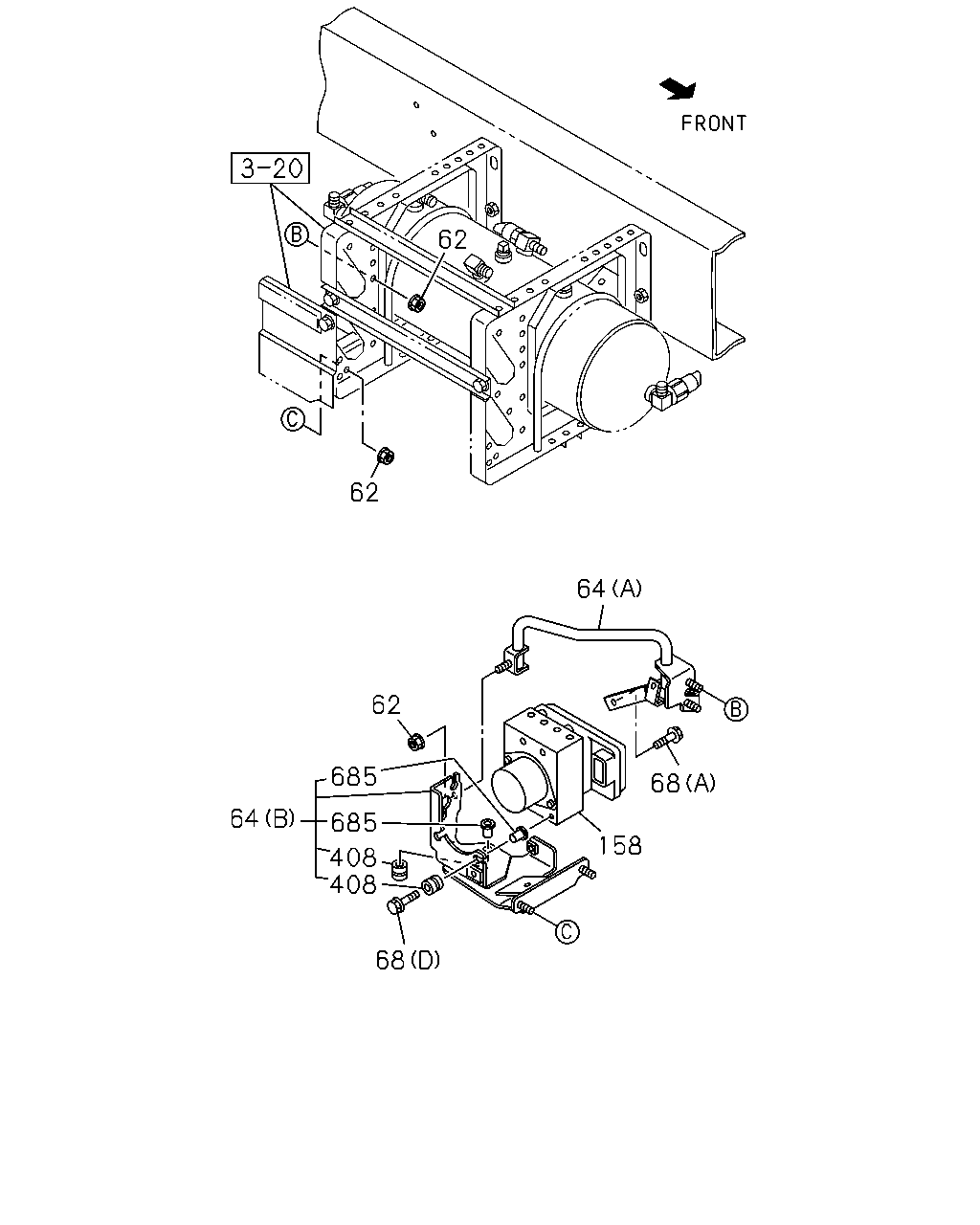

çizim 484558
62 62 685 685 408 408 64 68 158 68 64 62
BalonParca AdiParca NoAdetTipApplied Date
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 1507-
64 BRACKET; CONTROLLER
(A) 		8-98282-105-0 01 1 1507-
64 BRACKET; CONTROLLER
(B) 		8-98282-106-0 01 1 1507-
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1507-1508
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1509-
68 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1507-
68 BOLT; BRKT
(D) M6X27 W/PL WASHER 		8-98131-461-0 05 1 1507-
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) H.S.A SYSTEM<6EP> 		8-98306-204-0 01 1 1507-1507
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) H.S.A SYSTEM<6EP> 		8-98327-785-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) EXC. H.S.A SYSTEM<6EP> 		8-98306-206-0 01 1 1507-1507
158 CONTROLLER; ABS
WHEEL BASE 4000MM(40W) EXC. H.S.A SYSTEM<6EP> 		8-98327-787-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W) H.S.A SYSTEM<6EP> 		8-98306-200-0 01 1 1507-1507
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W) H.S.A SYSTEM<6EP> 		8-98327-781-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W) EXC. H.S.A SYSTEM<6EP> 		8-98306-202-0 01 1 1507-1507
158 CONTROLLER; ABS
WHEEL BASE 4600MM(46W) EXC. H.S.A SYSTEM<6EP> 		8-98327-783-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 4900MM(49W) H.S.A SYSTEM<6EP> 		8-98306-196-0 01 1 1507-1507
158 CONTROLLER; ABS
WHEEL BASE 4900MM(49W) H.S.A SYSTEM<6EP> 		8-98327-777-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 4900MM(49W) EXC. H.S.A SYSTEM<6EP> 		8-98306-198-0 01 1 1507-1507
158 CONTROLLER; ABS
WHEEL BASE 4900MM(49W) EXC. H.S.A SYSTEM<6EP> 		8-98327-779-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 5300MM(53W) H.S.A SYSTEM<6EP> 		8-98306-192-0 01 1 1507-1507
158 CONTROLLER; ABS
WHEEL BASE 5300MM(53W) H.S.A SYSTEM<6EP> 		8-98327-773-0 01 1 1508-
158 CONTROLLER; ABS
WHEEL BASE 5300MM(53W) EXC. H.S.A SYSTEM<6EP> 		8-98306-194-0 01 1 1507-1507
158 CONTROLLER; ABS
WHEEL BASE 5300MM(53W) EXC. H.S.A SYSTEM<6EP> 		8-98327-775-0 01 1 1508-
408 RUBBER; CUSHION 8-98130-133-0 05 1 1507-
685 SPACER; BRKT 8-98130-134-0 05 1 1507-

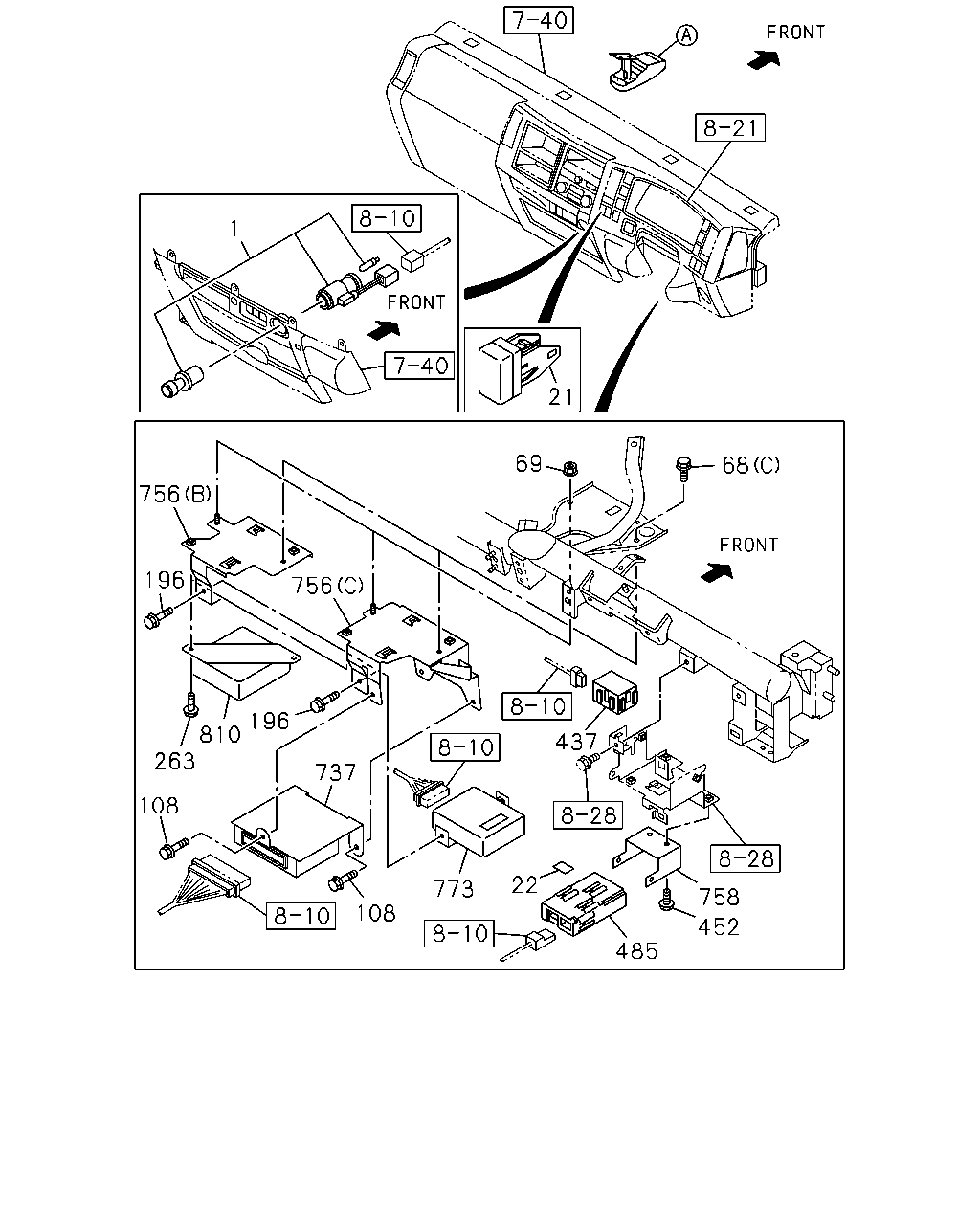

çizim 484611
485 773 108 108 452 437 758 68 69 756 756 196 810 263 737 196 1 21 22
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1507-
21 COVER; HOLE 8-98025-954-1 01 1 1507-
22 SEAL; TAPE 8-98166-639-0 02 1 1507-
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1507-1508
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1509-
68 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1507-
68 BOLT; BRKT
(D) M6X27 W/PL WASHER 		8-98131-461-0 05 1 1507-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1507-1508
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1509-
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 03 1 1507-
196 BOLT
M6X16 FLANGE 		0-28650-616-0 02 1 1507-
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1507-
437 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 1507-
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1507-1508
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1509-
485 CONTROL UNIT; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80190-061-0 01 1 1507-
485 CONTROL UNIT; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80190-059-1 01 1 1507-
737 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98289-519-1 01 1 1507-
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1507-
756 BRACKET; ECU,BCM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98252-076-1 01 1 1507-
756 BRACKET; ECU,BCM
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98252-077-1 01 1 1507-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1507-1508
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1509-
773 CONTROL UNIT; CMS 8-98312-079-0 01 1 1507-
810 CONTROL UNIT; ISS 8-98322-712-0 01 1 1507-
