Isuzu WW
▶
TRUCKS
▶
FRR
▶
11629 - FRR RHD EUROPE EURO6 SPACECAB EVSC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶

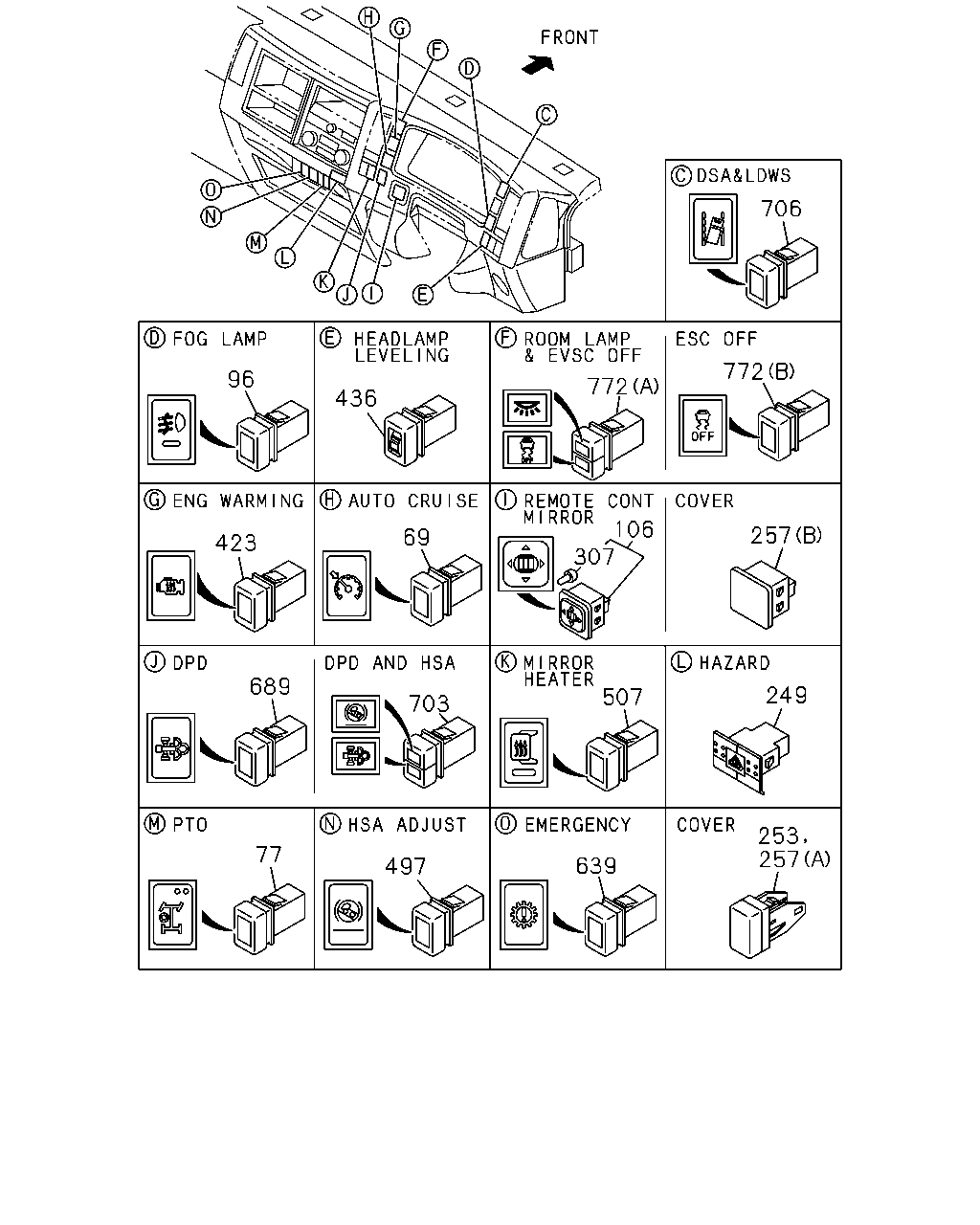

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#164503) — 55 parça
◀
[825A] SWITCH NO.2 (25 parça)
[825A] SWITCH NO.1 (14 parça)
[825A] RELAY;CAB HARNESS (11 parça)
[825A] RELAY;FRAME HARNESS (2 parça)
[825A] SWITCH NO.3 (3 parça)
▶
96
436
772
772
257
106
307
69
423
689
703
507
249
257
253
639
497
77
706
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
69
SWITCH; AUTO CRUISE
8-98011-344-1
01
1
1507-
77
SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97615-488-2
01
1
1507-
77
SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97386-964-2
01
1
1507-
96
SWITCH; FOG LAMP
8-97387-031-4
01
1
1507-
106
SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
8-97173-294-1
01
1
1507-
249
SWITCH; HAZARD
8-97386-922-1
01
1
1507-
253
COVER; SW HOLE
8-98025-954-1
02
1
1507-
257
COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A)
8-98025-954-1
01
1
1507-
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1507-
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
1507-
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)
8-98025-954-1
01
1
1507-
257
COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B)
8-98029-914-1
01
1
1507-
257
COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-98025-954-1
02
1
1507-
307
BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V
8-98226-896-0
01
1
1507-
423
SWITCH; ENG WARMING
8-97387-010-2
01
1
1507-
436
SWITCH; HEADLAMP LEVELING
8-97386-981-2
01
1
1507-
497
SWITCH; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98119-947-1
01
1
1507-
497
SWITCH; HSA
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98119-947-1
01
1
1507-
507
SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
8-97386-924-3
01
1
1507-
639
SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98119-948-0
01
1
1507-
689
SWITCH; DPD
EXC. H.S.A SYSTEM<6EP>
8-97386-921-2
01
1
1507-
703
SWITCH; DPD & HSA
H.S.A SYSTEM<6EP>
8-98011-346-2
01
1
1507-
706
SWITCH; DRIVING SAFETY ADVISER,ADJUST
8-98208-989-1
01
1
1507-
772
SWITCH; EVSC
FLUORESCENT LAMP<6UC> (A)
8-98190-385-1
01
1
1507-
772
SWITCH; EVSC
EXC. FLUORESCENT LAMP<6UC> (B)
8-98190-384-1
01
1
1507-
21
8
1
3
263
10
8
263
10

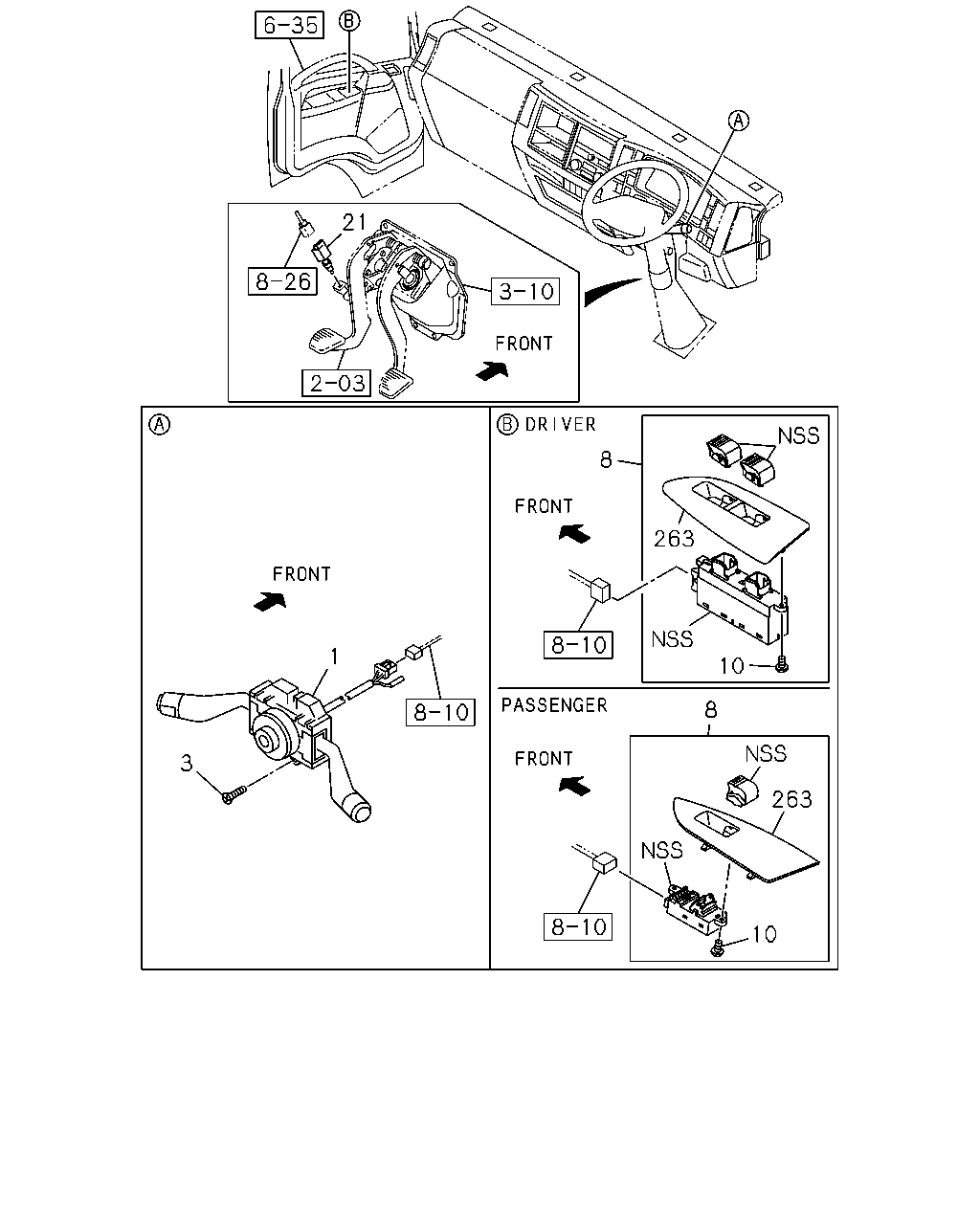

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
8-98243-711-0
01
1
1507-
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1507-1508
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1509-
8
SWITCH; POWER WINDOW
PASSENGER
8-97387-034-2
01
1
1507-1509
8
SWITCH; POWER WINDOW
DRIVER
8-98298-750-0
01
1
1510-
8
SWITCH; POWER WINDOW
DRIVER
8-98159-543-0
01
1
1507-1509
8
SWITCH; POWER WINDOW
PASSENGER
8-98316-415-0
01
1
1510-
10
SCREW; POWER WINDOW SW
8-98153-865-0
02
1
1509-
10
SCREW; POWER WINDOW SW
8-98153-865-0
03
1
1507-1508
10
SCREW; POWER WINDOW SW
8-98153-865-0
01
1
1509-
21
SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-97358-248-0
01
1
1507-
21
SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-94337-761-0
01
1
1507-
263
COVER; SW
DRIVER
8-98153-836-0
01
1
1507-
263
COVER; SW
PASSENGER
8-98153-841-0
01
1
1507-
317
610
99
12
554
606
164
606
610
595

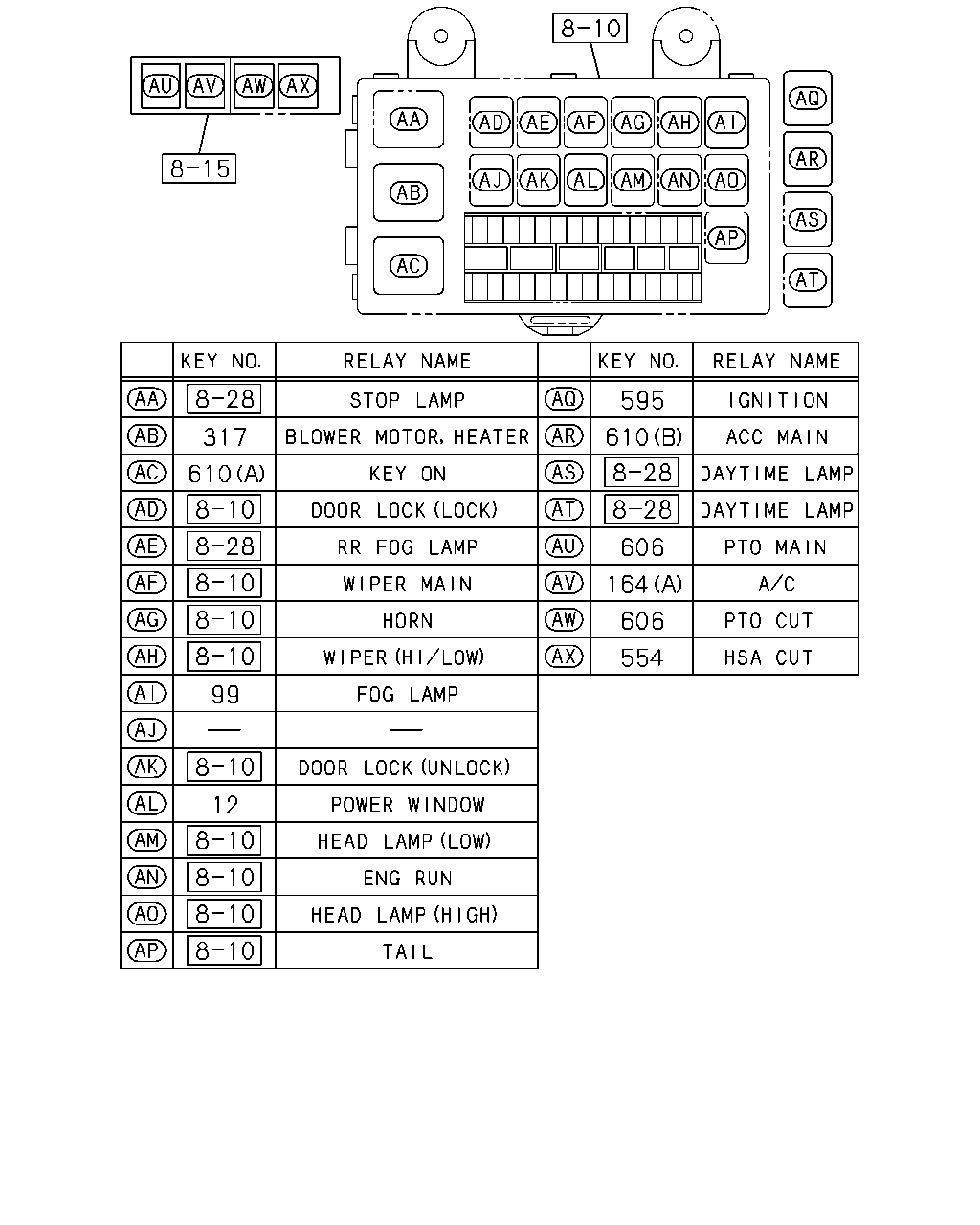

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
RELAY; POWER WINDOW
24V 10A PANASONIC
8-97173-035-1
01
1
1507-
99
RELAY; FOG LAMP
24V 10A PANASONIC
8-97173-035-1
01
1
1507-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
1507-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1507-
317
RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC
8-97262-933-0
01
1
1507-
554
RELAY; HSA
H.S.A SYSTEM<6EP> 24V 10A PANASONIC
8-97173-035-1
01
1
1507-
595
RELAY; IGNITION
24V 10A PANASONIC
8-97173-035-1
01
1
1507-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC
8-97173-035-1
01
1
1507-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 10A PANASONIC
8-97173-035-1
01
1
1507-
610
RELAY; KEY ON
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1507-
610
RELAY; KEY ON
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1507-
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
1507-
164
RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1507-
270
29
30

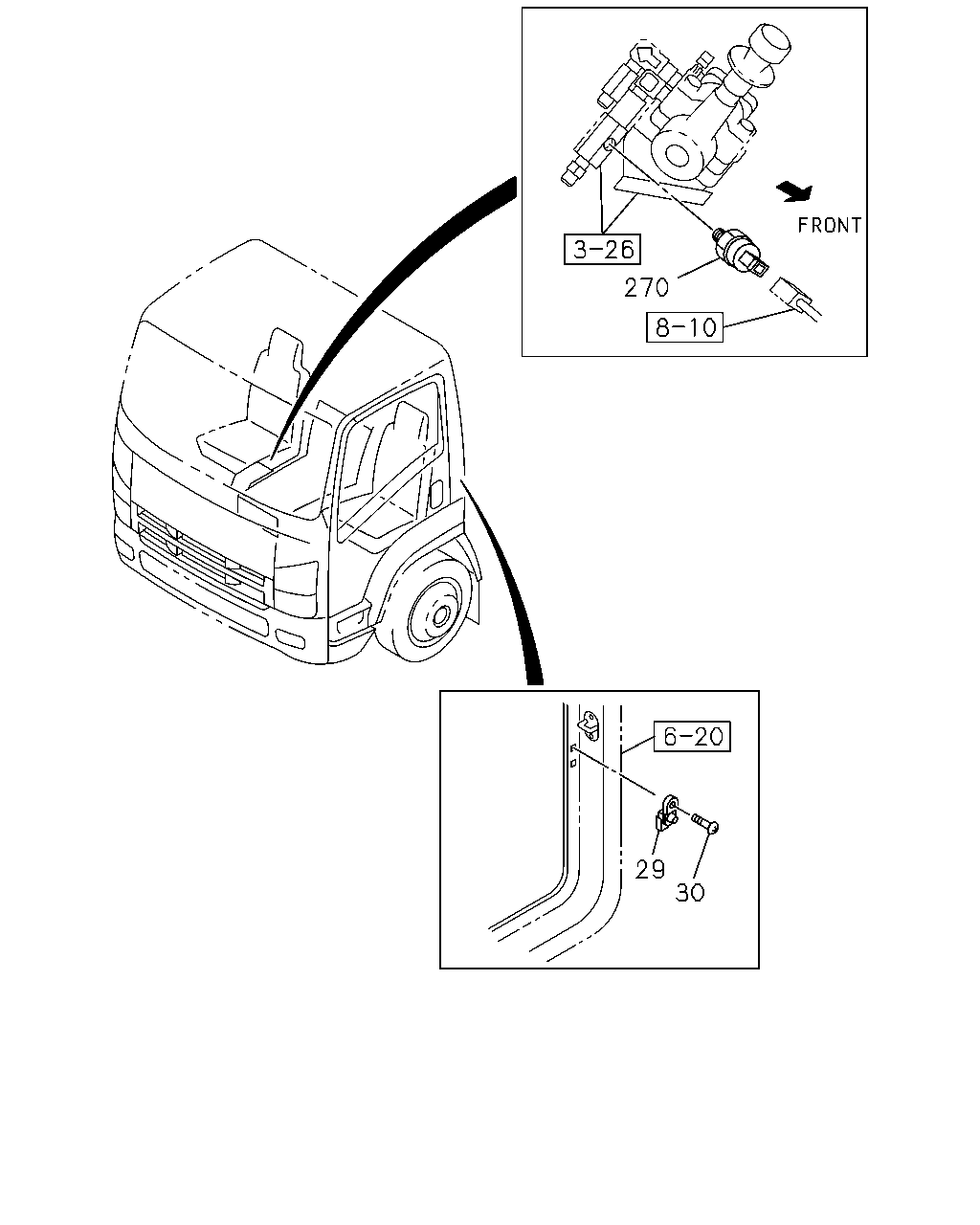

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
BLACK
8-98022-211-0
01
1
1507-
30
SCREW; DOOR SW
M5X18
8-98047-201-0
01
1
1507-
270
SWITCH; PRESS,WHEEL PARKING
STAMP 2.0
8-98010-856-2
01
1
1507-
