6-03 — RADIATOR GRILLE (#1645) — 75 parça

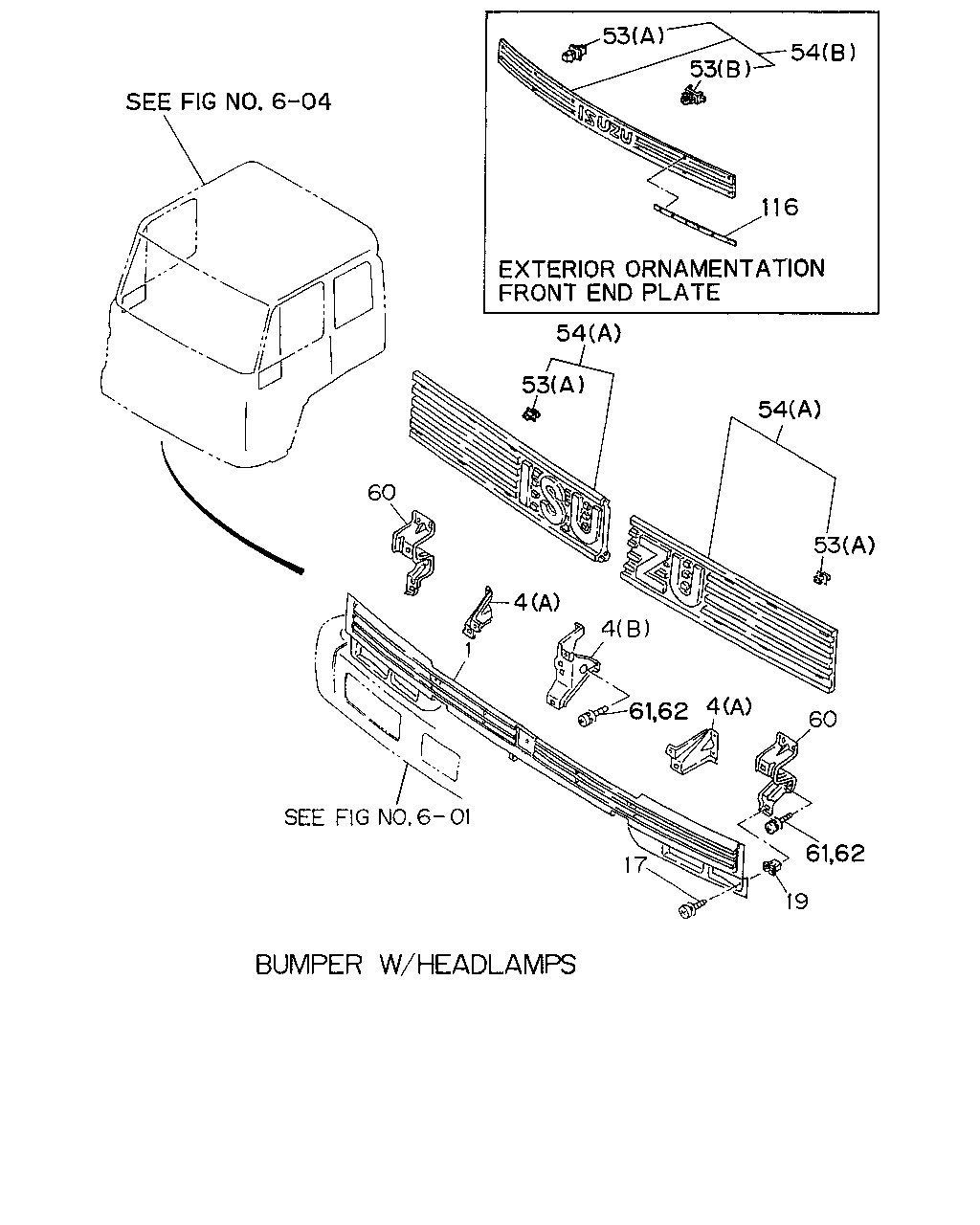

17 19 61 62 60 4 62 61 4 4 60 53 54 54 53 53 53 54 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
4	BRACKET; RAD GRILLE (B)	1-71118-421-2	01	1	9207-	●	●	●	●	●
4	BRACKET; RAD GRILLE (A)	1-71118-586-0	01	1	9207-	●		●
4	BRACKET; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71118-586-0	01	1	9207-		●		●	●
4	BRACKET; RAD GRILLE (A)	1-71118-585-0	01	1	9207-	●		●
4	BRACKET; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71118-585-0	01	1	9207-		●		●	●
4	BRACKET; RAD GRILLE BUMPER W/HEADLAMPS<SLB> (A)	1-71118-684-0	01	1	9207-		●		●	●
4	BRACKET; RAD GRILLE BUMPER W/HEADLAMPS<SLB> (A)	1-71118-683-0	01	1	9207-		●		●	●
17	SCREW; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M5X20 TAPPING W/PL WASHER	0-74315-520-0	04	1	9207-	●	●	●	●	●
17	SCREW; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/PL WASHER	1-09981-376-0	04	1	9207-	●	●	●	●	●
17	SCREW; RAD GRILLE BUMPER W/HEADLAMPS<SLB> M5X20 TAPPING W/PL WASHER	0-74315-520-0	05	1	9207-		●		●	●
19	GROMMET; SCREW,RAD GRILLE D=10X10 L=10 M5 BLACK	1-09983-102-0	04	1	9207-	●		●
19	GROMMET; SCREW,RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> D=10X10 L=10 M5 BLACK	1-09983-102-0	04	1	9207-		●		●	●
19	GROMMET; SCREW,RAD GRILLE BUMPER W/HEADLAMPS<SLB> D=10X10 L=10 M5 BLACK	1-09983-102-0	05	1	9207-		●		●	●
53	CLIP; ORNAMENT GRILLE (A)	1-09987-056-1	14	1	9207-9307	●	●	●	●	●
53	CLIP; ORNAMENT GRILLE EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)	1-09987-056-1	14	1	9308-	●	●	●	●	●
53	CLIP; ORNAMENT GRILLE EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)	1-09987-056-1	12	1	9308-	●	●	●	●	●
53	CLIP; ORNAMENT GRILLE EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (B)	8-94385-563-3	01	1	9308-	●	●	●	●	●
54	GRILLE; ORNAMENT (A)	1-76218-017-2	01	1	9207-9307	●	●	●	●	●
54	GRILLE; ORNAMENT EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)	1-76218-017-2	01	1	9308-	●	●	●	●	●
54	GRILLE; ORNAMENT (A)	1-76218-016-2	01	1	9207-9307	●	●	●	●	●
54	GRILLE; ORNAMENT EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)	1-76218-016-2	01	1	9308-	●	●	●	●	●
54	GRILLE; ORNAMENT EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (B)	1-76218-068-1	01	1	9308-	●	●	●	●	●
60	BRACKET; RAD GRILLE SIDE	1-71118-577-2	01	1	9207-	●		●
60	BRACKET; RAD GRILLE SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-71118-577-2	01	1	9207-		●		●	●
60	BRACKET; RAD GRILLE SIDE	1-71118-576-2	01	1	9207-	●		●
60	BRACKET; RAD GRILLE SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-71118-576-2	01	1	9207-		●		●	●
60	BRACKET; RAD GRILLE SIDE BUMPER W/HEADLAMPS<SLB>	1-71118-672-3	01	1	9207-		●		●	●
60	BRACKET; RAD GRILLE SIDE BUMPER W/HEADLAMPS<SLB>	1-71118-671-3	01	1	9207-		●		●	●
61	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	1-09980-493-0	08	1	9303-	●	●	●	●	●
61	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	1-09980-493-0	12	1	9303-		●		●	●
62	SCREW; BRKT,RAD GRILLE M6X20 W/LK&PL WASHER	8-94279-347-0	08	1	9207-9302	●		●
62	SCREW; BRKT,RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	8-94279-347-0	08	1	9207-9302		●		●	●
62	SCREW; BRKT,RAD GRILLE BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	8-94279-347-0	12	1	9207-9302		●		●	●
116	MOLDING; ORNAMENT GRILLE EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>	1-76218-049-3	04	1	9308-	●	●	●	●	●

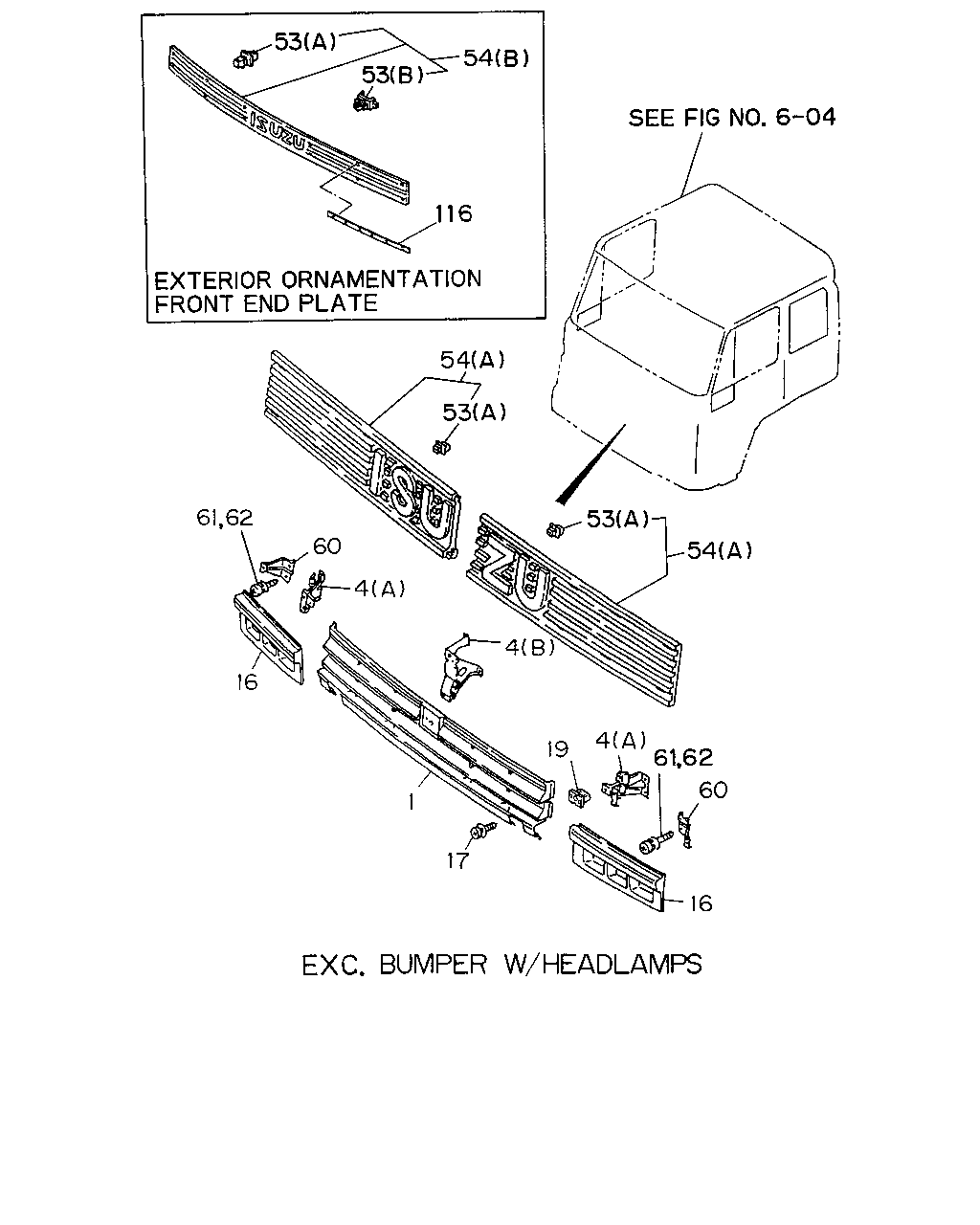

53 53 54 116 54 53 61 62 60 4 16 53 54 4 1 17 19 4 61 62 60 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	GRILLE; RAD	1-71118-437-1	01	1	9207-	●		●
1	GRILLE; RAD EXC. BUMPER W/HEADLAMPS<SLB>	1-71118-437-1	01	1	9207-		●		●	●
1	GRILLE; RAD BUMPER W/HEADLAMPS<SLB>	1-71118-677-1	01	1	9207-		●		●	●
4	BRACKET; RAD GRILLE (B)	1-71118-421-2	01	1	9207-	●	●	●	●	●
4	BRACKET; RAD GRILLE (A)	1-71118-586-0	01	1	9207-	●		●
4	BRACKET; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71118-586-0	01	1	9207-		●		●	●
4	BRACKET; RAD GRILLE (A)	1-71118-585-0	01	1	9207-	●		●
4	BRACKET; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71118-585-0	01	1	9207-		●		●	●
4	BRACKET; RAD GRILLE BUMPER W/HEADLAMPS<SLB> (A)	1-71118-684-0	01	1	9207-		●		●	●
4	BRACKET; RAD GRILLE BUMPER W/HEADLAMPS<SLB> (A)	1-71118-683-0	01	1	9207-		●		●	●
16	GRILLE; RAD,SIDE WHITE	1-71118-200-3	01	1	9207-	●		●
16	GRILLE; RAD,SIDE EXC. BUMPER W/HEADLAMPS<SLB> WHITE	1-71118-200-3	01	1	9207-		●		●	●
16	GRILLE; RAD,SIDE WHITE	1-71118-199-3	01	1	9207-	●		●
16	GRILLE; RAD,SIDE EXC. BUMPER W/HEADLAMPS<SLB> WHITE	1-71118-199-3	01	1	9207-		●		●	●
17	SCREW; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M5X20 TAPPING W/PL WASHER	0-74315-520-0	04	1	9207-	●	●	●	●	●
17	SCREW; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/PL WASHER	1-09981-376-0	04	1	9207-	●	●	●	●	●
17	SCREW; RAD GRILLE BUMPER W/HEADLAMPS<SLB> M5X20 TAPPING W/PL WASHER	0-74315-520-0	05	1	9207-		●		●	●
19	GROMMET; SCREW,RAD GRILLE D=10X10 L=10 M5 BLACK	1-09983-102-0	04	1	9207-	●		●
19	GROMMET; SCREW,RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> D=10X10 L=10 M5 BLACK	1-09983-102-0	04	1	9207-		●		●	●
19	GROMMET; SCREW,RAD GRILLE BUMPER W/HEADLAMPS<SLB> D=10X10 L=10 M5 BLACK	1-09983-102-0	05	1	9207-		●		●	●
53	CLIP; ORNAMENT GRILLE (A)	1-09987-056-1	14	1	9207-9307	●	●	●	●	●
53	CLIP; ORNAMENT GRILLE EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)	1-09987-056-1	14	1	9308-	●	●	●	●	●
53	CLIP; ORNAMENT GRILLE EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)	1-09987-056-1	12	1	9308-	●	●	●	●	●
53	CLIP; ORNAMENT GRILLE EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (B)	8-94385-563-3	01	1	9308-	●	●	●	●	●
54	GRILLE; ORNAMENT (A)	1-76218-017-2	01	1	9207-9307	●	●	●	●	●
54	GRILLE; ORNAMENT EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)	1-76218-017-2	01	1	9308-	●	●	●	●	●
54	GRILLE; ORNAMENT (A)	1-76218-016-2	01	1	9207-9307	●	●	●	●	●
54	GRILLE; ORNAMENT EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)	1-76218-016-2	01	1	9308-	●	●	●	●	●
54	GRILLE; ORNAMENT EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (B)	1-76218-068-1	01	1	9308-	●	●	●	●	●
60	BRACKET; RAD GRILLE SIDE	1-71118-577-2	01	1	9207-	●		●
60	BRACKET; RAD GRILLE SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-71118-577-2	01	1	9207-		●		●	●
60	BRACKET; RAD GRILLE SIDE	1-71118-576-2	01	1	9207-	●		●
60	BRACKET; RAD GRILLE SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-71118-576-2	01	1	9207-		●		●	●
60	BRACKET; RAD GRILLE SIDE BUMPER W/HEADLAMPS<SLB>	1-71118-672-3	01	1	9207-		●		●	●
60	BRACKET; RAD GRILLE SIDE BUMPER W/HEADLAMPS<SLB>	1-71118-671-3	01	1	9207-		●		●	●
61	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	1-09980-493-0	08	1	9303-	●	●	●	●	●
61	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	1-09980-493-0	12	1	9303-		●		●	●
62	SCREW; BRKT,RAD GRILLE M6X20 W/LK&PL WASHER	8-94279-347-0	08	1	9207-9302	●		●
62	SCREW; BRKT,RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	8-94279-347-0	08	1	9207-9302		●		●	●
62	SCREW; BRKT,RAD GRILLE BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	8-94279-347-0	12	1	9207-9302		●		●	●
116	MOLDING; ORNAMENT GRILLE EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>	1-76218-049-3	04	1	9308-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
