7-40 — INSTRUMENT PANEL AND BOX (#164489) — 131 parça

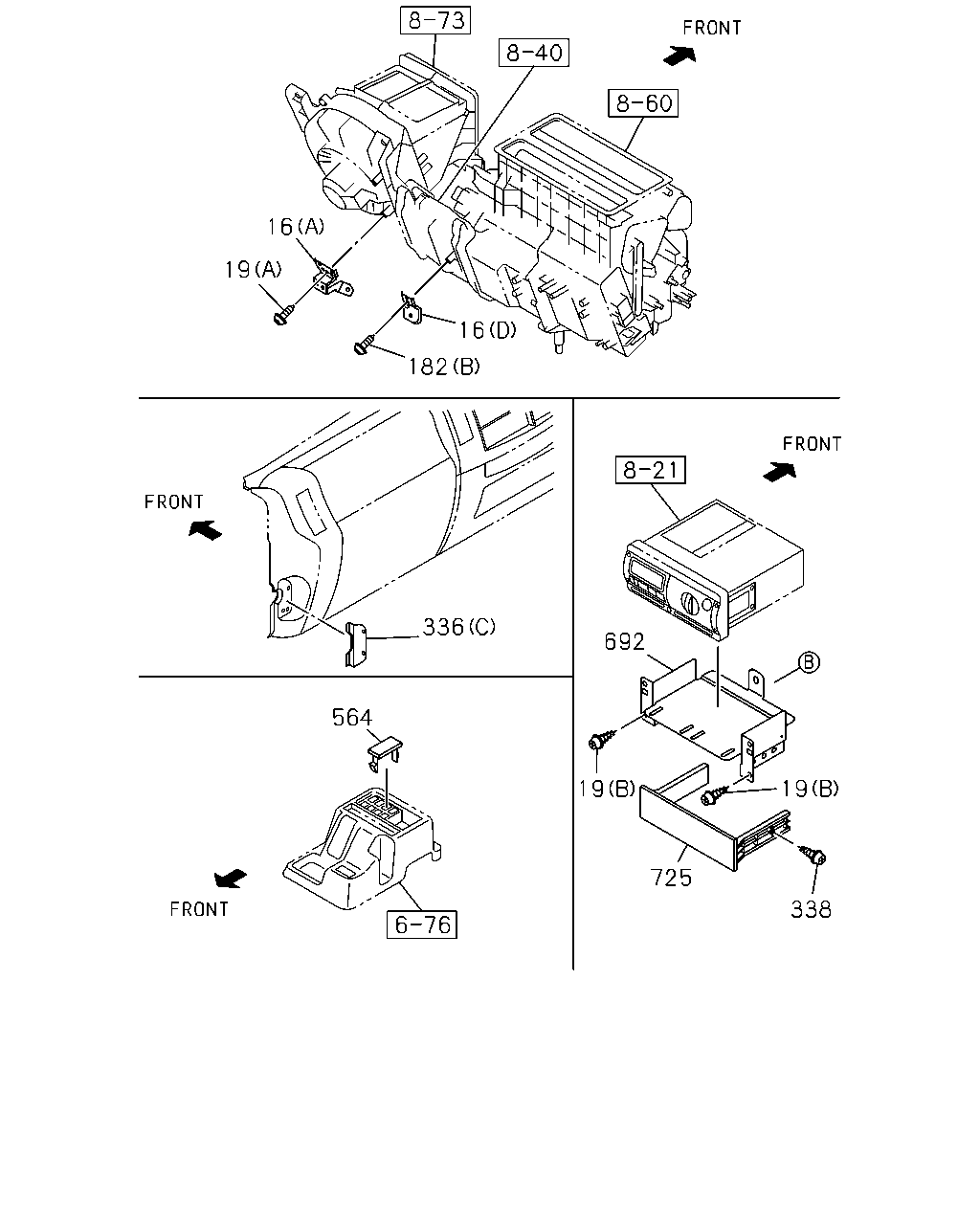

çizim 484533
338 19 725 19 692 336 564 16 182 16 19
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1507-
16 BRACKET; INST PNL
(D) 		8-98010-154-0 01 1 1507-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1507-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1507-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1507-
19 SCREW; BRKT
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1507-1508
19 SCREW; BRKT
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509-
19 SCREW; BRKT
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1507-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1507-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1507-
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1507-1508
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1507-1508
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1509-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1507-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1507-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1507-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1507-
338 SCREW; COVER
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1507-
564 COVER; SW 8-97043-732-1 06 1 1507-
692 BRACKET; TACHOGRAPH 8-98094-271-0 01 1 1507-
725 COVER; TACHOGRAPH
BLACK 		8-97407-896-2 01 1 1507-

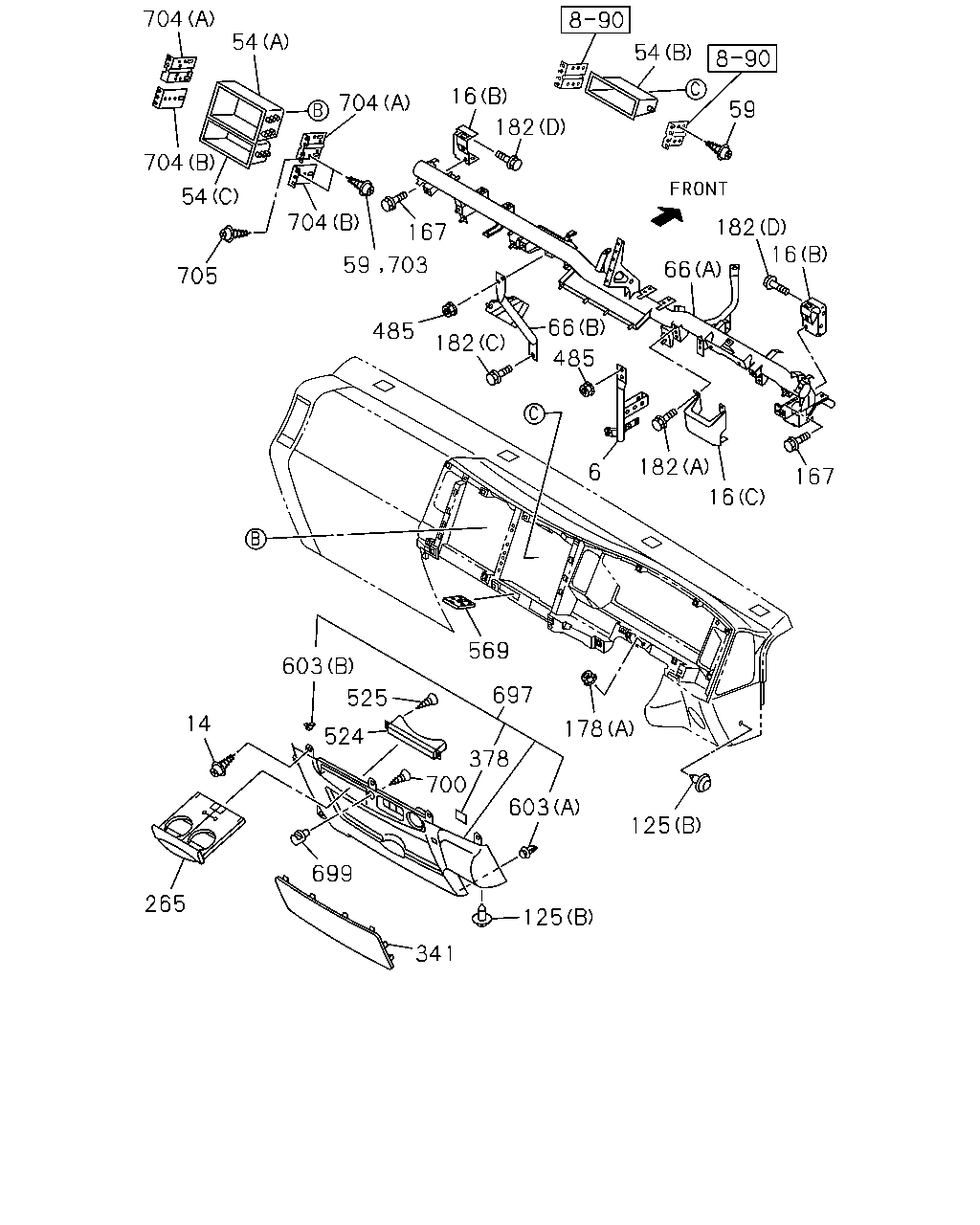

çizim 485010
59 54 704 54 704 54 705 704 704 16 182 167 59 703 485 182 66 485 6 182 16 167 66 182 16 569 603 14 525 524 697 178 125 603 378 700 699 265 341 125
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1507-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1507-
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1507-
16 BRACKET; INST PNL
(D) 		8-98010-154-0 01 1 1507-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1507-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1507-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1507-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1507-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1507-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1507-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1507-1508
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1507-1508
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1509-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 1507-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98248-347-1 01 1 1507-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) (A) 		8-98248-345-1 01 1 1507-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1507-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1507-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1507-1508
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1509-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1507-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1507-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1507-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1507-
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1507-1508
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1507-1508
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1509-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1507-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1507-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1507-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1507-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1507-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1507-
569 HOLDER; CARD 8-97410-276-1 01 1 1507-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1507-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1507-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1507-
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1507-
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1507-
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1507-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1507-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1507-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1507-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1507-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1507-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1507-

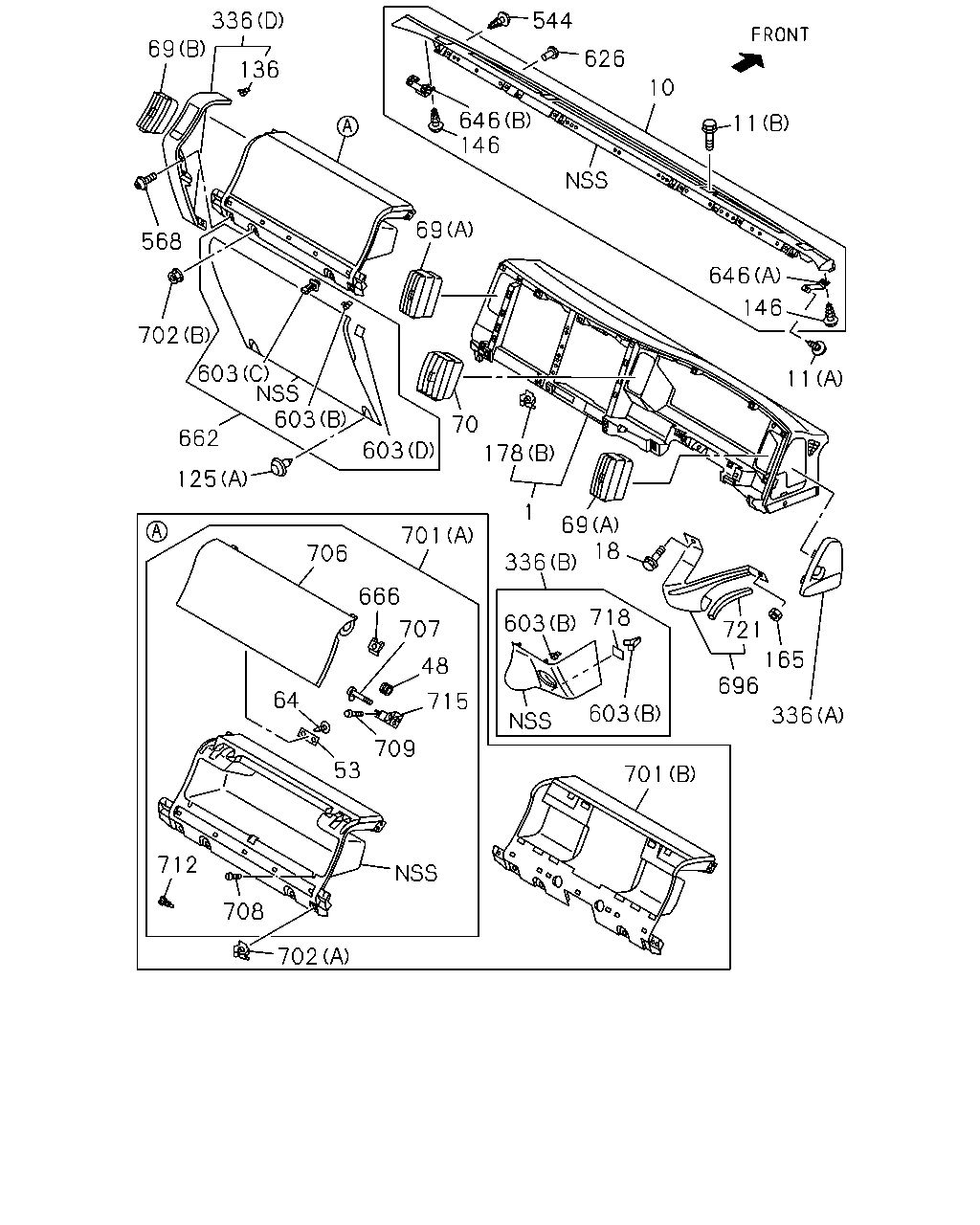

çizim 485012
336 69 136 544 626 646 146 10 11 646 146 11 69 568 702 603 662 603 125 603 70 178 1 69 18 336 701 706 666 707 48 715 603 718 603 721 165 696 336 701 64 709 53 712 708 702
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1507-
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1507-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1507-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1507-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1507-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1507-1508
48 SPRING; GLOVE BOX LID
AIR BAG DRIVER(AJ3) 		8-98270-763-0 01 1 1509-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1507-1508
48 SPRING; GLOVE BOX LID
AIR BAG DRIVER(AJ3) 		8-98270-764-0 01 1 1509-
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-765-0 01 1 1507-1508
53 STRIKER; GLOVE BOX
AIR BAG DRIVER(AJ3) 		8-98270-765-0 01 1 1509-
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) M4X85 		8-97926-404-0 02 1 1507-1508
64 SCREW; STRIKER
AIR BAG DRIVER(AJ3) M4X85 		8-97926-404-0 02 1 1509-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1507-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1507-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1507-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1507-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1507-
136 CLIP; INST COVER 8-98076-254-0 02 1 1507-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1507-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1507-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1507-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1507-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1507-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1507-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1507-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1507-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1507-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1507-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1507-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1507-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1507-
603 CLIP; COVER
(C) 		8-98162-058-1 02 1 1507-
603 CLIP; COVER
(D) 		8-98167-222-0 02 1 1507-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1507-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1507-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1507-
662 COVER; LWR,INST PANEL
GRAY 		8-97419-960-2 01 1 1507-
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1507-1508
666 INSERT; INST PANEL
AIR BAG DRIVER(AJ3) M5 		8-97926-400-0 04 1 1509-
696 BRACKET; KNEE 8-98066-085-1 01 1 1507-
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-2 01 1 1507-
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-1 01 1 1507-1508
701 TRAY; INST
AIR BAG DRIVER(AJ3) (A) GRAY 		8-97429-703-1 01 1 1509-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1507-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1507-
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1507-1508
706 LID; TRAY INST
AIR BAG DRIVER(AJ3) GRAY 		8-97429-992-0 01 1 1509-
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1507-1508
707 SHAFT; TRAY INST LID
AIR BAG DRIVER(AJ3) 		8-97926-393-0 02 1 1509-
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1507-1508
708 STOPPER; TRAY INST LID
AIR BAG DRIVER(AJ3) 		8-98010-867-1 02 1 1509-
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1507-1508
709 SCREW; TRAY INST
AIR BAG DRIVER(AJ3) M5X16 TAPPING 		0-71040-516-0 04 1 1509-
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1507-1508
712 LOCK; TRAY INST LID
AIR BAG DRIVER(AJ3) 		8-98031-846-0 01 1 1509-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1507-1508
715 SUPPORT; TRAY,HINGE
AIR BAG DRIVER(AJ3) 		8-97926-396-0 01 1 1509-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1507-1508
715 SUPPORT; TRAY,HINGE
AIR BAG DRIVER(AJ3) 		8-97926-397-0 01 1 1509-
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1507-
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1507-
