◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11629 - FRR RHD EUROPE EURO6 SPACECAB EVSC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#164486) — 10 parça

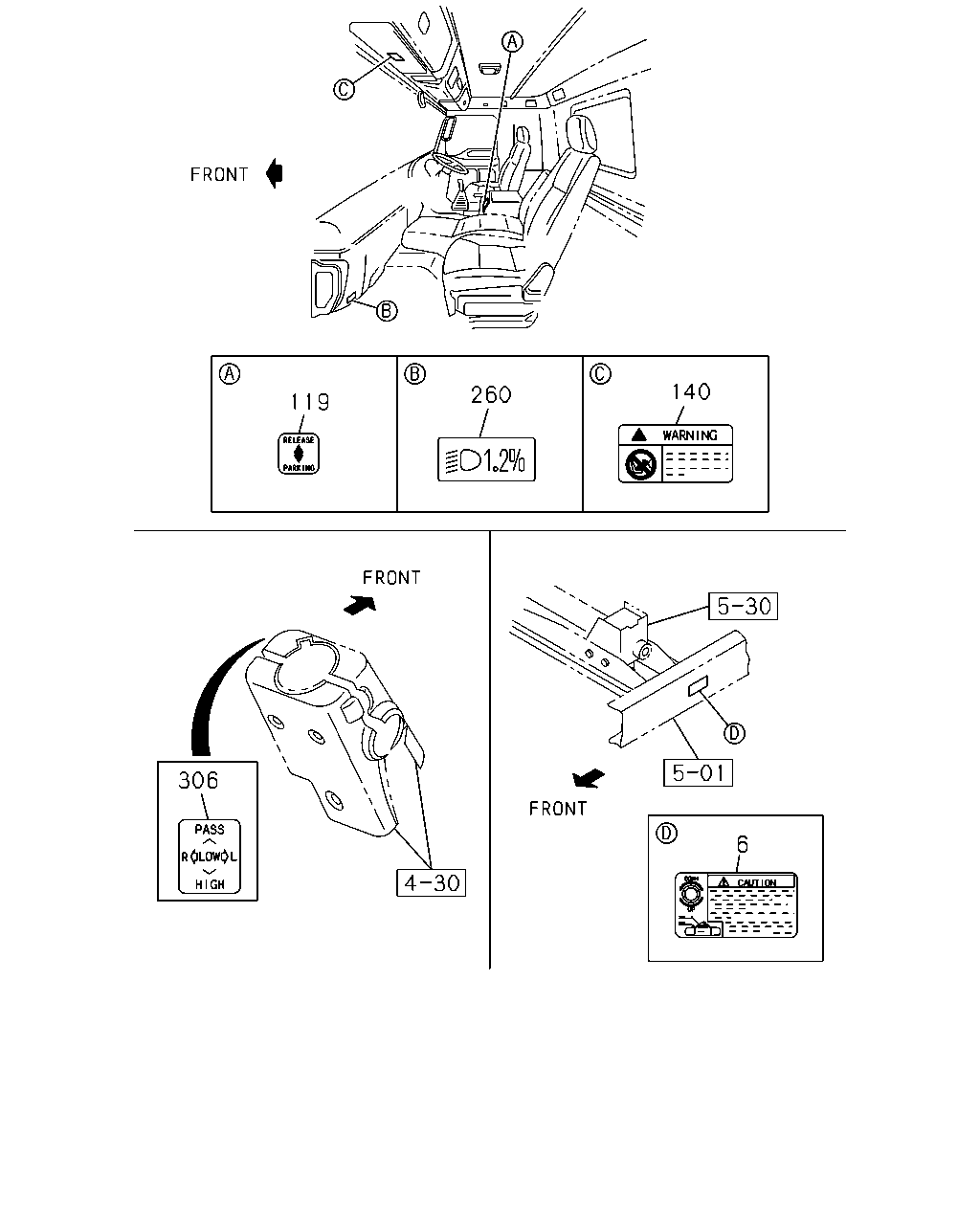

çizim 484412
119 260 140 306 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		8-98082-437-0 01 1 1507-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1507-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 1507-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 1507-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1507-

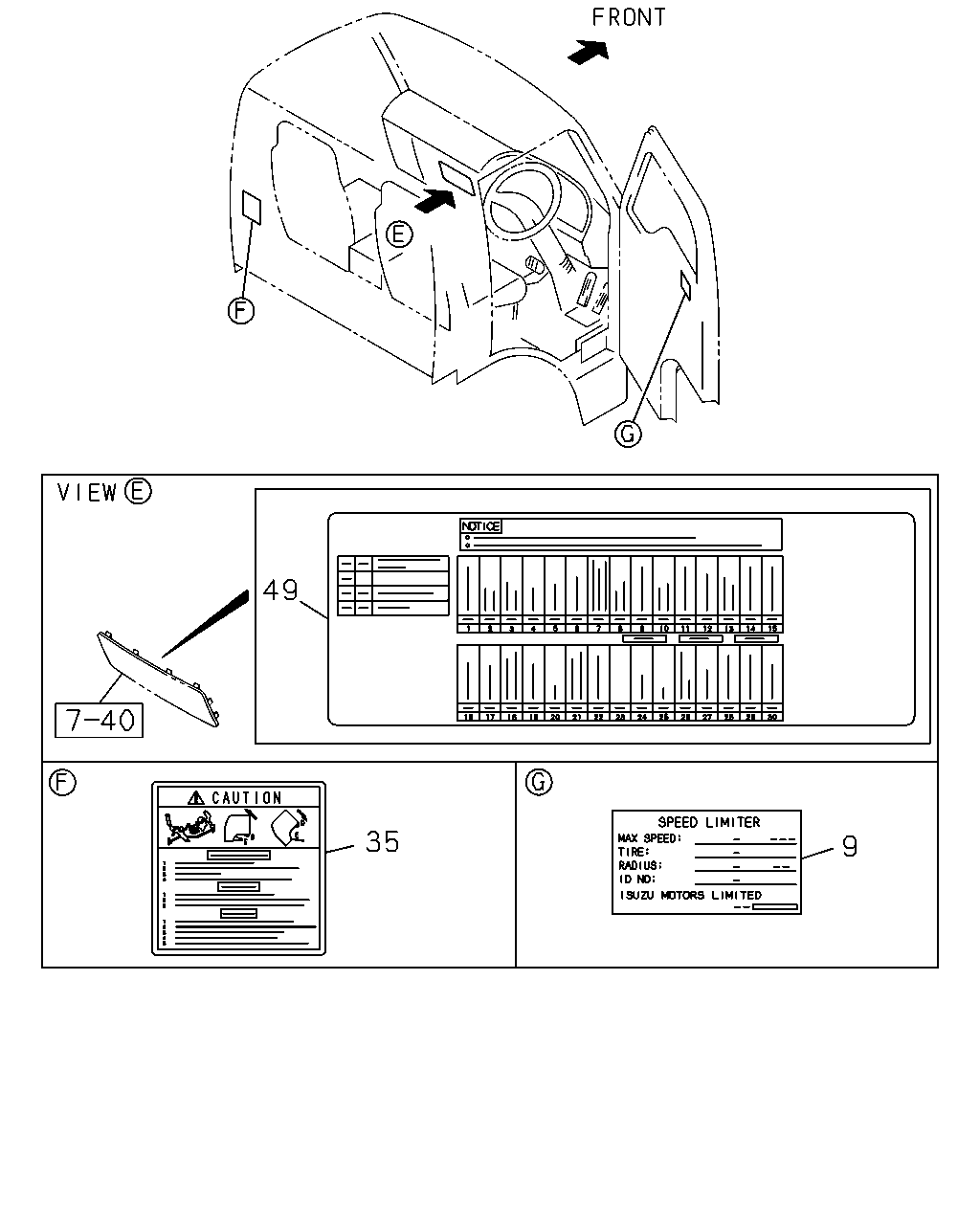

çizim 485082
49 35 9
BalonParca AdiParca NoAdetTipApplied Date
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98285-247-0 01 1 1507-
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98285-248-0 01 1 1507-
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 1507-
49 PLATE; CAUTION,FUSE BOX 8-98284-559-0 01 1 1507-

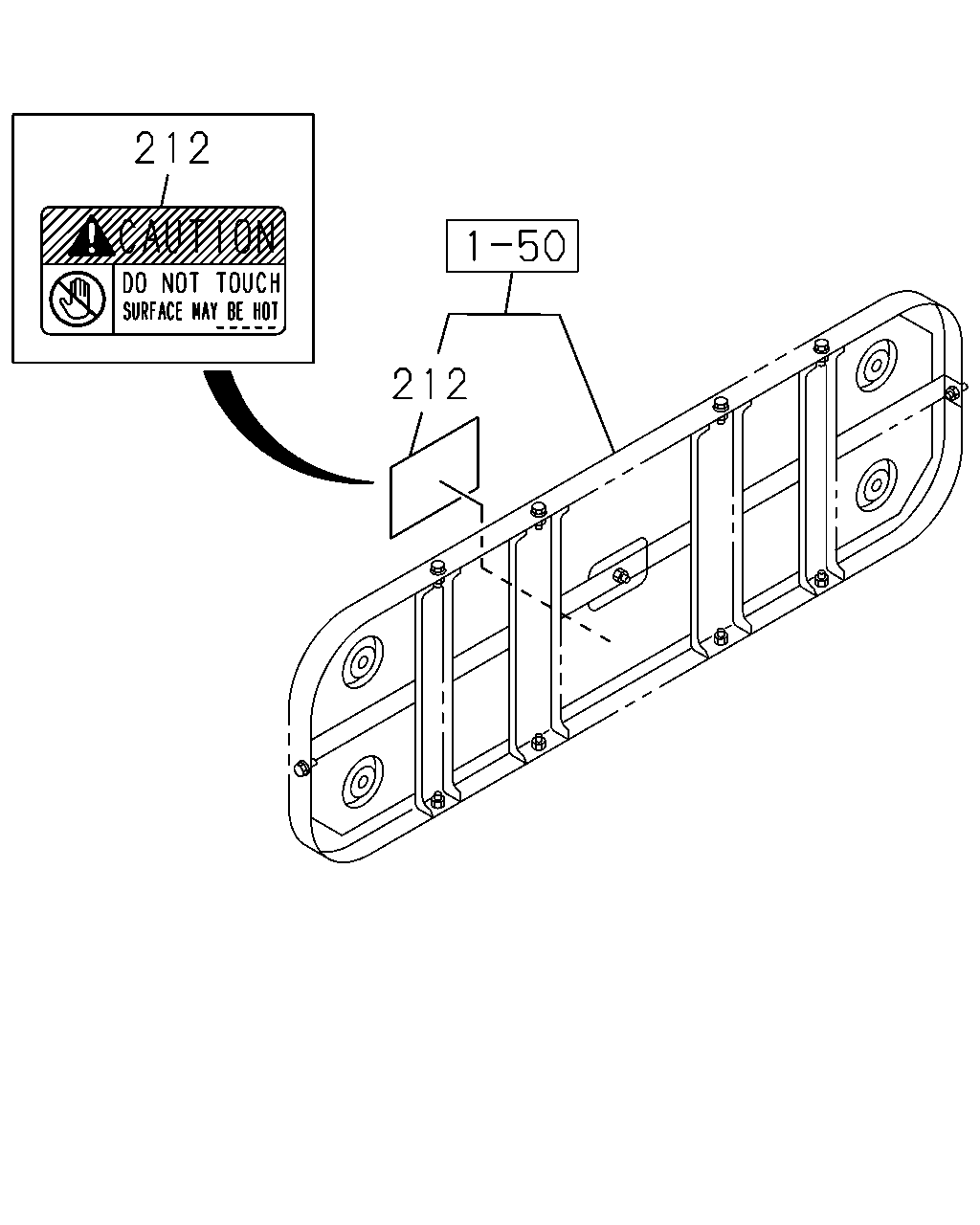

çizim 498499
212 212
BalonParca AdiParca NoAdetTipApplied Date
212 LABEL; SAFETY 8-98236-285-0 01 1 1507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
