◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11629 - FRR RHD EUROPE EURO6 SPACECAB EVSC ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#164478) — 8 parça

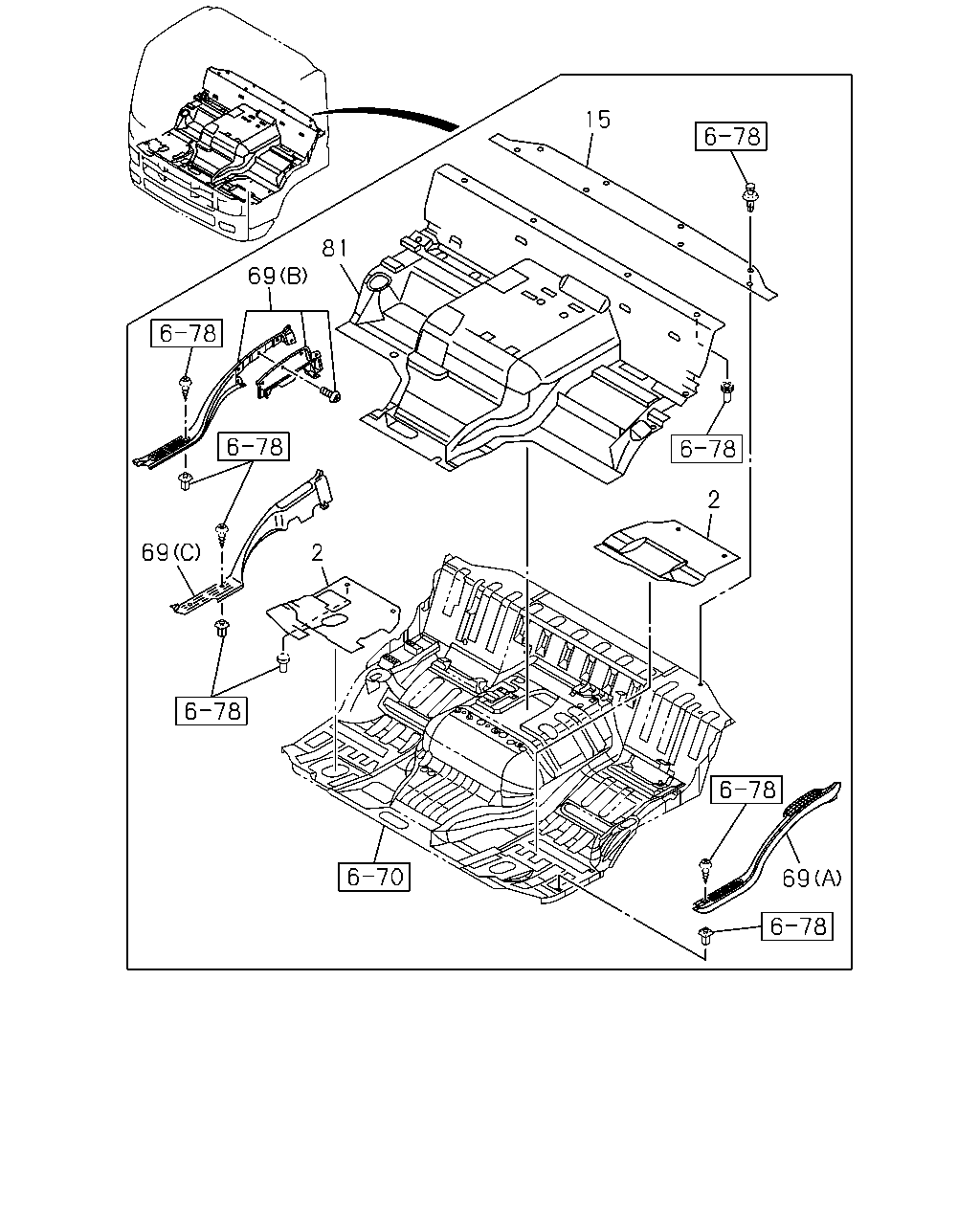

çizim 484764
15 2 69 2 69 69 81
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
GRAY 		8-97407-745-2 01 1 1507-
2 MAT; FLOOR
GRAY 		8-97412-936-2 01 1 1507-
15 MAT; FLOOR REAR
GRAY 		8-97407-517-1 01 1 1507-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY 		8-97412-927-0 01 1 1507-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97412-928-1 01 1 1507-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97412-926-0 01 1 1507-
81 MAT; FLOOR,CENTER
AIR SUSP DRIVER SEAT<A56> GRAY 		8-97428-824-0 01 1 1507-
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97429-636-0 01 1 1507-
