Isuzu WW
▶
TRUCKS
▶
FRR
▶
11629 - FRR RHD EUROPE EURO6 SPACECAB EVSC
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-03 - RADIATOR GRILLE
▶
6-03 — RADIATOR GRILLE
(#164464) — 59 parça
◀

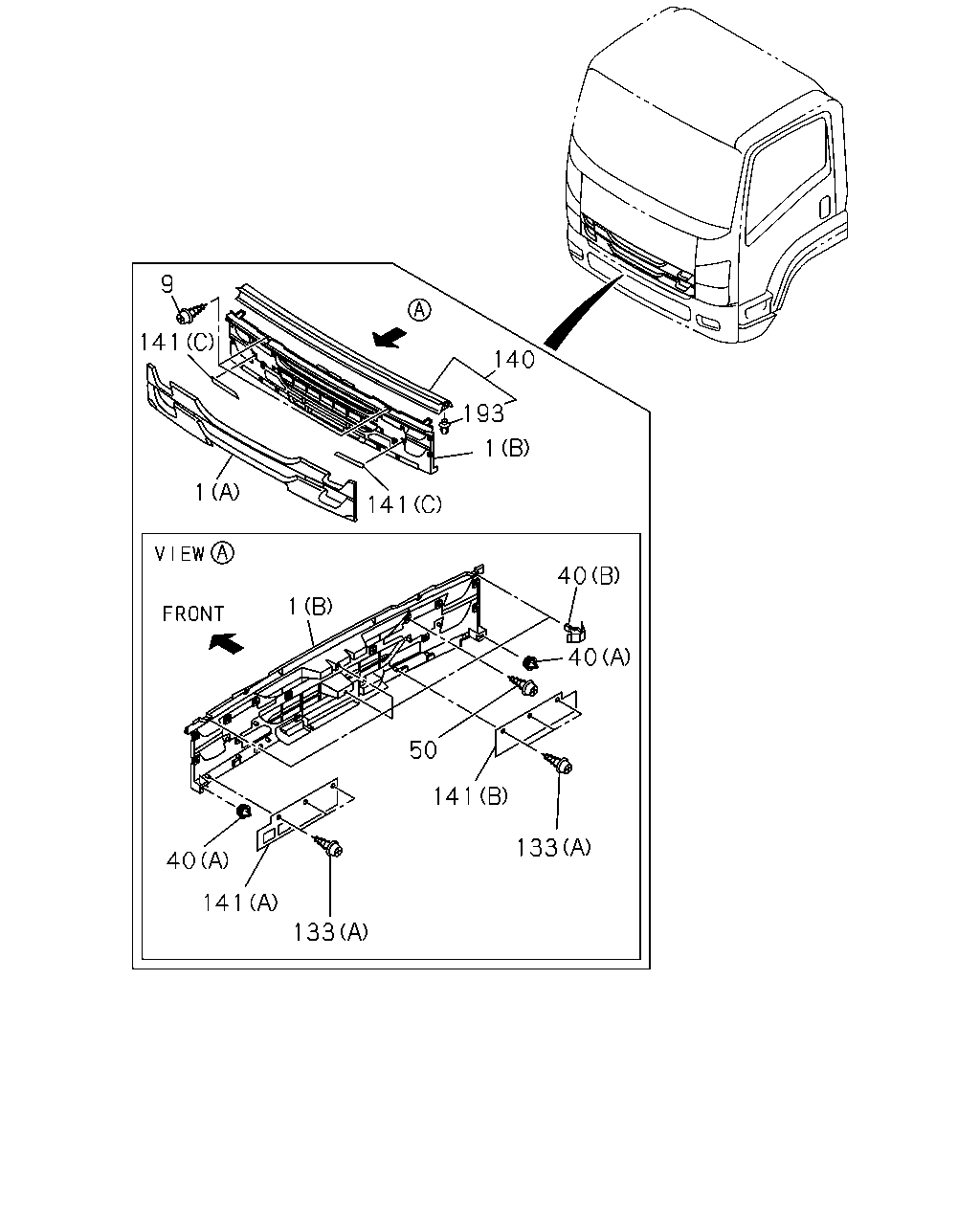

[603A] EXC.BRIGHT RAD GRILLE (30 parça)

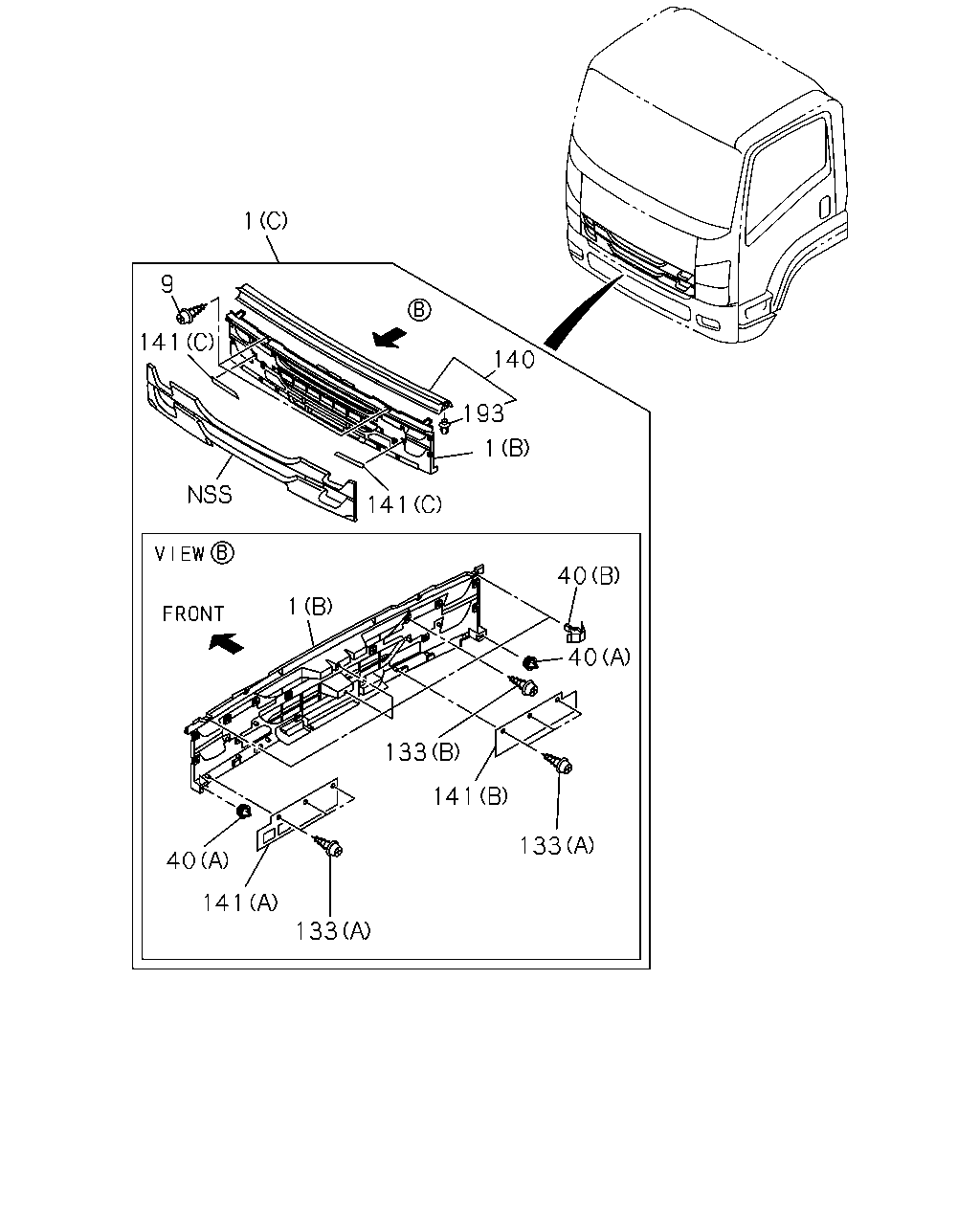

[603A] BRIGHT RAD GRILLE (29 parça)
▶
133
133
141
50
141
40
40
40
1
141
1
141
9
140
193
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22> (A) GRAY
8-97429-649-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE
8-97429-659-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> (A) RED
8-97429-653-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE
8-97429-641-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. BRIGHT RAD GRILLE<V22> (A) RED
8-97429-654-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22> (A) RED
8-97429-651-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW
8-97429-665-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR GREEN(989) EXC. BRIGHT RAD GRILLE<V22> (A) GREEN
8-97429-644-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE
8-97429-658-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE
8-97429-670-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE
8-97429-662-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE
8-97429-638-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE
8-97429-669-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE
8-97429-642-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW
8-97429-667-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN
8-97429-648-1
01
1
1507-
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> (C) CHROMIUM PLATE
8-98250-829-1
01
1
1507-
1
GRILLE; RAD
(B) BLACK
8-98250-843-1
01
1
1507-
9
SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER
0-74160-516-0
02
1
1507-
40
CLIP; RAD GRILLE
(A)
8-97581-651-2
02
1
1507-
40
CLIP; RAD GRILLE
(B)
8-98025-698-0
04
1
1507-
50
BOLT; GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> M5X16 TAPPING HEXALOBULAR
0-72180-516-0
15
1
1507-
133
SCREW; COVER
BRIGHT RAD GRILLE<V22> (B) T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
29
1
1507-
133
SCREW; COVER
(A) T25 M5X12 TAPPING HEXALOBULAR
8-98081-722-0
06
1
1507-
140
SEAL; RAD GRILLE
8-98060-339-0
01
1
1507-
141
COVER; RAD GRILLE
(B)
8-98041-012-1
01
1
1507-
141
COVER; RAD GRILLE
(A)
8-98060-783-0
01
1
1507-
141
COVER; RAD GRILLE
(C)
8-98250-849-1
01
1
1507-
141
COVER; RAD GRILLE
(C)
8-98250-850-1
01
1
1507-
193
CLIP; SEAL
NATURAL
8-98027-457-0
13
1
1507-
133
141
40
133
141
133
40
40
1
141
1
193
140
1
9
141
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22> (A) GRAY
8-97429-649-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE
8-97429-659-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> (A) RED
8-97429-653-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE
8-97429-641-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR FIRE RED(915) EXC. BRIGHT RAD GRILLE<V22> (A) RED
8-97429-654-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22> (A) RED
8-97429-651-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW
8-97429-665-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR GREEN(989) EXC. BRIGHT RAD GRILLE<V22> (A) GREEN
8-97429-644-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE
8-97429-658-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE
8-97429-670-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR POLAR WHITE(982) EXC. BRIGHT RAD GRILLE<V22> (A) WHITE
8-97429-662-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE
8-97429-638-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE
8-97429-669-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> (A) BLUE
8-97429-642-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW
8-97429-667-1
01
1
1507-
1
GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN
8-97429-648-1
01
1
1507-
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> (C) CHROMIUM PLATE
8-98250-829-1
01
1
1507-
1
GRILLE; RAD
(B) BLACK
8-98250-843-1
01
1
1507-
9
SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER
0-74160-516-0
02
1
1507-
40
CLIP; RAD GRILLE
(A)
8-97581-651-2
02
1
1507-
40
CLIP; RAD GRILLE
(B)
8-98025-698-0
04
1
1507-
133
SCREW; COVER
BRIGHT RAD GRILLE<V22> (B) T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
29
1
1507-
133
SCREW; COVER
(A) T25 M5X12 TAPPING HEXALOBULAR
8-98081-722-0
06
1
1507-
140
SEAL; RAD GRILLE
8-98060-339-0
01
1
1507-
141
COVER; RAD GRILLE
(B)
8-98041-012-1
01
1
1507-
141
COVER; RAD GRILLE
(A)
8-98060-783-0
01
1
1507-
141
COVER; RAD GRILLE
(C)
8-98250-849-1
01
1
1507-
141
COVER; RAD GRILLE
(C)
8-98250-850-1
01
1
1507-
193
CLIP; SEAL
NATURAL
8-98027-457-0
13
1
1507-
