Isuzu WW
▶
TRUCKS
▶
FYH
▶
11354 - FYH(THAILAND)EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30 - GEAR SHIFTER AND QUADRANT BOX
▶
2-30 — GEAR SHIFTER AND QUADRANT BOX
(#16446) — 191 parça
◀
[230A] NO.6 (39 parça)
[230A] HOSE;AIR (17 parça)
[230A] NO.4 (41 parça)
[230A] CLIP AND COVER (2 parça)
[230A] NO.1 (16 parça)
[230A] NO.2 (20 parça)
[230A] SHIFT ARM AND SHIFT FORK PLATE (26 parça)
[230A] NO.5 (18 parça)
[230A] NO.3 (12 parça)
▶
195
191
171
172
541
393
500
363
361
359
358
355
357
356
355
354
52
347
352
345
345
52
398
411
497
395
396
392
360
394
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

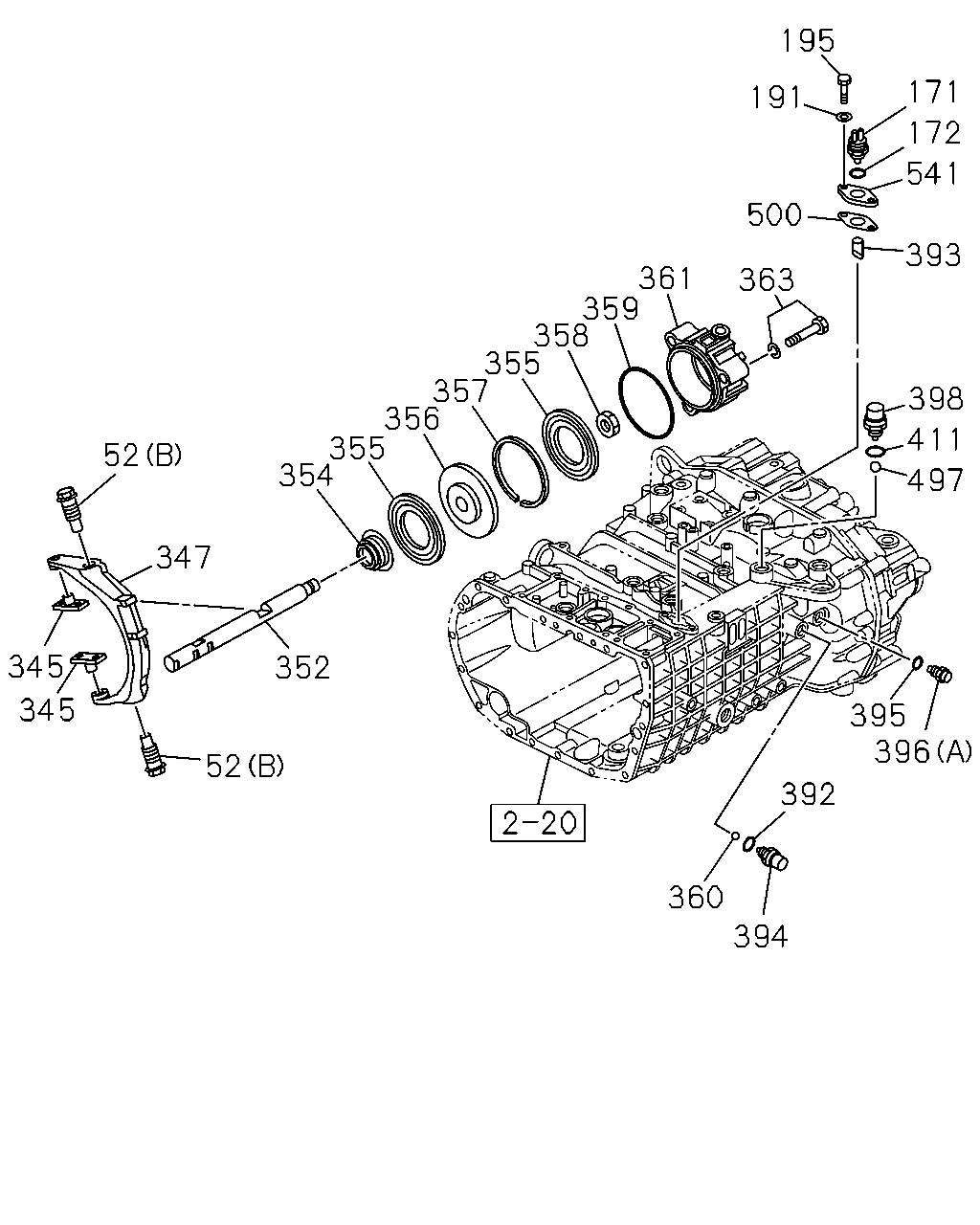

52
BOLT; SHIFT ARM
(A)
1-33519-084-0
07
1
1110-1301
52
BOLT; SHIFT ARM
(A) THA
1-33519-190-0
07
1
1302-
52
BOLT; SHIFT ARM
(B)
1-33519-187-0
02
1
1110-1301
52
BOLT; SHIFT ARM
(B) THA
1-33519-196-0
02
1
1302-
171
SWITCH; NEUTRAL
1-33119-587-0
01
1
1110-1301
171
SWITCH; NEUTRAL
THA
1-33119-627-0
01
1
1302-
172
GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-249-0
01
1
1110-
191
WASHER; LK
1-33549-577-0
02
1
1110-1301
191
WASHER; LK
THA
1-33549-583-0
02
1
1302-
195
BOLT
IMA
1-33119-593-0
02
1
1110-
345
BLOCK; SHIFT,RANGE CHANGE
1-33519-095-0
02
1
1110-
347
ARM; SHIFT,RANGE CHANGE
1-33511-529-0
01
1
1110-
352
ROD; SHIFT,RANGE CHANGE
1-33531-495-0
01
1
1110-1305
352
ROD; SHIFT,RANGE CHANGE
THA
1-33531-497-0
01
1
1302-
354
SEAL; AIR CYL
1-33519-045-0
01
1
1110-
355
CUP; PISTON,AIR CYL
1-33519-088-0
02
1
1110-1305
356
PISTON; AIR CYL
1-33519-087-0
01
1
1110-1301
356
PISTON; AIR CYL
THA
1-33519-197-0
01
1
1302-
357
RING; GUIDE,AIR CYL
1-33519-090-0
01
1
1110-1301
358
NUT; SHIFT ROD
1-33519-049-0
01
1
1110-1301
358
NUT; SHIFT ROD
THA
1-33519-188-0
01
1
1302-
359
GASKET; AIR CYL
1-33519-093-0
01
1
1110-
360
BALL; AIR CYL
1-33119-252-0
01
1
1110-
361
CYLINDER; AIR,SHIFT
1-33519-092-0
01
1
1110-
363
BOLT; AIR CYL
M10X70
1-33119-522-0
03
1
1110-1301
363
BOLT; AIR CYL
M10X70 THA
1-33119-616-0
03
1
1302-
392
GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-249-0
01
1
1110-
393
PIN; SW
1-33119-298-0
01
1
1110-
394
SWITCH; RANGE CHANGE
1-33119-587-0
01
1
1110-1301
394
SWITCH; RANGE CHANGE
THA
1-33119-627-0
01
1
1302-
395
GASKET; PLUNGER
1-33549-497-0
01
1
1110-
396
PLUNGER; SHIFT ROD
(B)
1-33529-085-0
02
1
1110-
396
PLUNGER; SHIFT ROD
(A)
1-33519-073-0
01
1
1110-1301
396
PLUNGER; SHIFT ROD
(A) THA
1-33519-189-0
01
1
1302-
398
SWITCH; REV LAMP
1-38119-062-0
01
1
1110-
411
GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-249-0
01
1
1110-
497
BALL; SWITCH
1-33119-252-0
01
1
1110-
500
GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-299-0
01
1
1110-
541
PLATE; SWITCH
1-33119-300-0
01
1
1110-
353
622
353
346
349
351
351
348
351
578
351
348
351
349
351
346
351
348
351
349
351
351
349
513
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

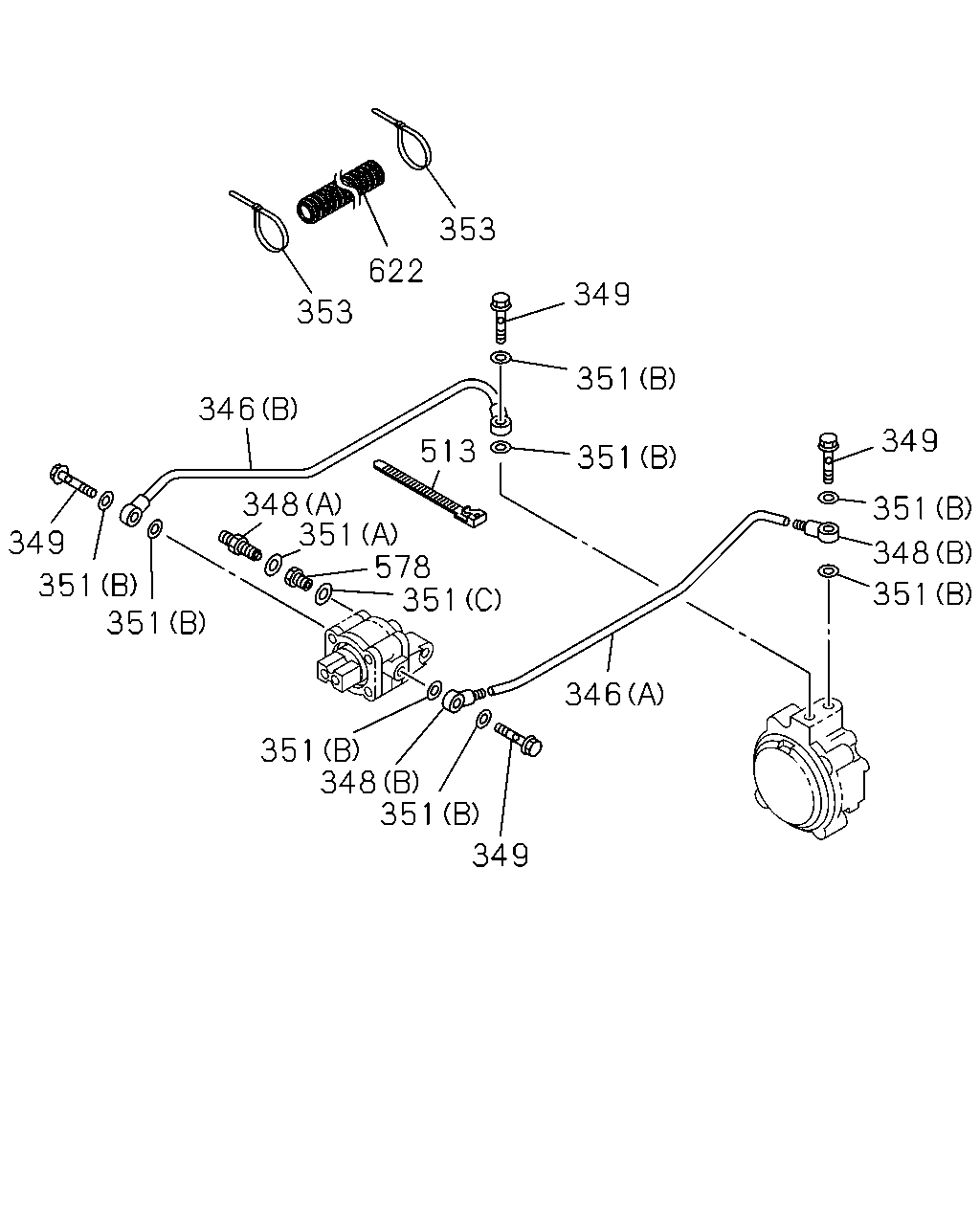

346
HOSE; AIR
(A)
1-33549-400-0
01
1
1110-1301
346
HOSE; AIR
(A) THA
1-33549-618-0
01
1
1302-
346
HOSE; AIR
(B)
1-33549-443-0
01
1
1110-1301
346
HOSE; AIR
(B) THA
1-33549-598-0
01
1
1302-
348
CONNECTOR; AIR HOSE
(B)
1-33549-139-0
02
1
1110-1301
348
CONNECTOR; AIR HOSE
(B) THA
1-33549-593-0
02
1
1302-
348
CONNECTOR; AIR HOSE
(A) M12 STRAIGHT
1-09654-246-0
01
1
1110-
349
BOLT; EYE,AIR HOSE
1-33549-573-0
04
1
1110-1305
349
BOLT; EYE,AIR HOSE
M14 THA
1-33549-592-0
04
1
1302-
351
GASKET; CONNECTOR
(C)
1-33549-554-0
01
1
1110-
351
GASKET; CONNECTOR
(B) THA
1-33549-578-0
08
1
1110-
351
GASKET; CONNECTOR
(A) ID=12.2
1-09630-084-0
01
1
1110-1312
351
GASKET; CONNECTOR
(A) ID=12.2
8-98251-344-0
01
1
1401-
353
CLIP; AIR HOSE
1-33549-530-0
02
1
1110-
513
CLIP; BAND
L=250 THA
5-09707-030-1
05
1
1110-
578
CONNECTOR
1-33549-553-0
01
1
1110-
622
TUBE; CORRUGATE
L=100 ID=22 L=350
1-83129-017-0
01
1
1110-
48
48
332
240
396
241
242
239
396
617
564
582
525
253
602
157
271
265
264
252
244
582
564
617
225
252
469
689
690
157
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

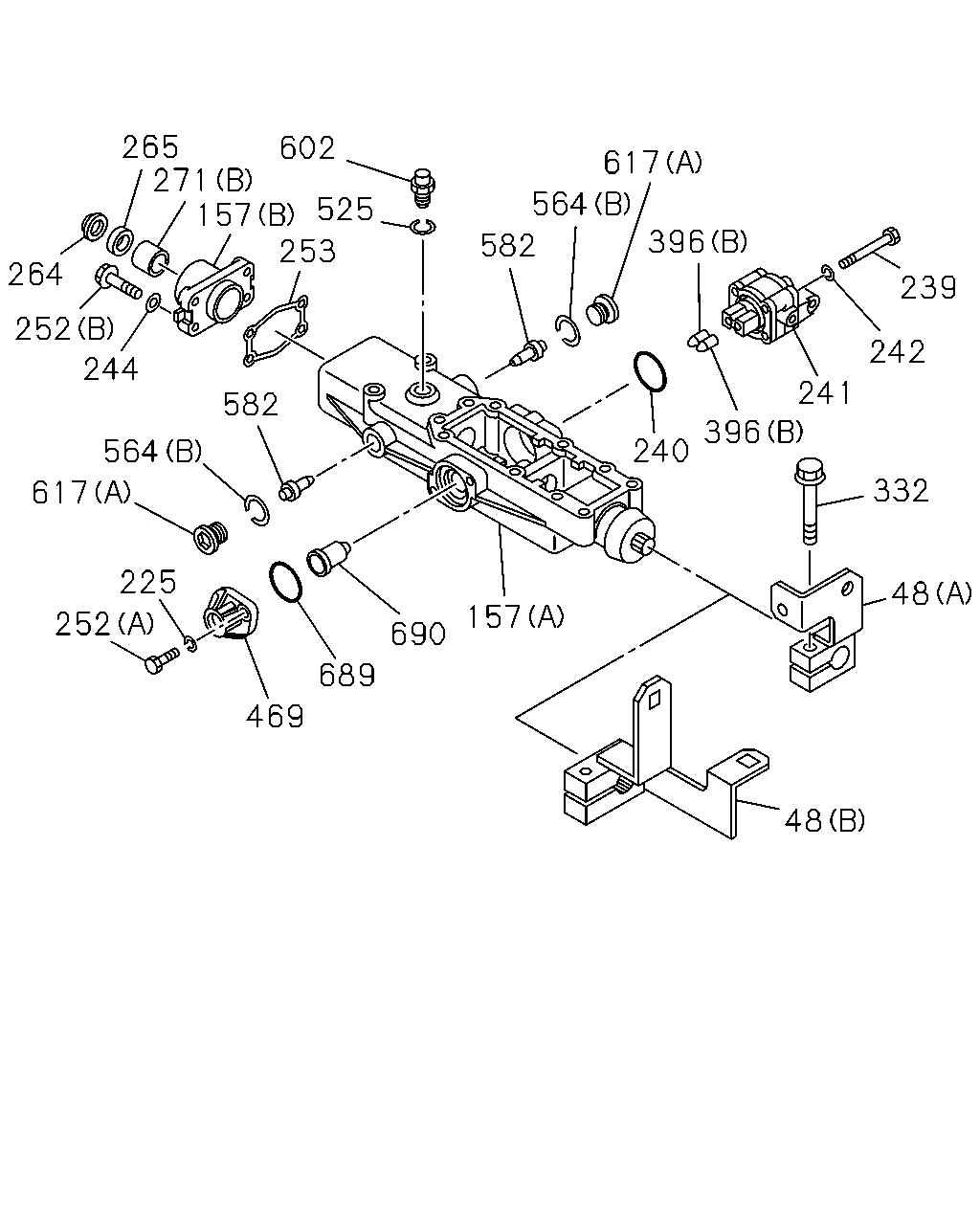

48
LEVER; 4TH,SHIFT
(A)
1-33651-661-1
01
1
1110-
48
LEVER; 4TH,SHIFT
(B)
8-98085-725-0
01
1
1110-
157
BOX; QUAD,TRANS
(A)
1-33549-570-0
01
1
1110-
157
BOX; QUAD,TRANS
(B)
1-33549-574-0
01
1
1110-1301
157
BOX; QUAD,TRANS
(A) THA
1-33549-604-0
01
1
1302-
225
WASHER; LK,QUAD BOX
1-33549-159-0
14
1
1110-1301
225
WASHER; LK,QUAD BOX
THA
1-33549-583-0
14
1
1302-
239
BOLT; CUT OFF VALVE
1-33549-302-0
04
1
1110-1301
239
BOLT; CUT OFF VALVE
THA
1-33549-585-0
04
1
1302-
240
GASKET; CUT OFF VALVE
1-33549-198-0
01
1
1110-
241
VALVE; CUT OFF
1-33549-495-0
01
1
1110-
242
WASHER; CUT OFF VALVE
1-33549-159-0
04
1
1110-1301
242
WASHER; CUT OFF VALVE
THA
1-33549-583-0
04
1
1302-
244
WASHER; LK,COVER
1-33549-159-0
04
1
1110-1301
244
WASHER; LK,COVER
THA
1-33549-583-0
04
1
1302-
252
BOLT; SIDE COVER
(B) M8X35
1-33119-271-0
04
1
1110-1301
252
BOLT; SIDE COVER
(B) M8X35 THA
1-33549-586-0
04
1
1302-
252
BOLT; SIDE COVER
(A) M8X30
1-33549-172-0
02
1
1110-1301
252
BOLT; SIDE COVER
(A) M8X30 THA
1-33549-581-0
02
1
1302-
253
GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T).
1-33544-054-0
01
1
1110-
264
SEAL; DUST,SHAFT
1-33549-327-0
01
1
1110-
265
SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T).
1-33549-328-0
01
1
1110-
271
BUSHING; QUAD BOX
(A)
1-33549-124-0
01
1
1110-
271
BUSHING; QUAD BOX
(B)
1-33549-537-0
01
1
1110-
332
BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE THA
0-28650-840-0
01
1
1110-
396
PLUNGER; SHIFT ROD
(B)
1-33529-085-0
02
1
1110-
396
PLUNGER; SHIFT ROD
(A)
1-33519-073-0
01
1
1110-1301
396
PLUNGER; SHIFT ROD
(A) THA
1-33519-189-0
01
1
1302-
469
COVER; SPRING,QUAD BOX
1-33549-216-0
01
1
1110-
525
RING; DETENT
1-33119-286-0
01
1
1110-
564
SEAL; RING
(B)
1-33119-249-0
02
1
1110-
564
SEAL; RING
(A) THA
1-33549-578-0
01
1
1110-
582
BOLT; SPRING GUIDE
1-33549-487-0
02
1
1110-
602
PLUNGER; DETENT
1-34539-113-0
01
1
1110-1301
602
PLUNGER; DETENT
THA
1-33119-618-0
01
1
1302-
617
PLUG
(A)
1-33119-171-0
02
1
1110-1301
617
PLUG
(A) THA
1-33119-619-0
02
1
1302-
617
PLUG
(B)
1-34129-061-0
01
1
1110-1301
617
PLUG
(B) THA
1-33539-109-0
01
1
1302-
689
GASKET; COVER
1-33542-063-0
01
1
1110-
690
PIN; STOP
1-33549-496-0
01
1
1110-
287
512
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

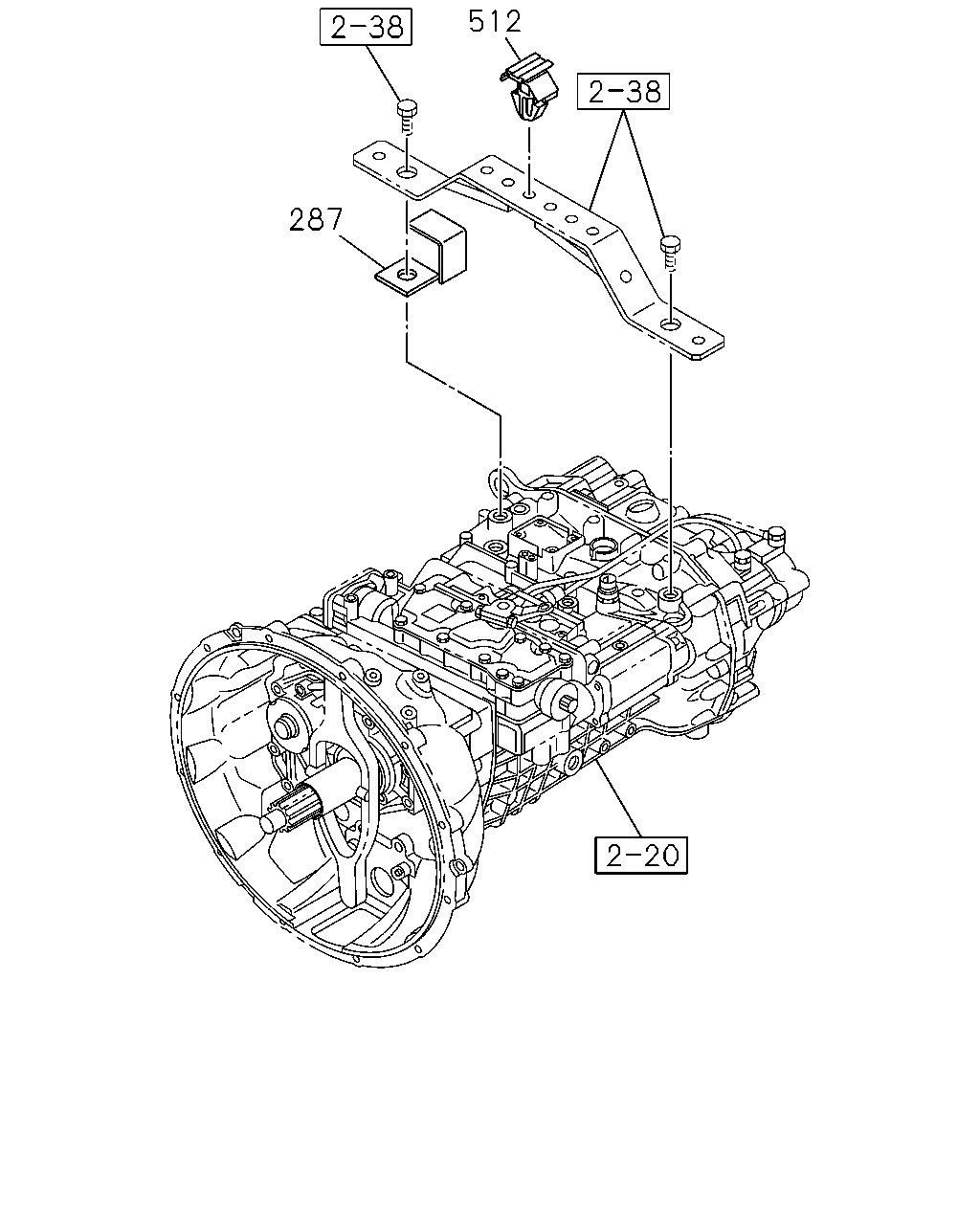

287
COVER; AIR BREATHER
1-34141-026-0
01
1
1110-
512
CLIP; PIPE
OD=9 H=6
1-09709-178-0
04
1
1110-
48
292
48
296
292
295
292
296
323
319
505
505
292
433
317
315
317
433
320
321
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

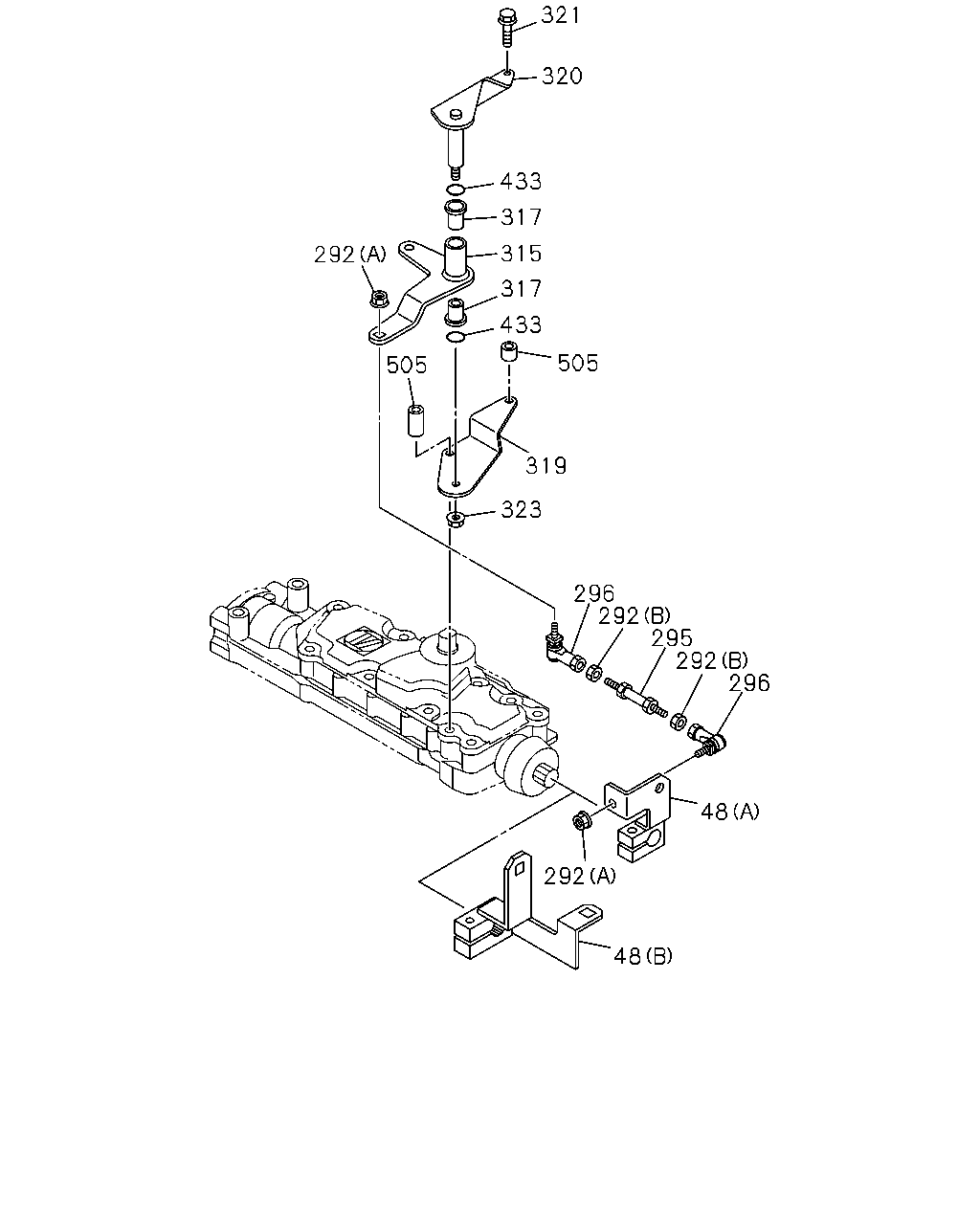

48
LEVER; 4TH,SHIFT
(A)
1-33651-661-1
01
1
1110-
48
LEVER; 4TH,SHIFT
(B)
8-98085-725-0
01
1
1110-
292
NUT; LINK ROD
(B) M8 THA
0-91111-508-0
02
1
1110-
292
NUT; LINK ROD
(A) M8 FLANGE
1-09440-062-1
02
1
1110-
295
ROD; LINK,RELAY LEVER
M8 L=50
9-08400-805-0
01
1
1110-
296
ROD END
L=45.5
1-09760-118-1
02
1
1110-
315
LEVER; SELECT
8-98061-898-0
01
1
1110-
317
BUSHING; LEVER
1-09330-119-0
02
1
1110-
319
BRACKET; SELECT LEVER
8-98065-843-0
01
1
1110-
320
SHAFT; LEVER
8-98065-840-0
01
1
1110-
321
BOLT; BRKT,RELAY LEVER
M8X110 FLANGE THA
0-28055-811-0
02
1
1110-
323
NUT; LK,SELECT LEVER
M10 FLANGE THA
0-91180-110-0
01
1
1110-
433
GASKET; BUSHING
1-09623-594-0
02
1
1110-
505
SPACER; BRKT
L=24.5
1-33659-186-1
01
1
1110-
505
SPACER; BRKT
ID=9 OD=18 T=5
9-14149-173-0
01
1
1110-
505
SPACER; BRKT
L=28
9-83625-376-0
01
1
1110-
272
524
142
225
42
256
157
688
148
274
225
142
225
142
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

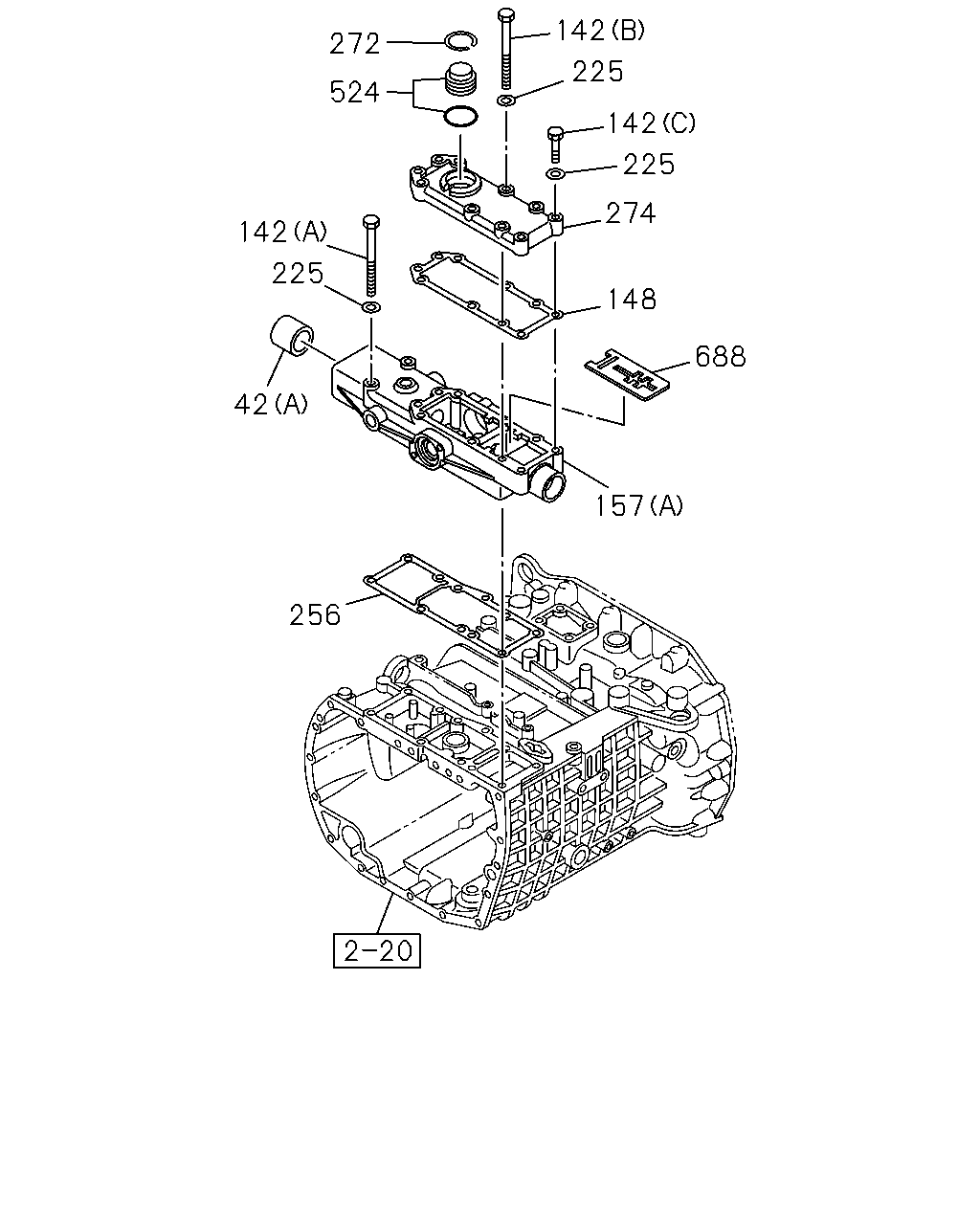

42
CAP; QUAD BOX
(A)
1-33549-538-0
01
1
1110-
42
CAP; QUAD BOX
(B)
1-33549-111-0
01
1
1110-1301
42
CAP; QUAD BOX
(B) THA
1-33549-589-0
01
1
1302-
142
BOLT; QUAD BOX
(A) M8X75
1-09089-015-0
02
1
1110-1301
142
BOLT; QUAD BOX
(A) M8X75 THA
1-33549-584-0
02
1
1302-
142
BOLT; QUAD BOX
(B)
1-33549-486-0
06
1
1110-1301
142
BOLT; QUAD BOX
(B) M8X100 THA
1-33549-582-0
06
1
1302-
142
BOLT; QUAD BOX
(C)
1-34129-116-0
04
1
1110-1301
142
BOLT; QUAD BOX
(C) M8X40 THA
1-33549-587-0
04
1
1302-
148
GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T).
1-33542-064-0
01
1
1110-
157
BOX; QUAD,TRANS
(A)
1-33549-570-0
01
1
1110-
157
BOX; QUAD,TRANS
(B)
1-33549-574-0
01
1
1110-1301
157
BOX; QUAD,TRANS
(A) THA
1-33549-604-0
01
1
1302-
225
WASHER; LK,QUAD BOX
1-33549-159-0
14
1
1110-1301
225
WASHER; LK,QUAD BOX
THA
1-33549-583-0
14
1
1302-
256
GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
1-33542-065-0
01
1
1110-
272
RING; SNAP,QUAD BOX
1-44519-217-0
01
1
1110-
274
COVER; SHAFT,QUAD BOX
THA
1-33549-579-0
01
1
1110-
524
DETENT; QUAD BOX
1-33549-501-0
01
1
1110-
688
SHIFT; INTERLOCK
1-33549-572-0
01
1
1110-

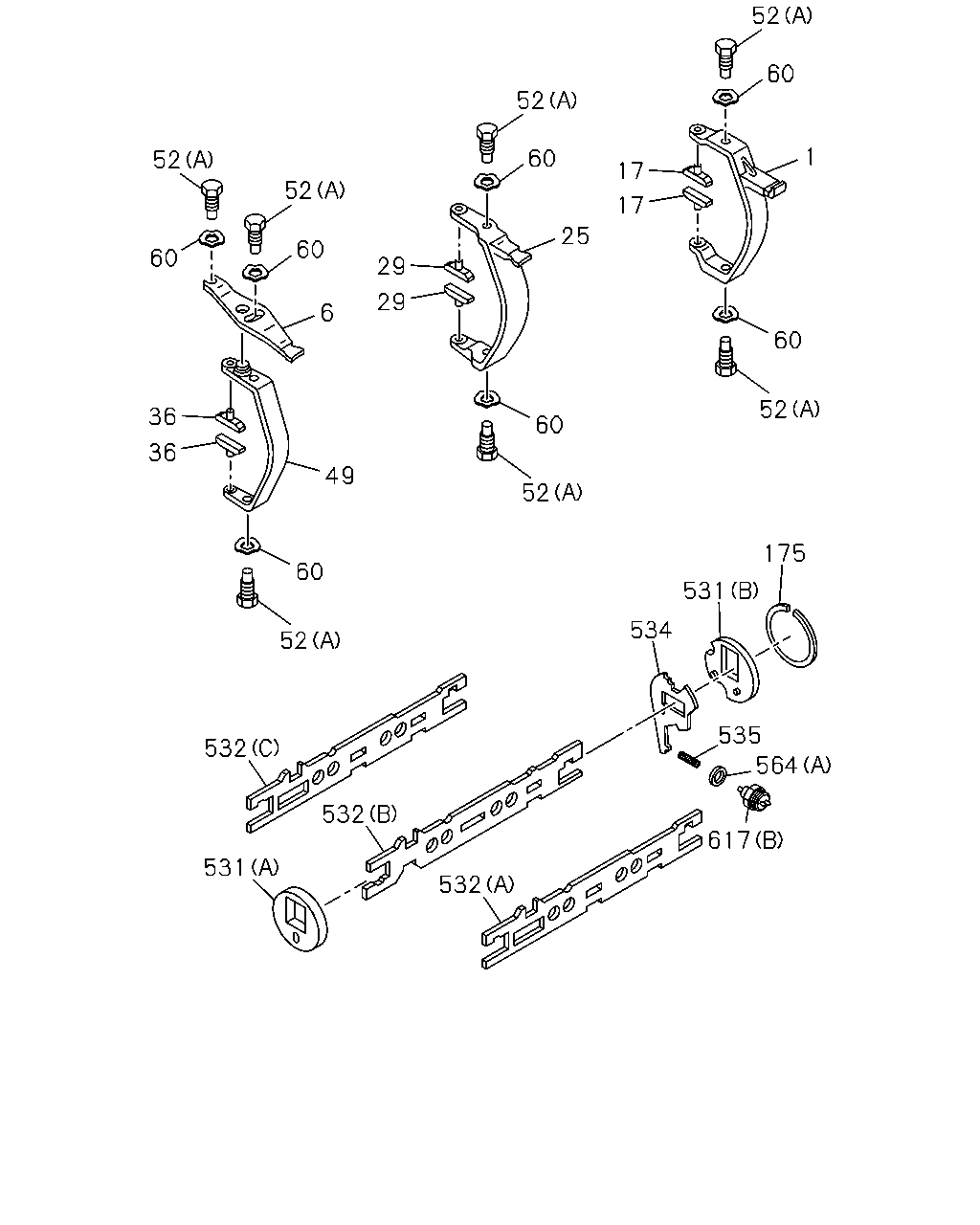

52
52
60
60
6
29
29
36
36
49
60
52
532
532
531
532
617
564
535
534
531
175
52
60
60
52
25
60
52
17
17
1
60
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; SHIFT,1ST & REV
1-33511-657-0
01
1
1110-
6
LEVER; RELAY
1-33511-658-0
01
1
1110-
17
BLOCK; SHIFT,1ST & REV
1-33519-172-0
02
1
1110-
25
ARM; SHIFT,2ND & 3RD
1-33511-642-0
01
1
1110-
29
BLOCK; SHIFT,2ND & 3RD
1-33519-081-0
02
1
1110-
36
BLOCK; SHIFT,4TH & 5TH
1-33519-170-0
02
1
1110-
49
ARM; SHIFT,4TH & 5TH
1-33511-640-0
01
1
1110-
52
BOLT; SHIFT ARM
(A)
1-33519-084-0
07
1
1110-1301
52
BOLT; SHIFT ARM
(A) THA
1-33519-190-0
07
1
1302-
52
BOLT; SHIFT ARM
(B)
1-33519-187-0
02
1
1110-1301
52
BOLT; SHIFT ARM
(B) THA
1-33519-196-0
02
1
1302-
60
WASHER; LK
1-33519-085-0
07
1
1110-1301
175
RING; STOPPER,SHIFT LEVER
1-33539-103-0
01
1
1110-
531
PLATE; BEARING
(A)
1-33539-044-0
01
1
1110-
531
PLATE; BEARING
(B)
1-33539-047-0
01
1
1110-
532
PLATE; SHIFT FORK
(A)
1-33531-492-0
01
1
1110-
532
PLATE; SHIFT FORK
(B)
1-33531-493-0
01
1
1110-
532
PLATE; SHIFT FORK
(C)
1-33531-494-0
01
1
1110-
534
LEVER; LOCK,SHIFT PLATE
1-33539-087-0
01
1
1110-
535
SPRING; LEVER
1-33539-049-0
01
1
1110-
564
SEAL; RING
(B)
1-33119-249-0
02
1
1110-
564
SEAL; RING
(A) THA
1-33549-578-0
01
1
1110-
617
PLUG
(A)
1-33119-171-0
02
1
1110-1301
617
PLUG
(A) THA
1-33119-619-0
02
1
1302-
617
PLUG
(B)
1-34129-061-0
01
1
1110-1301
617
PLUG
(B) THA
1-33539-109-0
01
1
1302-

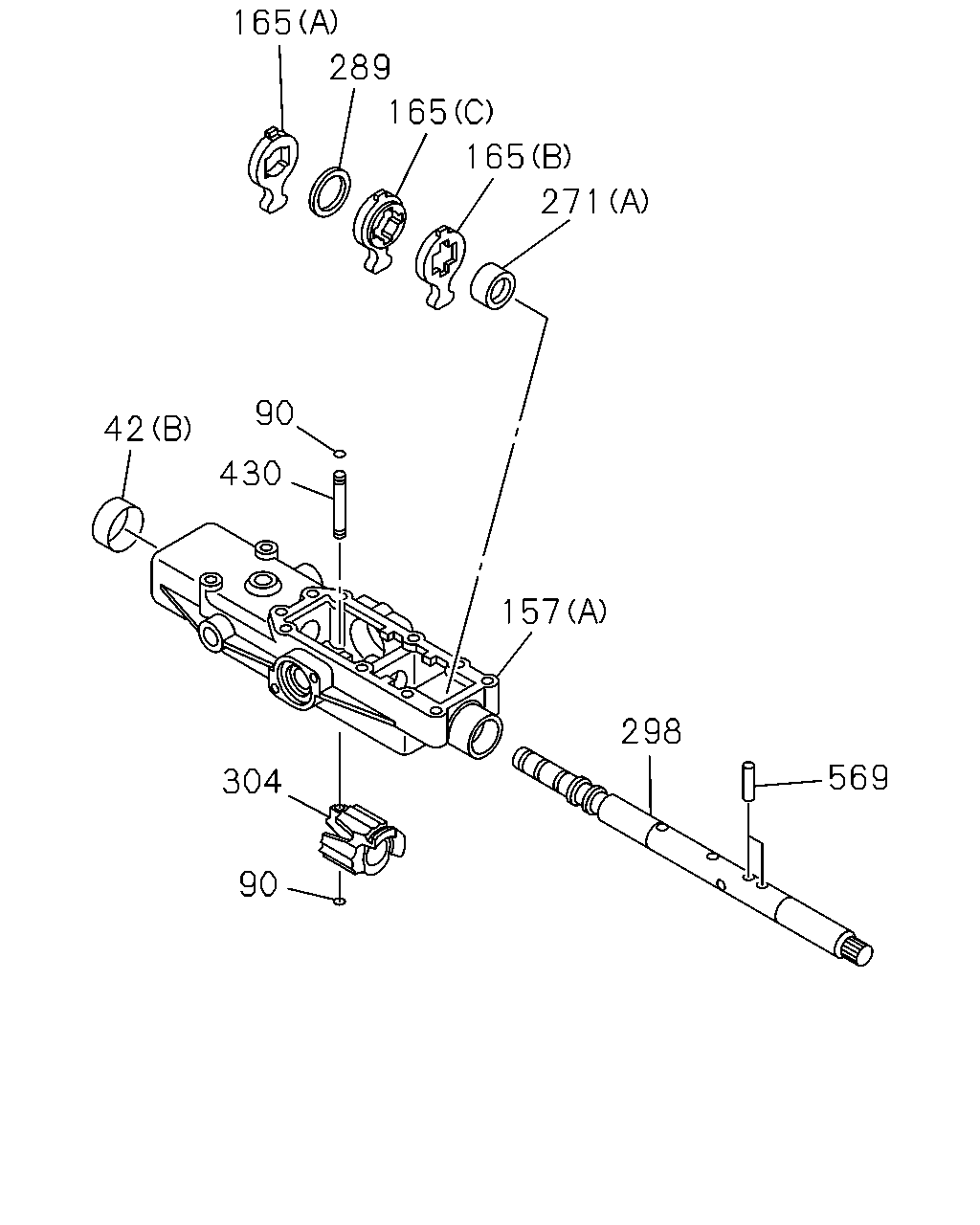

165
289
165
165
271
42
90
430
157
298
569
304
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
CAP; QUAD BOX
(A)
1-33549-538-0
01
1
1110-
42
CAP; QUAD BOX
(B)
1-33549-111-0
01
1
1110-1301
42
CAP; QUAD BOX
(B) THA
1-33549-589-0
01
1
1302-
90
RING; SNAP,SHIFT ROD
1-33549-494-0
02
1
1110-
157
BOX; QUAD,TRANS
(A)
1-33549-570-0
01
1
1110-
157
BOX; QUAD,TRANS
(B)
1-33549-574-0
01
1
1110-1301
157
BOX; QUAD,TRANS
(A) THA
1-33549-604-0
01
1
1302-
165
LEVER; SHIFT
(B)
1-33549-488-0
01
1
1110-
165
LEVER; SHIFT
(C)
1-33549-489-0
01
1
1110-
165
LEVER; SHIFT
(A)
1-33549-490-0
01
1
1110-1301
165
LEVER; SHIFT
(A) THA
1-33549-603-0
01
1
1302-
271
BUSHING; QUAD BOX
(A)
1-33549-124-0
01
1
1110-
271
BUSHING; QUAD BOX
(B)
1-33549-537-0
01
1
1110-
289
SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T).
1-33549-491-0
01
1
1110-
298
SHAFT; SHIFT LEVER
1-33522-211-0
01
1
1110-
304
BLOCK; SHIFT SHAFT
1-33549-492-0
01
1
1110-
430
PIN; SPR,SHIFT ROD
1-33549-493-0
01
1
1110-
569
PIN; QUADRANT BOX
1-33529-128-0
02
1
1110-

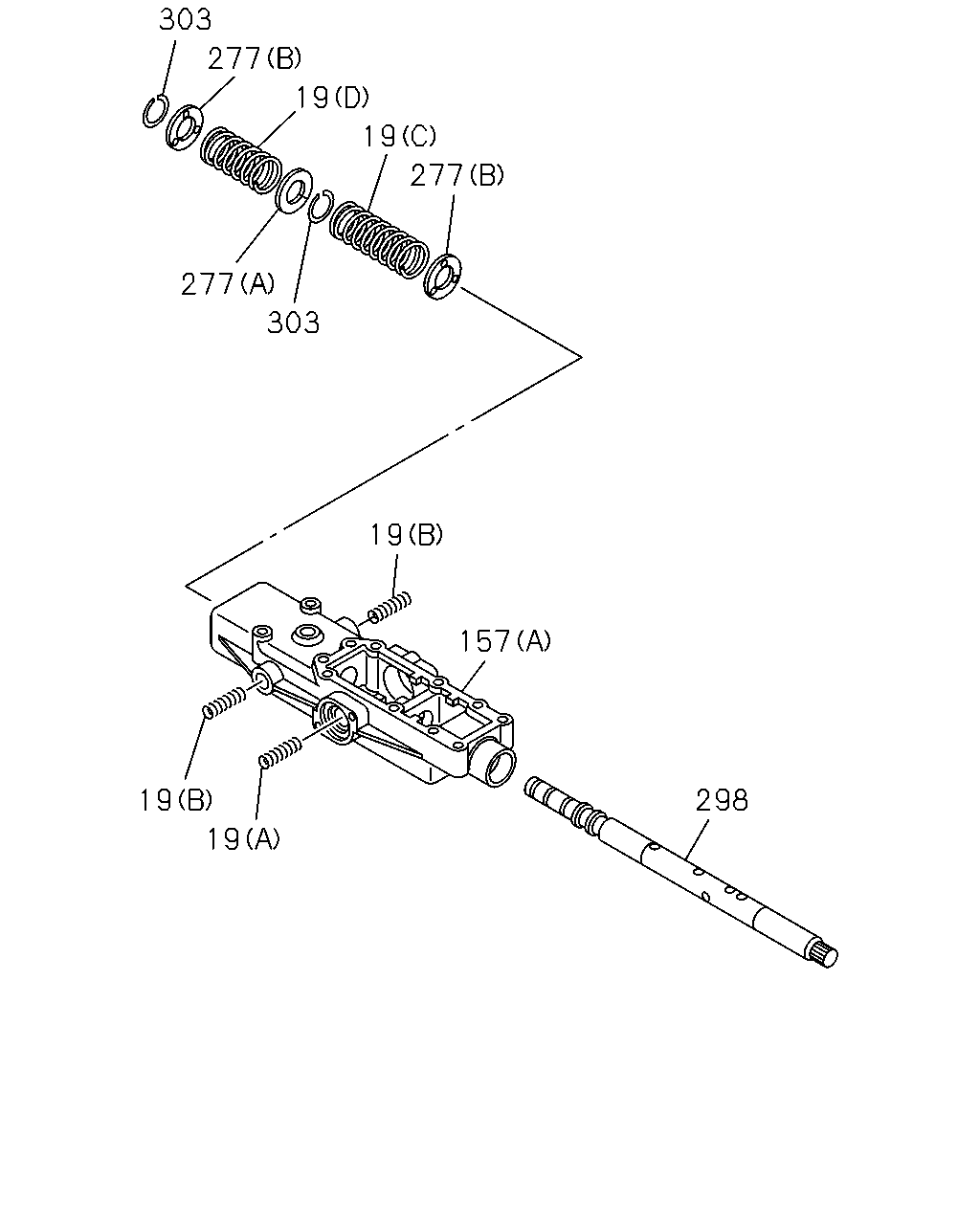

303
277
19
19
277
277
303
19
157
298
19
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
SPRING; COIL COMP
(D)
1-33539-028-0
01
1
1110-
19
SPRING; COIL COMP
(B)
1-33539-030-0
02
1
1110-
19
SPRING; COIL COMP
(C)
1-33539-092-0
01
1
1110-
19
SPRING; COIL COMP
(A)
1-33549-221-0
01
1
1110-
157
BOX; QUAD,TRANS
(A)
1-33549-570-0
01
1
1110-
157
BOX; QUAD,TRANS
(B)
1-33549-574-0
01
1
1110-1301
157
BOX; QUAD,TRANS
(A) THA
1-33549-604-0
01
1
1302-
277
PLATE; SPRING SEAT
(A)
1-33539-042-0
01
1
1110-1301
277
PLATE; SPRING SEAT
(B)
1-33539-039-0
02
1
1110-1301
277
PLATE; SPRING SEAT
(B) THA
1-33539-107-0
02
1
1302-
298
SHAFT; SHIFT LEVER
1-33522-211-0
01
1
1110-
303
RING; SNAP,SHAFT
1-33539-040-0
02
1
1110-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
