5-01 — FRAME AND OTHER PARTS (#164458) — 55 parça

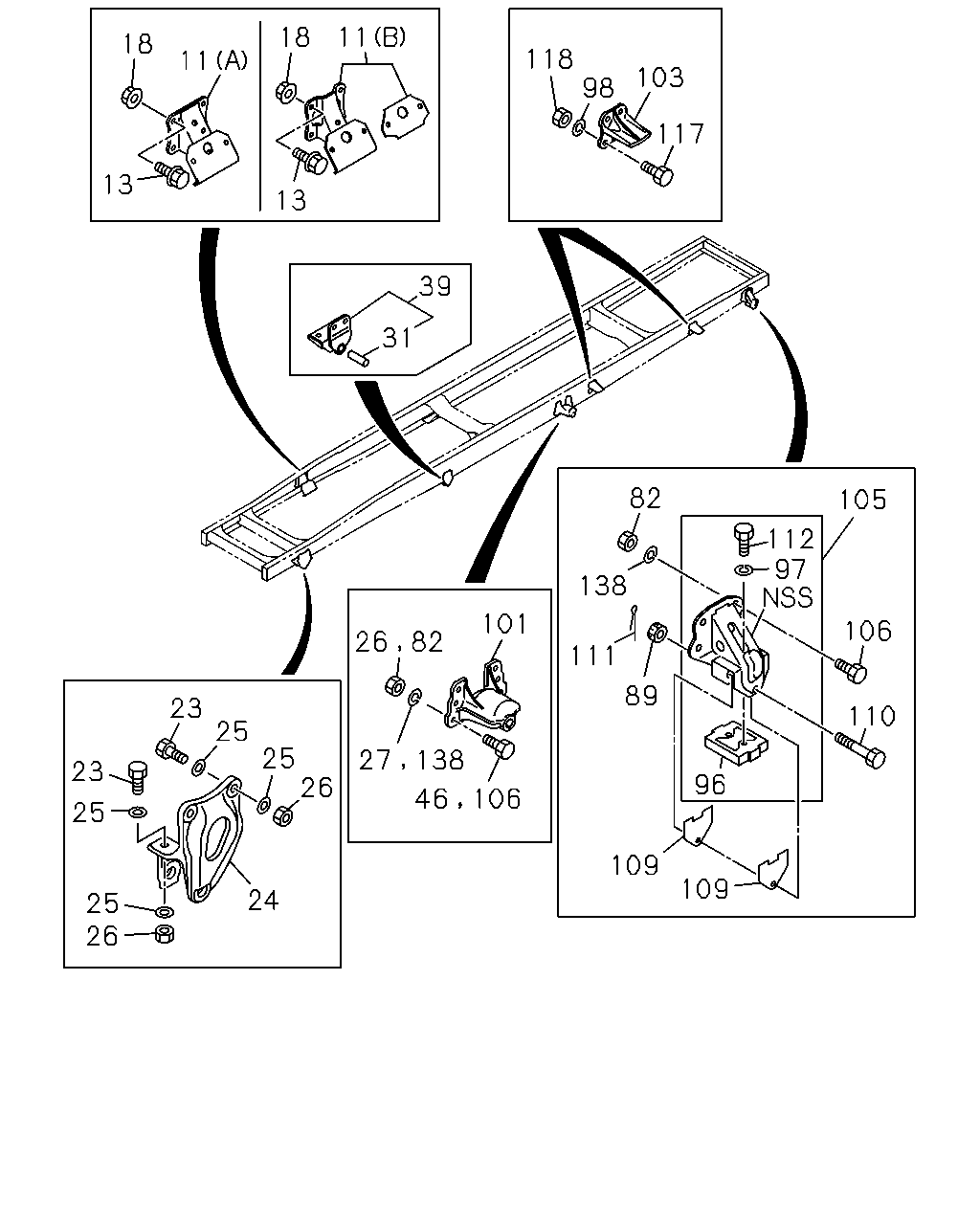

çizim 485023
18 11 13 18 11 13 118 98 103 117 39 31 101 106 46 27 138 26 82 23 25 25 26 24 26 25 25 23 82 138 111 89 96 109 109 110 106 105 112 97
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG
(A) 		8-97639-363-0 01 1 1507- ● ● ● ●
11 BRACKET; ENG MTG
(B) 		8-98308-041-0 01 1 1507- ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1507- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1507- ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1507- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98254-442-0 01 1 1507- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98254-443-0 01 1 1507- ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1507- ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 12 1 1507- ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 1507- ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 04 1 1507- ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1507- ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1507- ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 04 1 1507- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 02 1 1507- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 06 1 1507- ●
89 NUT; LEAF SPR STOPPER
M12 		0-91116-512-0 02 1 1507- ● ● ● ●
96 PAD; RR SPR 1-53359-051-2 02 1 1507- ●
97 WASHER; LK,PAD
ID=14.2 		0-91510-514-0 04 1 1507- ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1507- ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1507- ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1507- ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-072-0 02 1 1507- ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 02 1 1507- ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 06 1 1507- ●
109 SHIM; RR SPR 1-53359-043-1 04 1 1507- ● ● ● ●
110 BOLT; LEAF SPR STOPPER
M12X121 		8-98010-414-0 02 1 1507- ● ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		0-81123-028-0 02 1 1507- ● ● ● ●
112 BOLT; PAD
M14X25 		0-20851-425-0 04 1 1507- ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1507- ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1507- ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 02 1 1507- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 06 1 1507- ●

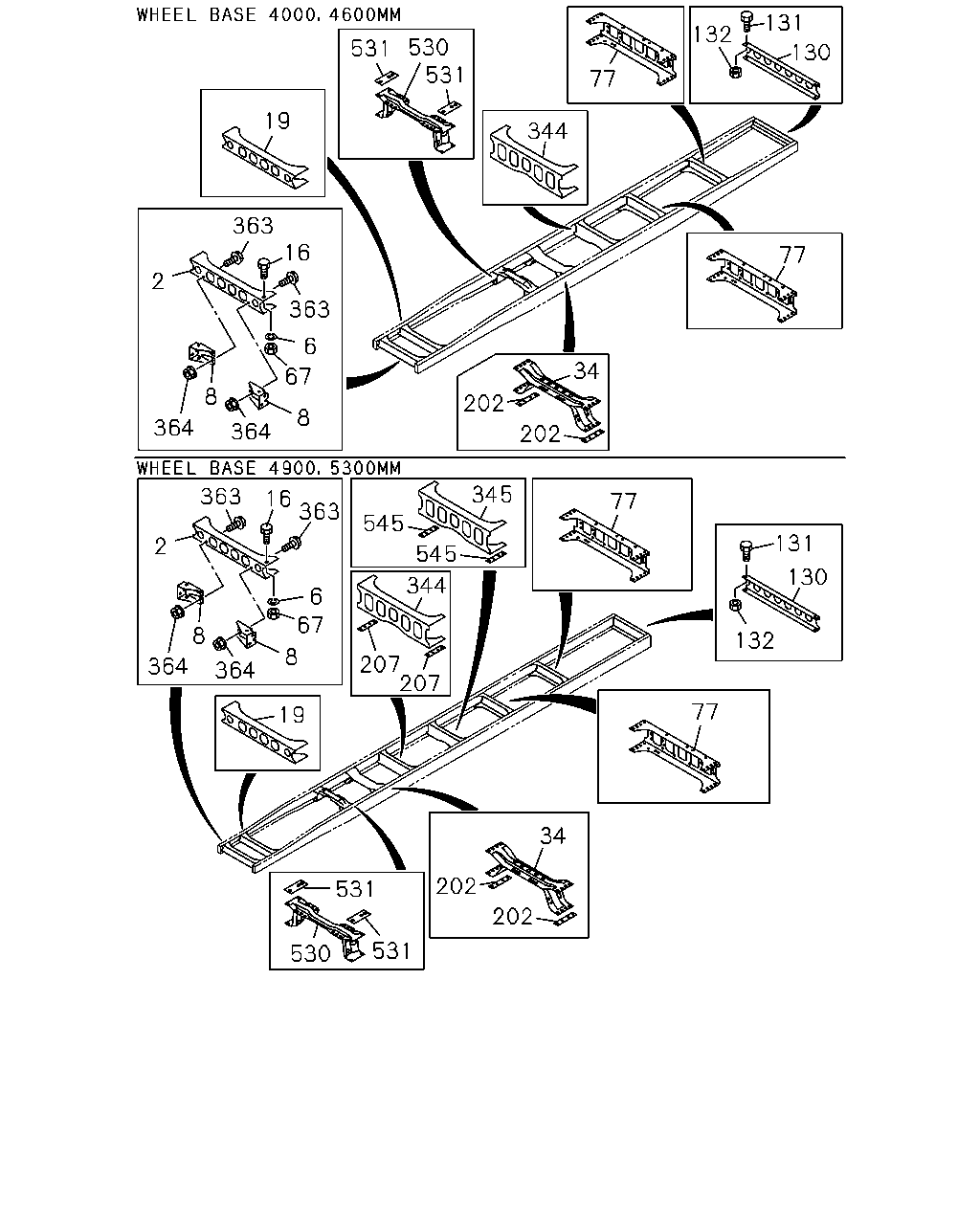

çizim 485394
131 130 132 77 344 531 530 531 19 363 363 6 67 8 364 364 2 34 202 202 77 363 16 363 6 67 8 364 364 2 345 545 545 344 207 207 19 531 531 530 34 202 202 77 77 131 130 132 16 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97609-462-9 01 1 1507- ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 1507- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-2 01 1 1507- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-3 01 1 1507- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 1507- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97609-463-9 01 1 1507- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1507- ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1507- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97610-935-1 02 1 1507- ● ● ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1507- ● ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1507- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1507- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1507- ● ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1507- ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1507- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1507- ● ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1507- ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1507- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1507- ● ● ● ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1507- ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1507- ● ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 1507- ●
