◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11629 - FRR RHD EUROPE EURO6 SPACECAB EVSC ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#164454) — 15 parça

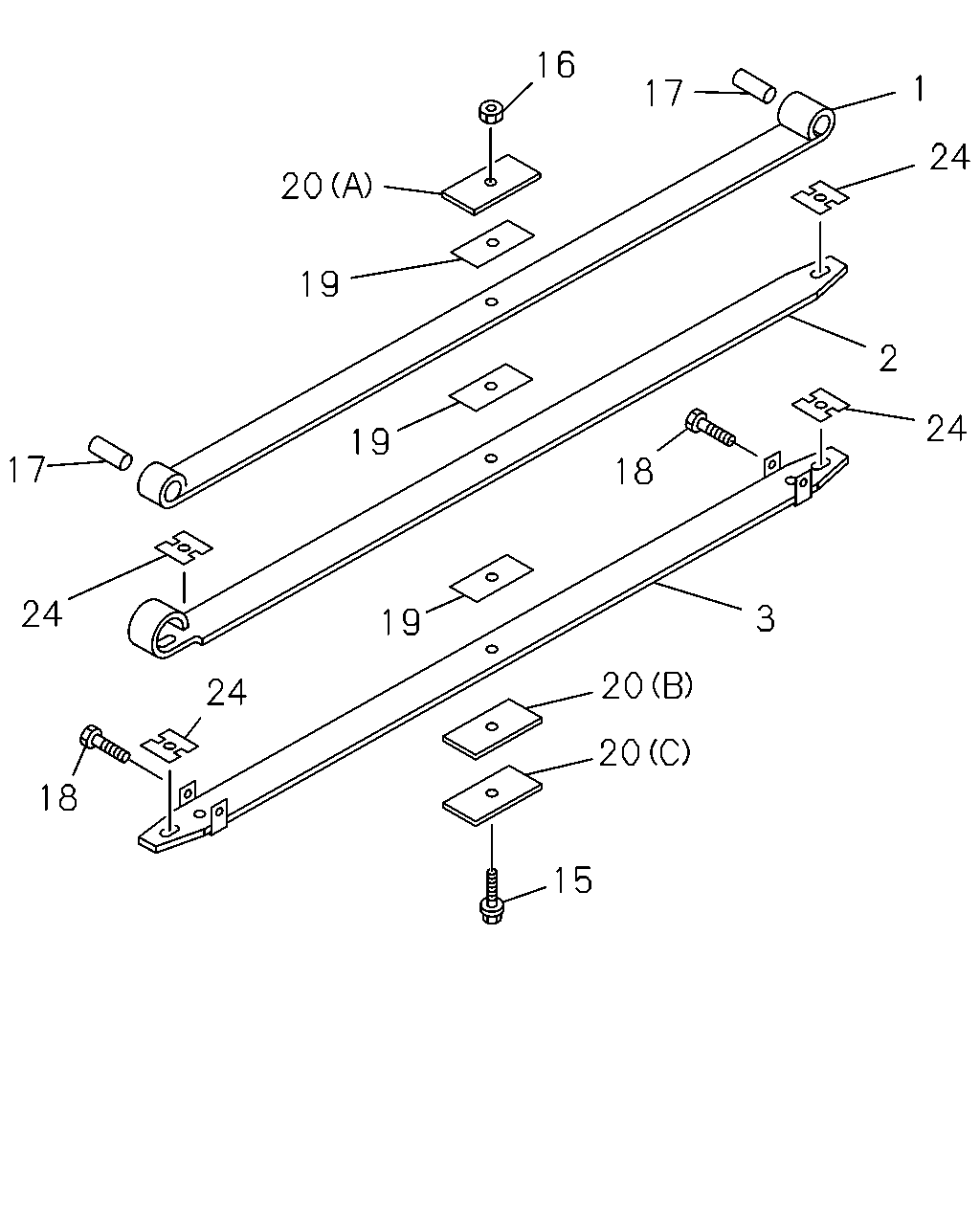

çizim 484872
15 20 20 3 24 2 24 1 18 19 24 18 24 17 19 19 20 16 17
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98311-433-0 		8-98283-498-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98311-434-0 		8-98283-501-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98311-433-0 		8-98283-499-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98311-434-0 		8-98283-502-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98311-433-0 		8-98311-480-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98311-434-0 		8-98311-481-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: A = 8-98311-433-0, B = 8-98311-434-0 		8-98283-496-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M12 ASM PART: A = 8-98311-433-0, B = 8-98311-434-0 		9-99110-512-0 01 1 -
17 BUSHING; LEAF SPR,FRT
ID=25 ASM PART: A = 8-98311-433-0, B = 8-98311-434-0 		9-51151-032-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M8X93.5 ASM PART: A = 8-98311-433-0, B = 8-98311-434-0 		8-94407-134-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98311-433-0, B = 8-98311-434-0 		1-51177-287-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: A = 8-98311-433-0, B = 8-98311-434-0 		1-51177-285-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=9 ASM PART: A = 8-98311-433-0, B = 8-98311-434-0 		1-51377-394-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: A = 8-98311-433-0, B = 8-98311-434-0 		8-98124-862-0 01 1 -
24 LINER; LEAF SPR,FWD FRT
ASM PART: A = 8-98311-433-0, B = 8-98311-434-0 		1-51159-025-0 04 1 -
