◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11629 - FRR RHD EUROPE EURO6 SPACECAB EVSC ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#164451) — 57 parça

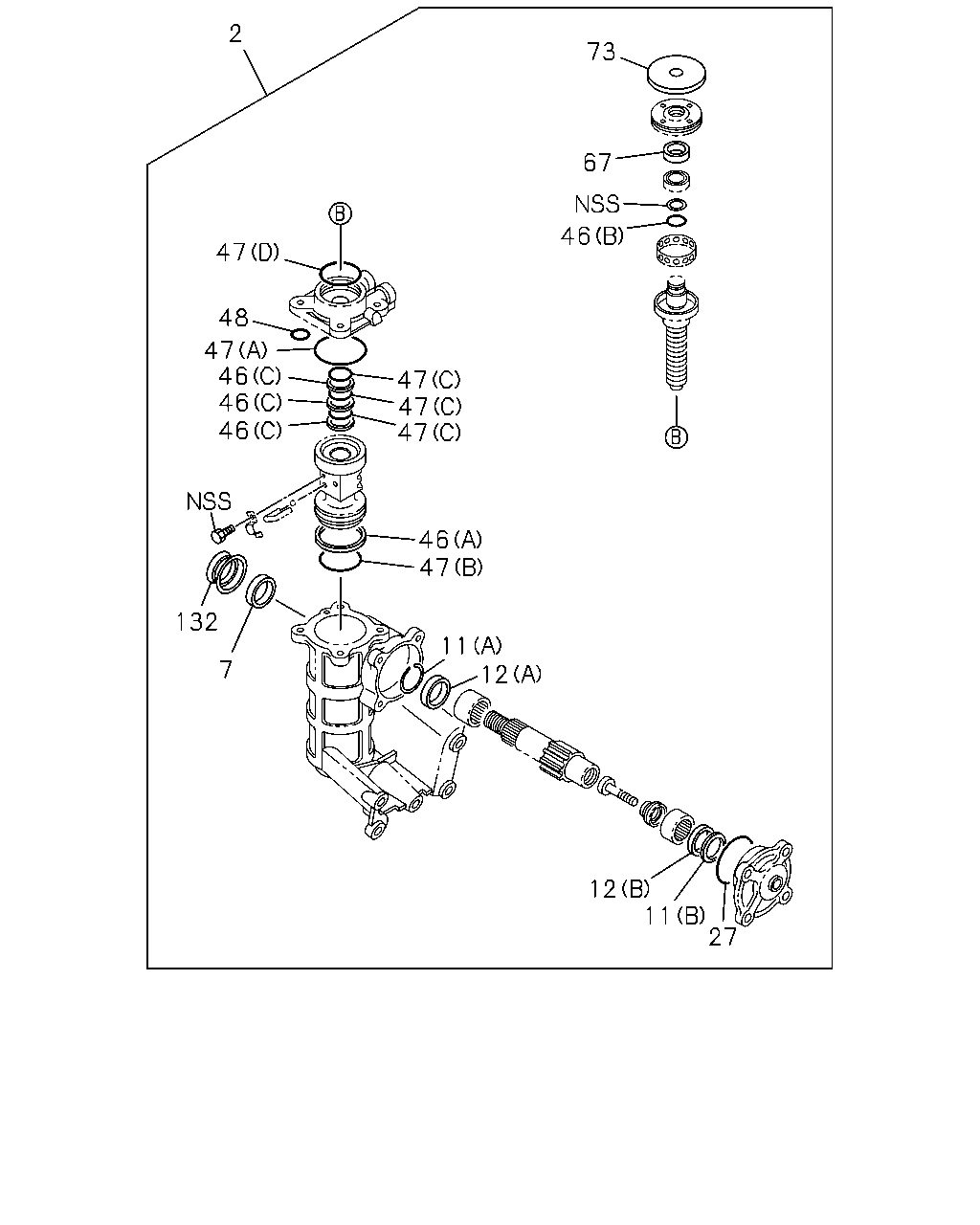

çizim 484668
2 47 48 47 46 46 46 132 7 11 12 47 47 47 46 47 67 73 46 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 1-44000-951-1 		1-85574-090-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-157-1 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-162-1 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-303-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44159-119-0 01 1 -

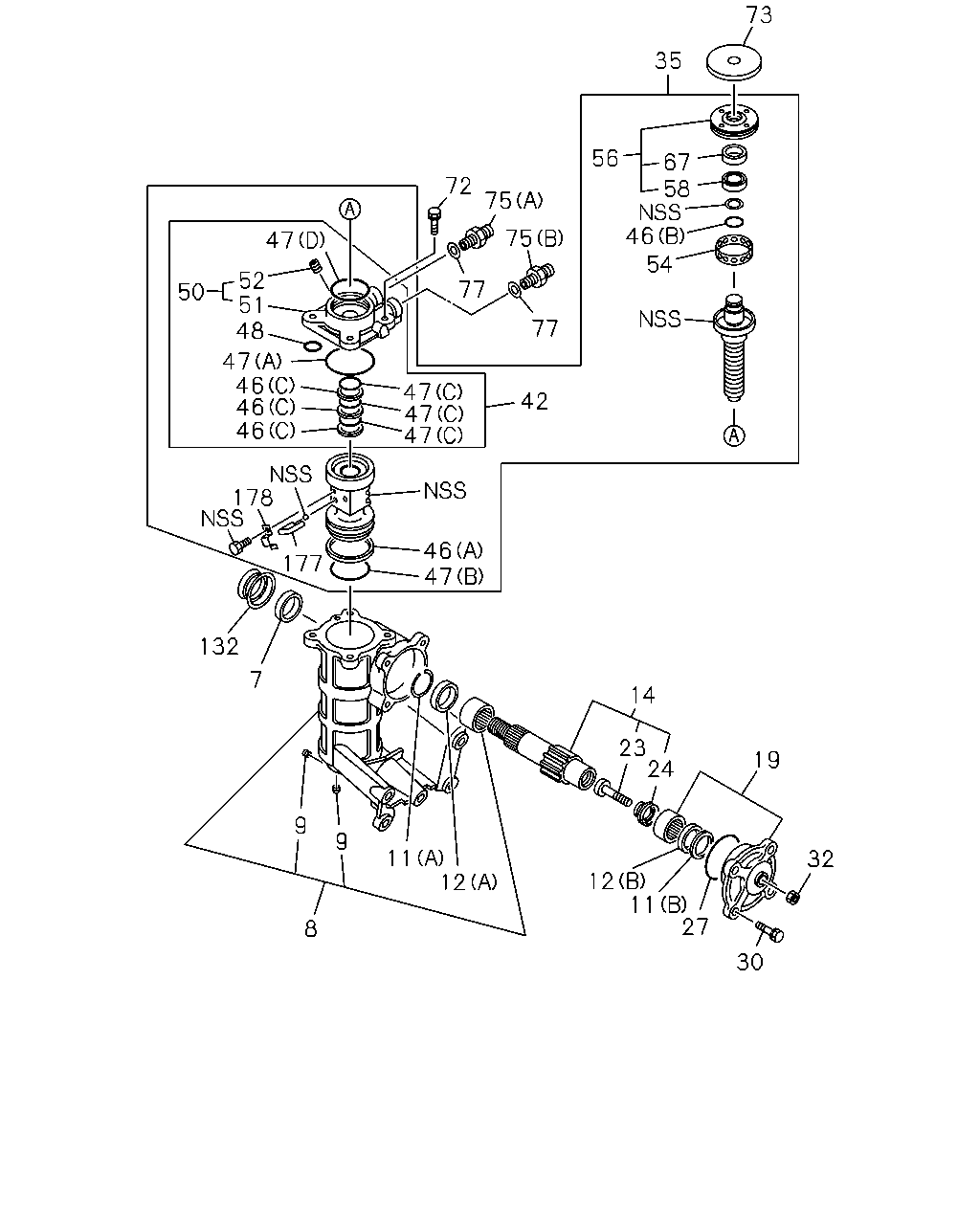

çizim 484987
73 35 56 46 58 67 54 77 77 75 75 72 47 52 50 47 48 51 47 47 47 46 46 46 178 177 46 47 132 7 8 9 9 11 12 12 11 27 30 19 32 14 23 24 42
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44240-157-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-162-1 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44320-012-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44260-027-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: A = 1-44000-951-1 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-951-1 		8-98095-566-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44560-069-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44560-068-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44561-017-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-303-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-951-1 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-951-1 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-951-1 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44159-119-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44159-060-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44159-064-0 01 1 -
