3-78 — FIXING PARTS; AIR PIPING
(#164440) — 23 parça
◀

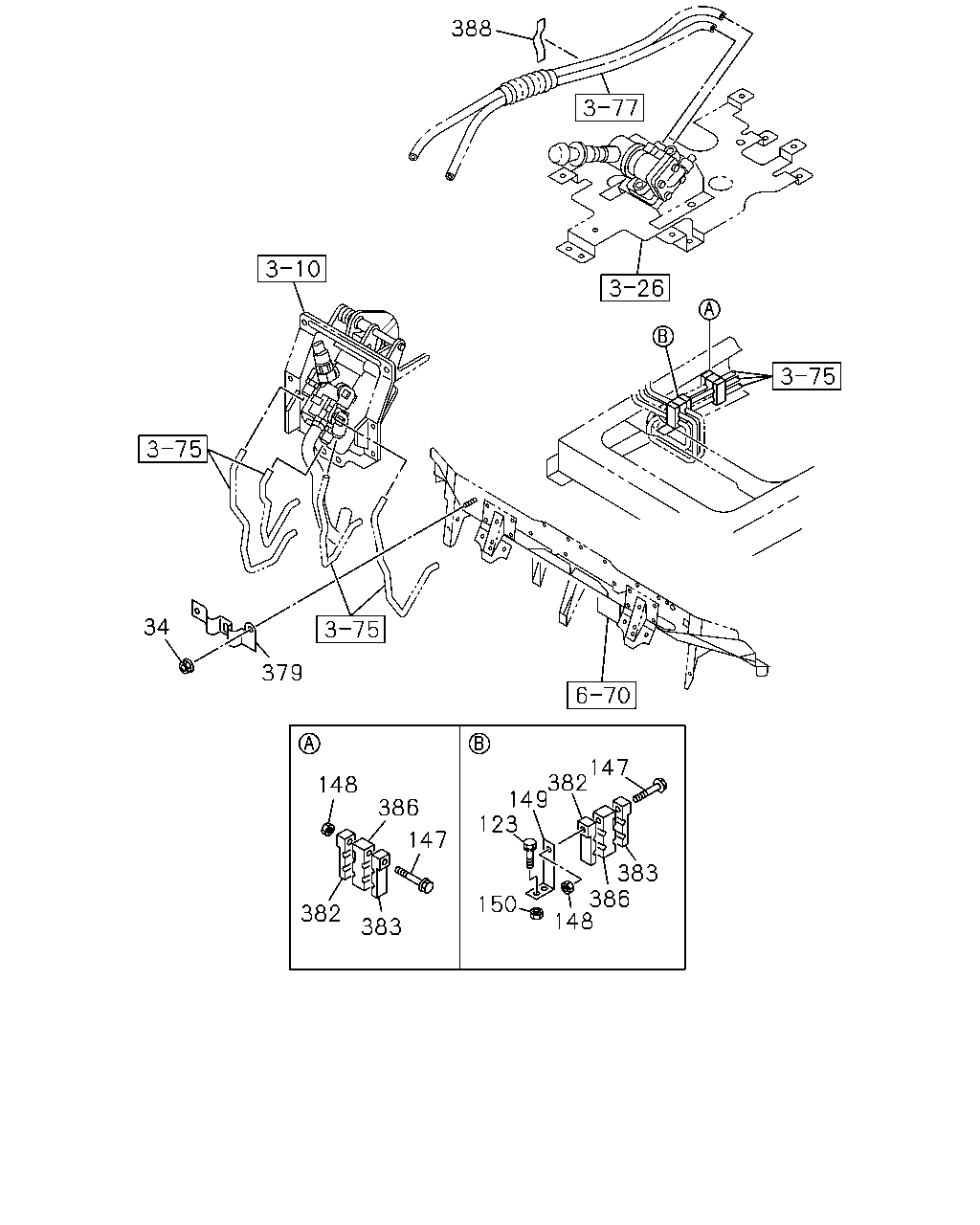

[378A] NO.1 (11 parça)

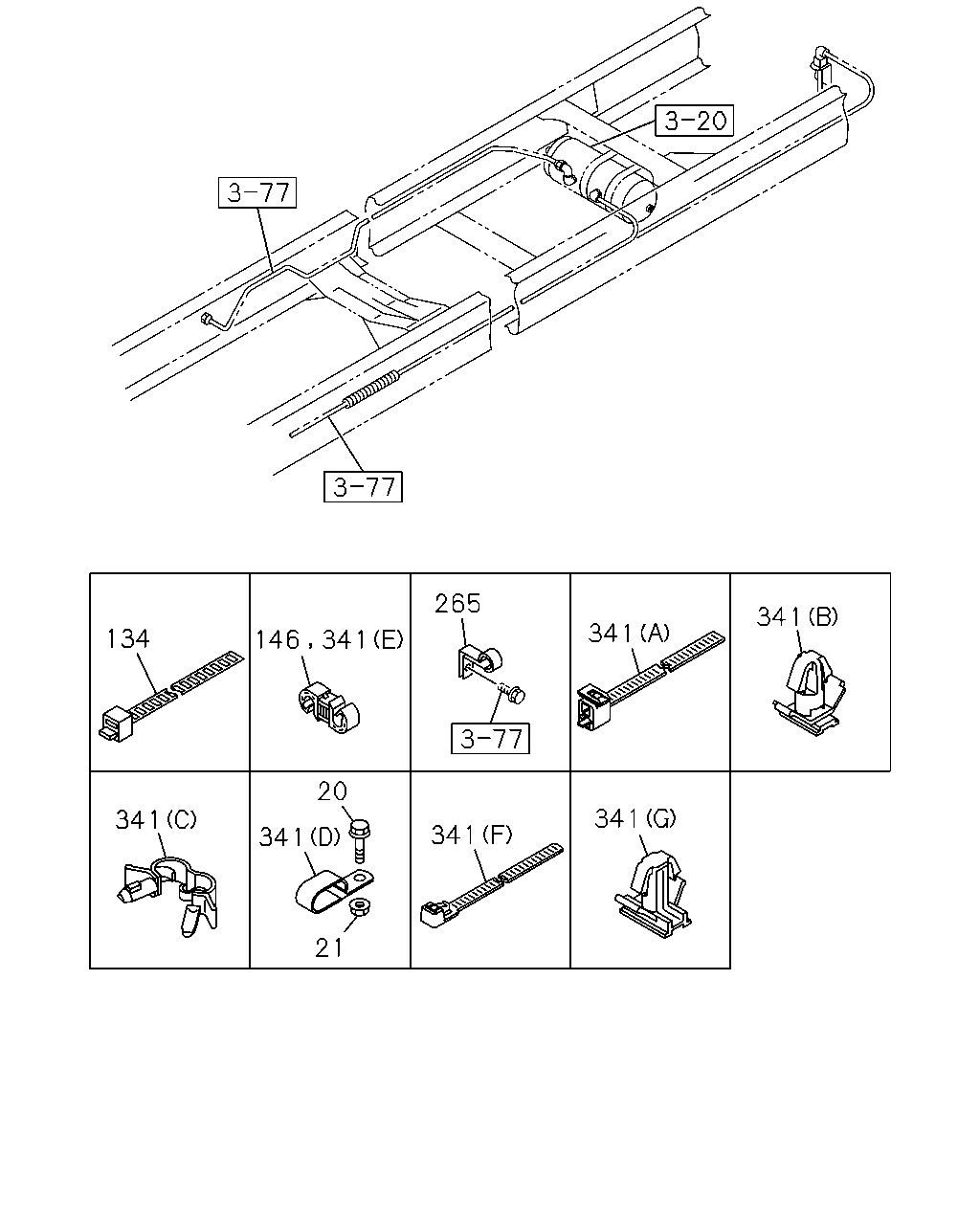

[378A] NO.2 (12 parça)
▶
148
383
382
148
386
147
150
123
383
386
147
382
149
388
379
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
1507-
123
BOLT; PIPE CLIP
M8X25 FLANGE
0-28650-825-0
02
1
1507-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
03
1
1507-
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
03
1
1507-
149
BRACKET; PIPE CLIP
8-98296-534-0
01
1
1507-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
02
1
1507-
379
BRACKET; NYLON TUBE
8-98044-013-0
01
1
1507-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
03
1
1507-
383
CLIP; LWR
ID=10 & 10
1-09709-241-0
03
1
1507-
386
CLIP; CENTER
ID=10
1-09709-242-0
03
1
1507-
388
SEAL
100X40
1-72498-022-1
03
1
1507-
341
341
21
341
341
20
341
341
265
341
146
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
BOLT; CLIP
M10X30 FLANGE
0-28651-030-0
01
1
1507-
21
NUT; CLIP
M10 FLANGE
0-91180-210-0
01
1
1507-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1507-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
1507-
265
CLIP; NYLON TUBE
ID=21 H=25.5 L=26
8-94176-806-0
01
1
1507-
341
CLIP; HARNESS
(A) L=180
1-09707-162-1
01
1
1507-
341
CLIP; HARNESS
(B) OD=9 H=6
1-09709-178-0
02
1
1507-
341
CLIP; HARNESS
(E) ID=10 & 10
1-09709-277-1
01
1
1507-
341
CLIP; HARNESS
(C) ID=5-12 L=14.5
1-09987-221-0
01
1
1507-
341
CLIP; HARNESS
(D) ID=17.5X2 L=25
5-09700-358-0
01
1
1507-
341
CLIP; HARNESS
(F) L=250
5-09707-030-1
03
1
1507-
341
CLIP; HARNESS
(G) OD=8.95 H=6.25
8-97375-754-0
01
1
1507-
